Press Brake

Lotze PZ 125

Condition: excellent (used), Year of construction: 1998, pressing force: 125 t, Hydraulic press brake Fab. EHT Typ. VARIOPRESS 125-3550 Year 1998 Technical data Make: EHT Type: Variopress 125-3550 Year of construction: 1998 Capacity: 125 t Effective length: 3550 mm Machine column: 2550 mm Projection: 300 mm Stroke: 240 mm Installation height: 640 mm Oil volume 250 L Fodpfx Aor Epr Uec Hegi Dimensions: approx. L 3.90 x W 1.80 x H 3.00 m Weight: approx. 12 t Equipment - Control system: Cybelec DNC 80 2D graphics - Automatic upper tool clamping - Lower tool clamping 90mm and 13mm - controlled axes: Y1, Y2, X1, X2, R, Z1, Z2 - motorized crowning - 6 x V block die length 3,500, segmented: with V12/30°, V40/80°, V24/80°, V10/30°, V24/30°, V16/30° - Punch straight, H 350mm / approx. 70°, length 3060 mm, segmented All data without guarantee. A demonstration under power is possible at any time in our exhibition hall.

Condition: good (used), Year of construction: 1963, Vertical lathe JUNGENTHAL Type: DK 1400 built in 1963 with 1 axis digital readout. turning diameter max : 1400 mm face plate : 1250 mm Fjdpfx Asvi Hryjc Hsgi Automatic turret head spindle speed : 3,5-180 rpm feeds : 0,063 - 3,15 mm/rev rapid traverse : 1800 mm/min Further data see data sheet Machine documentation available . Dimensions : Length 4 m Width 2,4 m Height 3 m Weight 16t Good general condition .

Condition: good (used), Pressure vessel Fgsdpfx Acjg A Hc Hs Hji 11 bar, 1500 Liter litre

Condition: ready for operation (used), Year of construction: 1997, Max. workpiece length: 3600mm, max. workpiece width: 1400mm, length: 8750mm, width: 5250mm. Fodpfx Aceqvnl To Hjgi

Condition: used, Year of construction: 1988, Technical details: turning diameter over bed: 360 mm Fgjdpfou Rqabsx Ac Hji turning dia. over face-slide: 160 mm turning length: 800 mm longitudinal traverse (z-axis): 810 mm facing movement (x-axis): 205 mm control: TX-8 spindle passage: 60 mm revolution per minute: 63 - 3150 / 2 step U/min feed:: 10.000 mm/min. tool turret - number of stations: 8 operating hours - idle run: 8834 h tailstock taper ISO: SK30 DIN 2080 tailstock quill stroke: 105 mm operating pressure: 40 bar total power requirement: 38 kW Weight approx.: 3,1 t dimension machine xH: 1,8 x 3,3 x 1,8 m dimensions of hydaulic: 580 x 400 x 750 mm Equipment: Lathe chuck Ø 200 mm, hydraulic Feed force Z-axis = 8 kN and X-axis = 5 kN Coolant system control panel Accessories Fine adjustment device for tool set-up *

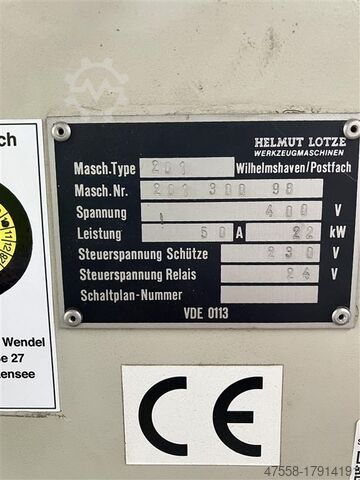

Condition: used, Year of construction: 1995, Technical details: sheet width: 3000 mm plate thickness: 12 mm distance between columns: 3500 mm control: Cybelec DNC 10 G back gauge: 1200 motorisch mm cutting angle: 1,2 - 2,73 ° cutting gap adjustment: ja mm cutting capacity : 66.000 daN daN Knife length: 3100 mm Fgodpfevc Amtex Ac Hoi down holder: 17 Stück interface: RS232 Table dimensions: 3200 x 600 mm total connected load: 22 kW weight of the machine ca.: 11,0 + (1,0 to Anbauteile+Zubehör) t space requirements approx. LxWxH: ca. 4,5 x 2,6 x 2,1 m transport dimensions LxWxH: ca. 5,0 x 2,25 x 2,2 m The guillotine shear was put into operation for the first time in 1998. The DNC 10 G control unit was specially designed for guillotine shears. It has a numerical axis for controlling the backgauge and automatically calculates and regulates the cutting gap, the cutting angle and the cutting depth, taking into account the material to be cut. (Data from the manufacturer) Table with side stopL:930 x W:105 x H:42 mm 2 table extensions L:1600 x W:100 x 83 mm Angle fence (attached to table extension) Operation via control panel with swivel arm and foot control Equipment: Drain with rollers for clippings 2x protective grid *

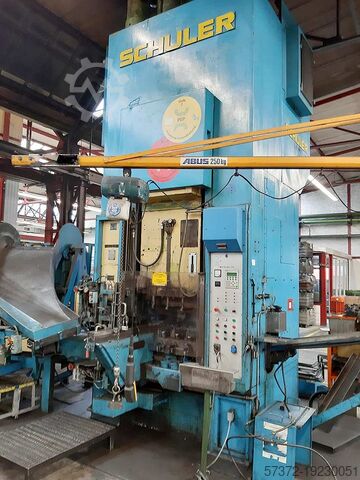

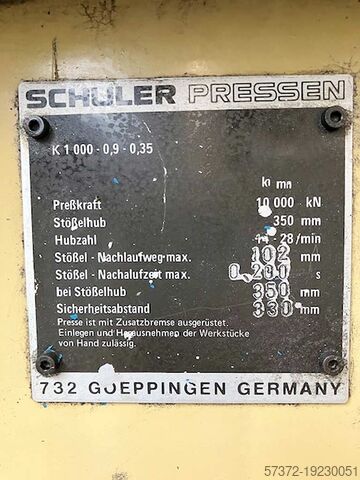

Condition: ready for operation (used), Press force: 10000kN, ram stroke: 350mm, stroke rate: 28rpm, overtravel: 102mm, overtravel time: 0.2s, safety distance: 330mm. On-site inspection is possible. Fedjwm Nndjpfx Ac Hegi

Condition: as good as new (ex-display), Year of construction: 2025, KAESER compressed air tank 5000 liters standing, galvanized 11 bar include fittings Year of construction: 2025 High-quality compressed air tank in galvanized design. Galvanized inside and outside according to DIN EN ISO 1461 in immersion bath. Connecting piece for conical threads. Technical specifications: Volume: 5000 liters Fodpfx Aekzkfrec Hogi Overpressure max: 11 bar -Diameter: 1400 mm Container height: 3570 mm Mass: 1050 kg Connection compressed air inlet: 2x DN 100 Connection compressed air outlet: 2x DN 100 Connection safety valve: G 2 " Connection condensate drain: G 1/2 " Container acceptance: RL2014 / 29 / EU Min. Operating temperature: - 10 ° C Max. Operating temperature: + 50 ° C Surface coating: galvanized For new machines comfortable leasing via our house bank possible. Visit our shop. We always have a large selection of new and used compressors in stock!
