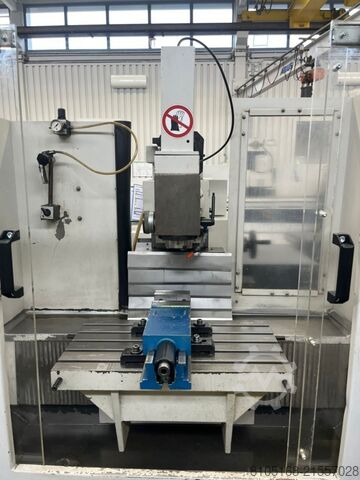

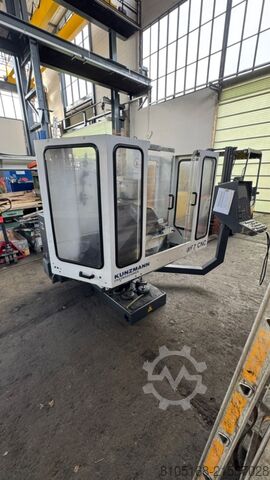

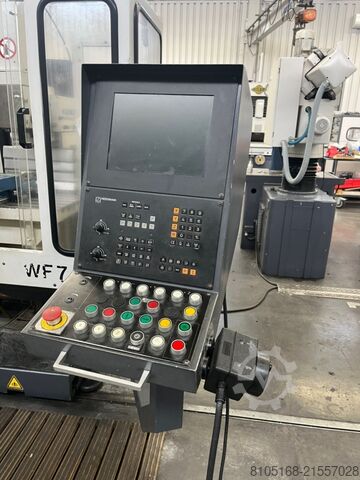

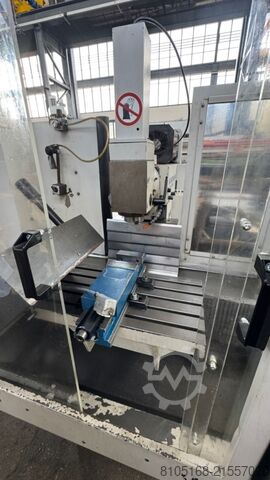

Millingmachine Kunzmann WF7 CNC

Kunzmann WF7 CNC

Condition: good (used), Year of construction: 1994, x-travel 600 mm y-travel 400 mm z-travel 400 mm Table dimensions 630 x 350 mm reus 3700 U/min Weight 1800 kg Year 1994 control HEIDENHAIN TNC 124 quill stroke 60 mm tool taper ISO SK40 total power requirement 11 kW weight of the machine ca. 1800 kg Rodpfx Abjzy Siujasch dimensions of the machine ca. 2800 x 2000 x 2000 m

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Rcjdet Hxa Hopfx Abajh Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: used, CNC milling machine ABENE, Type VHF-360TI Serial No. 36084 Year of manufacture 2008 CNC control HEIDENHAIN TNC 320 Travel ranges X: 650 mm, Y: 510 mm, Z: 450 mm Table size 1200 x 400 mm Spindle mount SK 40 Rcjdpoty A Ehefx Abaeh Spindle speed 55 - 3000 rpm, 2 speeds Feed rate 30 - 4000 mm/min, stepless Rapid traverse rate (X + Y-axis) 4000 mm/min. Rapid traverse rate (Z-axis) 2000 mm/min. Distance spindle nose to table 20-495 mm Motor power spindle drive 7.5 kW Power supply 400 Volt, 50 Hz - CNC path control HEIDENHAIN TNC 320 with interfaces RS232, USB and LAN - Electronic handwheel for X, Y and Z axis - Mechanical handwheels for X and Y axis - Spindle speed can be manually switched with 2 gear stages (Stage 1 = 55-700 rpm) + (Stage 2 = 701-3000 rpm) - Inclined bed design with side-mounted, swiveling spindle head +/- 50° - Inclined bed adjustment manually via hand crank - Hydro-mechanical tool clamping - Automatic central lubrication - Coolant system with electric coolant pump located beside the machine - Machine light - Control cabinet firmly attached to the machine - Operating hours read on control system when switched on = 14780 hrs. - Operating hours read on machine when switched on = 12980 hrs. - Operating hours read on program run = 400 hrs. Space requirement L x W x H 2600 x 2000 x 2000 mm Weight 2500 kg Very good condition

Condition: used, Year of construction: 1990, Motor output 5 kW Rsdpfjwgnz Nox Abaoch Weight 1.500 kg Control cnc

Condition: excellent (used), Year of construction: 2009, operating hours: 2,542 h, Kunzmann WF 4/3 Milling Machine TNC 320 Manufacturer: Kunzmann Rjdpfx Aozza Smsbaoch Type: WF 4/3 Milling Machine Year of manufacture: 2009 Condition: used, from a training workshop, cleaned and operational, ready for demonstration Spindle hours: 2,542 hours X-axis travel: 400 mm Y-axis travel: 350 mm Z-axis travel: 400 mm Tool holder: SK 40 Spindle speeds: 1.0 - 4,500 rpm Feed rates: 0 - 2000 mm/min Quill stroke: 60.0 mm Table size: 650 x 350 mm T-slots: 14 H7 Control system: TNC 320 Motor power: 5.5 kW Weight: 1920 kg Space requirement: approximately 2000 x 2000 x 2100 mm Total power consumption: approximately 7 kVA Central lubrication system Coolant system CE compliant Scope of delivery: – Technical documentation – Full protection enclosure – LED machine light

Condition: as good as new (ex-display), Year of construction: 1988, functionality: fully functional, machine/vehicle number: 2801 002016, travel distance X-axis: 300 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 6,300 rpm, spindle speed (min.): 31 rpm, quill stroke: 80 mm, rapid traverse X-axis: 4 m/min, rapid traverse Y-axis: 4 m/min, rapid traverse Z-axis: 4 m/min, table width: 620 mm, table length: 390 mm, table load: 250 kg, overall weight: 1,700 kg, space requirement width: 1,800 mm, space requirement length: 1,400 mm, space requirement height: 1,800 mm, input frequency: 50 Hz, Equipment: documentation/manual, The machine is very stable and robust in its design and construction. Thanks to its good accessibility, it is extremely user-friendly. The machine can also be operated using mechanical handwheels. Redpfx Ajywhvhebaoch CNC Contouring Control DECKEL Dialog 4 Easy-to-program 3D path control with color graphic support, dialog-guided cycle input, contour calculator, editor functions, clear program and tool management, and the option for parallel programming. Travel distances X / Y / Z: 300 / 300 / 400 mm Tool holder: SK40 DIN 69872 Clamping system: Hydromechanical clamping system SK40 with pull stud according to DIN 2080 or DIN 69872 Working spindle: Vertical and horizontal. Manual quill stroke: vertical 80 mm and horizontal 65 mm. Milling head: Manually swiveling +/- 90° Speed range: 31.5–6300 rpm stepless, geometrically stepped direct gearbox for maximum torque and milling performance at the working spindle. Direct gearbox for maximum torque and milling performance at the spindle. Feed rate: 2–3600 mm/min, infinitely variable feed Rapid traverse: 4000 mm/min Angular table: 620 x 390 mm, max. load 450 kg

Condition: used, Year of construction: 1996, x-travel 400 mm y-travel 350 mm z-travel 400 mm tool taper SK 40 spindle turning speed range 1,0 - 4.000 U/min feeds 0 - 2000 mm/min quill stroke 60,0 mm table-size 650 x 350 mm T-slots 14 H7 Control TNC 124 engine output 5,5 kW weight 1800 kg dimensions of the machine ca. 2000 x 1000 x 2100 mm Rsdpfxsw U U Sij Abaech New price ~ 55.000 euros (!!) Furnishing : - Universal tool milling machine - HEIDENHAIN pattern control TNC 124 - The control panel can be swiveled to the right of the machine - hydraulic tool changer (DIN 69872) - Vertical milling head - SK 40 - X-axis feed .. 0 - 2000 mm / min - Y-axis feed .. 0 - 2000 mm / min - Feed Z-axis .. 0 - 2000 mm / min - Central lubrication, electrical - coolant device - Chip tray - Operating instructions for machine + control Special accessories included: - hydraulic machine vice - many tool holders - HEIDENHAIN HR 410 electronic handwheel

Condition: used, Year of construction: 1998, x-travel 0500 mm y-travel 400 mm z-travel 400 mm table surface area 700 x 500 mm tool taper 40 SK/ISO spindle turning speed range 20- 4500 U/min feeds 5000 mm/min Rcedpfxjzhxi De Abash spindle motor 12 kW total power requirement 13 kW weight of the machine ca. 2,8 t dimensions of the machine ca. 3 x 2 x 2 m Table could be rotated and swiveled manually with digital readout in C- and B- axe over control panel. Control: Heidenhain TNC 124.

Year of construction: 2000, condition: ready for operation (used), SELCA S 3045PD Numerical Control Dual head. Table dimensions: 1400 x 360 mm. Longitudinal axis travel: 1100 mm. Transverse axis travel: 350 mm. Vertical axis travel: 500 mm. Operation and maintenance manual included. Rcjdpfxsgiyltj Abajh

Condition: good (used), Year of construction: 1983, functionality: fully functional, Universal Production and Tool Milling Machine Type: UWF 700 PH Machine No.: 5670 Serial No.: 034650 Year of manufacture:1983 Control system: Positioning and path control incl. display HEIDENHAIN TNC 135 3-axis manual input control TECHNICAL DATA Working area X-axis (longitudinal) manual/automatic: 410/390 mm Y-axis (transverse) manual/automatic: 310/290 mm Z-axis (vertical) manual/automatic: 400/380 mm Quill travel vertical: 63 mm Clamping surface, vertical: 830 x 224 mm Number of T-slots: 4 Angular table clamping surface: 700 x 285 mm 6 T-slots: 12 H8/45 mm Workpiece weight: 200 kg Distance table – spindle nose (vertical): 0 – 515 mm Distance table – spindle center (horizontal): 30 – 565 mm Drive power (at 1500 rpm): 2.2 kW Speed range: 45 – 2000 rpm Number of speeds: 12 Speed progression (geometric steps): 1.4 Tool holder (DIN 2079): ISO 40 Feed range (all axes): 2 – 1500 mm/min Rapid traverse (all axes): 1.5 m/min Operating voltage: 380 V/50 Hz Machine dimensions: 1.2 x 1.6 x 1.7 m Space required: 2.1 x 2.1 m Machine weight: 1100 kg EQUIPMENT / ACCESSORIES  Hand operation and CNC program control  Vertical and horizontal machining Rcsdpjx Ry Atjfx Abaoh  Swiveling vertical milling head  Adjustable-angle vertical milling head  Various tool holders  Manual quill feed (vertical)  Angular table 700 x 285 mm  Coolant system  Coolant and chip tray  Electrically secured chip guard in work area  Mounting elements  Machine lamp  Documentation Condition: Control system overhauled, workshop tested
