Milling machine

KLOPP FWS 5

Condition: used, Year of construction: 1980, Technical details: x-travel: 850 mm y-travel: 280 mm z-travel: 355 mm spindle taper ISO: SK 45 / SK 45 Hfodpfx Aou Ndf Ijh Uop spindle head swivable left - right: je 90° ° range of revolution per miute: 28 - 1400 / 18 step U/min distance table/horizontal spindle: min.: 60 / max.: 180 mm table surface area: 1070 x 270 mm table load: 1000 kg table swivelling +/-: je 45° Grad feed:: X+Y: 16 - 800 und Z: 5 - 250 mm/min total power requirement: 8,0 kW machine weight approx.: 3100 kg dimension machine xH: 2,1 x 1,8 x 2,15 m dimensions electric cabinet: L: 0,8 x B: 0,45 x H: 1,65 m clamping surface area: 315 x 1250 mm Horizontal beam adjustment manual 650 mm mounted on table: clamping head with 3-jaw chuck Ø 200 mm with inner jaws, center height 165 mm Coolant system Hand crank Milling arbor Ø 22 x 620 mm with form cutter 80 x Ø 8 mm *

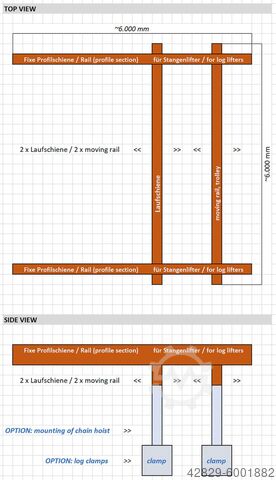

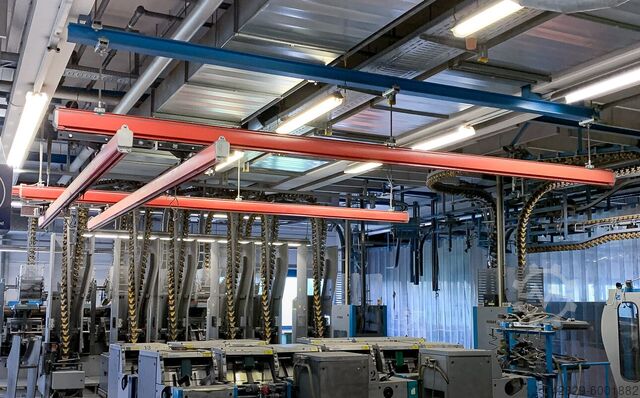

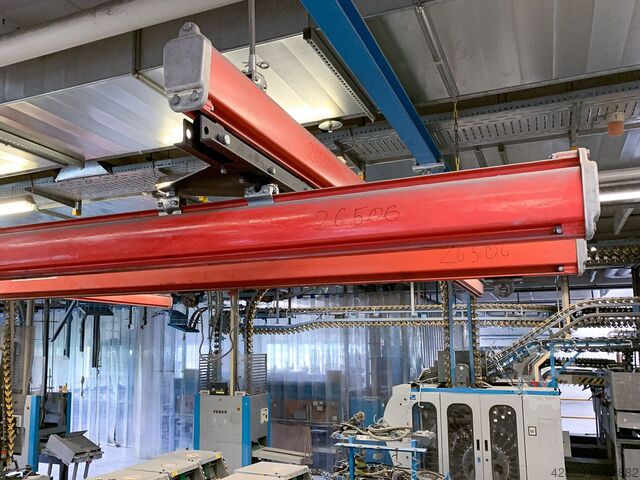

Condition: good (used), Crane system with two fixed (l= ~6.000 mm) and three running rails (l= ~6.000 mm) with trolleys which allow the mounting of log clamps with hoist. Max weight per rail = 1.000 kg. Hfsdsg Dgh Ijpfx Ah Ujp Mounted from ceiling (no supporting steel structure included). Power supply via integrated conductor line inside the rails (no external wires). Compressed air with outside air pipes (not inside the rails). Option: chain hoist with log clamp to lift logs from a pallet onto a stream feeder.

Year of construction: 1983, condition: good (used), Machine number: 316204/22 Type / Model: FSS 315/E Travel x-y-z: 850 - 280 - 355 mm table: 1.200 x 370 mm clamping surface: 1.060 x 260 mm Speed range: 28 to 1,400 rpm spindle mount: SK 50 quill stroke: 80 mm Feed rates x and y axis 16 to 800 mm/min feed z-axis: 5 to 250 mm/min Connection: 8 kW Accessories/equipment: Swivel head; Hedpfxsfli Afs Ah Uefp condition: good Weight: 4 t Dimensions: 2.000 x 2.000 x 2.400 mm

Condition: good (used), Year of construction: 2006, Clamping force: 250 tons Distance between tie bars: 630 x 630 mm Mold height: 330 x 830 mm Opening stroke: 675 mm Dylight max: 1505 mm Screw diameter: 50 mm Hfjdpfxjrgw Exo Ah Uep Shot volume: 530 cm3 Shot weight: 482 g Injection pressure: 2426 bar Cores- 2 Hot runners- 12 + Robot Demag ergotech W733-0174 Year of manufacture: 2006 Handling capacity: 10 kg Number of axes: 3 Max range: 1000 mm X- 900 mm Y-1400 mm Z- 2500 mm

Condition: new, Year of construction: 2025, 0554 mm 370 mm 2000 mm Hfsdpfx Aowyd Tnsh Usp 280 mm 104 mm 11 kW

Year of construction: 2008, condition: ready for operation (used), Horizontal spindle diameter: 100mm, Horizontal spindle speed: 3600rpm, Horizontal spindle power: 25kW, Horizontal spindle torque: 920Nm, Vertical milling spindle swivel range: +/-90°, Vertical spindle diameter: 90mm, Vertical spindle speed: 3600rpm, Vertical spindle power: 25kW, Vertical spindle torque: 920Nm. Travel X/Y/Z: 1500mm/500mm/450mm, feed X/Y/Z: 4000mm/min, feed force X/Y/Z: 12kN/12kN/15kN, rapid traverse X/Y/Z: 15m/10m/10m/min. Table dimensions X/Y: 1800mm/500mm, number of T-slots: 5, center slots: 18H7, clamping slots: 18H9, center-to-center distance: 100mm, table load capacity: 2000kg. Horizontal spindle table distance: 450mm, horizontal spindle counter-holder lower edge distance: 345mm, vertical spindle lower edge table distance: 350mm-800mm, column brush vertical spindle center distance: 100mm-600mm. Machine dimensions X/Y/Z: approx. 3400mm/2900mm/2600mm, weight: approx. 5600kg, control system: Heidenhain, operating hours: 61440h. On-site inspection is possible. Hodpfx Ahoulku Hj Usfp

Condition: new, The UWF 6, a leading model from the Conventional Vertical Milling Machines category and part of the Universal Milling Machines group, exemplifies KNUTH's commitment to precision engineering. This robust universal milling machine boasts a rigid HT-200 cast-iron construction, providing a solid base for precision work. It features a large milling table with a 1,300 mm travel on the X-axis, allowing for efficient handling of substantial workpieces. The machine is equipped with a universal cutter head that swivels on two planes and a horizontal spindle with its own drive, enhancing versatility. Its innovative design minimizes downtime through rapid positioning and feeds, ensuring increased productivity. With a user-friendly control panel and extensive standard equipment—including a coolant system and chip tray—this milling machine is engineered for both ease of operation and maintenance. For greater capacity and accuracy in your machining tasks, request a quote for the UWF 6 today, and experience the advanced capabilities of our Universal Milling Machines. Hjdpfx Aeu E Nwbsh Usfp

Condition: new, The Servomill® UWF 1400 is a premier model in the category of Conventional Vertical Milling Machines, showcasing state-of-the-art servo-conventional feed technology. This versatile milling machine features a large work area, driven by powerful spindle motors capable of operating with exceptional precision. Its robust design incorporates a swiveling cutter head that can rotate on two axes, allowing for a wide range of machining tasks without the need for complex programming. Notable features include preloaded ball screws on all axes, enabling jolt-free positioning and minimal wear—ensuring a long service life. Integrated electronic controls enhance user experience, providing intuitive operation through electronic hand-wheels and joystick technology. The Servomill® UWF 1400 is suitable for various applications, including tool making and manufacturing, with an extensive list of standard equipment, such as a powerful coolant system, LED work lights, and automatic lubrication. Experience the benefits of modern CNC technology in a conventional setting with KNUTH's Servomill® UWF 1400. To elevate your machining capabilities, request a quote today and explore our range of Conventional Vertical Milling Machines. Hsdpsuy Ia Djfx Ah Uofp

Condition: excellent (used), Tacchi HD/1450 – 725 x 4000mm CNC Lathe (2012) Serial Number: 7264 Year: 2012 Control: Fanuc OiTD CNC Condition: Used – good working order Technical Specifications: Centre height: 725mm Swing over bed: 1450mm Swing over cross slide: 1000mm Distance between centres: 4000mm Main drive motor: 60 kW Maximum weight between centres (unsupported): 15,000 kg Spindle speed range: 1.9 – 560 rpm Hjdpfxjxc In So Ah Uefp Features & Equipment: 2 x 3-point steady rests Handwheel Swarf conveyor 4-position hydraulic toolpost 4-jaw chuck Fanuc OiTD CNC control

Condition: used, Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron WF 51C/155 -Motor: AEG 380V 8 kW 1400/2850 rpm -Dimensions: see photos / technical. drawing -Dimensions: 1700/580/H700 mm Hfodekvrptopfx Ah Uop -Weight: approx. 525 kg
