Trough vibrator

KAYAKOCVIB TVM 40 mit seitl. Entleerungsöffnung

Year of construction: 2023, condition: new, IMMEDIATELY AVAILABLE ! Vibratory finishing machines with separator The machines of the series VKUE can be used for the surface treatment of metallic and non-metallic workpieces. These machines have a large sieving surface and allow easy separation of the workpieces from the abrasive bodies. Optional accessories - Pneumatic sound flap Hjdpjn Smbrsfx Ah Ujnw - Pneumatic damper control - Frequency control - Metering pump - Magnetic valve - Control panel base - Flushing tube (different types) The pictures are for orientation only. The optional accessories are available additional charge.

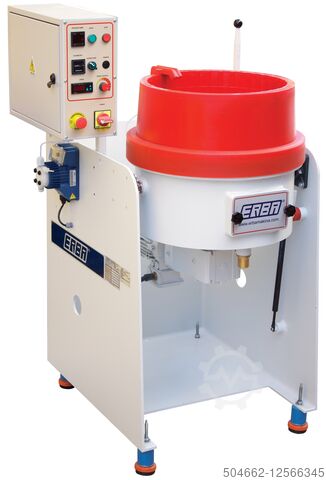

Condition: new, Year of construction: 2025, The ERBA Turbo 60 is a centrifugal finishing machine designed for deburring, smoothing, and polishing small to medium-sized workpieces. The machine features a digital process timer, a digital speed display, and a dosing pump (wet configuration). The turntable speed can be adjusted via a frequency converter. The Turbo 60 is available in both dry and wet configurations and can be ideally linked with the ERBA YE-60 separation unit shown in the images. Technical data: - Gross volume: 60 liters - Drive power: 3.0 kW - Turntable speed: 75 to 300 rpm Hnsdpfx Ahen Ut Ilo Usw - Optional equipment: tilting motor, soundproof cover, or separation box All prices are net, plus the currently applicable statutory VAT and shipping costs. The images may depict the machine with optional accessories, which are available separately and subject to additional charges. If you are interested, we look forward to hearing from you. We are happy to advise you without obligation. The European Commission provides a platform for out-of-court online dispute resolution (ODR platform). This listing serves solely as an online presentation of our goods. Contract negotiations take place via telecommunications (email, telephone, messaging portal). As an initial step, we will send you a non-binding offer, which will also provide details of our general terms and conditions with legal notice and your right of withdrawal before a purchase/contract is concluded.

Condition: new, Year of construction: 2024, Protec welding rotary table 5000 Kg load capacity speed infinitely variable 0,05 - 0,5 rpm Hnodpfx Aheid Szco Uew manual remote control height 600mm diameter 1500mm Foot remote control extra charge

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Initial commissioning: 2000 Control system: Heidenhain TNC 430 M Machine hours: 111,500 h X-axis: approx. 4,000 mm Y-axis: approx. 2,360 mm Z-axis: approx. 1,250 mm A-axis: ±110° C-axis: ±300° Clamping table Clamping surface: approx. 6,000 x 2,000 x 420 mm T-slot spacing: 18H12 / 250 mm Max. table load: 30,000 kg/m² 2-axis milling head AC3 Spindle power: 25 kW Spindle speed: max. 15,000 rpm Torque: 80 Nm Tool holder: HSK 63A Tool clamping: hydraulic Spindle freshly overhauled at the end of 2024! Linear axis drives Feed rate X, Y axis: up to 20 m/min Feed rate Z axis: up to 20 m/min Axis acceleration X, Y, Z: up to 1.5 m/s² Connection data Connected load: 40 kW Main fuse: approx. 80 A Dimensions & weights Machine footprint with peripherals: approx. 8,500 x 5,600 x 4,945 mm Total weight: approx. 18,000 kg Colour Enclosure, gantry, control cabinet: light grey Milling head and applications: green Additional equipment - 3-sided enclosure, without extraction ducts - The additional clamping table shown is not included in the scope of supply Hsdpew Rl S Sjfx Ah Usnw Condition of the machine Fully functional, in very good condition. Machine remains connected and is available immediately.

Condition: new, Year of construction: 2025, Heavy-duty hydraulic guillotine shear for universal use for trade and industry. With the hydraulic table shear GLT from Prod-Masz you can make the perfect cut with every job. - The extending table makes it easier to carry large-sized metal sheets on the table - Support table with graduation - robust and compact steel construction - high quality, durable steel knives - extremely stable and heavy cast iron construction - Ground and hardened guillotine shear knives Hnedpfx Aoc I T E Toh Uew - Back gauge system with Scala - CE approved quality - Declaration of conformity - for steel plates up to 1.2mm - Open design suitable for endless cuts - Max. Working width: 3000 mm - Motor power 2.2 kW - HL 46 oil - pressure force 4t - Operating pressure 120-150 bar - has hydraulic compensators from the cutter bar upwards Dimensions: Length: 3500 mm Width: 750 mm Height: 1150 mm Weight about 1000 kg We are looking forward to your contact! We issue the invoices with 0% (intra-Community delivery)

Year of construction: 1981, condition: excellent (used), 2 piece boring bar 21 drills, grid system 32 mm32 mm Max travel of the drill bar of min. 22 mm up to 624 mm Rows spacing min. 125 mm, 603 mm (drill line) 1 pneumatic cylinders between the drill bar Motor4. 4 kW Stroke 98 mm Hnodpfx Aed Attpjh Ujw Oil brake cylinder with stroke 70 mm Operating pressure approx. 6.0 bar Air consumption approx. 3 l / stroke Travel distance of at least 20 mm to 650 mm Masch.Nr.: 705521 Weight approx. 540 kg Dimensions: 2500 x 1100 x 1700 mm The machine is still processed and checked for function Condition very good

Year of construction: 2022, condition: new, Height adjustable L manipulator Load: 500kg Stroke: 640mm, height faceplate min. 480, max. 1.110mm Pivoting range: +/-185 face plate diameter: 800mm Hodpfxjh Td The Ah Uonw Welding current: 400A Torque face plate: 900Nm Torque swivel arm: 900Nm Total length: 2.495mm Height: 1.855mm Width: 900mm The rotary stand is controlled by a hand-held remote control with the following functions: - LIFT arm - arm LOWER - Arm swivel RIGHT - Arm give LEFT - Potentiometer for the stepless SPEED- adjustment of the faceplate For the control of the face plate a two-pedal foot switch is available with the functions: - face plate rotation RIGHT - face plate rotation LEFT

Year of construction: 1986, condition: good (used), machine/vehicle number: xxxx; Lg-Nr. 16059, Technical data: -Load capacity at horizontal position 15000 kg -Load capacity in vertical position 10000 kg -Planpauc diameter 1850 mm -Plane disc with crane support can be swivelled continuously -Rotary motion electr. infinitely controllable -Right-Link Run Hjdpfxjd Nauio Ah Usnw -Drive 400 V -Ft remote taster -Massea cables -Welding current transmission 500 A -Table height at horizontal position 1850 mm -Space requirements approx. B 2450 x H 1850/2300 x T 3000 mm -Weight approx. 6000 kg

Condition: excellent (used), Year of construction: 1991, machine/vehicle number: 834, The machine is completely operational, ready to work. Moves in 3 axes. Hsdpsudyzxefx Ah Uenw

Condition: good (used), Year of construction: 2021, machine/vehicle number: 27798, Double-column rotary positioner with lifting device Offer 25138 Technical data: - Max. load capacity per column: 4000 kg - Total max. load: 7000 kg - Travel / lifting stroke: 1780 mm - Lifting speed: 1600 / 2800 mm/min - Rotational movement electrically adjustable - Right and left operation Hedpjw Sminofx Ah Ujnw - Drive: 400 V - Space requirement driven unit approx. W 1500 x H 4000 x D 1500 mm - Space requirement idler unit approx. W 1300 x H 4000 x D 1300 mm - Weight of driven unit approx.: 4000 kg - Weight of idler unit approx.: 2500 kg
