CNC lathe

INDEX G400

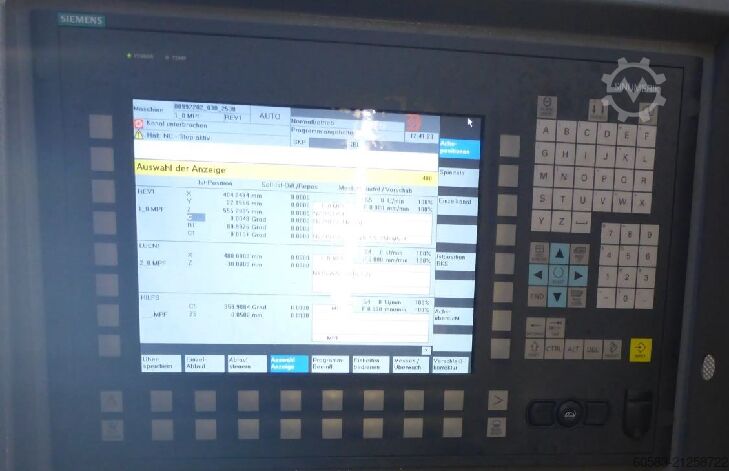

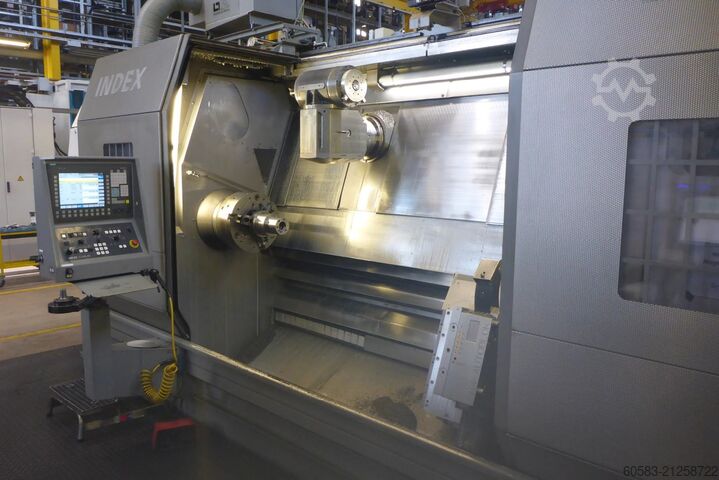

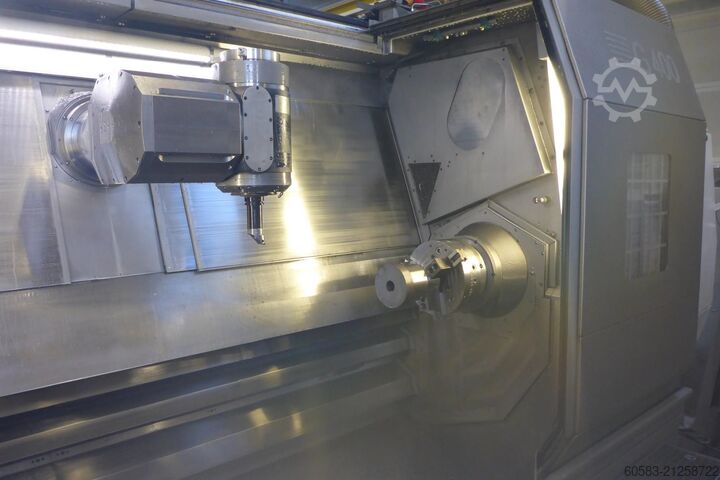

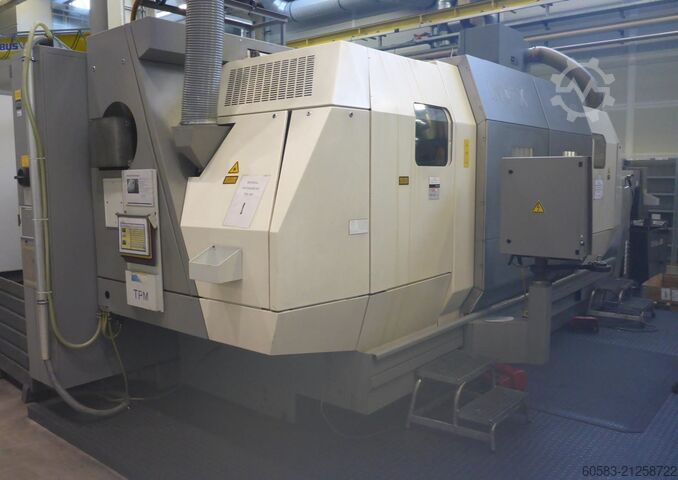

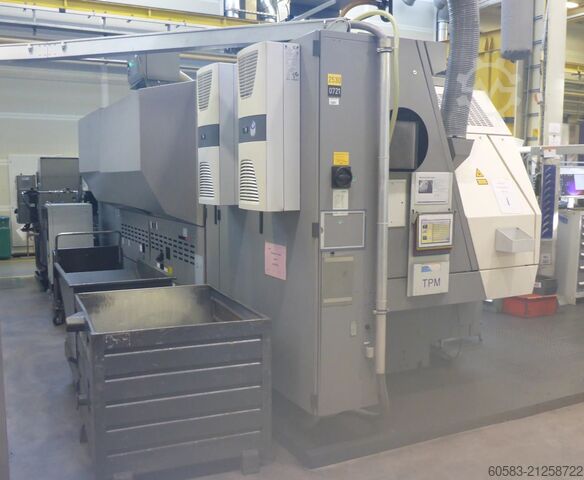

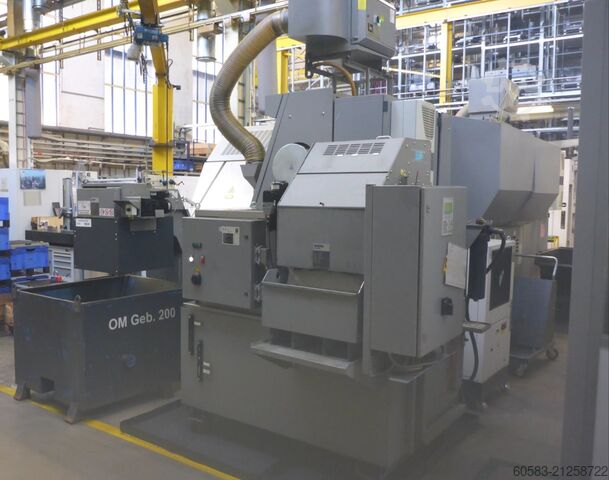

Condition: used, Year of construction: 2008, operating hours: 67,000 h, functionality: fully functional, turning length: 2,000 mm, turning diameter: 630 mm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 640 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 270 mm, spindle motor power: 68,000 W, rotational speed (max.): 12,000 rpm, total height: 2,616 mm, total length: 6,300 mm, total width: 2,760 mm, torque: 900 Nm, overall weight: 21,000 kg, controller manufacturer: Siemens, controller model: 840D PL, number of slots in tool magazine: 80, Equipment: chip conveyor, Manufacturer / Model: Index G400 Ratio Line CNC Lathe with Milling Function Year of Manufacture: 2008 Control System: Siemens 840D Powerline Workpiece Diameter: Ø 630 mm Workpiece Length / Turning Length: 2,000 mm Main Spindle Power D102: Power at 100/40% 53/68 kW Torque: 675/900 Nm Steady Rest Diameter: Ø 45 mm – 310 mm Travel Paths: X-Axis: 640 mm, Z-Axis: 2,000 mm, Y-Axis: 270 mm Motorized Milling Spindle: HSK-63, max. speed 12,000 rpm Number of Tools: Right Disc Magazine: 40 tool positions (HSK-63), Left Disc Magazine: 40 tool positions (HSK-63) Operating Hours: 67,000 h (Hydraulics on) – see page 9 for details Iajdpfx Afjyk Etcoaon Dimensions (L × W × H): 6,300 x 2,760 x 2,616 mm Machine Layout Plan: see pages 5 and 6 Weight: 21,000 kg Equipment & Accessories: 2 pcs. 3-jaw chucks Coolant System Knoll Type KF150/1100 Chip Conveyor Knoll Type 400 S – 1/370 Safety Devices Standard Accessories Condition of Index G-400: Machine is ready for immediate operation Regularly serviced (once per year by the machine manufacturer) Visually well maintained, normal signs of use The machine is in good overall condition Documentation: Operating manuals available Maintenance records / inspection reports available

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 3,000 rpm, travel distance X-axis: 640 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 2,000 mm, spindle motor power: 67,000 W, tool weight: 5,000 g, swivel angle B-axis (max.): 360 °, swivel angle C-axis (max.): 360 °, number of axes: 4, This 4-axis Index G 400 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of 630 mm, a length capacity of 2000 mm, and supports a workpiece weight up to 300 kg. Equipped with a high-speed milling spindle at 6000 rpm and a main spindle speed of 3000 rpm, it offers robust machining capabilities. Consider the opportunity to buy this Index G 400 horizontal turning machine. Contact us for more information. Iajdpfex D D Ecex Afasn Main spindle 0102 direct driveMaximum material throughput: 102 mmMaximum speed: 3000 rpmFront bearing diameter: 170 mmVariable hollow shaft motorPower at main spindle D102:Power at 100/40% duty cycle: 53 kW/68 kWTorque: 675 Nm/900 NmWork spindle alignment and switching device D1022.5° increments via indexing discHydraulicly actuated hollow clamping cylinder D102 with analog clamping stroke monitoringMaterial clearance: 102 mmStroke: 48 mmMaximum clamping force (tension/compression): 10,900 dNMulti-clamping pressure deviceClamping pressure adjustable from 8 to 80 bar via a multi-stage parts catalog for the main spindle clamping cylinder. Chuck release movement required for transitioning to a lower clamping l carrier 1 (standard equipment)Cross slide X, Z, turning length 2000 h internal coolant supply and shut-off valve, ball screws D=40 mmin the X-axis, D=50 mm in the Z-axis. Axis drives protected by overload clutches, counterweight in the s X ZWorking travel mm: 320 2000Rapid traverse speed m/min: 20 40Feed force N: 14000 14000X-axis measuring system: Glass scale (absolute)Z-axis: ROQ encoder (absolute)X-Y-Z-B housing (WT1)Turret with AC motor, positioned by spur gears, hydraulically lockedY-axis quill, hydrostatically mounted, lockable via spur gearsBall screw, D=40 mmOverload clutchTravel: 220 mmRapid traverse speed: 12 m/minFeed force: 24,000 NROQ encoder (abs)B-axis drive with AC motorSwivel angle: 360°Tool drive unitwith two clutches:Maximum speed: 6,000 rpmPower (25%) at n= 6,000: 17 kWMaximum torque (25%): 37 NmDisc turret with 12 stations on cross slide 1Tool holder system DIN 69880-40x63Increased repeatability during tool changes due to additional W-slotsMultifunction unit on cross slide 1Maximum speed: 6,000/1,500 rpmGearbox: i=4Torque: 36/144 NmTools: SK50Front bearing diameter: 75 mmInternal coolant feedthrough, disc spring clampingTool carrier 2, right - X, ZTurning length 2000 mm, preferably oncounter spindle machine with internal coolant supply and shut-off valve, turret control via AG motor, ball screws D= 50 mm for Z-axis, D= 40 mm for X-axis. Axis drives protected by overload clutches, counterweight system in ret head oriented to the right towards the counter s X ZTravel mm 210 2000Rapid traverse speed m/min 20 40Feed force N 8600 14000X-axis measuring system: glass scale (abs)Z-axis: ROD encoder (abs)Disc turret with 10 on cross slide 2Tool holder system DIN 69880-40x63Increased repeatability during tool changes thanks to additional W-slotsPositioned by face gearing, hydraulically lockedCounter spindle D102, size 11-DIN 55026/55021 and ISO 702/1Turning length 2000 mmZ-axis slide driven by AC motor and 50 mm diameter ball screwAxis drive protected by overload clutchIn the working position, the slide is held against the stop by the AC motor.

Condition: defective spare-parts repository (used), Year of construction: 2002, functionality: not functional, type of input current: three-phase, overall weight: 17,000 kg, We offer this defective INDEX G400 CNC lathe, year of construction 2002. Machine type: G400 Machine number: 650036 Year of manufacture: 2002 Ijdpfx Afox S Ir Eeaoan Supply voltage/frequency: 3 Ph / 50 Hz Supply voltage: 400 V Control voltage: 24 V Nominal current: 204 A Nominal power: 120 kW Bed weight: 700 kg Machine weight: 17000 kg If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: used, Year of construction: 2002, turning diameter max. 420 mm turning length 1250 mm control INDEX, C 200-4 D swing diameter 630 mm travel x1 320 mm travel z1 1250 mm travel x2 170 mm travel z2 1250 mm travel x3 320 mm travel z3 1250 mm main spindle speed max. 3000 U/min main spindle drive 53 kW spindle passage 102 mm spindle head DIN 55026 Gr. 11 max. torque on the spindle 675 Nm sub spindle - spindle speed range max. 3000 U/min sub spindle drive 53 kW sub spindle - spindle passage 102 sub spindle - spindle head DIN 55026 Gr. 11 sub spindle - spindle torque 675 Nm travel sub spindle 1250 mm feed power X1 14000/Z1 14000 N rapid traverse X1 20/Z1 40 m/min feed power X2 8600/Z2 14000 N rapid traverse X2 20/Z2 40 m/min feed power X3 14000/Z3 14000 N rapid traverse X3 20/Z3 40 m/min numbers of turret head positions Rev. 1 = 12 numbers of turret head positions Rev. 2 = 10 numbers of turret head positions Rev. 3 = 12 number of driven tool stations 12 / 10 / 12 speed of driven tools max. 6000 U/min max. torque 36 / 21 / 36 Nm tool taper DIN 69880 tool taper ø 40 x 63 mm total power requirement 120 kW weight of the machine ca. 19 t dimensions of machine L x W x H 5,77 x 2,47 x 2,62 m Accessories: segment bushing chuck HAINBUCH on main spindle, Iajdjt U R Hzjpfx Afajn collet chuck HAINBUCH, SPANNTOP SP on sub spindle, various tool holders (also for driven tools), chip conveyor, coolant - all 3 turrets are prepared for coolant through spindle, but the highpressure coolant pump and tank are not with the machine -
