CNC Lathe

INDEX G200 Compact

Condition: ready for operation (used), Year of construction: 2014, spindle speed (max.): 8,000 rpm, number of axes: 9, This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information. • Control: TRAUB TX8i-s CNC/PLC with 64-bit RISC processor and fiber-optic PC; color TFT flat-panel display; electronic handwheel • Software/extensions included: Polyform (C-axis programming), Helical (3D Y-axis interpolation), tapping without compensating chuck, parting tool breakage monitoring, parting tool ejection monitoring, axis shutdown, T-ATC • Main spindle: Motor spindle with hollow clamping system; 32 mm bore/bar capacity; C-axis max speed 8,000 rpm • Max stroke: 305 mm (L version) / 127 mm (K version) • Sub-spindle: Partial hollow clamping, C-axis; cleaning unit mounted on lower tool turret • Upper tool turret: X/Y/Z/H/B axes; 10 tool holders; dual drive Csdpfx Acox D Drceyeha • Lower tool turret: X/Y/Z/H axes; 9 tool holders; combined drive; separate counter-spindle operation • Measuring/feedback: Glass scales on X-axis (upper and lower turrets); rotary encoder on C-axis • Back working: 8-position back table with combined drive for up to 3 tools; prepared for internal coolant supply • Clamping: Clamping direction reversal device and counter clamping pressure device on main and counter spindles • Coolant system: Standard system with 3-bar and 8-bar pumps (50 Hz) in a 500-liter tank; additional 28-bar pump (50 Hz), 19 l/min flow rate • Extraction: Connection D 150 mm for central extraction Additional equipment • None specified (no robots, bar feeder, chip conveyor, or external automation listed)

Condition: good (used), Year of construction: 1998, functionality: fully functional, Siemens 840D control system, Spindle bore 65mm, Main and counter spindle, 2 x C-axis, Csdpfxey Icwns Acyoha Powered tools on both turrets, Hainbuch chuck on both spindles, Fire extinguishing system (as the machine is only operated with cutting oil), High-pressure pump, Chip conveyor, FMB-Turbo magazine, year of manufacture: 2017, Tool holder package, Immediately available. No guarantee for the photographed accessories and technical details.

Condition: used, Year of construction: 2005, turning diameter 275 mm turning length 900 mm control TRAUB TX8i spindle passage 65 mm power capacity at 100 % load 25,20 kW Codpfx Aow E Nnbscyjha power capacity at 40 % load 30,20 KW max. torque at 40% / 100% load 180 / 135 Nm spindle turning speed - stepless 1 - 5.000 U/min spindle diameter in front bearing 110 mm C-axis 1 - 500 U/min worktool support No. 1 x-axis 290 mm y-axis 165 mm z-axis 600/950 mm B - axis 360 ° rapid traverse X/Y/Z 18 / 18 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN number of tools 2x2 + 2x2 number of driven tools 2x2 + 2x2 mm toolpiece turning speed range 8.000 / 2.000 U/min power capacity at 25 % load 5,80 kW max. torque at 25% load 4x18,6 / 4x74 Nm tool taper TRAUB Ø60 worktool support No.2 / No.3 / No.4 x-axis 170 mm z-axis 600/950 mm y-axis +/- 60 mm rapid traverse X/Y/Z 18 / 15 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN tool turret - number of stations 10 number of driven tools 10 mm toolpiece turning speed range 1 - 6.000 U/min power capacity at 25 % load 5,80 kW max. torque at 25% load 18,60 Nm tool taper DIN 69880 Ø40x63 bar loader DNH61 / 3000 Bar length 1.000 - 3.200 mm bar material dia. 18 - 63 mm hexagon max.45 mm total power requirement 95,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 10,00 x 3,50 x H3,00 m With TRAUB TX 8i control unit, main and counter spindle with C-axis, 3 turrets, 1 vertical-tool-carrier with B-axis, dust exhauster, chip conveyor, coolant system with coalescence-separator. Barfeeder TRAUB Stamag DNH61 /3000 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package Machine can be inspected under power.

Condition: good (used), Year of construction: 2009, functionality: fully functional, CNC Lathe TRAUB TNX 65/42 Year of manufacture: 2009 Control: Traub TX 8i-s TECHNICAL DATA - Number of spindles: 2 - Number of axes: 12 - Number of turrets: 2 MAIN SPINDLE - Spindle nose: A2-6 - Spindle drive power: 24 kW - Spindle speed: 5,000 rpm - Max. bar diameter: 65 mm - Max. diameter of main spindle chuck: 175 mm - Minimum C-axis resolution: 0.001 degrees SUB SPINDLE - Spindle nose: A2-5 - Spindle drive power: 28 kW - Spindle speed: 7,000 rpm - Max. bar diameter: 42 mm - Minimum C-axis resolution: 0.001 degrees - Travel: 700 mm LEFT UPPER TURRET - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW RIGHT LOWER TURRET Codpfx Asyw H Szscysha - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW ELECTRICAL SUPPLY - Supply voltage: 400 V - Total power: 95 kW WEIGHT AND DIMENSIONS - Footprint: 5,450 x 2,318 mm - Machine height: 2,258 mm - Machine weight: 10,000 kg New spindle since 04/26 ACCESSORIES - 3-color status signal lamp - Coolant tank: RESY * with high-pressure pump * with paper filter - Chip conveyor - Parts extraction - Parts belt conveyor

Condition: used, Year of construction: 2003, turning diameter max. 246 mm turning length 600 mm control 840 D Powerline Siemens greates pass round over bed 400 mm Swing dia. over traverse guideway 300 mm centre distance 600 mm turning speed range - main spindle max. 6.000 min/-1 power capacity - main spindel 16 kW max. Torque 155 Nm spindle diameter in front bearing 100 mm spindle bore 68,5 mm spindle nose 140H5 Spindle speed range subspindle max. 4.000 min/-1 power capacity - Sub spindle 7,5 kW max. Torque 48 Nm spindle diameter in front bearing 75 mm spindle bore 37 mm spindle nose 140H5 number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Chsdpfx Ajypv Tqecyoa Spindle speed - driven tools max. 5.000 min -1 power capacity - driven tools 3,7 kW max. Torque 24 Nm tool taper VDI 30 Tool dimensions with square shank 20 x 20 mm x-axis 160 mm z-axis 450 mm rapid traverse X: 60 m/min rapid traverse Z: 45 m/min Feed force X: 2,5 kN Feed force Z: 4 kN rapid traverse C: 200 1/min max. Torque C: 155 Nm total power requirement 32 kVA weight of the machine ca. 3,8 t dimensions of the machine ca. 8,0 x 3,0 x 2,7 m CNC - Turning- and MillingCenter GILDEMEISTER - CTX 320 linear V5 - Main- and Subspindle - tool-drive - C-Axis - ShopTurn

Condition: new, Year of construction: 2025, table length: 900 mm, table width: 450 mm, number of spindles: 1, spindle speed (min.): 8,000 rpm, table load: 500 kg, VMC 650 CNC machining center, milling machine with CNC system VMC 650 machining center is a multifunctional equipment that allows you to perform milling, drilling, thread cutting, and turning operations in automatic mode (if these options are available in the machine). The VMC 650 milling machine can have 16- or 24-position tool magazine. Depending on the customer's wishes, the milling machine can be equipped with a GSK, Siemens or Fanuc CNC system. It is possible to optionally add a Y-axis drive. As a very convenient additional option, we recommend installing a chip conveyor that will save you time when working with the equipment. Chodpsxc I Dgofx Acyea Technical parameters: Worktable size 900x450mm Maximum workpiece weight 500 kg Movement along the axes X/Y/Z 800/450/500 mm Maximum distance from the spindle to the table surface 120-620 mm Motor power 5.5-7.5 kW Maximum spindle speed 8000 rpm Spindle type BT40 Positioning accuracy ±0.008/300 mm Repeatability ±0.005 mm Machine dimensions 300022752550 mm Machine weight 4000 kg It is also possible to supply CNC milling machines, machining centers with other table sizes: VMC 850 table 1000x500 mm VMC 855 table 1000x550 mm VMC 1060 table 1200x600 mm VMC 1160 table 1200x600 mm VMC 1275 table 1300x700 mm VMC 1370 table 1400x700 mm VMC 1580 table 1600x800 mm VMC 1680 table 1700x800 mm VMC 1890 table 2000x900 mm

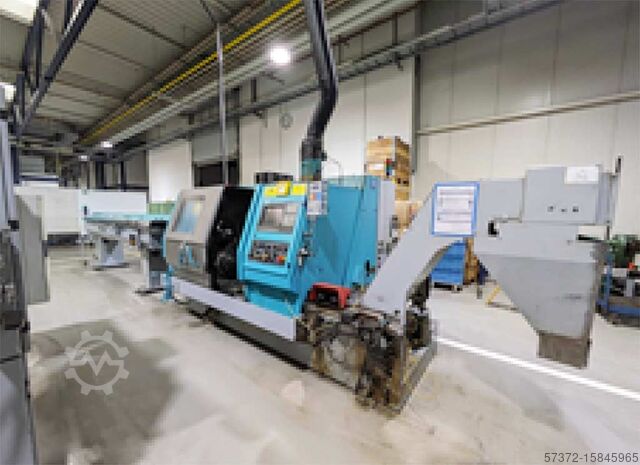

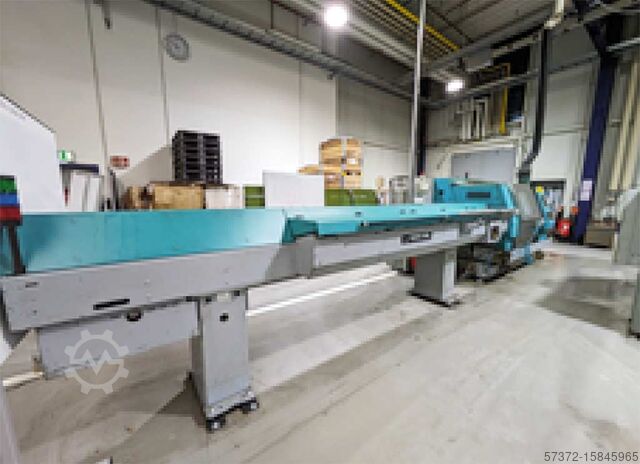

Condition: used, Year of construction: 2009, Technical details: turning diameter: 270 -300 mm turning length: 710 mm total power requirement: 43 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: 3,16 x 2,15 x 2,15 m Codpfx Acjw Dud Eeysha The machine does not include a chuck or tools – the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one. *

Condition: ready for operation (used), Year of construction: 1998, Spindle speed range: 9000rpm, travel X/Y/Z: 500mm/400mm/400mm, feed rate: 10000mm/min, rapid traverse: 12m/min. Table dimensions X/Y: 700mm/500mm, max. table load: 200kg, number of T-slots: 7, distance between T-slots: 63mm. Control: Heidenhain, tool changer: 16-fold, dimensions X/Y/Z: 4000mm/2200mm/2450mm, weight: approx. 3500kg. Csdpfxew Tc Nye Acyeha

Condition: used, Year of construction: 1998, turning diameter 200 mm turning length 400 mm Chsdpfoyqvygex Acyoa control Siemens type C 200-4 840 C spindle passage 65 mm Tool changer 2 x14 Pos. live tooling 2x Revoler weight of the machine ca. 4 t Main and counter spindle 3-jaw chuck with numerous jaws Hainbuch collets Many tool holders Various driven tools Bar loader "Index MBL" Chip conveyor with coolant unit Complete set of spindle reducers etc. see photo The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1998, x-travel 500 mm y-travel 400 mm z-travel 400 mm Control TNC 426M Heidenhain turning speed range - main spindle 20 - 9.000 min/-1 power capacity - main spindel 9 / 13 kW max. Torque 57 / 82 Nm tool taper ISO 40 DIN 69871 table diameter 700 x 500 mm swivellable B: 105° (-10°/+95°) man. rotatable 360° man. max. table load 200 kg number of T-slots 7 T-slot - distance 63 mm T-slot - width 14H7 mm center hole 30H7 mm Chodpfx Acjxmag Ujysa number of toolpositions 16 pos. tool taper ISO 40 DIN 69871 max. tool length 290 mm max. tool weight 6,0 kg max. total weight 50 kg feed speeds max. 10.000 mm/min rapid traverse 12 m/min input unit 0,01 mm total power requirement 17 kW weight of the machine ca. 3,2 t dimensions of the machine ca. 4,0 x 4,0 x 2,5 m CNC - MachiningCenter Univresal DECKEL MAHO - DMU 50 T - 5 Axis (3 + 2) - Swivel-Rotary-Table incl. Angle-Specification (manual Axis B+C via Handwheel)
