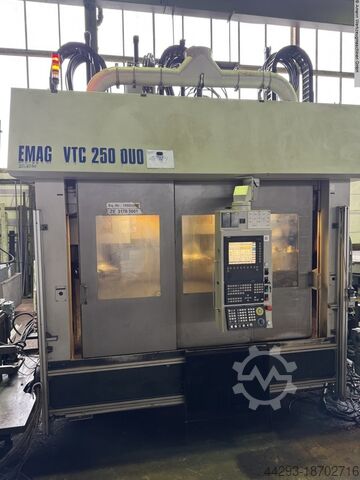

Vertical Turning Machine

EMAG VTC 250

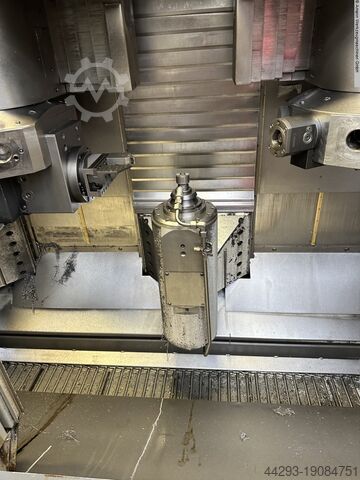

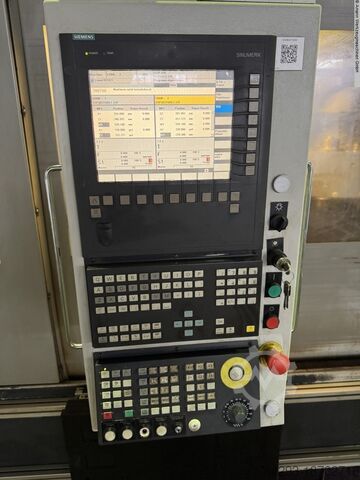

Condition: good (used), Year of construction: 2008, Ref. -No.: 10657 Manufacturer: EMAG Type: EMAG VTC 250 Year of construction: 2008 Type of control: CNC Control: Siemens Sinumerik 840D Storage location: Hakberstadt Country of origin: Germany Turning Length: 630 mm Tool Taper: VDI 40 Turret places: 1 Pcs Number of tool stations: 12 pc Turning Speeds: 5000 RPM Chuck diameter: 250 mm Further information: - The machine features an overhead drive spindle with a tailstock at the bottom. - Coolant tank, approx. 1,000 L, including - a paper filter roll. Guedezkthgopfx Achsd - Clamping devices: Hainbuch clamping top, including various centering tips - Gripping devices on the turrets for feeding and removing raw and finished parts during magazine operation. - Magazine loading - Vertical pick-up lathe, which can generally be easily upgraded for automatic loading and unloading. The machine can be viewed while powered on by prior arrangement.

Condition: used, Year of construction: 2008, turning diameter max. 140 mm swing diameter Futter / Chuck Ø 250 mm turning height 630 mm Control SIN840 PL spindle turning speed - stepless 1 - 5.000 U/min power capacity at 40 % load 38,00 kW Spindle head DIN55026 - Size 6 spindle diameter in front bearing 110 mm travel -x axis 300 mm feed X-axis 1 - 30.000 mm/min rapid traverse X-axis 30,00 m/min feed force X axis 9.000 N travel -z axis 700 mm Gjdpowhqrtjfx Achsud feed Z-Axis 1 - 40.000 mm/min rapid traverse Z-axis 40,00 m/min feed force Z axis 10.000 N no. of tools in turret 1 12 no. of tools in turret 2 12 tool taper VDI 40 DIN 69880 total power requirement 70 kW weight of the machine ca. 25 t dimensions of the machine ca. 6,8 x 4,7 x 4,3 m Chip conveyor Spindle cooling system HYFRA Coolant system Knoll

Condition: ready for operation (used), Year of construction: 2009, travel distance X-axis: 530 mm, travel distance Z-axis: 750 mm, spindle motor power: 38,000 W, spindle speed (max.): 5,000 rpm, number of slots in tool magazine: 22, number of axes: 4, This 4-axis EMAG VTC 250 vertical turning machine was manufactured in 2009. It features a maximum workpiece diameter of 140 mm and a workpiece length of 630 mm. The machine is equipped with a chuck diameter of 250 mm and a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VTC 250 machine we have for sale. Contact us for further details. - Workpiece Diameter Max: 140 mm- Workpiece Length Max: 630 mm- Chuck Diameter: 250 mm- Main Spindle Speed Max: 5,000 rpm- Main Spindle Power (40% ED): 38 kW- Main Spindle Torque (40% ED): 450 Nm- Rapid Traverse Rate X / Z: 30 / 40 m/min- Tool Taper: VDI 40- Number of Turrets: 2- Total Tool Stations: 2 x 11 (22 stations total, all live capable)- Integrated Automation: Self-loading pick-up spindle design with workpiece storage tracks- the technical specifications may vary slightly Technical Specification Driven Tools Yes Gjdezhbluopfx Achoud

Year of construction: 2010, condition: ready for operation (used), A complete turning line for the production of drive shafts, consisting of a Lang-Laru cut-off and centering machine, three EMAG lathes with robot automation, conveyor peripheral equipment and measuring station, is available. 1) End machining machine Lang-Laru DHZ 03/1250-RR-S, year of manufacture: 2010, tool stations: 2x12, loading: Kuka robot/EWAB conveyor, machine dimensions X/Y/Z: approx. 8600mm/3000mm/4100mm, weight: approx. 15000kg, control: Siemens Sinumerik 840D. 2) 3x vertical shaft turning centers EMAG VTC 250, year of manufacture: 2010, loading: Kuka robot/EWAB conveyor, max. turning length: 630mm, max. swing diameter over bed: 140mm, max. workpiece weight: 20kg, spindle bore: 52mm, speed: 5000rpm, tool stations: 2, tool holder: VDI40, machine dimensions X/Y/Z: approx. 8100mm/3300mm/4300mm, weight: approx. 14000kg, control: Siemens. This is a complete turning line with peripheral equipment and automation. Documentation available. An on-site inspection is possible. Guedpfx Aszfp Hheched

Condition: good (used), Year of construction: 2010, functionality: fully functional, We offer you: CNC vertical turning center Manufacturer: EMAG Type: VTC 250 LEAN Year of manufacture: 2010 Control: Siemens 840D sl Technical data: Max. turning diameter: 140 mm Max. turning length: 700 mm Max. swing diameter: 376 mm Gsdpfezdbtxjx Achsud Main spindle: Max. speed: 5,000 rpm Max. torque: 256 Nm Spindle bore: 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 1 Number of tool positions: 5 + gripper / 11 + gripper Max. tool diameter: 125 mm Max. tool weight: 10 kg Max. tool length: 120 mm Max. workpiece weight: 20 kg Feed rates: Rapid traverse (x / z): 40 / 30 m/min Total power consumption: 45 kW Machine weight: approx. 12 tons There are 6 identical machines available. Technical features & accessories: - Open automation - Safety device - Preparation for extraction - Handling infeed and outfeed - Central extraction (not included) - Central coolant supply (not included) - Chip conveyor (1 for 3 machines) Accessories, tools and clamping devices shown in the pictures are only included in the scope of delivery if this is mentioned in the additional information. Subject to changes and errors in the technical data and information, as well as prior sale!

Condition: good (used), Year of construction: 2011, functionality: fully functional, We offer you: CNC vertical turning lathe Manufacturer: EMAG Type: VTC 250 Year of manufacture: 2011 / 2012 Control: Siemens 840D sl Technical data: Max. turning diameter: 250 mm Max. turning length: 630 / 730 mm Max. swing diameter: 140 / 260 mm Main spindle: Max. speed: 3,500 / 4,000 rpm Max. torque: 256 Nm Gedpfxjzdbtfs Achoud Spindle bore: 50 / 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 2 Max. tool weight: 10 kg Max. tool length: 90 mm Max. workpiece weight: 20 kg Feeds: Rapid traverse (x / z): 40 / 30 m/min Total power requirement: 45 kW Machine weight: approx. 14 / 16 tons There are 2 units manufactured in 2011 and 1 unit manufactured in 2012 available. Technical features & accessories: - Year of manufacture 2011: Number of bed and cross slides: 2 - Year of manufacture 2012: Number of bed and cross slides: 1 - Tool monitoring - Protective guard - Collision monitoring - In-process quality control - Central coolant supply (not included) - Chip conveyor Accessories, tools and clamping devices shown in the pictures are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in technical data and specifications, as well as prior sale!

Condition: used, Year of construction: 2005, turning diameter 140 mm swing diameter 250 mm turning height 380 mm Control SIN840 spindle turning speed - stepless 1 - 6.000 U/min power capacity at 40 % load 38,00 kW Spindle head DIN55026 - Size 6 Gsdsv I En Rjpfx Achoud spindle diameter in front bearing 110 mm travel -x axis 300 mm feed X-axis 1 - 30.000 mm/min rapid traverse X-axis 30,00 m/min feed force X axis 9.000 N travel -z axis 700 mm feed Z-Axis 1 - 40.000 mm/min rapid traverse Z-axis 40,00 m/min feed force Z axis 10.000 N no. of tools in turret 1 11 no. of tools in turret 2 11 tool taper VDI 40 total power requirement 70,00 kW weight of the machine ca. 22,00 t dimensions of the machine ca. 5,80 x 8,60 x H3,80 m Vertical turning machine with Siemens SINUMERIK 840D control, chip conveyor, dust exhauster, infeed and outfeed, turning gripper.

Year of construction: 2016, condition: defective spare-parts repository (used), Offered is a VTC 250 shaft turning machine, which has four axes. Two turrets with eleven tool places each are installed in the machine. The machines were decommissioned several years ago and subsequently put into storage. As you can see in the pictures, the VTC will be sold in untested condition as spare parts carrier. The control system of the VTC 250 is no longer present in the machine. Godpfxsk Rumqj Achsud Other accessories such as chip conveyors, coolant systems or workpiece transport systems are not part of the advertisement. TECHNICAL DATA workpiece diameter: max. 100 mm workpiece height: max. 630 mm TOOL CARRIER 2x EMAG turret, each equipped with 11x VDI 40 without driven tools + 1x gripper Price and delivery time of the machine after arrangement.

Condition: used, Year of construction: 2003, Feed diameter 250 mm Workpiece diameter max. 140 mm Workpiece length max. 700 mm Main spindle power (40% duty cycle) 38 kW Gedpfx Aeydfpkecheud Main spindle speed max. 4,000 rpm Rapid traverse speed X / Z 30 / 40 m/min Tool carrier 3 x disc turret with up to 11 driven tools each, or end machining turret

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Z-axis: 700 mm, turning diameter: 140 mm, turning height: 380 mm, turning diameter over bed slide: 250 mm, TECHNICAL DETAILS Turning diameter: 140 mm Swing diameter: 250 mm Turning height: 380 mm Travel paths Travel - X axis: 300 mm Travel - Z axis: 700 mm Spindle Spindle speeds: 1 - 6,000 rpm Drive power 40% duty cycle: 38.00 kW Spindle nose: DIN 55026 - size 6 Spindle bore diameter at front bearing: 110 mm Feed & Rapid Traverse X-axis feed rate: 1 - 30,000 mm/min X-axis rapid traverse: 30.00 m/min X-axis feed force: 9,000 N Z-axis feed rate: 1 - 40,000 mm/min Z-axis rapid traverse: 40.00 m/min Z-axis feed force: 10,000 N Tools Number of tools in turret 1: 11 Number of tools in turret 2: 11 Toolholder: VDI 40 MACHINE DETAILS Guodpfxewyvg Ts Achsd Control: SINUMERIK 840D Total power requirement: 70.00 kW Machine weight: approx. 22.00 t Space requirements: approx. 5.80 x 8.60 x H3.80 m EQUIPMENT Chip conveyor Extraction unit Infeed and outfeed Reversing gripper
