CNC Milling Machine

DMG Mori Ultrasonic 20 linear SAUER

Condition: good (used), Year of construction: 2015, functionality: fully functional, turning length: 650 mm, turning diameter: 400 mm, Fanuc Oi-TD control 3-jaw chuck diameter 250mm Bedpfsvi Haqex Abbowl 12-fold revolver tail stock chip conveyor The machine has only 4051 switch-on hours Technische Daten: / technical details Schwingdurchmesser / rotary diameter 650 mm Drehdurchmesser / turning diameter 400 mm Drehlänge / turning length 650 mm X-Weg / X-travel 230 mm Z-Weg / Z-travel 650 mm max. Drehzahl / max. spindle speed 4500 UpM /rpm Anzahl der Revolverplätze / number of tool places 12 Antriebsleistung Spindel / drive capacity spindle 11/15 kW Gewicht ca. / weight ca. 5400 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: new, functionality: fully functional, travel distance X-axis: 540 mm, travel distance Z-axis: 850 mm, spindle speed (max.): 1,500 rpm, turning diameter over cross slide: 1,000 mm, total length: 2,510 mm, total height: 3,546 mm, total width: 4,155 mm, feed rate X-axis: 20 m/min, feed rate Z-axis: 20 m/min, turning height: 825 mm, mount diameter: 1,000 mm, workpiece diameter (max.): 1,100 mm, overall weight: 16,000 kg, VERTICAL LATHE WITH MOTORIZED TOOLS TECHNICAL SPECIFICATIONS: Axes: - Maximum swing diameter: 1100 mm - Maximum turning height: 825 mm - Maximum turning diameter: 1000 mm - X axis travel: 500+40 mm - Z axis travel: 850 mm Spindle: - Maximum speed: 1500 rpm - Spindle nose: ASA A2-15 - Maximum workpiece weight (including chuck): 1250 kg Turret: - Number of positions: 12 - Maximum speed: 3000 rpm - Turret interface: BMT-85 Feed Rates: - Rapid traverse X / Z: 20 / 20 m/min - X axis ballscrew: diameter 50 x 8 mm - Z axis ballscrew: diameter 50 x 8 mm Motors: - Spindle motor: 37-45 kW - Motorized tool motor: 7 kW - X and Z axis servomotors: 4-7 kW General Data: - Length: 2510 mm - Width: 4155 mm - Height: 3546 mm - Weight: 16,000 kg INCLUDED ACCESSORIES: - Fanuc 0i-TF Plus numerical control (15''), Type 0, color graphic display, Manual Guide I, ONG keyboard, electronic handwheel - Serial, Ethernet, and USB ports - Belt-driven spindle, 1500 rpm, Alpha40/6000i, 37-45 kW, ASA A2-15 - Supplied without chuck - Servo-assisted BMT turret, 12 positions, prepared for motorized tools - Chip conveyor - High-pressure pump 15 BAR - 3-color alarm and cycle-end lamp Bjdpfeyxg N Aex Abbewl - Integrated work light - Leveling feet - Tool box with service keys - Air blow system through the spindle - Upgraded turret motorized tool motor – from Fanuc a30iF (30Nm) to Fanuc a40iF (38Nm) - Dual pressure release - Renishaw M.T.P. manual presetting - Oil skimmer - Static toolholder kit - Fume extractor predisposition - Black color NEW MACHINE IN STOCK FOR IMMEDIATE DELIVERY

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, turning length: 1,337 mm, turning diameter: 420 mm, General Control: Siemens 828 D Turning diameter: 420 mm Turning length: 1,337 mm Swing diameter: 700 mm Bar capacity: 89 mm Rapid traverse speed: 20 / 10 / 24 m/min Main spindle Bar capacity: 89 mm Chuck size: 305 mm Speed: 2,500 rpm Spindle power: 22 kW Spindle torque: 1,050 Nm Sub spindle Speed: 4,000 rpm Spindle power: 12 kW Spindle torque: 122 Nm Tool turret Bedpfx Aex Ag Hmobbswl Technology: 12 stations Tool drive: 5,000 rpm Power: 9.4 kW Torque: 90 Nm Tool holder: BMT-65 / BH Travel X: 280 mm Travel Y: 120 mm Travel Z: 1,390 mm Equipment Chip disposal: chip conveyor Coolant capacity: 240 liters Tool measurement: measuring arm in the working area Part discharge: parts catcher Bar feeder: prepared

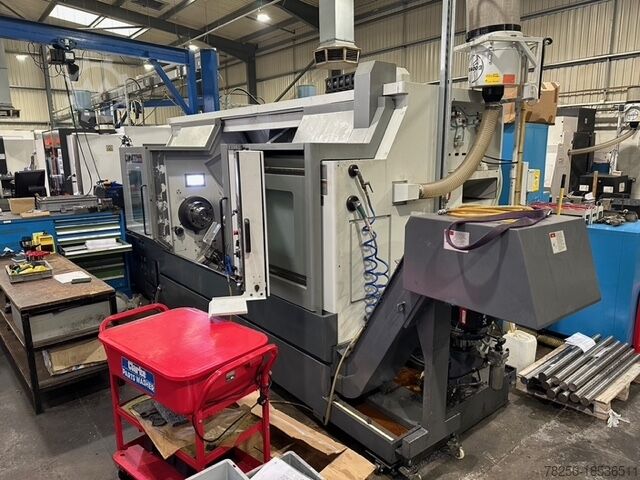

Condition: used, CMZ TC 35Y Serial number 362, year 2011 Bsdpoymctrjfx Abbjwl Fanuc 31i control Approx. 1200mm between centres, 400 mm dia chuck. Swarf FX5002 extraction unit Tooling including static and driven and jaws.

Condition: used, Year of construction: 2008, For sale: Honor Seiki CNC Vertical Lathe Model: VL-86A Extremely rigid and reliable machine, ideal for heavy-duty turning of medium-sized workpieces. Main Technical Data: Brand: Honor Seiki (Importer: Tecnor Macchine) Model: VL-86A CNC Control: Fanuc Series (color monitor) Year: 2008 Chuck Diameter: 605 mm Maximum Turning Diameter: 800 mm Maximum Turning Height: 800 mm Travel: X: 450 mm Z: 850 mm Spindle Speed: 25 – 1,250 rpm Motor Power: 18.5 / 22 kW Bsdpfx Abeynl Rvjbswl Turret: 12 positions Machine Weight: 12,000 kg Included Accessories: Chip conveyor (with rear discharge) Original maintenance manuals and electrical schematics. CE Certified. Condition: Machine in excellent general condition. Scheduled maintenance performed regularly.

Condition: excellent (used), Year of construction: 2005, TECHNICAL DETAILS Travel (X-axis): 750 mm Travel (Z-axis): 800 mm Travel (Y-axis): 850 mm Magazine Positions: 120 Bedpfxjxywtlj Abbewl Spindle Speed Range: 50–15,000 rpm Spindle Diameter (Front Bearing I.D.): 80 mm Spindle Taper: ISO R297 / Taper No. 40 Tool Holder: MAS I Type P40T Table Pallet Size: 550 × 550 mm Max. Rotary Table Swivel Range: 360° Pallet Height: 750 mm Distances Distance Between Spindle Nose and Table Center: 150–1,000 mm Distance Between Spindle Nose and Table Surface: 50–850 mm Feed Rates Rapid Traverse X-, Y-, Z-Axis: 60,000 mm/min Cutting Feed Rate (X-, Y-, Z-Axis): 0.001–30 mm/min Tool Changer (ATC) Number of Tools: 40 Tool Size (Ø × Length): Ø75 × 470 mm Tool Weight: 8.0 kg Tool Change Time (Tool to Tool): 1.3 s Performance Data Positioning Accuracy (X-, Y-, Z-Axis): ±0.003 mm Repeatability (X-, Y-, Z-Axis): ±0.0015 mm Pallet Load Capacity: 800 kg Thrust Force: 9,800 N MACHINE DETAILS Control: FANUC Series 30i Space Requirements & Weight Footprint: 2,750 × 5,700 mm Machine Weight: 16,000 kg Motors Spindle Drive Motor (15 min rated power): 22 / 18.5 kW Hydraulic Pump Motor: 3.7 (4) kW Operating Hours Machine Running Hours: 12,976 h Control Powered Hours: 112,997 h

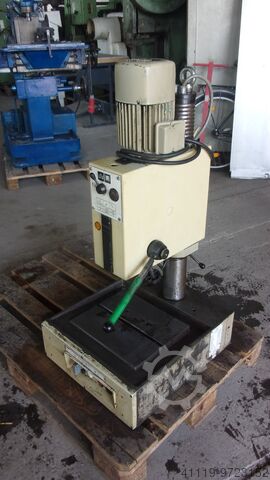

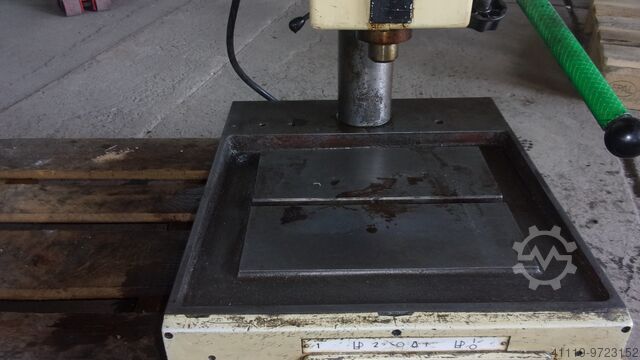

Condition: excellent (used), Machine number: 7455 TyP / Model: BT 2 Drilling capacity: up to 16 mm spindle mounting: drill chuck speed range: 355 / 710 / 1.400 / 2.800 rpm stroke: 100 mm throat: 210 mm table: 340 x 470 mm head adjustment: 120 mm Total power: 1,1 kW accessories/equipment: drill chuck Condition: very good weight: 165 kg Bwsdpfolk Dkusx Abbjl Dimensions: 480 x 550 x 1.150 mm

Condition: excellent (used), TECHNICAL DETAILS CNC Control: FANUC Series 31i-A5S X axis (mm): 500 Y axis (mm): 350 Z axis (mm): 510 B axis (mm): +160 to -180 C axis (degrees): 360 Number of pallets: 1 Table size (mm): Ø350 Table load capacity (kg): 300 Cutting feed rate X,Y,Z (mm/min): 50,000 / 50,000 / 40,000 Maximum rapid traverse X, Y, Z (m/min): 50 / 50 / 40 Spindle speed (rpm): 12,000 Spindle power (kW): 18.5 / 15 Taper type: BT-40 Torque (Nm): - Tool changer type: Chain Tool magazine capacity: 120 positions Max. tool diameter (mm): 90 Max. tool diameter with adjacent positions empty (mm): 125 Max. tool length (mm): 300 Max. tool weight (kg): 8 Coolant tank capacity (l): 750 Through-spindle coolant (bar): Yes EQUIPMENT Rotary table with digital readouts: Included Work light: Included Through-spindle coolant system Hydrajet WP10-1000: Included Bodpfxoym Rt Tj Abbjwl Electronic handwheel integrated into CNC panel: Included Coolant oil separator: Included MACHINE DIMENSIONS Length (mm): 2,339 Width (mm): 3,820 Height (mm): 3,250 Weight (kg): 9,400

Condition: excellent (used), Year of construction: 2016, operating hours: 75,078 h, functionality: fully functional, CNC Turning and Milling Center Gildemeister CTX gamma 1250 CT – Technically Excellent Condition (Year of manufacture: 2016) Operating hours: 75,078 Spindle hours: 48,772 Available from: Week 47 / 2026 Bwodpey A Hngsfx Abbsl (Inspection under power during ongoing production possible) Basic Equipment Turning length: 1,250 mm Main spindle as integrated spindle motor (ISM102) Drive power: 35/45 kW (100/40 % DC) Spindle speed: up to 4,000 rpm Partial hollow chucking device (hydraulic) Draw tube inner diameter: 104 mm, 848 mm depth C-axis with hydraulic spindle brake Upper cross slide with turning/milling spindle as motor spindle Mounting: HSK-63A DIN 69893 Hydraulic clamping during turning Y-axis: ±200 mm B-axis: ±120° (torque motor) Tool disc magazine: 36-position NC tailstock with mounted, hydraulically traversable quill and fixed live center Absolute, direct measuring systems on X, Y, and Z1 axes Coolant pump: 6 bar, 20 l/min, filtration fineness 10 µm Cooling system for spindle motors, motor console, turning/milling spindle, and B-axis USB and Ethernet interfaces Control CNC controller: Siemens Sinumerik 840D solutionline Operation: ERGOline Control Software: SINUMERIK Operate, ShopTurn 3G Operating system: Linux Extended Equipment Tool chain magazine: 120-position (instead of 36-position) Mechanical oil mist separator, filter class H13 Chuck flushing device on main spindle Coolant supply through spindle Tropical package (up to 40°C ambient temperature) Workpiece measuring probe BLUM TC60 incl. cycle package 3D data model of work area (STEP / IGES) Profibus interface Hand-held control device with jog mode and emergency stop function Tailstock force increased to 20 kN Special tailstock version for torque-proof pressure device Coolant & Chip System Coolant cleaning unit: Filter unit FK 20 (20 l/min) Coolant tank 950 l Magnetic roller MW180 Process pumps: 5 bar / 20 bar Chip conveyor type 300 S-2 (wear-resistant design, XAR) Return delivery pump: 1.2 bar Condition The machine has been regularly serviced by Gildemeister service and is in technically excellent condition. Dimensions & Weight Machine: approx. 580 × 280 × 285 cm, approx. 20,000 kg Chip conveyor: approx. 670 × 125 × 160 cm, approx. 1,000 kg Total weight incl. accessories: approx. 22,605 kg Number of packages: 11 Loading meters: approx. 21 Disassembly, loading, transport, and recommissioning can be organized Machinery Trade Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: used, Year of construction: 1992, faceplate diameter 1600 mm swing diameter 2000 mm turning height 1600 mm Control Siemens Sinumerik 805 turning speeds 1-250 U/min Bwodpjyqtnzofx Abbel Table load 12000 kg main drive device 56 Control system manufacturer Siemens type Sinumerik 805 Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
