Machining Center - Universal

DMG DECKEL MAHO DMU 80 P duoBlock

Condition: excellent (used), Year of construction: 2010, turning length: 800 mm, turning diameter: 430 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, travel distance X-axis: 455 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 12,000 rpm, total height: 8,500 mm, total length: 2,500 mm, total width: 2,495 mm, CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Turning length mm: 800 Max. turning diameter mm: ø Ø430 Turn-mill spindle X-axis travel mm: 455 Y-axis travel mm: ±105 Z-axis travel mm: 800 Fpedeu Afizepfx Ac Hjp B-axis degree: ±120 (0.001º) Speed spindle rpm: 12.000 Drive power kW: 9/5.5 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Coolant gun Working time hours Under power: 76.482 Spindle 1: 14.010 Spindle 2: 4.306 Rated power kVA: 48 Basic machine dimensions / weight 4.170 Length mm: 2.500 Width mm: 2.495 Height mm: 8.500

Condition: excellent (used), Year of construction: 2016, operating hours: 15,065 h, functionality: fully functional, travel distance X-axis: 735 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 560 mm, rapid traverse X-axis: 40,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, workpiece weight (max.): 600 kg, table width: 650 mm, table length: 800 mm, rotary table diameter: 650 mm, overall weight: 11,900 kg, spindle speed (max.): 24,000 rpm, tool length: 315 mm, tool diameter: 160 mm, tool weight: 8,000 g, input voltage: 400 V, type of input current: three-phase, CNC Machining centre DMG MORI DMU65 monoBLOCK TECHNICAL CHARACTERISTICS: Year of manufacturing: 2016 CNC control: SIEMENS 840D SL Number of simultaneous axes: 5 Stroke X axis: 735 [mm] Fpedpfx Acexnz R Rs Hop Stroke Y axis: 650 [mm] Stroke Z axis: 560 [mm] Working feed X axis: 40000 [mm/min] Working feed Y axis: 40000 [mm/min] Working feed Z axis: 40000 [mm/min] Traversing feeds X, Y and Z axes: 40000 [mm/min] Axes acceleration: 6 [m/s²] X axis ball screws Ø: 40 [mm] Y axis ball screws Ø: 50 [mm] Z axis ball screws Ø: 40 [mm] Table length: 800 [mm] Table width: 650 [mm] Max. load on table: 600 [Kg] Table surface Ø: 650 [mm] Spindle type: HSK-A63 Max. spindle speed: 24000 [rpm] Tool changer magazin number of stations: 60 Max. tool length: 315 [mm] Max. weight of single tool: 8 [Kg] Max. tool diameter: 160 [mm] Supply voltage: 400 [V] Number of hours under power: 41379 [h] Number of running hours: 15065 [h] Weight: 11900 [Kg] INCLUDED EQUIPMENT: x71 HSK-A63 tool holders x1 DMG MORI PowerProbe 60 optical part probe x1 BLUM laser system for tool setting and tool breakage detection x1 set of measuring glass scales on all linear axes with air supply x1 remote electronic handwheel x1 electrical cabinet air conditioning unit x1 MICRONFILTER KUBE 2500 mist extraction system x1 chip conveyor x1 spindle chiller Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, Axa, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, but also CNC milling, drilling and tapping machines, as well as CNC grinding machines.

Condition: used, functionality: fully functional, measuring range X-axis: 700 mm, measuring range Y-axis: 700 mm, measuring range Z-axis: 600 mm, Equipment: type plate available, Mitutoyo Crysta Apex C776 coordinate measuring machine Temperature compensation on all axes Active vibration isolation system from BILZ X-axis measuring range = 700 mm Fsdjwhfh Aopfx Ac Hepp Y-axis measuring range = 700 mm Z-axis measuring range = 600 mm Measurement uncertainty = 1.9 + 3L/1000 (µm) Renishaw PH10MQ probe head Renishaw SCR200 interchangeable rack Renishaw TP200 sensor Renishaw TP200 modules = 6 units MCosmos measuring software WIN10 PC system, 27" monitor Reference sphere / calibration sphere Optional software upgrade Optional hardware upgrade Full service available upon request

Condition: good (used), Year of construction: 2004, operating hours: 66,000 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, table load: 200 kg, overall weight: 6,500 kg, spindle speed (max.): 18,000 rpm, Equipment: rotational speed infinitely variable, For sale is a CNC milling machine from the brand Deckel Maho, model DMU 50 eVolution. The machine is in good condition and fully operational. History: 2022: Spindle rebalanced, new rotary union and gear ring Geometry newly adjusted Technical data: Year of manufacture: 2004 Control: Sinumerik 840 D Powerline X-axis: 500 mm Y-axis: 420 mm Z-axis: 380 mm B-axis: 0-180° C-axis: 360° Power-on hours: 66,000 h Operating hours: 31,000 h Table dimensions: Ø 500 mm Fedpfxjwvuzzj Ac Hepp Max. table load: 200 kg Max. spindle speed: 18,000 rpm Spindle taper: SK 40 Rapid traverse X/Y/Z: max. 50 m/min Tool magazine: 60 positions Space requirements: 4,700 x 5,400 x 2,600 mm Weight: approx. 6,500 kg Special equipment: - High-pressure coolant system - Band filter system - Chip conveyor - Automation flap, right side - Digital 3D touch probe - Blum laser measuring system Transport and loading can be organized Europe-wide on request and at an additional charge. Prices are subject to VAT. Inspection possible by appointment. Please contact us—our team will be happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINERY AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you wish to sell yours? For further information or contact options, please visit our website.

Condition: like new (used), Year of construction: 2020, operating hours: 1,500 h, functionality: fully functional, USED Akira Seiki 1600XP Fanuc 0iMF Open Fronted Vertical Machining Centre with Fanuc Ex Stock - Subject to Prior Sale. YOM 2020, Machine with Very Low Hours Usage. Approx 1500 Hours  12,000 RPM Spindle with Refrigeration System  36 Station Arm Type ATC  Full Splash Guard  Fully Integrated Detron GXA-255h 4th Axis Nc Rotary Table with SR255H Tailstock Support Unit  Chip Conveyor & Chip Bin (Scraper Type)  Chip Flushing System Including Coolant Wash Gun  Through Spindle Coolant System - 35 Bars with Filter  Fanuc Memory Extension - 2 Mb  Fanuc 10.4 “ Screen with Manual Guide-I  Coolant Tank Capacity - 640 Litres  THK Heavy Duty Linear Guideways  Manual Pulse Generator  3 Colour Signal Lamp  Automatic Lubrication System  Rigid Tapping & Helical Interpolation Function TABLE Working Surface 1,750 X 800 MM Tee Slots 18 x 125 x 6.0 MM Spindle Nose to Table 100 ~ 915 MM Spindle Centre to Column 865 MM Table Load Capacity 2,300 KGS Fjdpou A U Nkefx Ac Hepp TRAVEL X-Axis Travel 1,630 MM Y-Axis Travel 850 MM Z-Axis Travel 815 MM SPINDLE Spindle Nose Taper BT-40 Spindle Speed - Max 12,000 RPM FEED Rapid Traverse (X & Y-Axis) 33 M / MIN Rapid Traverse (Z-Axis) 25 M / MIN Cutting Feedrates - Max 12 M / MIN ACCURACIES Positioning 0.01 MM Repeatability + - 0.003 MM ATC Tool Storage Capacity ARM TYPE - 36 STATIONS Maximum Tool Weight 7.0 KGS Tool Diameter - Max 75 MM Tool Length - Max 250 MM Tool Shank BT-40 Tool Exchange Time 2.2 SEC MOTOR Spindle Drive Motor (FANUC) 18.5 KW POWER SUPPLY Voltage 415V / 3PH / 50HZ Power Requirement 30.0 KVA MACHINE DIMENSIONS Machine Floor Space Requirement 4,820 x 3,576 MM Machine Weight 12,600 KG

Condition: like new (used), Year of construction: 2017, operating hours: 1,760 h, functionality: fully functional, turning length: 530 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 185 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 530 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 36 m/min, spindle nose: A2-6, overall weight: 4,000 kg, Equipment: rotational speed infinitely variable, AS GOOD AS NEW WITH ONLY 1760 SPINDLE HOURS!!! This DMG MORI CLX 350 is truly in mint condition and comes standard with: - HAINBUCH TOPlus mini Axzug 65 - 3-jaw DMG MORI chuck - Chip conveyor - Siemens electronic handwheel Fsdpfx Acsxp Hqre Hepp - Workpiece catcher/ejector - Marposs measuring arm - Original DMG mist extraction system with unused hose - Foot pedal for clamping/releasing main spindle - Various tooling (driven & static) - Interface for bar feeder - Rinse gun (5 bar)

Condition: ready for operation (used), Year of construction: 2009, General Data Machine weight 25000 Control Unit Brand MAZATROL Model MATRIX Main Drive Fodpfowbw A Eox Ac Hepp Spindle speed range 12000 Spindle motor power 26 kw Tool taper ISO 40 Movement X-Axis Movement 630 mm Y-Axis Movement 510 mm Z-Axis Movement 560 mm Table Outer length 500 mm Outer width 500 mm Table load 500 kg Media Chip conveyor Yes This 5-axis Mazak Variaxis 630-5X T was manufactured in 2009, offering advanced capabilities for complex machining tasks. Ideal for precision engineering, this vertical machining center ensures reliable performance. Consider the opportunity to buy this Mazak Variaxis 630-5X T vertical machining center. Contact us for more information. Application Types Milling

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: N2495255010011, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, Highlights: - powerful motor spindle - pallet clamping system - 90 tools in the system _____ Basic machine G550 access-SERIE Travel path of the X-axis 800 mm Travel path of the Y'-axis 950 mm Travel path of the Z-axis 1020 mm Fpjdsvgalzepfx Ac Hsp Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SINUMERIK 840D sl with the machine control panel GROB⁴Pilot Generation 2 Tilting table unit (A'-axis) Rotary table with pallet clamping system (B‘- axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Palette 630 x 630 mm, grid holes, without pallet changer hook Scraper conveyor , discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Flushing unit (Z- axis) Compressed air cleaner bar for safety screen in work area door Remote machine diagnostics with access control switch 12 month warranty

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Fpjdsvt D D Uspfx Ac Hsp Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

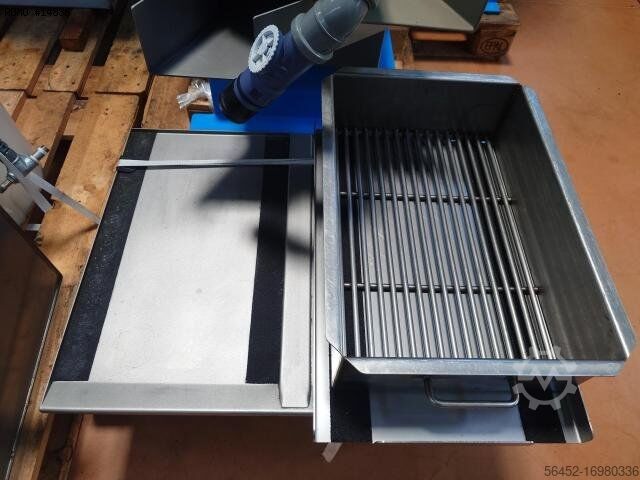

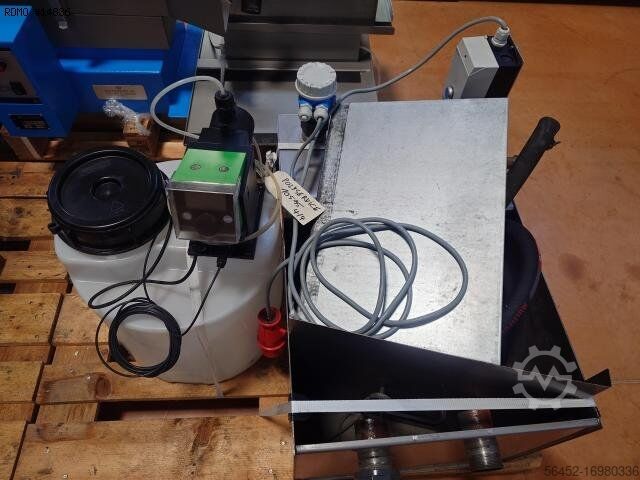

Condition: used, TECHNICAL DETAILS - Tank volume : 30 [l] - Useful volume : 24 [l] - Volume of parts : 10 [l] - Max. part dimensions : 50 [mm] - Speed : 1500 / 3000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 1.4 [kW] WEIGHT & DIMENSIONS - Machine floor space : 850 x 1144 [mm] - Machine height : 1035 [mm] - Machine weight : 195 [kg] EQUIPMENT Fsdpeuhhnuofx Ac Hopp - Coolant tank
