Tool milling machine

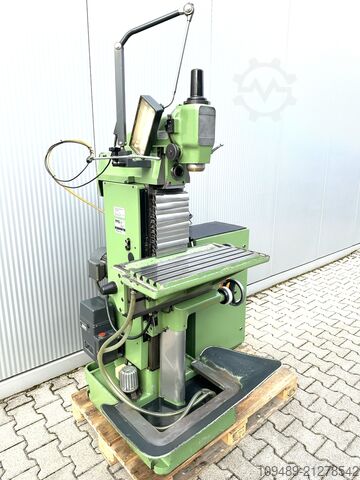

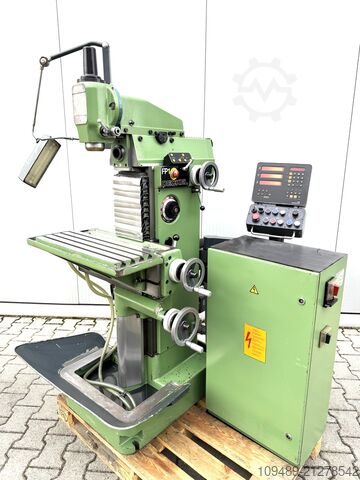

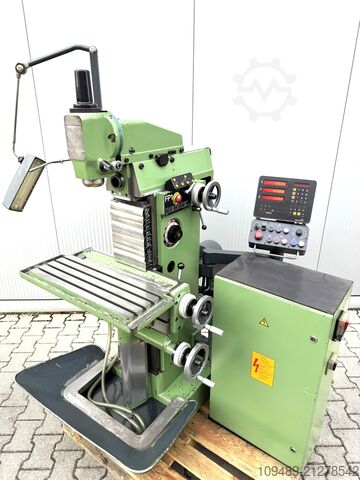

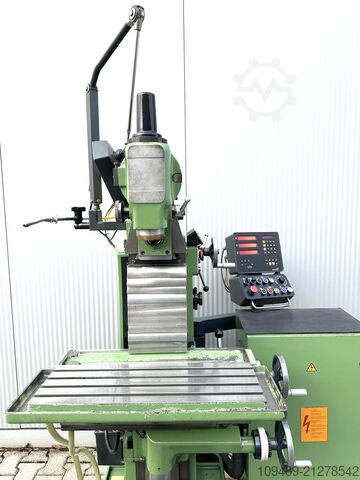

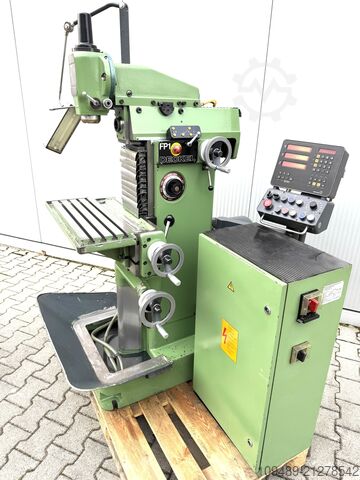

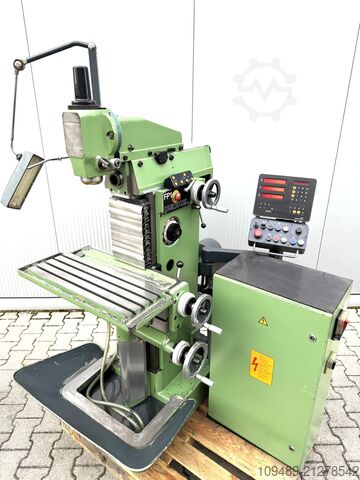

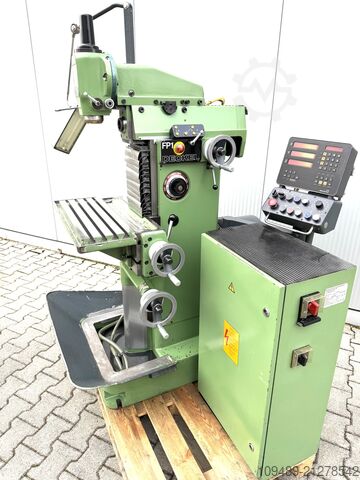

DECKEL FP 1 Aktiv

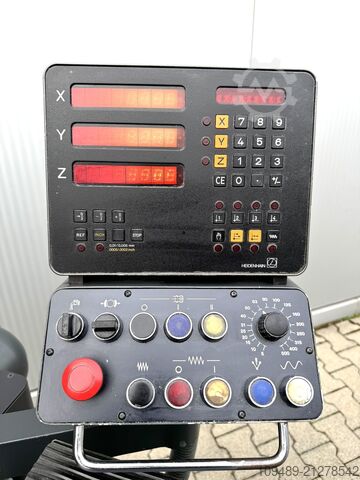

Condition: good (used), functionality: fully functional, DECKEL FP1 Active milling machine Manufacturer: Deckel Type: FP1 Active Condition: very good Control type conventional Control active HEIDENHAIN TNC X-path 300 mm Y-path 160 mm Z-path 340 mm Tool holder SK40 Speed 40-2000 rpm. Hedpsztynfefx Ah Sefn Control Active HEIDENHAIN TNC Total power requirement 2 kW Machine weight approx. 0.73 t Space requirement approx. TBH 1200x1100x1600 mm

Year of construction: 1997, condition: ready for operation (used), - USED - CONVENTIONAL LATHE CENTRE HEIGHT: 102 mm DISTANCE BETWEEN CENTRES: 450 mm MAX TURNING DIAMETER OVER BED: 200 mm MAX TURNING DIAMETER OVER CARRIAGE: 120 mm BAR CAPACITY: 25 mm SPINDLE: 50 - 5000 rpm; 3 kW TAILSTOCK TAPER: CM 2 QUILL DIAMETER: 30 mm QUILL TRAVEL: 80 mm TURRET HEAD: MULTIFIX OVERALL DIMENSIONS: 1500 x 510 x 1550 mm Hfedpfx Aeyvlxqsh Son

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, spindle speed (max.): 2,000 rpm, spindle speed (min.): 80 rpm, type of input current: three-phase, input voltage: 400 V, Equipment: rotational speed infinitely variable, Universal milling machine Deckel FP1 – Very good condition Hfjdpozlnmmofx Ah Son For sale is a Deckel FP1 universal milling machine in very good, well-maintained condition. The machine is equipped with a 3-axis digital display Heidenhain TNC 113 and stepless feed in all three axes. The Deckel FP1 is known for its precision, reliability and durability and is ideal for toolmaking, single-part production, repair work and training companies. Technical data Manufacturer: Deckel Model: FP1 Year of manufacture: 1985 Machine number: 15082 Spindle speed: 80–2,000 rpm Drive power: 1.6 / 2.0 kW Stepless feed in X, Y and Z axis Rapid traverse in all three axes Travel ranges (X/Y/Z): 300 / 160 / 340 mm Fixed angular table Vertical milling head on spindle head, adjustable by 100 mm Vertical and horizontal spindle with SK40 collet Clamping system: S20x2 Spindle brake Space requirement: 1.30 m x 1.10 m x 1.60 m (L x W x H) Machine weight: approx. 850 kg Equipment - 3-axis digital display Heidenhain TNC 113 - Hydraulic vise - Coolant system - Operating manual The machine is in very good technical and optical condition and is ready for immediate use. An inspection and a test run can be arranged at any time by appointment.

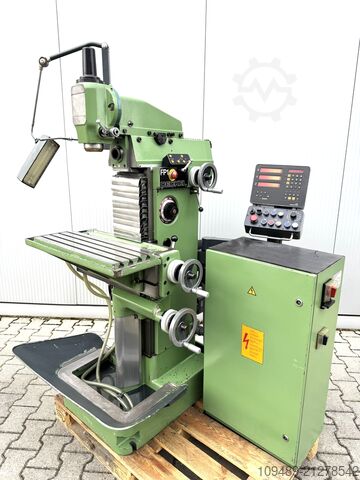

Condition: used, Year of construction: 1984, x-travel 300 mm y-travel 160 mm z-travel 340 mm spindle taper ISO 40 digital readout 3 Achsen HEIDENHAIN spindle turning speed range 40 - 2000 U/min quill stroke 60 mm feeds -stepless- 5 - 500 mm/min table-size 600 x 210 mm rapid traverse 1200 mm/min power capacity 1,6 - 2,0 kW table load 200 kg voltage 400 V weight of the machine ca. 800 kg dimensions of the machine ca. 1,15 x 1,15 x 1,65 m electric cabinet 0,60 x 0,35 x 0,90 m !!! ATTENTION !!! EXCELLENT CONDITION !!! This machine comes from a vocational school! - Serialä-No.: 2102-2445 Hfodozz S Duspfx Ah Sjn - 3-axis active digital display HEIDENHAIN TNC 116 - Rapid traverse - Machine light

Condition: excellent (used), Year of construction: 2002, Control: 3-axis active path control, Heidenhain TNC 123 Hsdpfx Aheyg I Nfj Sofn Spindle speed: 40 - 2000 rpm, geometrically stepped direct drive with 16 gear stages for maximum torque / milling performance Feed rate: 5 to 500 mm/min, infinitely variable Rapid traverse: 1.2 m/min Quill: Extendable vertical quill, 60 mm, SK40 M16 draw thread Axes X/Y/Z: 300/160/340 mm Swivel table: 600 x 210 mm, max. load 200 kg

Condition: excellent (used), Year of construction: 1984, functionality: fully functional, Equipment: documentation/manual, Universal milling machine Deckel FP1 with 3-axis active digital readout TNC 113 Heidenhain and infinitely variable feed Super CONDITION Technical data: >> Year of construction 1984 Machine no. 2102-2601 >> Turn-tilt-swivel table >> Speed: 40 - 2000 rpm >> feed stepless in 3 axes Hfsdou Racropfx Ah Sjn >> Rapid traverse in 3 axes >> Drive power .:1,5 / 1,9 KW >> Spindle brake >> Travel X/Y/Z: 300/160/340 mm >> Vertical milling head can be moved 100 mm on headstock >> Vertical quill and horizontal quill - SK40 >> Tightening system S20x2 >> Weight approx. 800 kg Accessories and equipment: Dpbyzb >> 3-axis digital display Heidenhain TNC113 >> Coolant device >> Operating instructions, spare parts plan To the machine : We are offering a Deckel FP1 universal milling machine built in 1984 in very good condition. The machine has very little crank play and all spindles can be moved easily. The milling machine runs very smoothly even at maximum speeds. On this newer FP1 model, the feed is infinitely variable in three axes, and the machine also has rapid traverse in these axes. A great advantage is the active 3-axis digital display. With this Heidenhain line control you can enter dimensions which the machine automatically approaches. The FP1 was in a training workshop where it was only used occasionally. An oil change was carried out. Mechanically and electrically tested. The Heidenhain digital display makes work easier and even more accurate. Take the opportunity to inspect and try out this machine under power on site.

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Equipment: documentation/manual, F729 Universal milling machine Deckel FP1 with 3-axis active digital readout TNC 113 Heidenhain and stepless feed very good CONDITION Technical data: >> year of construction 1992 machine no. 2102-6289 Hjdpou T D Nrofx Ah Sefn >> Rigid angle table (newly planed) >> Speed: 40 - 2000 rpm >> Infinitely variable feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 KW >> Spindle brake >> Travel X/Y/Z: 300/160/340 mm >> Vertical milling head can be moved 100 mm on headstock >> Vertical quill and horizontal quill - SK40 >> Tightening system S20x2 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital readout Heidenhain TNC113 Bmbwuweo9T3 >> Coolant device >> Operating instructions, spare parts plan To the machine : We offer a Deckel FP1 universal milling machine built in 1992 in very good condition. The machine has very little crank play and all spindles can be moved easily. The milling machine runs very smoothly even at maximum speeds. On this newer FP1 model, the feed is infinitely variable in three axes, and the machine also has rapid traverse in these axes. A great advantage is the active 3-axis digital display. With this Heidenhain line control you can enter dimensions which the machine automatically approaches. The FP1 was in a training company where it was only used occasionally. An oil change was carried out. Mechanically and electrically tested. The Heidenhain digital display makes work easier and even more accurate. Take the opportunity to inspect and try out this machine under power on site.

Condition: used, Technical details: power consumption: 240 A voltage: 3x400 V open-circuit voltage: 91 V power consumption: 9,3 kVA Hsdpsu U Iixefx Ah Sofn weight of the machine approx.: 28 kg dimensions of machine: 1,0 x 0,6 x 1,0 m Welding rectifier (inverter) TIG (steel/VA) and manual electric welding Direct current TIG = up to 240 A / 19.6 V Electric welding = up to 240 A / 19.6 V 2/4-cycle switchover, stepless switchover to pulse Protection class IP 23 Water-cooled and frost protection Shielding gas / solenoid valve Gas-cooled torch head with remote control for welding current Equipment: Hose package 7.4 meters Ground clamp and ground cable 4.2 meters *

Condition: good (used), Year of construction: 1985, Deckel FP1 Aktiv with 3-axis Heidenhain digital readout, 3 active axes, rigid table, SK 40 M16 spindle taper. Central lubrication, operating manuals included. Good operational condition, comes from a vocational training center. Can be demonstrated under power by arrangement. Hodoxwunzjpfx Ah Sofn

Condition: good (used), Year of construction: 1989, Lid FP1 Active with 3-axis Heidenhain digital readout, rigid table, SK 40 M16 spindle holder. Good working condition, ready for demonstration under power by arrangement. Hfodpfx Aetp Nyfsh Ssn

Condition: like new (used), Year of construction: 2024, functionality: fully functional, Max. turning diameter. 400 mm Turning length. 650 mm Circumferential diameter. 600 mm X-axis travel. 275 mm Z-axis travel. 700 mm Bar capacity. 85 mm Main spindle. 3,400 rpm for 85 mm bore Hfedpfx Ahoz Hyy Eo Ssn Spindle nose. A8 / DIN A8 Chuck Driven tools. MC = Milling/driven tools Control system. Siemens 16-station BMT45 turret, axial - all stations driven Chip conveyor in the tailstock High-pressure pump, 15 bar Siemens Sinumerik One Measuring probe for tool measurement in the work area Direct measuring system in the X-axis Automatic door

Condition: excellent (used), Year of construction: 1982, functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis digital display, Heidenhain active control, and continuously variable feed. Hfsdpfx Ahezrn Tye Ssn Technical data: >> Year of manufacture: 1982, Machine no. 2101-1995 >> Fixed angular table >> Speed: 40 - 2000 rpm >> Continuously variable feed in 2 axes >> Rapid traverse in 2 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travels X/Y/Z: 300/160/340 mm >> Vertical milling head, adjustable by 100mm on the spindle head >> Vertical quill and horizontal quill - SK40 >> Clamping system S20x2 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain >> Coolant system >> Operating manual, parts list About the machine: Offered is a Deckel FP1 universal milling machine in very good original condition. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs smoothly. The FP1 was in a training workshop at a university and was used very little. This newer FP1 model has continuously variable feed in two axes, and the machine also has rapid traverse in these axes. A major advantage is the active 2-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically approach. An oil change has been carried out. Mechanically and electrically inspected. The Heidenhain digital display makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on-site while it is powered up.

Condition: good (used), Year of construction: 1980, Deckel FP1 Active milling machine with 3 axes, Heidenhain digital display, and angle table. SK 40 spindle mount. Good working condition, ready for demonstration under power upon request. Hfedpfswg S I Tox Ah Sen

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Equipment: documentation/manual, Universal Milling Machine Deckel FP1 with 3-Axis Active Digital Readout TNC 113 Heidenhain and stepless feed, in very good CONDITION, CE compliant Technical Data: >> Year of manufacture: 1992 Machine No.: 2102-6209 >> Fixed angle table (newly planed) >> Spindle speed: 40 – 2000 rpm >> Stepless feed on 3 axes >> Rapid traverse on 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travel X/Y/Z: 300/160/340 mm >> Vertical milling head adjustable on spindle carrier 100 mm >> Vertical and horizontal quill – SK40 >> Drawbar system M16 Hodpfxoxdi Ivs Ah Sofn >> Weight approx. 800 kg Accessories and Equipment: >> 3-axis digital readout Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, spare parts plan About the machine: For sale is a universal milling machine Deckel FP1 with CE certification, in very good condition. The machine has very minimal backlash and all spindles can be moved easily. Even at maximum speed, the milling machine runs very smoothly. A special feature is that the control cabinet is connected to the machine via a plug, making transport easier. On this newer FP1 model, the feed in all three axes is infinitely variable, and the machine features rapid traverse in those axes as well. Another great advantage is the active 3-axis digital readout. With this Heidenhain path control, you can input dimensions, and the machine will automatically move to them. The FP1 was previously located in a training facility, where it was only used occasionally. The oil was changed, and the machine has been mechanically and electrically inspected. The Heidenhain digital readout makes working easier and even more precise. Take the opportunity to inspect and test this machine under power at our premises.

Condition: excellent (used), functionality: fully functional, Universal milling machine Deckel FP1 with 3-axis active digital display TNC 113 Heidenhain and stepless feed, in very good condition. Accessories, CE compliant. Technical data: >> Year of manufacture 1992, machine no. 2102-7007 >> Fixed angular table >> Speed: 40 - 2000 rpm Hedpfxszl Ebbo Ah Sofn >> Stepless feed in 3 axes >> Rapid traverse in 3 axes >> Drive power: 1.5 / 1.9 kW >> Spindle brake >> Travels X/Y/Z: 300/160/340 mm >> Vertical milling head, adjustable on spindle head by 100 mm >> Vertical and horizontal quill - SK40 >> Clamping system M16 >> Weight approx. 800 kg Accessories and equipment: >> 3-axis digital display Heidenhain TNC113 >> Coolant system >> Machine lamp >> Operating manual, parts list >> Tool holders, vise, counter holder About the machine: Offered is a Deckel FP1 universal milling machine in very good condition and CE compliant. The machine has very little backlash and all spindles move easily. Even at maximum speeds, the milling machine runs very smoothly. A special feature is that the control cabinet is connected to the machine with a plug. This makes it easier to transport the machine. In this newer FP1 model, the feed is steplessly adjustable in three axes, and the machine also has rapid traverse in these axes. A major advantage is the active 3-axis digital display. With this Heidenhain positioning control, you can enter dimensions that the machine will automatically move to. The FP1 was used in a training workshop, where it was only used occasionally. An oil change was performed. Mechanically and electrically tested. The digital display from Heidenhain makes working easier and even more precise. Take advantage of the opportunity to inspect and test this machine on site under power.
