5-axis milling machine

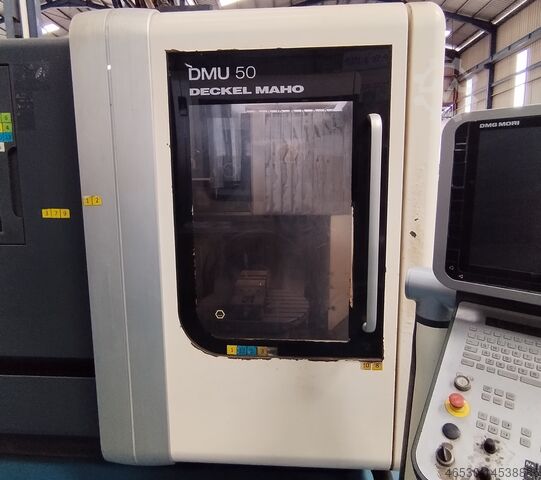

Deckel Maho DMU 50

Condition: good (used), Year of construction: 2004, operating hours: 39,000 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, controller model: Heidenhain Mill Plus IT, total height: 5,600 mm, total length: 9,000 mm, overall weight: 6,000 kg, For sale is a 5 axis machining center of the Makre DMU and type 50 eVolution Please note the GMN high frequency spindle spindle HCS 30.000 /15 and the 92-fold tool changer The machine is in good condition and fully functional Technical data Year of construction: 2004 Operating hours: approx. 39,000 h Control system: Heidenhain MillPlus IT Table size: approx 500 mm ⌀ Traverse paths: Lsdpjtyit Eefx Af Ssta X-axis: 500 mm Y-axis: 420 mm Z-axis: 380 mm A-axis: 0-180° C-axis: 360 ° Tool holder: HSK 50 Spindle speeds: max: 30,000 1/min Frequency: 500 Hz Power: 15 kW Tool places: 92 NO chip conveyor Space requirement according to drawing: 9,000*5,600 mm Transport dimensions: 2,800*3,700*2,800 mm Weight: 6,000 kg On request, transport and loading can be organized throughout Europe for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Fzho0bc Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or to contact us, please visit our website

Condition: used, Year of construction: 2001, operating hours: 7,343 h, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, The DECKEL MAHO DMU 50T machining center is a machine that enables the rapid and precise production of complex components using multiple tools. The machine can use multiple tools in a single cycle, automatically fed to the spindle as needed. A single machine can perform operations such as drilling, milling, threading, and reaming. Control of such a machine is entrusted to CNC control systems, the most efficient control system used in machining. Technical data of the DECKEL MAHO DMU 50T machining center : -Year of construction 2001 -Number of working hours: 7343 -Heidenhain TNC 426/430 control -Axis: X500 Y400 Z400 C and B axis -Table 700x500mm -Spindle speed 20 - 9,000 rpm -Tool magazine 16-items Lodpfxjx Nm Tis Af Sota -SK40 tool holder

Condition: good (used), Year of construction: 2012, operating hours: 8,264 h, Universal Machine Center 5 axis simultaneous Ltsdpfxeq N Afhj Af Sea DMG DMU 50 Year 2012 Travel X500 Y450 Z400mm Heidehhain iTNC530 SmarT.NC ERGOline Swivel Rotary Table Ø630x500mm NC B axis -5 to 110 degree NC C axis 360 degree x 0.001 Spindle 14,000 rpm ATC 30 BT40 taper Direct Measuring X,Y & Z axis Chip conveyor Coolant air blast changeover by M code Electronic Handwheel

Condition: ready for operation (used), Year of construction: 2005, Control Unit Brand HEIDENHAIN Model iTNC 530 General Data Machine weight 3600 kg Main Drive Spindle speed range 20 - 10000 RPM Spindle motor power 9 / 13 kW Tool taper SK 40 Number of axis 5 Movement X-Axis Movement 500 mm Y-Axis Movement 450 mm Z-Axis Movement 400 mm Additional Equipment Ljdpfx Aex E D U Ajf Sjta Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm Total Power Requirement: 17 kVA No chip conveyor included / No automatic measuring probe included / No tools included This 5-axis DMG DECKEL MAHO DMU 50 vertical machining centre was manufactured in 2005. It features a Heidenhain iTNC 530 control, a main spindle speed range of 20 - 10,000 RPM, and a rotary table with a clamping surface of 630 x 500 mm. The machine has undergone significant overhauls, including a complete X-Axis bearing replacement and new coolant pump installation. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 50 machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Deckel Maho DMU 50 EVO Linear with ITNC 530 About the Machine: Fast and flexible 5-axis simultaneous milling machine in excellent condition. Fully equipped! Suitable for integration into an automated system! Technical Data: - Control: Heidenhain ITNC 530 - Travel X-, Y-, Z-axis: 500/450/400 mm - Rotary axis travel B-, C-axis: 161.955°/360° - Clamping surface rotary table: 500 x 380 mm - Rapid traverse X-80 m/min, Y-50 m/min, Z-50 m/min, B-40 rpm, C-50 rpm - Spindle speed: 20–18,000 rpm - Tool holder: SK40 - Tool magazine with 60 stations - Network interface - Automation connection possible Accessories: - Internal cooling with belt filter system - Work space rinsing - Heidenhain TS 649 measuring probe - Coolant/air blast selection via M-function - Oil mist extraction - Rinsing gun - Chip conveyor - Handheld control unit Machine dimensions (L x W x H): 3800 x 3200 x 2800 mm Weight approx. 6500 kg An inspection and test run under power at our facility is of course possible. We are pleased to offer you transport, installation, and commissioning at your location. Everything from a single source: We, Baumgärtner CNC GmbH & Co. KG, are a company specializing in: - Service - Maintenance - Overhaul - Automation of DMG machines and those of other renowned manufacturers. Ltjdpfxsx Hwhrs Af Soa We support you! From the purchase of your machine, through transport and installation, to commissioning and subsequent maintenance or repair work – you can count on us.

Condition: good (used), Year of construction: 2003, functionality: fully functional, 1 CNC Universal Machining Center DECKEL MAHO - DMU 50 T Year of manufacture: 2003 X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Control: Siemens 810 D Spindle speed range: 20 - 9,000 rpm Main spindle drive power: 9 / 13 kW Tool holder: ISO 40 DIN 69871 Table dimensions: 700 x 500 mm Swiveling B: 105° (-10°/+95°) manual Rotating: 360° manual Max. table load: 200 kg Number of T-slots: 7 T-slot spacing: 63 mm T-slot width: 14H7 mm Ljdex Auvvjpfx Af Seta Centering bore: 30H7 mm Number of tool stations: 16 positions Tool holder: ISO 40 DIN 69871 Max. tool length: 290 mm Max. tool weight: 6.0 kg Max. total tool weight: 50 kg Feed rate max.: 10,000 mm/min Rapid traverse: 12 m/min Minimum input unit: 0.01 mm Total power consumption: 17 kW Machine weight approx.: 3.2 t Space requirement approx.: 4.0 x 4.0 x 2.5 m - 5 axes (3 + 2) - Swivel rotary table with angle display (axes B+C manually by handwheel) Available immediately. Including tool holders and zero point clamping system.

Condition: good (used), Year of construction: 2000, operating hours: 53,776 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 380 mm, rotary table diameter: 500 mm, rotational speed (max.): 18,000 rpm, For sale is a 5-axis simultaneous milling machine from Deckel Maho, model DMU 50 eVolution. The machine is in good condition and ready for immediate use. Technical Data: Year of manufacture: 2000 Control: MillPlus Power-on hours: 53,776 h Spindle hours: 18,512 h X-axis: 500 mm Y-axis: 400 mm Z-axis: 380 mm B-axis: 0-180° C-axis: 360° Clamping surface: Ø 500 mm Max. table load: 200 kg Spindle taper: SK40 Max. speed: 18,000 rpm Spindle power: approx. 15 kW Ledpfswxd Agox Af Sota Tool magazine: 60 slots Dimensions: approx. 3,400 x 2,400 x 2,500 mm Weight: 5,500 kg Transport and loading can be arranged Europe-wide at an additional cost upon request. Prices are subject to VAT. Viewing possible by appointment. Please contact us—our team is happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sale BUYING / SELLING OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or would you like to sell your equipment? For further information or contact options, please visit our website.

Condition: used, Year of construction: 2007, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, DMG Deckel Maho Machining Center 5-Axis Simultaneous Model: DMU 50 EVO Linear Year: 2006 Complete Machine Ledpfx Ajxtqfnef Sota With Documentation CNC Heidenhain type Mill Plus

Condition: ready for operation (used), Year of construction: 2002, Control Unit Ljdpfx Afex D Duko Ssta Brand HEIDENHAIN Model na Movement X-Axis Movement 500 mm Y-Axis Movement 400 mm Z-Axis Movement 400 mm This DECKEL MAHO DMU 50 T was manufactured in 2002. It features a spindle mount of SK40 DIN69871, a table size of 700x500 mm, and a maximum RPM of 9000. Ideal for versatile machining tasks. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (min.): 50 rpm, spindle speed (max.): 4,500 rpm, For sale is a Deckel Maho machining center, type DMU 50 M with path control and manual rotation axes The machine is in very good condition, fully functional and ready for immediate use. Particularly noteworthy is the possibility of working in an open cabin Technical data: Year of construction: 2002 Control: Heidenhain TNC 124 Ltjdpju Unh Isfx Af Soa X-axis: 500 mm Y-axis: 400 mm Z-axis: 400 mm Feed speed: 5,000 mm/min Rapid traverse: 5 m/min Tool holder: SK 40 Clamping surface: Ø 700 x 500 mm Rotation range: 360 ° (mechanical) Swivel range: +90/ - 15 ° (mechanical) Max. load: 200 kg Space requirement: 4,000 x 3,500 x 2,518 mm Transport dimensions: approx. 2,500 x 1520 x 2,200 mm Weight: 2,600 kg Additional tool holders available on request Transport and loading can be organized on request, at an extra charge. can be organized throughout Europe. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website
