CNC Machining Center

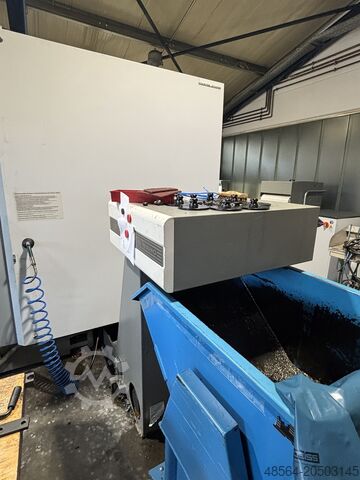

Deckel Maho DMC 105 V Linear

Condition: good (used), Year of construction: 2005, operating hours: 29,850 h, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 500 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, table load: 800 kg, rotary table diameter: 950 mm, spindle speed (min.): 18,000 rpm, operating hours of spindle: 24,575 h, Equipment: chip conveyor, Internal coolant supply Chip conveyor Tool measurement Touch probe 18,000 rpm 30-position tool changer Ksdpoyazgksfx Ad Njll Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and proper installation – all from one source. Invoicing based on individual terms and duration. Contact us for your personal offer.

Condition: used, Year of construction: 2009, functionality: unexamined, machine/vehicle number: 73136, travel distance X-axis: 1,350 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 720 mm, nominal power (apparent): 64 kVA, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 3,150 mm, total length: 5,605 mm, total width: 4,290 mm, overall weight: 12,600 kg, spindle speed (min.): 15,000 rpm, operating hours of spindle: 21,786 h, number of slots in tool magazine: 46, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, +GF+ MIKRON HPM 1350U – 5-Axis Machining Center (Year of Manufacture 2009) Used 5-axis milling machine MIKRON HPM 1350U from 2009. The machine is in operational condition and comes from ongoing production. Equipped with Heidenhain iTNC 530 control, rotary table Ø 1100 mm, 46-position tool magazine, and Renishaw OMP60 touch probe. Operating Hours (Readout): Control powered on: approx. 112,194 h Machine powered on: approx. 72,272 h Spindle running: approx. 21,786 h Programs: approx. 21,654 h Condition: Used machine with normal signs of use, technically operational. Inspection under power possible by arrangement. Work Areas Travels: X-axis: 1,350 mm Y-axis: 1,150 mm Z-axis: 720 mm (vertical spindle) / 895 mm (horizontal spindle) Spindle Standard spindle 15,000 rpm Speed range: 0–15,000 rpm Acceleration to max. speed: approx. 2.5 s Power: 38 kW (S6 = 40% duty cycle, TS = 2 min) Torque: 193 Nm (S6 = 40% duty cycle) Tool holder: HSK-A63 (DIN 69063-1, option ISO-B40/DIN 69871) Max. tool diameter: 130 mm (fully equipped) Bearing: Ceramic hybrid Ø 70 / Cronidur steel Lubrication: Lifetime lubricated Cooling: Water-cooled with corrosion inhibitor Feed Drives Feed motors: AC Rapid traverse / working feed: 32 m/min (20% duty cycle) 10 m/min (100% duty cycle) max. 15 m/min (40% duty cycle/hour) Position measuring systems X/Y/Z: Linear scales (direct) Rotary Table Clamping surface: Ø 1100 × 1000 mm, flattened on the side Klsdjx Eh Iqspfx Ad Nol Table load: 1,600 kg T-slots: 8 × 18H12 + 1 alignment slot 18H7 (100 mm pitch) Centering bore: Ø 50 H6 Clamping torque: 8,000 Nm Max. mass moment of inertia: 75 kg·m² Table elevation above floor: 1,120 mm Table drive: Direct torque motor Drive torque: 1,600 Nm (40% duty cycle, 2 min) Swivel Axis (A-axis) NC swivel range: +16° to −120° Measuring system: direct, absolute Clamping principle: hydraulic, stepless Max. swivel speed: 4,000 °/min Max. working swivel torque: 600 Nm (S6 40%) Swivel time 0° → 90°: 0.9 s Tool Magazine / Changer 46-position magazine (installed as per documentation) Magazine positions: 46 Tool holder: HSK-A63 (DIN 69063-1), option ISO-B40 Max. tool diameter: 80 mm (fully loaded) 130 mm (partially loaded) Max. tool length: 300 mm Max. tool weight: 8 kg Magazine loading: 200 kg Tool change time (vertical): 11 s Coolant / Chip Disposal External coolant supply (AKZ): 40 l/min, 2.5 bar Internal coolant supply (IKZ) Electrical Data: Installed rated power: 75 kW Connection power: 58 kW Connected load: 64 kVA Control voltage: 24 V DC Operating voltage: 3 × 400 V, 50 Hz Protection class: IP54 Dimensions & Weight Machine weight: approx. 12,600 kg (without accessories) Required space (L × W × H): 5,605 × 4,290 × 3,150 mm

Condition: ready for operation (used), Year of construction: 2006, operating hours: 76,968 h, Control Unit Kedpex D Nhiefx Ad Njll Brand HEIDENHAIN Model TNC 530 Main Drive Spindle speed range 28000 Number of axis 3 Movement X-Axis Movement 1050 mm Y-Axis Movement 800 mm Z-Axis Movement 560 mm This 3-axis DECKEL MAHO DMC 105 V linear was manufactured in 2006. It's a Vertical Machining Centre designed for precision and efficiency in complex milling operations. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMC 105 V linear machine we have for sale. Contact us for more information. Application Types Milling

Year of construction: 2008, condition: ready for operation (used), Travel X/Y/Z: 1050mm/800mm/560mm, C-axis: 360°, spindle head swivel range: -10°/110°, speed: 18000rpm, spindle power: 25kW/35kW, table diameter: 950mm, table load capacity: 800kg, max. workpiece height: 500mm. Tool positions: 30, tool holder: HSK A 63, max. tool diameter: 80mm/130mm, max. tool length: 250mm, rapid traverse: 90m/min, feed: 20m/min. Control: Heidenhain iTNC 530, operating hours: 117490h, spindle hours: 18086h. Including chip conveyor, IKZ, distance measuring system, Blum laser and measuring probe. Documentation available. On-site inspection is possible. Ksdpfjv H Dgijx Ad Noll

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 172822052, SPECIFICATION Trunnion table size 600mm diameter X axis traverse 600mm Kodpfx Aet Dmlfsd Noll Y axis traverse 600mm Z axis traverse 500mm A axis tilt +120 deg/-120deg C axis rotation 360 degree Maximum table load 600Kg Spindle BT 40 Maximum spindle speed 15,000rpm Spindle motor 22.4kW Maximum spindle torque 239Nm at 1100rpm Spindle motor 35kW Rapid feed rate X,Y,Z axis 36m/min Rapid feed rate C axis 540 degrees a second (90 rpm Rapid feed rate A axis 99 degrees a second (16.6rpm) Toolchanger capacity 32 tools Approx. weight 9500kg   MACHINE EQUIPPED WITH:- Siemens 840DSL CNC control system with Shop Mill Through spindle coolant, 20 bar Swarf Conveyor Laser toolsetting Traori-this function keeps the tool in an optimised cutting position relative to the workpiece when 5 axis simultaneous machining Networking Lighting Enclosed Guarding

Condition: like new (used), Year of construction: 2005, operating hours: 48,898 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Heidenhain iTNC 530, workpiece weight (max.): 2,000 kg, total height: 3,400 mm, total length: 6,000 mm, total width: 4,500 mm, rotational speed (min.): 30 rpm, overall weight: 15,800 kg, spindle speed (min.): 18,000 rpm, number of slots in tool magazine: 40, Year of construction: 2005 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 1000 Y-axis travel mm: 1000 Z-axis travel mm: 1000 C-axis degrees: 360º (0,001) A-axis degrees: 130º B-axis degrees: 0-190º Feed rates m/min: 60 Rapid traverse m/min: 60 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1100x900 Klsdjxur Sxepfx Ad Nol Max. workpiece weight kg: 2000 Table rotation speed rpm: 30 Spindle Spindle speed rpm: 18000 Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 980 High-pressure bar: 40-80 Tool system Tool holder: HSK-A 63 Tool magazine slots: 40 Tool changer: Double gripper Equipment Electronic Handwheel Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Laser tool measurement for measuring tool length and diameter 3D quickSET Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 144180 Spindle Working: 48898 Rated power kVA: 65 Basic machine dimensions / weight Length mm: 6000 Width mm: 4500 Height mm: 3400 Weight kg: 15800

Condition: reconditioned (used), functionality: fully functional, travel distance X-axis: 640 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller model: HEIDENHAIN iTNC530, workpiece weight (max.): 600 kg, table width: 600 mm, table length: 800 mm, table load: 600 kg, rotational speed (max.): 12,000 rpm, spindle speed (min.): 12,000 rpm, Equipment: chip conveyor, rotational speed infinitely variable, DECKEL MAHO DMC 64V LINEAR Machine after complete reconstruction. Spindle after regeneration and replacement of bearings BLUM tool measuring laser Control Ksdpjvwd Axjfx Ad Njll Due to the restructuring of the company, we have for sale: FAST 3-AXIS MACHINE Manufacturer: DECKEL MAHO Type: DMC 64V LINEAR HEIDENHAIN 530 control Year of production: 2002 Table size: 800X600 Travel: X 640, Y 600, Z 500mm Weight of the workpiece: max. 600 kg General overhaul of the machine 12.2024 Spindle: SK 40 12000rpm Power S1/S2 13kW/19kW Tool changer: 30-fold HEIDENHAIN workpiece probe Tool probe: BLUM laser Receiver chips Machine in very good condition, After full renovation. Serviced. Machine in constant use.

Condition: good (used), Year of construction: 2008, CNC Deep Hole Drilling Center Machine type: Degen UTB800/G Control: Heidenhain TNC310 Year of manufacture: 2008 Kedpfx Aowxaf Rjd Njll TECHNICAL DATA: Travel distances: X-axis: 630 mm Y-axis: 400 mm Z-axis: 800 mm W-axis: 600 mm Feed rate: 6,000 mm/min Swivel range: Z: +/- 10° Table size: 1,100 x 650 mm Max. table load: 2,000 kg Tool holder: HSK 63 Max. speed: 4,000 rpm Drive power: 7.5 / 5.5 kW Drilling diameter: 4–25 mm Accessories: Electronic handwheel High-pressure pumps Internal cooling (IKZ): 0–90 bar Coolant tank: 600 l Paper band filter

Condition: used, Year of construction: 1990, grinding length 900 mm grinding width 510 mm workpiece height 400 mm table surface area 800 x 400 mm longitudinal feed of the table max. 980 mm table speed -stepless- 1 - 35 m/min grinding wheel size 355 x 51 x 127 mm cross feed of the table 460 mm cross feed 1 - 40 mm/Hub vertical feed autom. 0,005 - 0,04 mm/Hub Kjdetqqm Ajpfx Ad Nell rapid traverse vertical 0,5 m/min grinding spindle speed 1450 U/min grinding spindle drive 5,6 kW table load capacity max. 1000 kg total power requirement 10 kW weight of the machine ca. 4,4 t Accessories: magnetic plate 800 x 400 mm, various grinding wheels with and without flanges, wet grinding attachment with paper band filter

Condition: good (used), Year of construction: 2006, feed length X-axis: 1,650 mm, feed length Y-axis: 1,000 mm, Max. drill Ø steel: 5 - 40mm X - Travel: 1650mm Y - Travel: 1000mm W - Travel: 500mm Table size L x W / or ø:1200 x 1500mm Spindle taper: SK40Mk Speeds / ranges: 4200Rpm Length: 6500mm Width: 3800mm Height: 3400mm Weight: 6500kg Kedowyup Tjpfx Ad Nsll
