Lead/traction spindle lathe

Colchester Student 2500

Condition: new, Year of construction: 2025, 0330 mm 210 mm Fgjdjwp Tq Uepfx Aduok 1000 mm 167 mm 40 mm 2,2 kW

Condition: new, Year of construction: 2025, Top height 250 mm Spindle bore 103 mm Tip width 1000 mm Circumference diameter over bed 500 mm Circumference diameter in the crank 710 mm Fgedpjd I A Dhjfx Adujk Circumference diameter over support 300 mm Speed range 9 - 1600 rpm (24 steps) Spindle nose DIN 55029 Camlock D1-8 Range of longitudinal feeds 0,028 - 6,43 mm / rev; 93 steps Range of feed rates 0,012 - 2,73 mm / rev. 93 steps Metric threads 0.5 - 224 mm; 48 steps Inch thread 72 - 1/8 gear / inch; 49 steps Module thread 0.5 - 112 mm; 42 steps Diametrical thread 56 - 1/4 DP; 42 steps Quill ø 75 mm Quilltravel 150 mm Quill holder Morse cone 5 Motor power 7.5 kW Weight 2,750.00 kg Dimensions 2500 x 1100 x 1380 mm

Condition: new, Year of construction: 2025, 0330 mm Fedowp Tfxepfx Adujgk 210 mm 0635 mm 167 mm 40 mm 2,2 kW

Condition: new, Year of construction: 2025, 0330 mm Fedpfxewp Tbmo Adusgk 210 mm 0635 mm 167 mm 40 mm 2,2 kW spindle turning speed - stepless 30-3000 U/min

Condition: new, Center length ----- 1500 mm Center height ----- 280 mm Turning diameter ----- 560 mm Passage main spindle ----- 80 mm Bed width ----- 350 mm Spindle speed ----- 25-1600 rpm Motor ----- 7.5 KW INCLUDED * 3-axis digital readout brand SINO * Quick-change chisel holder type Multifix TOOC3 with 4 barrels * Electric brake * Foot brake * Self-centering 3-jaw chuck * Independent 4-jaw chuck * Clamping plate Fodpfx Ajga Tvljdujgk * Fixed and moving glasses * LED work light * Cooling system * Box with various tools

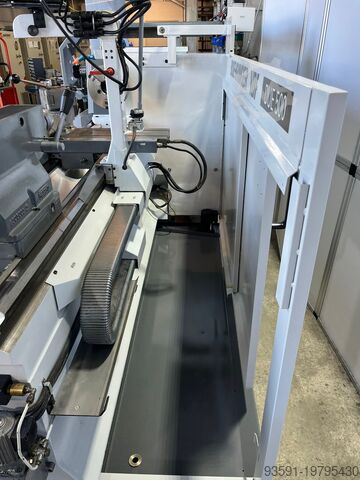

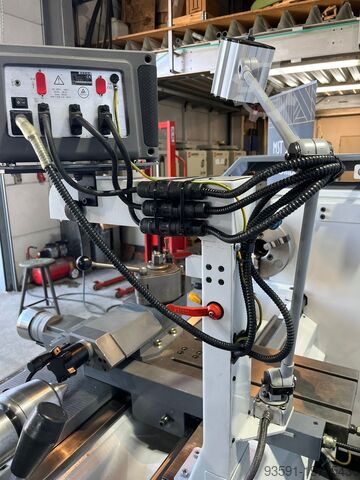

Condition: excellent (used), Year of construction: 2004, We are offering an exceptionally high-quality precision lathe. Within its class, this is likely the best German lathe ever built. BOEHRINGER Precision Lathe Model DUE 500 Year of manufacture: 2004, including CE certification and central lubrication Machine No.: T1022.2027-00 Center height: 240 mm Swing diameter over bed: 500 mm Swing diameter over cross slide: 285 mm Center distance: approx. 1,200 mm Effective turning length: approx. 1,000 mm Bar capacity: 62 mm Spindle nose: DIN 55027 Size 6 Spindle bore: 100 mm Drive power: 11 kW Maximum torque: 2,000 Nm 24 spindle speeds: 11.2 – 2,240 rpm 60 cross feeds: 0.03 – 28 mm/rev 60 longitudinal feeds: 0.06 – 56 mm/rev Tailstock quill stroke: 190 mm Tailstock taper: MK 5 Machine footprint (LxW): approx. 4,000 x 1,525 mm Weight: approx. 4,300 kg Accessories: - HEIDENHAIN 3-axis digital readout - Central lubrication system - Electrically interlocked chuck guard - Coolant system - Chip protection rear panel - Röhm chuck, T 250 mm, with various jaws - Telescopic cover for lead and feed screw, support to bed - Machine lamp - Multifix C + 4 quick-change tool holders - Live center - Operating manual - Circuit diagram - Rapid traverse in longitudinal and cross slides Condition: The machine is in very good technical and visual condition. Backlash on cross slide approx. 0.3 mm, on compound slide approx. 0.15 mm Spindle nose runout approx. 0.006 mm Bed geometry: deviation approx. 0.01 mm over approx. 750 mm bed length (measured on flat guideway towards chuck using dial indicator) Fgjdpfx Adjw Rdthousk The following parts have been renewed: - Oil change - New hoses for central lubrication - New wipers - Key for operating lever replaced - Locking pin for interlock replaced Price is net, ex stock, loaded free of charge. Delivery by company truck can be arranged at extra cost.

Condition: used, Year of construction: 1955, Technical details: turning diameter over bed: 420 mm turning diameter over support: 240 mm turning length: 1100 mm turning dia. in gap: 600 mm range of revolution per miute: 24 - 900 / 8 step U/min spindle bore: 41 mm range of feed in x - axis: 0,0120 - 0,1000 mm/U range of feed in y - axis: 0,0062 - 0,0302 mm/U tailstock quill taper MT: 3 tailstock quill adjustment: 220 mm total power requirement: ca. 4,0 (ohne Gewähr) kW weight of the machine ca.: 1,2 t dimension machine xH: 2,3 x 0,9 x 1,3 m Equipment: 3-jaw chuck Ø 200mm Tool holder 4-way, swivelling 30° right/left T-slot for copying device Fedpfx Adju Ix D Ajuogk Driving disc *

Condition: new, Center length ----- 1000 mm Center height ----- 230 mm Turning diameter ----- 460 mm Passage of main spindle ----- 58 mm Bed width ----- 300 mm Spindle speed ----- 25-2000 rpm Motor ----- 5.5 KW Weight ----- 1750 kg INCLUDING * 3-axis digital readout brand SINO * Quick-change chisel holder type Multifix TOOB2 with 4 attachments * Self-centering 3 chuck 250 mm * Independent 4 chuck 320 mm Fgjdpfsk Iug Tex Aduek * chuck 350 mm * Fixed and moving grips * LED work light and cooling system * Electric brake (CE) * Foot brake * Box with various tools

Condition: excellent (used), EMCO Precision Lathe EMCOMAT 17 D Including 3-axis EMCO digital readout Year of manufacture: 2007 with CE mark 2 units available! Centre distance: 700 mm Centre height: 170 mm Swing over bed: Ø 340 mm Swing over cross slide: Ø 190 mm Bed width: 260 mm Longitudinal slide travel: 600 mm Cross slide travel: 220 mm Compound slide travel: 110 mm Compound slide length: 410 mm Compound slide width: 150 mm Bed slide guide length: 380 mm Tool section: 20 x 20 mm Distance spindle centre – compound slide: 34 mm Compound slide (support) swivel range: 60 / 120° Main spindle: Spindle mount: DIN 55029 (Camlock) Spindle bore: Ø 50 mm Fgedpfxsxx S R Ae Adujk Internal taper to DIN 7178 1:22 Spindle diameter at front bearing: Ø 70 mm Max. chuck diameter: Ø 200 mm Max. faceplate diameter: Ø 200 mm Spindle speeds: 40 - 3,000 rpm Infinitely variable speed adjustment Mechanical speed ranges: 4 Main drive: Power at 40% duty cycle: 5.3 kW Max. rated torque at main spindle: 640 Nm Feed: 20 (28) longitudinal feeds Z: 0.045–0.787 mm/rev 20 (28) cross feeds X: 0.023–0.406 mm/rev Threads: 20 (28) metric threads (basic equipment): 0.4 – 7.0 mm Tailstock: Quill diameter: Ø 50 mm Quill internal taper: MT 3 Quill stroke: 120 mm Lateral offset: ±13 mm Permissible workpiece weight (between centers, unsupported): 50 kg, supported with tailstock: 150 kg Weight: 755 kg Dimensions: 1650 x 1060 x 1635 mm The EMCOMAT 17 D is a precision lathe suitable for all areas of mechanical engineering and training purposes. Equipment: - EMCO 3-axis digital display with color screen - Potentiometer - Emergency stop button - Digital speed display on control panel next to digital readout - 3-jaw chuck - MULTIFIX tool post, size B - Electrically interlocked chuck guard - Quick-action collet chuck - MICROJET coolant spray unit - Chip guard rear panel - Machine lamp - Machine feet - Bed stop Condition: Very good, from training facility Available from March 2026

Condition: good (used), Year of construction: 1992, 1 used lead and feed screw lathe Manufacturer: Weiler Model: Condor B Year of manufacture: 1992 Technical specifications: Distance between centers: 750 mm Center height: 165 mm Spindle bore: 40 mm Spindle speed: 22 – 2800 rpm Tailstock: MK 3 Drive power: 1.6 / 3.2 kW Weight: 1040 kg Dimensions: 1,850 x 880 x 1,290 mm Equipped with: 3-axis digital readout 3-jaw chuck Chuck guard Fsdpfxjw Rcd Ss Adusgk
