Automatic lathe

Citizen M32

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, bar passage: 32 mm, The following works have been carried out on the machine in recent years: Hfjdpfx Aoyux N Eebnjd February 2022 – X2 axis ball screw replaced and bearings renewed August 2022 – X2 axis controller replaced September 2023 – Measuring system / controller for Ti axis replaced March 2025 – Measuring system for Ti axis replaced TECHNICAL DETAILS Bar capacity: 32mm EQUIPMENT 10 tool stations on turret with Y-axis for front and rear machining 5 gang tool positions 3 tool positions on drilling block for rear machining 4 driven tools for cross operations C-axis main spindle Milling interpolation Cutting radius compensation Synchronous tapping ER16 holders

Condition: excellent (used), Year of construction: 2006, STAR ECAS-32T CNC lathe TECHNICAL DATA Max. Machining Diameter: 32 mm Max. Headstock Stroke: 350 mm Tool Post: First Turret: 10 stations Second Turret: 10 stations Number of turning tools: Max. 2 tools / station Tool shank: 16 mm Sleeve Holder: Number of tools: Max. 3 tools / station Max. Drilling Capacity: 23 mm Max. Tapping Capacity: M12 X P1.75 Max. Die Cutting Capacity: M12 X P1.75 Power Driven Att. Number of Tools: Max. 2 tools / 1 station Max. Drilling Capacity: 10 mm Max. Tapping Capacity: M8 X P1.25 Max. Milling Capacity: 12 mm Max. Slotting Capacity: 2 mm X 10 mm Main Spindle min. indexing degree: 0.01° Hfodpfx Abju Hkg Tsnod Main Spindle Speed: 7`000 rpm Power Driven Att. Spindle Speed: 5`700 rpm Coolant Tank Capacity: 230 l Dimensions: 3175 x 1745 x 1860 mm Center Height: 1084 mm Weight: 5`700 kg Power Consumption: 8.0 KVA OFFER SCOPE U.A: (list not exhaustive): STAR ECAS 32 CNC automatic lathe Barload bar loader Siemens fire extinguishing system Tool holder set Chip tray and coolant pump High pressure pump transformer Exact scope of supply according to photo gallery We assume no liability for the accuracy, completeness and timeliness of the information

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, bar passage: 32 mm, The following work has been carried out on the machine in recent years: June 2023 – Counter spindle motor replaced July 2023 – Counter spindle tachometer replaced November 2023 – Ti axis cable replaced November 2023 – Ti axis motor replaced June 2024 – Hard drive replaced July 2024 – complete NC TECHNICAL DETAILS Bar capacity: 32 mm EQUIPMENT Hsdpfx Abeyux I Iensfd 10 tool stations on turret with Y-axis for front and rear machining 5 gang tool positions 3 tool stations on drilling block for rear machining 4 driven tools for cross machining C-axis main spindle Milling interpolation Cutting radius compensation Synchronous tapping ER16 tool holders

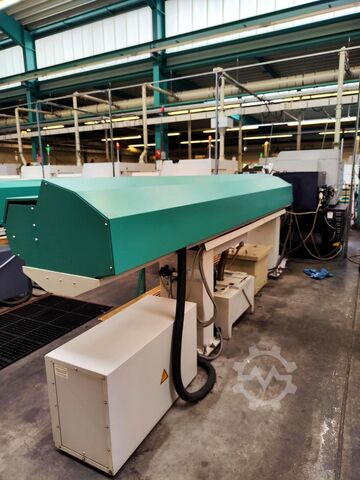

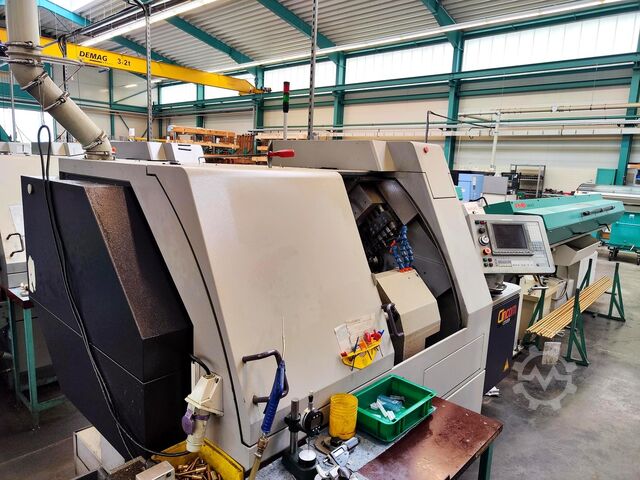

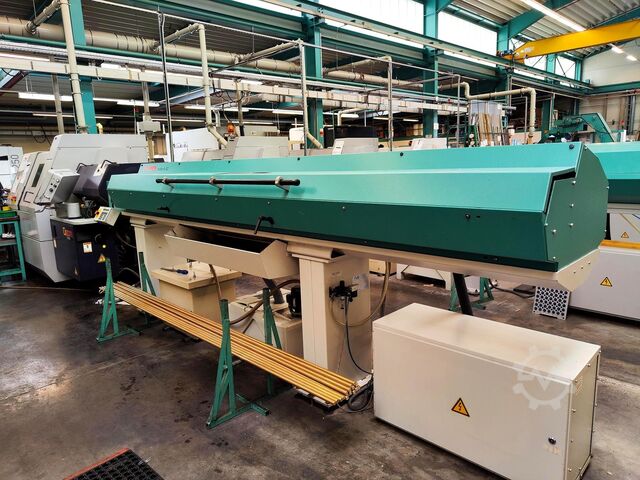

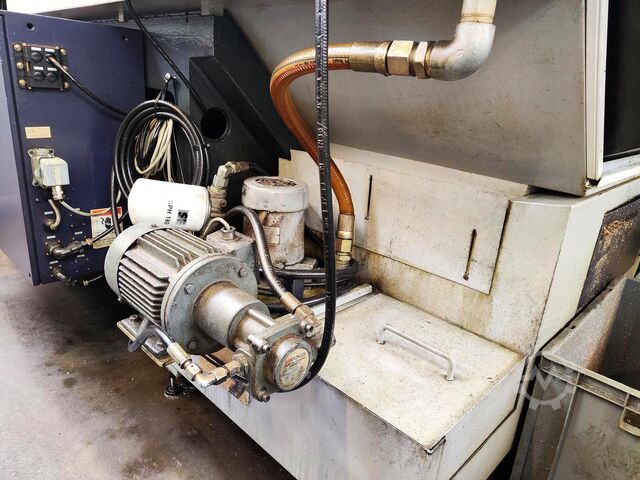

Condition: ready for operation (used), Year of construction: 2010, operating hours: 46,476 h, spindle speed (max.): 8,000 rpm, controller manufacturer: MITSUBISHI, controller model: Meldas 635, number of axes: 12, This 12-axis Citizen M32V was manufactured in 2010, featuring a max machining diameter of 32mm and turning length of 320mm on both main and sub spindles. It includes a bar loader, LNS chip conveyor, high-pressure pump, and various accessories. If you are looking to get high-quality turning capabilities consider the Citizen M32V machine we have for sale. Contact us for more information about this machine. • Axis strokes: • X1: 108 mm • Z1: 325 mm • Y1: 275 mm • X2: 120.5 mm • Z2: 202 mm • Y2: 45 mm • X3: 235 mm • Z3: 410 mm • Main spindle: • Max. machining diameter: 32 mm • Max. turning length: 320 mm • Through-hole diameter: 36 mm • Sub spindle: • Max. machining diameter: 32 mm • Spindle speed: 7,000 rpm • Rotary tools: • Speed: 5,000 rpm • Number at vertical tool holder: 4 • Stations at vertical tool holder: 10 Additional equipment Hodpeyf Niwjfx Abnefd • Bar loader • LNS chip conveyor • High-pressure pump • Holders and collet chuck (numerous accessories)

Condition: excellent (used), Year of construction: 2008, turning diameter over bed 32 mm spindle passage 32 mm turning length 125 mm Control YASKAWA SIEMENS 840 DI V2 Hfodpfx Absvwgmyenjd clamping diameter 32 mm spindle turning speed range 7000 U/min workpiece length - max. 150 mm feed 0 - 2000 mm/min weight of the machine ca. 5,7 t dimensions of the machine ca. 10,5 x 2 x 1,9 m The sliding headstock automatic lathe is in good condition and ready for immediate use. with tool holders and spare parts. >> Two identical STAR 32T sliding headstock lathes are available

Condition: ready for operation (used), Year of construction: 2004, spindle motor power: 7,500 W, spindle speed (max.): 8,000 rpm, controller manufacturer: CINCOM, This CITIZEN M32 III Swiss Type Turning was manufactured in the year 2004. It is equipped with a Cincom control unit. The machine has a spindle speed of 8000 rpm. See official brochure attached for more details. Hfsdpfjyi Eh Rjx Abnod Machine Benefits Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm • Max back-spindle drilling: Ø 10 mm • Max. Back-spindle rotating speed: 7. 000 rpm, max. Back-spindle power: 3,5 kw • Gang rotary tool: 5 fixed tools - 4 driven tools • Turret tools: 10 positions • Bar feeder: lemca boss 332 e/r type 37ll - year 2005 • Equipment: chip conveyor

Condition: ready for operation (used), Year of construction: 2005, spindle motor power: 7,500 W, spindle speed (max.): 8,000 rpm, This CITIZEN M32 III Swiss Type Turning was manufactured in the year 2005. It is equipped with a Cincom control unit. The machine has a spindle speed of 8000 rpm. See official brochure attached for more details. Machine Benefits Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm Hjdpfx Aoyi Eihsbnofd • Max back-spindle drilling: Ø 10 mm • Max. Back-spindle rotating speed: 7. 000 rpm, max. Back-spindle power: 3,5 kw • Gang rotary tool: 5 fixed tools + 4 driven tools • Turret tools: 10 positions • Bar feeder: iemca boss 332 e/r type 37ll - year 2008 • Equipment: chip conveyor

Condition: used, Year of construction: 2005, functionality: fully functional, TECHNICAL DATA Spindle Head Max. bar stock diameter (mm): 13.0 Material quality (DIN 671) (mm): Ø Xh9 Collet chuck, selectable: Through-bore Guide bush, selectable: Through-bore Max. turning length / spindle stroke: • with fixed guide bush (mm): 130 • with rotary guide bush (mm): 80 • with programmable guide bush (mm): 80 Spindle speed (rpm): 12,000 C-axis electronic resolution (degrees): 0.001 Rapid traverse Z1 (m/min): 30 Tool Carrier 1 Slide travel X1 (mm): 35 Slide travel Y1 (mm): 38 (-10 +28) Rapid traverse X1 / Y1 (m/min): 15 Tool stations (number): 6 (12) Turning tool cross-section (mm): 8x8 or 12x12 Clamping diameter for driven drilling tools (mm): 0.5 - 7 Chip-to-chip time (s): 0.3 Tool Carrier 2 Slide travel X2 (mm): 35 Slide travel Z2 (mm): 50 Rapid traverse X2/Z2 (m/min): 15 Tool stations (number): 6 Turning tool cross-section (mm): 8x8 or 12x12 Clamping diameter for driven drilling tools (mm): 0.5 - 7 Chip-to-chip time (s): 0.3 Tool Drive for Tool Carrier 1 and 2 Speed (rpm): 0...8000 Max. driven tools (number): 2x6 Clamping diameter for drilling tools (mm): 0.5 - 7 Sub-Spindle / Front Unit Max. bar stock diameter (mm): 13.0 Max. longitudinal stroke Z3, Z4 / X3 (mm): 140 | 228 Rapid traverse Z3, Z4 / X3 (m/min): 30 Tool stations (number): 4 Spindle speed (rpm): 12,000 C-axis electronic resolution (deg): 0.001 Rear Tool Unit, Slide/Fix Stroke Z, slidable with working spindle (mm): 80 Tool holder diameter (mm): 20 Tool stations (number): 3 Rear Tool Unit (X4-axis) Stroke X4 (mm): 39 Rapid traverse speed (m/min): 15 Tool holder diameter (mm): 28 Tool stations (number): 4 Tool Drive for Rear Tool Unit (with X4-axis) Speed (rpm): 0...10,000 Hsdpfx Aoyr N Dzobnsfd Max. driven tools (number): 4 Clamping diameter for drilling tools: • driven (mm): 0.5 - 7 • stationary (mm): 0.5 - 10 Coolant System Pump pressure single stage (bar): 3 120 bar pump for front/rear unit Tank capacity (l): 180 Delivery rate (l/min): 40

Condition: ready for operation (used), Year of construction: 2007, spindle motor power: 5,500 W, spindle speed (max.): 8,000 rpm, overall weight: 3,200 kg, This CITIZEN M32V Swiss Type Turning was manufactured in the year 2007 in Japan. The machine has a spindle speed of 8000 rpm. Official brochure attached for more details. Machine Benefits Technical Machine Benefits • Max chucking barstock: Ø 32 mm • Max machining lenght: 320 mm • Max drilling diameter main spindle: Ø 12 mm • Max back-spindle drilling: Ø 10 mm Hfjdpfxsyi Einj Abnod • Max. Back-spindle rotating speed: 7000 rpm • Max. Back-spindle power: 2 kw • Gang rotary tool: 5 fixed tools • Turret tools: 10 positions • Bar feeder: iemca boss 332 e/r type 37ll • Equipment: chip conveyor

Condition: used, CITIZEN CINCOM M 32 is a CNC automatic lathe / CNC Swiss type lathe delivering high precision, excellent accuracy and reliability. Working capacities: max. turning diameter 32 mm, maximum turning length 600 mm. Key technical specifications: rapid traverse 25 m/min; voltage 50 Hz 3x 400 V; machine weight about 3200 kg; overall dimensions LxWxH: 2800 x 1370 x 1790 mm. It achieves tight tolerances and is suitable for applications in watchmaking, medical, automotive, aerospace and machine tool industries Hodpfjyn Eifox Abnefd

Condition: used, Year of construction: 2019, bar material dia. 32/38 mm spindle passage 44 mm turning length 320 mm turning speeds 200-8000 U/min c-axis 0,001 Grad gripping station 32/38 mm turning length 120 mm turning speeds 200-8000 U/min c-axis 0,001 0 number of tools 13 fix number of milling stations 4+5 driven control Mitsubishi Meldas M70 Number of axles 5+2 St. total power requirement 7,5 kW weight of the machine ca. 2850 kg dimensions of the machine ca. 2,5 x 1,4 x 1,75 + FMB m CNC sliding headstock machine Citizen L32-1M8, built 01/2019 with barloader Hfodpfx Ajuwv Tgobnod FMB turbo 3-36 equipped with swar- & coolant tank, fire distiguisher. ON/OFF 26.000h Running hours 24.000h GBL function (standard) LFV function: no

Condition: excellent (used), Year of construction: 2014, Automatic Lathe Citizen M32 Manufacturer: Citizen Machinery Co. Ltd Model: M32-4M5 Year of manufacture: 2014 Country of origin: Japan Machine weight: 3,550 kg Maximum machining diameter: 32 mm Max. machining length: 320 mm with one chuck Main spindle speed: 200–8,000 rpm Main spindle indexing: 1° C-axis resolution (spindle): 0.001° Counter spindle speed: 200–8,000 rpm Max. clamping diameter of counter spindle: 32 mm Max. drilling diameter front side: 12 mm Max. tapping diameter front side: M10 Hfedpfx Aoydaadjbned Max. tapping diameter rear side: M10 Spindle through-hole diameter: 37 mm Number of tool positions: up to 25, depending on configuration Rapid traverse X/Y/Z axes: up to 32 m/min Bar length: 2,500 mm Coolant tank capacity: 198 l Compressed air requirement: 0.5 MPa Noise level: Ø580 dB(A) Memory size: 5120 m, 2048 kB Minimum input increment: 0.1 µm Interface: RS232C Number of programs: 63 Tool offsets: 32 pairs X1 travel: 108 mm Y1 travel: 347 mm Z1 travel: 325 mm X2 travel: 120 mm Y2 travel: 44 mm Z2 travel: 212 mm X3 travel: 313 mm Z3 travel: 430 mm A3 travel: 150 mm A4 travel: 1,500 mm No guarantee is made for the accuracy, completeness or timeliness of the information provided.

Condition: good (used), Year of construction: 2002, machine/vehicle number: P13147, rotational speed (max.): 8,000 rpm, turning length: 320 mm, equipped with Iemca Boss 432r/32LL new in 2002 - some tool holders - chip conveyor - Mitsubishi MELDAS 635 Control Hfsdpfep T Sy Hsx Abnjd
