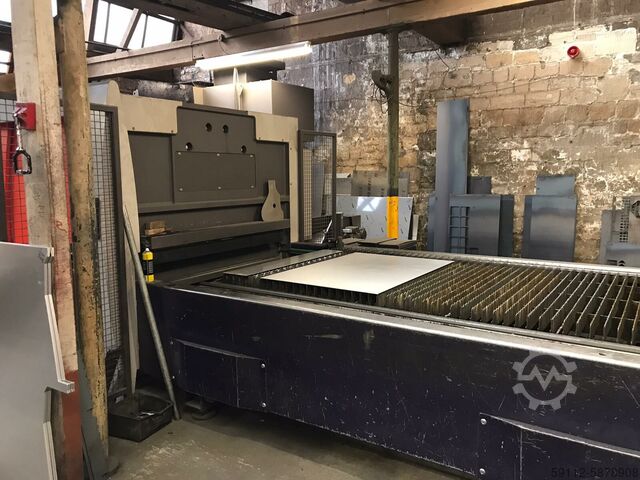

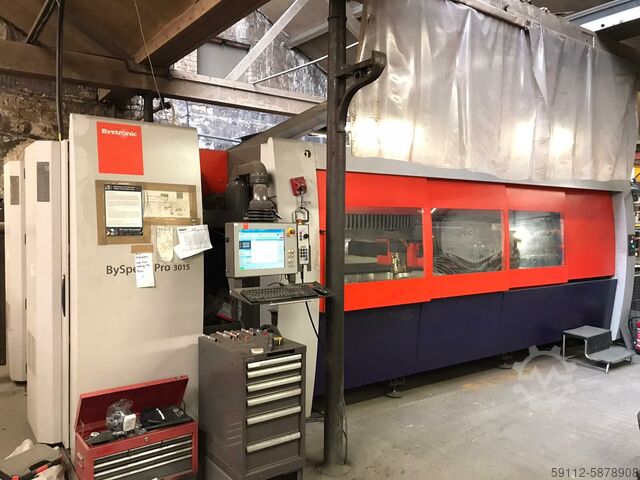

Laser

Bystronic 3015

Condition: used, functionality: fully functional, Year of construction: 2017, overall weight: 15,000 kg, BYSTRONIC BYAUTONOM 3015 - CO2 LASER CUTTING SYSTEM WITH AUTOMATED HANDLING The Bystronic ByAutonom 3015 is an automated CO2 laser cutting system for sheets up to 3000 x 1500 mm. It combines a ByLaser resonator with the ByVision control and an automated loading/unloading system. With automatic nozzle and lens-cassette changer, low-manning continuous operation in multi-shift production is possible. CONDITION - Condition: Used. Functional scope as per the technical data below. - Details on the technical condition individually upon serious interest. - Viewing possible by arrangement (no demonstration under power). - Year of manufacture: verified on the rating plate, available on request (no year shown until confirmed). - Condition/Maintenance Messenger on board: reports machine status and maintenance intervals. FUNCTION & APPLICATION Laser beam cutting (LBC) with flying optics - the cutting head moves over the stationary sheet. It processes structural steel, stainless steel and aluminium. The shuttle-table system allows loading and unloading during ongoing cutting. Cutting programs run via ByVision; the system is prepared for Bystronic automation (ByTrans Extended). Applications: metalworking industry, plant and apparatus engineering, structural steelwork, precision-part manufacturing. Power class: The ByAutonom 3015 came in two resonator classes (ByLaser 4400 / 6000). The class of this system is confirmed bindingly during inspection. TECHNICAL DATA - Bystronic ByAutonom 3015 | Laser type: CO2 | wavelength 10.6 micrometres | flying optics - Laser power: 4,400 W (ByLaser 4400) or 6,000 W (ByLaser 6000) depending on configuration - Nominal sheet format: 3000 x 1500 mm | cutting range X 3048 / Y 1524 / Z 80 mm - Max. workpiece weight: 890 kg - Max. material thickness structural steel: 25 mm - Max. material thickness stainless steel: 20 mm (4.4 kW) or 25 mm (6 kW) - Max. material thickness aluminium: depends on power class and configuration, confirmed during inspection - Positioning speed approx. 120 m/min | axis acceleration 30 m/s2 - Positioning accuracy +/- 0.1 mm | repeatability +/- 0.05 mm - Drive: linear drives Y/Z, high-torque motors X | Machine weight: 15,000 kg - Installation dimensions approx. 12,800 x 6,300 x 2,400 mm (equipment-dependent) - CNC: Bystronic ByVision | touchscreen + manual control unit - Automatic nozzle and lens-cassette/cutting-head changer (standard) | Shuttle-table system - Automation: ByTrans Extended compatible | Condition/Maintenance Messenger | Safety light barrier Serial number, connected load, gas/compressed-air demand and chiller capacity on request. SCOPE OF DELIVERY - 1 x Bystronic ByAutonom 3015 (CO2 laser cutting system) - 1 x CO2 resonator ByLaser (4,400 W or 6,000 W depending on configuration) - 1 x Bystronic ByVision CNC control with touchscreen and manual control unit - 1 x Automatic nozzle changer | 1 x Automatic lens-cassette changer - 1 x Shuttle-table system | 1 x Chiller (water circuit) - 1 x Machine documentation LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) trades in structural-steel and sheet-metal processing machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Ppodpfx Asydq Hnjgmjw Sale exclusively to commercial customers (B2B).

Condition: used, Deburring and fine grinding machine for sheet metal / flat material, new The compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces. Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts. Working width: 1150 - 1350 mm Maximum part weight: 500 kg Wide belts with abrasive belt unwinding: 2620 mm As standard with vacuum hold system, optional with magnetic hold system By using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life. Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task. The machine structure can accommodate up to 5 internal machining units and 2 additional external machining units. The high rigidity of the machine structure and the feed table of this machine, combined with the advanced mechanics and electronics, make this series a universal machining centre for deburring and finishing. Please, contact us for getting more information and pictures on mail(at) or Ppodpfxonah Tdj Agmow *

Condition: ready for operation (used), Year of construction: 2016, controller manufacturer: BYSTRONIC, controller model: ByVision, laser power: 4,000 W, table length: 3,000 mm, table width: 1,500 mm, travel distance X-axis: 3,048 mm, travel distance Y-axis: 1,524 mm, travel distance Z-axis: 70 mm, positioning accuracy: 0.1 mm, overall weight: 12,000 kg, total width: 6,051 mm, total height: 2,565 mm, product length (max.): 11,018 mm, table load: 890 kg, number of axes: 3, This 3-axis Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system was manufactured in 2016. It features a powerful 4000 W fiber laser source and a working area of 3048 mm x 1524 mm. The machine includes an automatic shuttle table system and a fully enclosed safety cabin, ensuring efficient and safe operation. If you are looking to get high-quality fiber laser cutting capabilities, consider the Bystronic BySprint Fiber 3015 machine we have for sale. Contact us for further details. Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system * Laser Source: Fiber 4000* Laser Technology: Fiber Laser* Laser Power: 4000 W* Pulse Frequency: 1–2500 Hz* Power Control Range: 400–4000 W* Sheet Size (X): 3000 mm* Sheet Size (Y): 1500 mm* Maximum Positioning Speed X/Y: 100 m/min* Maximum Simultaneous Positioning Speed: 140 m/min* Position Accuracy (VDI/DGQ 3441): ±0.1 mm* Repeatability (VDI/DGQ 3441): ±0.05 mm* Edge Detection Accuracy: ±0.5 mm* Maximum Workpiece Weight: 890 kg* Shuttle Table Change Time: 35 s* Maximum Mild Steel Thickness: 20 mm* Maximum Stainless Steel Thickness: 15 mm* Maximum Aluminium Thickness: 15 mm* Maximum Brass Thickness: 8 mm* Maximum Copper Thickness: 8 mm* Total Power Consumption (including extraction and chiller): 25.3 kW Ppodozpxrbjpfx Agmow Equipment & Features * Automatic Shuttle Table System with 2 Shuttle Tables* Fully Enclosed Safety Cabin* Chip Trolley with Rollers* CNC Control Cabinet* Touchscreen with ByVision User Interface* Maintenance Messenger* Restart Manager* System Manager* Handheld Control Unit* Cutting Parameter Assistant* Uninterruptible Power Supply (UPS)* Cutting Bridge* Cutting Head* Piercing Jet* ByPos Fiber* Automatic Nozzle Cleaning* Scanning Function* Fiber Laser Source* Tank Heating* Tropicalization Package* Standard Extraction Unit 3000* Automation / Handling Interface* Chiller for Fiber 4000* Operator Protection in Cutting Area* Operator Protection in Loading / Unloading Area* Power Supply: 400 V / 50 Hz* Electrical Connection (Machine incl. Laser Source)* Compressed Air Connection (Machine incl. Laser Source and Chiller)* Material Specification Package* Part Tolerances and Cut Surface Quality Package* Cutting Gas Supply and Cutting Quality Package* Environmental Requirements Documentation* Building Requirements Documentation* Machine Documentation* STL Cabinet Additional Equipment * ByTrans 3015 Extended Loading / Unloading System* 2 Cassettes with Copper Supports* Additional Suction Unit for Sheet Separation* Cut Control Fiber* Special Position of the Control Cabinet* Automatic Nozzle Changer with 40 Positions* Second Operator Console* Observer Hardware* OPC Interface Cutting

Condition: used, functionality: fully functional, operating hours: 28,922 h, control type: CNC control, degree of automation: automatic, actuation type: electric, controller manufacturer: Bystronic, controller model: ByVision, laser type: fiber laser, laser source manufacturer: MaxPhotonics, laser hours: 9,467 h, laser power: 8,000 W, sheet thickness (max.): 25 mm, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 25 mm, sheet thickness aluminum (max.): 20 mm, sheet thickness brass (max.): 20 mm, table length: 3,000 mm, table width: 1,500 mm, working length: 3,000 mm, working width: 1,500 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, positioning speed: 169 m/min, positioning accuracy: 0.1 mm, repeat accuracy: 0.05 mm, workpiece weight (max.): 890 kg, type of input current: three-phase, type of cooling: water, Equipment: CE marking, cooling unit, documentation/manual, dust extraction, emergency stop, nozzle changer, Bystronic ByAutonom 3015 – Fiber laser cutting machine (retrofit 2024) A very complete and production-ready flatbed laser cutting machine from Bystronic. Built in 2014, it was fully converted in 2024 from CO2 to a modern 10 kW fiber laser (MaxPhotonics), including CE declaration for the conversion. The machine is currently in production and combines the robust Bystronic platform with an automatic pallet changing system and a high degree of automation with the speed and low operating costs of fiber technology. Technical specifications: • Brand / model: Bystronic ByAutonom 3015 • Year of manufacture: 2014 – fiber retrofit 2024 (with CE declaration) • Laser technology: fiber 10 kW – MaxPhotonics • Cutting head: RayTools BS08K smart cutting head with autofocus • Working area: 3,000 x 1,500 mm • Pallet changer: automatic pallet changing system, changing time approx. 22 s, load capacity 890 kg per pallet Ppedoznt I Uepfx Agmow • Cutting capacity: steel up to 25 mm (O2, up to 40 mm possible), stainless steel up to 25 mm (N2), aluminum up to 20 mm, brass up to 20 mm • Dynamics: simultaneous 169 m/min, acceleration 30 m/s² • Accuracy: position deviation 0.1 mm/m, repeatability accuracy 0.05 mm • Control system: Bystronic ByVision with 22" touchscreen • Operating hours: approx. 28,922 hours machine / approx. 9,467 hours laser production Equipment / options: Automatic nozzle changer (40 positions), automatic nozzle centering with collision detection, filter system (DFPRO 6-3000), conveyor belt for scrap and small parts, extra laser protection windows front and side. Included: All documentation (digital), support & assistance, certified pre-purchase inspection, webshop with discount account. Optional (turn-key delivery possible): Dismantling, transport (including insurance), installation, base plates & anchoring, CAD/CAM software (advanced), extended warranty, smart factory connection, machine & software training, FastCal calculation software and portal. Interested in this machine? Please contact us for more information, a viewing, or a price indication.

Year of construction: 2015, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER X-AXIS TRAVEL: 3048 mm Y-AXIS TRAVEL: 1524 mm Z-AXIS TRAVEL: 70 mm MAX ADMITTED LOAD: 750 Kg/m Ppodpfjxcqrgjx Agmow WORKING AREA: 3000 x 1500 mm SOURCE: IPG Fiber 4000 ; 4000 W CONTROL UNIT: ByVISION WEIGHT: 13000 Kg

Condition: ready for operation (used), Year of construction: 2006, laser power: 4,400 W, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, number of axes: 3, This 3-axis Bystronic BySpeed 3015 was manufactured in 2006. It features a powerful 4.4 kW CO2 resonator and can accommodate a maximum sheet size of 3000 x 1500 mm. The machine includes 20 pallet positions for efficient operation. If you are looking to get high-quality laser cutting capabilities, consider the Bystronic BySpeed 3015 CO2 laser cutting machine we have for sale. Contact us for further details. • Resonator: 4.4 kW CO2 • Max. sheet size: 3000 x 1500 Additional equipment Podpfxszl D N Ds Agmepw • ByCell • 20 pallet positions

Condition: good (used), functionality: fully functional, Year of construction: 2005, control type: CNC control, laser power: 4,400 W, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 20 mm, sheet thickness aluminum (max.): 12 mm, with ByLaser 4400 with turning axis ByVision cnc control with changing table Technische Daten / technical details: Blech-Nennmass X, Y / sheet nominal size X, Y 3000, 1500 mm Schneidbereich X, Y / cutting range X, Y 3048, 1524 mm Hub Schneidkopf Z / stroke cutting head Z 170 mm Drehachse: / turning axis: Profilaufnahme Spannfutter / profile taper clamping chuck 15-315 mm Profilzuführung durch das Spannfutter / profile feed through the clamping chuck 15-155 mm max. Profilbearbeitungslänge / max. profile working length 2700 mm Laserleistung / laser capacity 4,4 kW Materialdicke Stahl / thickness of the material steel 25 mm Materialdicke Edelstahl / thickness of the stainless steel 20 Mm Materialdicke Alu / thickness of the material Aluminium 12 mm Gewicht ca. / weight ca. 13500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Psdpfjy N Rgmex Agmjpw Technical data, accessories and description of the machine are not binding.

Condition: repair required (used), Year of construction: 2007, operating hours: 67,367 h, functionality: not functional, machine/vehicle number: W288, repeat accuracy: 0.01 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 200 mm, positioning accuracy: 0.01 mm, workpiece weight (max.): 3,000 kg, type of input current: three-phase, input voltage: 250 V, sheet thickness aluminum (max.): 100 mm, table length: 3,000 mm, operating speed: 6,000 mm/s, table width: 1,500 mm, tank capacity: 5,500 l, pressure: 3,600 bar, positioning speed: 60 m/min, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 2 m/min, table height: 1,000 mm, operating pressure: 3,600 bar, year of last overhaul: 2024, waste water connection: 50 mm, input frequency: 50 Hz, power: 120 kW (163.15 HP), controller manufacturer: Bystronic, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, Equipment: safety light barrier, Bystronic Byjet 3015 Waterjet. This machine has a 3000 x 1500 cutting table up to 200mm thickness, complete with two cutting heads. Podpfx Agjzlt Ayemspw The waterjet is powered by a Bypump 50 APC hydraulic unit. This machine was regularly serviced by a Bystronic service engineer. This machine is being sold as as a spare parts machine, but could be easily put back in production. It has a new hydraulic pump fitted shortly before it was taken out of production. It comes complete with a chain conveyor with paddles for the automatic removal of used garnet from the cutting beds. It also comes with an air blower and reservoir tanks for the raising and lowering of the water levels in the cutting bed for reducing the noise levels during the cutting process.

Condition: good (used), functionality: fully functional, Year of construction: 2011, Bystronic Bystar 3015 Flatbed Laser CO² + Bytrans Cross 3015 (Sheet Metal Automation) Laser medium: CO2 Laser beam diameter: 20mm Laser power: 4.4 kW Machine dimensions (L/W/H): 9500/6500/3500 (incl. Doldson extraction system) Table length and width: 3000/1500 mm Cutting area -x/-y: 3000/1500 mm Sheet thickness steel: 25 mm Sheet thickness stainless steel: 20 mm Sheet thickness aluminium: 12 mm Machine operating hours: 106,367 h Laser operating hours (excitation module): 73,725 h Ppsdpfxjyztchs Agmew Beam on hours: 50,873 h Includes: Depro 6-SPRK extraction system Bylaser 4400 resonator WKL 430 chiller unit Subject to prior sale, modifications, and errors!

Condition: used, Year of construction: 2015, Bystronic CO2 laser with 6000W laser power including automation and storage system. Automatic pallet changer Byvision cnc control Automatic nozzle centering Regulated Pulse Piercing Nozzle cleaning Collision detection Cooling unit Filter unit More info and videos available on request. Viewing possible upon appointment. Immediately available. Working dimensions: 3000 x 1500 mm Laser output: 6000W Automation (sorting and storage): ASTES4SORT (12 positions) Storage: TRAFO (12 storage positions) Podpfxezdtyij Agmspw Power on: 41643h Cutting hours: 25394h

Condition: used, Year of construction: 2012, Technical details: y-travel: 1500 mm distance between columns: 2300 (Brücke) mm Beam Hour: ca. 22000 h laser capacity: 6000 W control: CNC P 8109-10-600D table length: 4500 / Auflage: mm Table width: 2300 mm operating pressure: 120hPa Waterpressure - requiered: max. 6,0 bar voltage: 400 / 50 V / Hz dimension laser device LxWxH: ca. L: 3,0 x B: 1,5 m dimension filtering system LxWxH: ca. 1,4 x 2,0 x 2,2 m dimension coolant device LxWxH: ca. 2,55 x 1,0 x 1,9 m space requirements of the machine approx.: gesamt: ca. 12,8 x 5,3 x 4,3 m Flatbed laser cutting machine Application: ind. Cutting and engraving Laser medium Co²; N²; compressed air Ppjdpfxsu Nu R Is Agmew Sheet dimensions/format 3000x 1500mm Cutting thickness: e.g. steel X5CrNi18-10 = 1 - 25mm / CNS 25mm / aluminum: 1 - 15mm (Tabb. available) Resonator - laser source ByLaser 6000W, wavelength 10.600mm, beamØ 20mm, circular polisariation Shuttle table LxWxH: 4500 x 2300 x 1000mm, load capacity 900kg, table support surface = 3200 x 2000mm Rf cooling type WKL 560, refrigerant R 407C, cooling capacity 65kW, high pressure 27bar, pump 220 l/min, fan Dedusting system, Donaldson type DFPRO6 (size approx. 1.4 x 2.0 x 2.2m) Cross conveyor by Kabelschlepp type SRF 040 (size LxW.H: approx. 3630 x 705 x 1000mm) Light barrier Sick type M 4000 Cutting bridge: Y-path 3000mm, stand width 2300mm, cutting carriage size LxWxH: 400 x 300 x 650mm Operating terminal with complete cabinet combination and manual control unit Cut Control *

Condition: used, Year of construction: 2021, Outstanding Bystronic fiber laser with 10000W laser output, automatic loading station and 2 storage towers. Can be inspected under power upon appointment. Ppedsy T Nc Ujpfx Agmow Availability: 10/2026 Including: Automatic nozzle change (64 nozzles) Detection camera Kerf scan Cut control Automatic centering of laser beam and nozzle Linear axes Full technical specifications available on request. Working dimensions: 3000 x 1500 mm Laser output: 10000W Automation: ByTrans Modular 3015 Flex + Antil AWL9 2T (V1) cutting hours: 6105h
