Used cutting and machining centers for sale (15)

Condition: ready for operation (used), Year of construction: 2006, machine/vehicle number: 19500624, functionality: fully functional, operating pressure: 7 bar, rotational speed (max.): 18,000 rpm, working height: 1,000 mm, The new price of the machine was €950,000! Redpfx Adey Syuxoyjcb TECHNICAL DETAILS Milling heads / Motor output Speed: 2,800 rpm Motor output, small milling head: 0.27 kW Frequency, small milling head: 300 Hz Speed, small milling head: 18,000 rpm Motor output, large milling head: 1.1 kW Frequency, large milling head: 200 Hz Speed, large milling head: 12,000 rpm Tool data / Milling head data Collet diameter, small milling head: max. 8 mm Milling head diameter, small milling head: max. 8 mm Collet diameter, large milling head: max. 10 mm Milling head diameter, large milling head: max. 14 mm Electrical data Operating voltage: AC 400 V 3 N/PE Frequency: 50 Hz Rated current: 35 A Control voltage: 24 V Pneumatic data Working pressure: 0.7 / 1 MPa (7 / 10 bar) Compressed air consumption: 170 l/min Load limit of pneumatic lines at 70 °C: approx. 15 bar Working height Working height: 1,000 mm EQUIPMENT Clamping units Vertical clamping Maintenance unit with filter pressure regulator Control cabinet / Saw with lockable main switch Cutting unit: Allows cutting angles of 45 degrees and 90 degrees Machining units: Includes machining units and profile guides Tools: Two screwdrivers, three cut-off wheels

Condition: used, Year of construction: 2012, No. 3268 Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic” Used, year of construction 2012 Consisting of: - Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic” - Automatic steel cutting machine Schirmer SZA 450 - Buffer screw station Schirmer - Bar machining center Schirmer SBZ I Cutting and machining center Schirmer BAZ 1000-G6 / VU “Basic” - Cutting length 300 - 3900 mm - Automatic feed magazine for 9 profiles up to 6500 mm in length - Automatic transfer station - Loading device for PVC profiles up to 6500 mm in length with NC-positioned gripping tongs, positioning speed up to 150 m/min - Profile length measuring device incl. optimization software - Automatically adjustable profile guides - Machining station designed as a G-module “Ultra Speed” Machining operations on the PVC profile: - Drainage and ventilation slots/holes in the frame, sash, and mullion profiles; handle olive holes for front doors; lock plate markings; lock case cutouts - Height measuring device for detecting profile tolerances - Seal cutting device - VU sawing unit with dual sawing unit 2x 45° - Sawing unit in standard configuration with 1 sawing unit, swivel range +45° to -45° - Conveyor belt for waste removal - NC-controlled gripping tongs for bar removal, positioning speed up to 180 m/min - PC machine control: 7-slot ATX industrial PC, Microsoft Windows XP Professional, software: TwinCAT NCI - Horizontal recirculating buffer for transporting profiles to the steel insertion station and screwing station for the steel insertion station with 8 insertion slots - Monitor for displaying steel lengths - Automatic label printer Automatic steel cutting machine Schirmer SZA 450 - Automatic feed magazine, max. profile length 6000 mm, profile width 25 - 50 mm, profile height 15 - 60 mm, wall thickness max. 4 mm - Insertion device - Standard sawing unit for 90° cuts - Automatic bar discharge - Belt conveyor - Extraction device - Steel scrap processing - Steel length measurement in the steel loading magazine Buffer screw station Schirmer - Feeding device for PVC profiles up to 3900 mm in length - Automatically adjustable profile guides - Screw station - Steel feeding fingers for reinforcement profiles up to 200 mm insertion depth Bar machining center Schirmer SBZ I - Feeding device for PVC profiles up to 3900 mm in length, speed up to 180 m/min - Automatically adjustable profile guides Rjdpjy Nnnnofx Adyjcb - Measuring probe for automatic determination of the zero point at the start of the profile - Drilling station with 4-axis CNC control, 2 vertical axes, 1 horizontal axis, and 1 axis for X-feed - NC-controlled gripping tongs for bar transport, positioning speed up to 180 m/min - Special-design belt conveyor for cross-feed - Sash visualization software including monitor - Screwing station with screw feeder - Guide rail with balancer for bar screwing unit - Bar screwing unit with automatic screw feed Machine capacity: Approx. 120 window units 1400 x 1500 mm/8 hours If the machine is expanded with an additional screwing unit at the buffer screwing station, the capacity increases to approx. 160 units/8 hours Sale on behalf of customer, ex location near 30625 Hannover, without dismantling, without transport and assembly To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment For used machines, any warranty is excluded, the following applies: “sold as seen”

Condition: excellent (used), Year of construction: 2017, machine/vehicle number: 17370, functionality: fully functional, TIGER 352 SX EVO - SEMI-AUTOMATIC HIGH-CAPACITY Redjy T Eh Tjpfx Adyocb > The robust cast iron frame absorbs vibrations and ensures consistent cutting quality as well as a longer service life for the saw blade. > The two-stage gearbox ensures high cutting performance and rigidity. > The pneumatic vertical vice ensures efficient and secure clamping, even when cutting pipes. > The control panel, equipped with a thermal relay and minimum voltage coil, guarantees the highest level of protection. In combination with an automatic pusher stop and label printing, the machine is the optimal solution for sawing your reinforcing steel in PVC window construction. The machine is still in use until June. It can be inspected at the customer's site in 49811.

Condition: excellent (used), Year of construction: 2004, machine/vehicle number: 403 6079, functionality: fully functional, overall weight: 220 kg, Dimensions: Machine width: approx. 700 mm Machine depth: approx. 1,350 mm Rcedpfx Aewhpp Rodyeb Machine height: approx. 1,250 mm Weight: approx. 220 kg Cutting angle: 45 degrees Tools used: All milling and cutting tools must comply with DIN EN 847-1 and be appropriately matched in terms of operating speed to the rotational speed of the milling motors. Milling cutter: Ø 150x30x3.0, 32 teeth Cutting blade: Ø 300x30x2.6, 96 teeth GLA 403 OPERATING MANUAL Material to be processed: PVC window frame strips: Profile length: min. 200 mm (dependent on the length of the fence) Profile height: min. 5 mm max. 50 mm Profile width: min. 10 mm max. 50 mm Tool clamping: Pneumatic Electrical part: Electrical connection: 400V, 50Hz (alternating current) Power consumption: 2.2 kW Protection: 16A (time-delay) Saw motors: 230/400V; 4.0/2.3A 1.1 kW; 50 Hz; 2860 rpm Pneumatics: Working pressure: 5-6 bar Maximum pressure: min. 5 bar (also during operation) max. 6 bar Air consumption: approx. 15 l/min per saw cut Fitting: NW Ø 9 mm Permissible temperature during operation: min. 15°C and max. 40°C

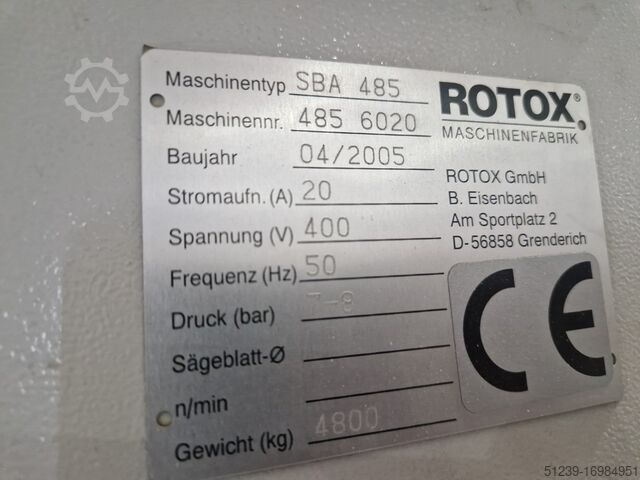

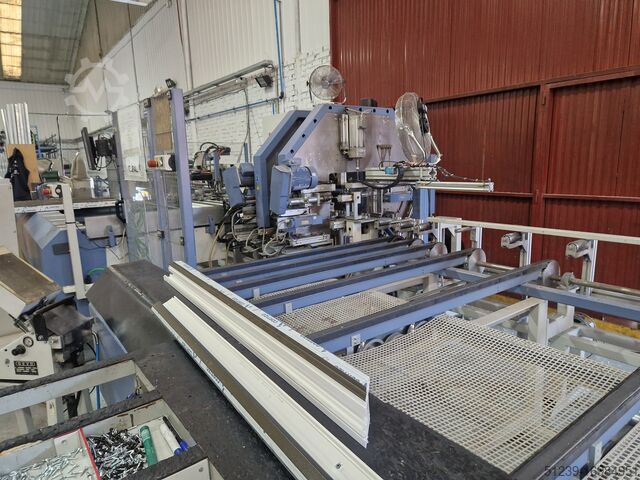

Condition: good (used), Year of construction: 2007, Cutting and processing center ROTOX, consisting of the cutting center ZSA 263, reinforcing bar bridge, and bar processing center SBA 485, shown from right to left. Rodpfoy Tbimex Adyocb

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, For sale: ROTOX ZSA 263 automatic profile cutting machine, year of manufacture 2012. The machine is in working condition, regularly used, and available for inspection and testing by prior appointment. Redpfx Aoy Sk Amedyjcb Main features: - CNC control system - Cutting angles: 45°, 90°, and 135° - Pneumatic profile clamping - Automatic profile feeding - Right and left side material transport - Suitable for automatic cutting of PVC profiles The ROTOX ZSA 263 is a reliable and high-performance industrial machine, ideal for companies involved in window and door manufacturing. For more information or to arrange a viewing, please feel free to contact us.

Condition: like new (used), Year of construction: 2019, functionality: fully functional, For sale: Schtec SMC3500 machining center. Like new, very little used, in excellent condition, complete with all accessories. Package offer: If purchased together with the WM740 welding line and the Pressta double-head screwdriver listed in our other advertisements, the total price is 180,000 EUR. For more information, please feel free to contact us! Redpfxoyzihto Adyocb

Condition: excellent (used), Year of construction: 2011, BAR PROCESSING CENTER Federhenn SBZ 150 G, Type 81.25K150 for machining pre-cut profile bars with inserted steel reinforcement. The machine essentially consists of: MACHINE BASE FRAME of a solid welded steel construction; 1 LINEAR MODULE with gripper for precise positioning of the bars to be machined; CONTROL CABINET with all electronic and pneumatic components, equipped with drilling units for the following operations: - Dowel hole drilling, - Transom hole drilling, - Mounting hole drilling; OUTFEED GRIPPER mounted on a linear axis for placing the bars onto a cross conveyor module; OUTFEED MODULE for profiles out of the SBZ processing system via a belt conveyor. The bars are manually removed at the end of the conveyor, including occupancy monitoring at the table end. Standard module length: approx. 3,000 mm; SAFETY PARTITIONS; SCREW MAGAZINE and externally mounted screwdrivers. Redpfx Adoy Dtg Eoyjcb

Condition: repair required (used), Year of construction: 2000, For sale: Elumatec cutting and machining centre, model SBZ 610. The machine has been preliminarily commissioned. Requires refurbishment. Rodpfxsy Avylj Adyjcb

Condition: excellent (used), Year of construction: 2012, The Vertical Machining Center enables drilling, milling and cutting operations and cornering within the scope of technical capabilities indicated in the manual in details: plastic, PVC, ABS, methacrylic, polycarbonate, thermoplastic, composite, aluminum. The vertical work table allows for easy feeding and unloading of processed details and reducing the maximum size of the device to the minimum necessary. Tool change with the use of a 10-element magazine located on the side of the device, it enables various works to be carried out without the need to remove the workpiece from the table. Maximum dimensions of the processed detail: X= 4200mm Y= 1600mm Z= 20mm Rapid traverse speed (m/min): X=30 Y=30 Rcodpfomzbr Ssx Adyeb Z=15 Set of milling heads T1 and T2: Spindle power (kW) - 3.3 Rotation speed (rpm) - max 18000 Electric spindle with clamp - ER32 T3 Drill Head Assembly: Spindle motor power (W) - 370 Rotation speed (rpm) - max 2800

Condition: new, Year of construction: 2026, machine/vehicle number: 2026, STEEL CUTTING MACHINE with ONLINE-PC-STEUERUNG350 fully automatic steel cutting machine for reinforcing steel cutting in a single - or double cut according to requirement. Optimized cutting with residual lengths. The system consists of an automatic Vorlegemagazin with 12 seats, a hacksaw and a belt conveyor to the removal of cut-to-length steel profiles. Rest lengths to promote after length in a rest length basket, transport or waste basket. The steel profiles are processed in the process, while the profile bar is precisely positioned by a transport gripper with linear motor and rotary encoders. The saw cut is made from the top, Microdosier-cooling-lubrication system ensures optimum cooling of the blade. The profile is, profile cross section regardless, pneumatically. Free-standing system with PC control or in combination with an automatic cutting machine, plastic-BAZ or SBZ. Rodpfecmqkmjx Adyecb In a combination of stroke with the automatic cutting machine, BAZ or SBZ is synchronized. Profile lists for the store in the template magazine displays the employee on the TFT screen. The finished steel profiles are taken from the belt conveyor, acknowledged and filed in car, or manually pushed to the Stahlein-schubstation in the PVC profiles. New facility 10 weeks delivery time

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, STOCK MACHINE: Working direction from left to right – Subject to prior sale – Rcedpfx Adexft I Ajysb HECHT Exenso Profi Saw Cutting Center ESA-9 Comprising: Infeed: - Robust aluminum construction in proven profile design - Ergonomically adjustable working height from 985 – 1055 mm - Raw bar length from min. 400 mm up to max. 6,000 mm (optional extension kit available for up to 6,500 mm) - Material supply via chain conveyor for fully automated 9-compartment loading - Working direction from left to right Professional Cutting Saw: - Automatic bandsaw with pneumatic clamping system, consisting of 3 clamping elements - Infinitely variable saw feed via hydraulic unit - Workflow controlled via Exenso control system - The sawing area is secured at the front by a light curtain. - Bandsaw drive: 1.5 kW, frequency-controlled - Bandsaw dimensions: HBS 250 G 3320 x 27 x 0.9 mm, long service life - Cutting speed: in regulated operation 15-110 m/min - Cutting range: width 10-120 mm, height 10-80 mm Outfeed: - Robust aluminum construction in proven profile design - Ergonomic removal height from 760 – 820 mm (Note: not adjustable independently from working height) - Part outfeed via powered roller conveyor with steel rollers - Roller-guided ejection unit across three levels onto inclined discharge table - Maximum part length via automatic outfeed: 3,500 mm (optional extension kit available for working length up to 4,500 mm) - Scrap disposal via ejection unit – max. length 600 mm - Scrap pieces discharge via chute into customer-provided waste container (Note: waste container not included) - Remnant identification indicated at placement position for manual collection by operator Software / Data Interface: - HECHT Exenso ESA software (version specified after joint pre-acceptance) Operation: - Reinforcement bars are loaded onto the feed magazine in the infeed section by the operator according to specifications/display. - Transmission of the required cut lengths for the PVC cutting center from customer’s window manufacturing software via integrated data interface - Steel is automatically conveyed and fed - Optimized cutting to the specified lengths - Transport of steel to the pick-up position in the outfeed section - Optionally, double cuts can be made upon inspection Scope of delivery: - Bandsaw - Infeed conveyor - Outfeed conveyor - Light curtain - Control system with Win 10 and 15" touch screen - Data interface REST API can be adapted to an existing cutting center after inspection - The system is disassembled into several packages for transport Includes: 540.1082 1x Guard fence wall connection set with door switch ESA/SSA, usable right or left; 723.5011 1x bandsaw blade M42 3320x27x0.9 12-16 TPI, fine; 942.5541 1x minimum quantity lubrication for ESA & SSA saw systems – significantly extends bandsaw blade service life; Includes: minimum-quantity lube nozzle, 1L lubricant, holder for lubricant, filter for protection against contamination; 829.0201 1x additional buffer monitor for steel terminal ESA/SSA, additional display.

Condition: used, Year of construction: 2000, machine/vehicle number: 25019, functionality: fully functional, Cutting and processing center STUERTZ STBAZ-IPT 40000-S-V Used, year of construction 2000 Fully automatic CNC sawing and processing center for PVC plastic profiles, mechanically in very good condition for this age. Sawing, processing, screwing reinforcement, drilling through steel reinforcement, label printing. Database with Gealan, Rehau and Aluplast profiles Documentation, additional photo and video available. Rjdpfxsw Edyfe Adyecb We can carry out installation and commissioning.

Condition: excellent (used), Year of construction: 2011, rofile width max 140 mm Profile height max 190 mm Stave length max 6.500 mm Drilling aggregates 2 Number of milling spindles 3 For aluminium Number of clamping devices 4 Rjdpfxem H Ud Ue Adyocb Feedrate max 65 m/min Continuously variable feed Automatic feeding Yes CE marking Declaration of CE-conformity

Condition: used, Year of construction: 2013, functionality: fully functional, saw blade diameter: 500 mm, CNC cutting center fully automatic CAT500 The machine is operational and ready for use Rcjdpfx Aox Ez Igjdyeb Blade diameter: 500 mm Cutting angles in range: -45°/90°/+45° Operator panel with Windows Working direction from right to left Chip extraction Waste conveyor Label printer
