Cycle-controlled lathe

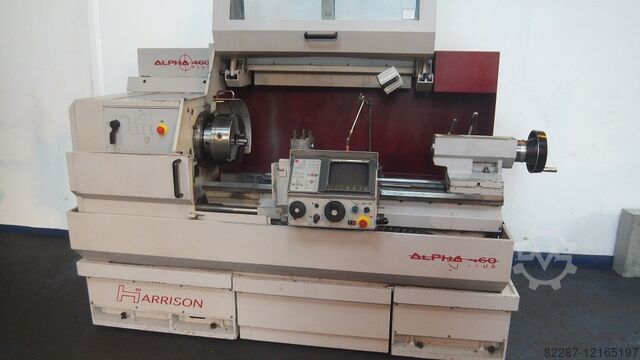

(1998) Harrison Alpha 460 Plus

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Spindle speed 3,000 min-1 4-fold parat holder Tailstock Hjdpfx Aot T T Ursf Seg

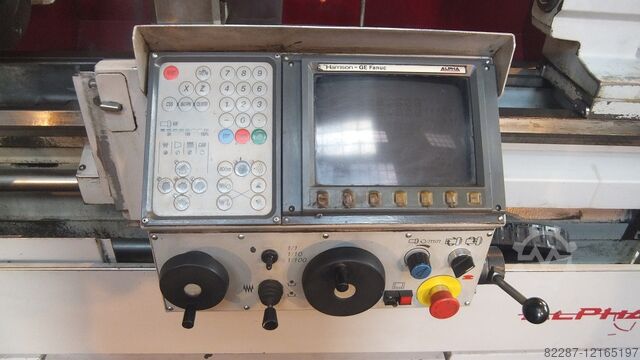

Condition: used, CNC cycle controlled lathe HARRISON type Alpha 400 Plus Machine No. P30180/150 Year of construction 1998 center distance 1250 mm turning diameter over bed 400 mm Hedpfjh Hvk Aex Af Sjg center height 200 mm Swing diameter over cross slide 245 mm Swing diameter in the bend 585 mm bed width 313 mm face travel (X-axis) 250 mm Tailstock spindle diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill mount MK 5 spindle bore 54 mm spindle head size Camlock D1 size 6 Spindle speed 20-2500 rpm. Spindle speed range (stage 1) 15-275 rpm. Spindle speed range (stage 2) 35-795 rpm. Spindle speed range (level 3) 110-2500 rpm. Feed rate X and Z 0.03 - 0.6 mm/rev. Rapid traverse speed X axis max. 2000 mm/min. Rapid traverse speed Z-axis max. 4000 mm/min. Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Mains connection 400 Volt, 50 Hz, 23,5 kVA - cycle control Harrison Alpha / GE FANUC - language in French (France) - automatic gear range shifting in 3 steps (15-275, 35-795, 110-2500 rpm.) - electronic handwheels with different transmission ratios (1/10/100) - 3-jaw face spiral lathe chuck FORKARDT Ø 250 mm type CSN, 1 set of soft top jaws - quick-change tool holder MULTIFIX size B with 2 inserts - 1 piece of centering point running with the tool - 1 piece quick-action drill chuck RÖHM, 3-16 mm - hinged lathe chuck guard - hinged working area protection doors - chip tray with coolant device under the machine bed - Switch cabinet fixed to the machine - Interface RS 232 Space requirement L x W x H 2600 x 1450 x 1550 mm weight 1950 kg good condition

Condition: excellent (used), Year of construction: 1994, Manual Plus control unit Turning diameter 260 mm Swing diameter 475 mm Center distance 1000 mm Turning length 880 mm Hodpfxot T T Uxj Af Sjg Spindle speed 3,000 min-1 4-fold parat holder Tailstock

Year of construction: 1997, condition: ready for operation (used), Center height: 195mm, center width: 1250mm, turning diameter over bed/faceplate/in bed gap area: 400mm/245mm/585mm, spindle bore: 54mm, speed: 2500rpm, power: 7.5kW, rapid traverse face pull/longitudinal pull: 1.5m/3m/min, quill: MK5. Machine dimensions X/Y/Z: approx. 2600mm/1500mm/1600mm, weight: approx. 1800kg, control: GE Fanuc. Documentation available. On-site inspection is possible. Hedpfxeua E Txj Af Seg

Condition: used, Year of construction: 2002, Diesinking / EDM Travel distance X: 350 mm Travel distance Y :250 mm Travel distance Z: 315 mm table size X: 576 mm table size Y: 400 mm max. workpiece weight: 500 kg C-axis quill chuck: EROWA Hsdpfxsvtfn Ij Af Seg
