Cylindrical grinding machine

Studer S21 CNC

Condition: used, Year of construction: 1998, centre height 125 mm centre distance 400 mm Control FANUC 21i Capstan diameter max. 406 mm wheel dimensions 406 x 127 x 40 mm workpiece weight 30 kg longitudinal slide -travel 483 mm cross slide - travel 254 mm total power requirement max. 20 kVA weight of the machine ca. 4,0 t dimensions of the machine ca. 3,0 x 2,0 x 2,1 m Gsdpfjxwdwfsx Ah Sebw including 2 Pcs. internal grinding spindle incl. B axis 1° Hirt, controlled incl. C-axis incl. Quick-Set Probe including Sensitron including Magnetic Jaw including hydraulically foldable dresser including other small accessories including documentation without a coolant system, as it was previously connected to a central unit Power On hours approx. 71,000 h Spindle hours approx. 25,900 h

Condition: good (used), Cylindrical Grinder STUDER Favorit S35 Gsdpjrakibjfx Ah Sebw

Condition: used, TECHNICAL DETAILS - Centers height : 125 [mm] - Distance between centers : 400 [mm] - Grinding wheels dimensions : 400 x 127 x 50 [mm] - Power : 4 [kW] - Max. part weight : 30 [kg] - Floor space : 3000 x 3520 [mm] - Weight : 4000 [kg] EQUIPMENT - CN FANUC 21i-T - B axis with 1° precision - Chuck 3 jaws - Tool-holder flanges - 1 external grinding wheel - 1 diamond grinder - Tail stock with fine adjustment Gbjdpfxsuhbxto Ah Sow - 1 internal grinding devices with spindle 42000 rpm - Coolant tank with paper filter - Part probe

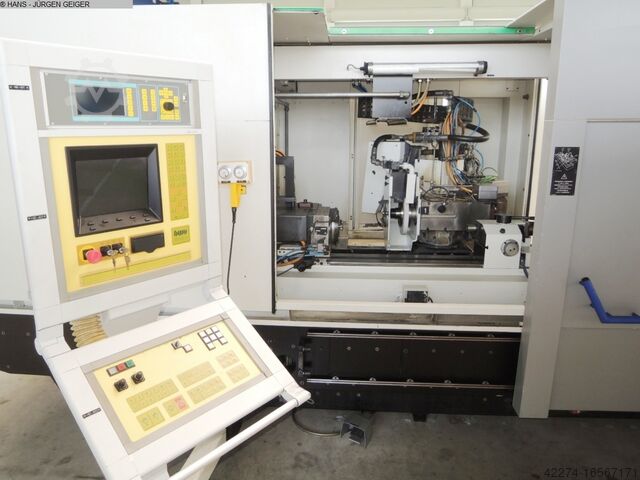

Condition: used, Year of construction: 2000, grinding diameter 360 mm grinding length 1600 mm centre height 180 mm internal diameter 0 mm grinding depth 0 mm swing diameter 0 mm total power requirement 40 kW weight of the machine ca. 10000 kg dimensions of the machine ca. m K A R S T E N S (Germany) Universal “CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3 Positions = B-Axis Head swivels in 3 positions = 240 ° / 17,5 degree X-axis adjustment in total 360 mm Increments for infeed 0,001 – 125 mm Workpiece wheelhead = C-Axis Spindle speeds steplessly adjustable 10 – 1.000 rpm Spindle taper / Spindle bore MK 4 / 24 mm Table speeds 0,01 – 10.000 mm/min Total electrical load 40 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: * Very versatile CNC Grinding Machine for almost all grinding purposes like External/Internal and Face grinding as well as for Excentric- / Cam- / Polygone Grinding and even for Thread Grinding * Free programmable CNC System make BWO Model 900 C with many grinding cycles and for easy input of the work-parameters. Graphic support, any many more features. * 3 position wheelhead with 3 Grinding spindles as B-Axis, one with measuring feeler (Z - Position) * MOVOMATIC Measuring Device Model ES 400 for diameter control, Gbodpfst Hw Rdex Ah Sew Probe head CR 60, to be mounted on table. * MPM Automatic Grinding wheel balancing Device, Dressing devices with diamantflees mounted on table surface and also motorized Diamantroll Profile dresser on table (for thread profiles, etc.) * Workhead and tailstock can be easily moved on table by air cushion. Hydraulic quill on tailstock. * No Coolant Device available ! Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock as inspected. Payment : Net, after conclusion of contract.

Condition: good (used), cylindrical grinding machine Gsdpfx Ahotrgndo Ssbw

Condition: excellent (used), Year of construction: 2000, The machine can be inspected and tested in our warehouse after prior appointment. Gbodpfowl Uq Iex Ah Sow

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Distance between tips : 400 [mm] - Effective diameter : 180 [mm] LINEAR AXES - X1 and X2 x Z travel : 220 [mm] - Z travel : 850 [mm] - X x Z resolution : 0.0001 [mm] TURRET : - Number of fixed positions : 12 - Tool holders : VDI30 WHEEL CARRIER - Right-hand external grinding : * Grinding wheel dimensions (Ø x width x bore) : 400 x 50 x 127 [mm] * Drive power : 6.8 [kW] WORKPIECE CARRIER - Max. speed : 7500 [rpm] - Speeds (synchronous operation) : 1 - 5000 [rpm] - Taper type : CM4 - Drive power : 10.5 [kW] - C axis : 0.001 [°] SYNCHRONIZED COUNTER SPINDLE - Max. speed : 7500 [rpm] - Rotational speeds (synchronous operation) : 1 - 5000 [rpm] - C axis : 0.001 [°] - Inner cone : MK4 - Micrometric adjustment : +/- 40 [microns] - Drive power : 10.5 [kW] POWER SUPPLY - Power rating : 45 [KVA] DIMENSIONS - Floor dimensions : 2800 x 3960 [mm] - Machine weight : 7600 [kg] MACHINE HOURS - Powered hours : 57000 [h] EQUIPMENT - NC FANUC 310i-modelA - Software Studer WIN - RS232 / USB interface - Remote electronic handwheel - Turret with Renishaw LP2 length self-calibration device - Marposs feelers for diameters (multirange) + Z4 axes for positioning - Semi-automatic wheel balancing MPM.3 BMT100 M.24 Gbedpfx Aevxw A Ueh Sew - 480 L coolant tank * with paper filter * with magnetic filter - Chip conveyor - Fog extraction - Cooling unit for grinding wheel motor cooling - Electronic contact detection Dittel AE6000 - Fixed dressing device on workhead - Electrical cabinet air conditioning - Balancing shaft - Interface for automatic loading system

Condition: used, Year of construction: 1995, functionality: fully functional, grinding length: 600 mm, grinding diameter: 250 mm, The machine was still in operation until recently. Gjdpfxjwca Hcj Ah Sobw Grinding diameter: 250mm Grinding length: 600mm Notes: - The price does NOT include any accessories! - Pickup by buyer, from the site. - Pickup date to be agreed upon by the seller. - No warranty. - Advance payment (invoice) or cash upon pickup.
