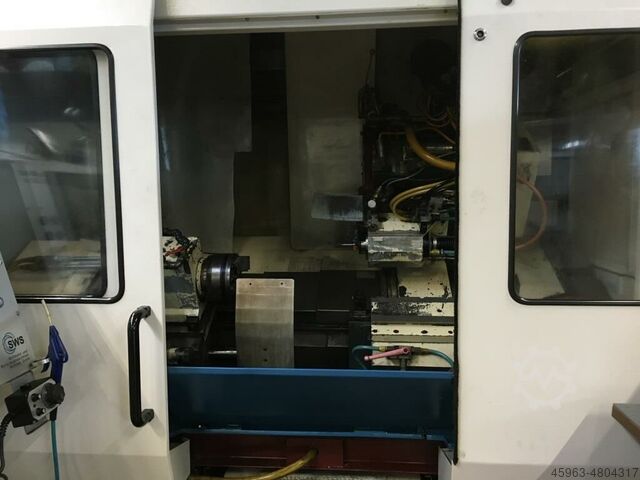

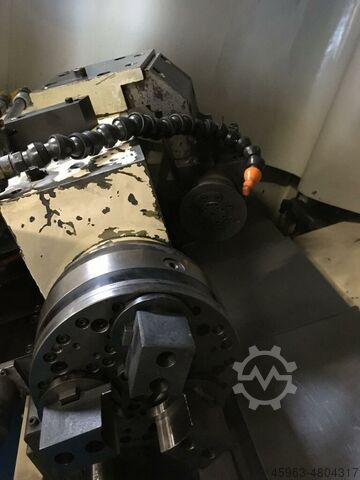

Cylindrical grinding machine

Schaudt

Condition: excellent (used), functionality: fully functional, Year of construction: 2023, roller (bottom) diameter: 495 mm, roller (top) diameter: 515 mm, side roll diameter: 355 mm, roller diameter: 495 mm, roller length: 2,000 mm, working width: 2,000 mm, sheet thickness steel (max.): 60 mm, overall weight: 29,200 kg, total length: 5,770 mm, total width: 2,390 mm, total height: 2,760 mm, power: 55 kW (74.78 HP), Equipment: documentation/manual, Interchable top roller 410mm Gcedov Nhkwepfx Ad Aja

Condition: used, Year of construction: 1990, hobbing length 2100 mm milling width 300 mm Gjdpfot Hwwqjx Ad Aoca max. module 16/18 min. module total power requirement 10 kW weight of the machine ca. 5 t dimensions of the machine ca. m

Condition: used, Year of construction: 1989, max. wheel diameter 400 mm gear width 275 mm max. module 6 Gsdpfx Adsu A I Elo Asca Overall size 300x330x245 cm weight of the machine ca. 5,5 t Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW

Condition: used, Year of construction: 2002, functionality: fully functional, turning diameter: 1,600 mm, spindle motor power: 45 W, spindle speed (max.): 1,500 rpm, travel distance X-axis: 1,200 mm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 10,000 m/min, rapid traverse Z-axis: 10,000 m/min, Daewoo Doosan PUMA V-1200M CNC vertical lathe, year 2002, equipped with FANUC Series 18-T control, designed for machining large and heavy workpieces, ideal for heavy-duty and industrial sector applications. Gcjdpfx Adowt S Rhj Aja Main technical specifications: Maximum swing and turning diameter: Ø 1,600 mm Maximum turning height: 1,200 mm Maximum workpiece weight: 6,000 kg Chuck diameter: Ø 1,200 mm RAM axes: X (horizontal): 1,200 mm Z (vertical): 900 mm C axis: 360° rotation, minimum positioning increment 0.001° Main spindle: Speed: 2 ÷ 320 rpm (2 ranges) Power: 37/45 kW RAM driven spindle: Taper ISO-50 Speed: 15 ÷ 1,500 rpm RAM section: 240 x 240 mm Tool turret: 16 stations, with BT-50 type tools Max. tool diameter: Ø 400 mm Max. tool length: 450 mm Max. tool weight: 50 kg Maximum tool weight in magazine: 600 kg Feeds: Rapid traverse X/Z axes: 10,000 mm/min Working feeds X/Z axes: 3,000 mm/min Included accessories: Chip conveyor Coolant tank with pumps Spindle line air conditioner Various fixed and driven tool holders Manuals, electrical diagrams, CE declaration Solid and high-performance machine for vertical machining of large workpieces with high precision.

Condition: good (used), Technical specifications: Godpfx Adewchplo Asca Working length: 3050 mm Max. bending capacity: 30.0 mm Pre-bending: 25.0 mm Number of driven rollers: 3 Top roller diameter: 410 mm Bottom roller diameter: 380 mm Hydraulic folding bearing Extended rollers for profile bending Control panel with digital display Motor power: 40 kW Dimensions (length x width x height): approx. 6900 x 2000 x 2450 mm Weight: approx. 22 tons Accessories: Side hydraulic bending aids

Condition: good (used), Year of construction: 1986, 1 used universal cylindrical grinding machine type SA 5 /630 year of construction 1986 center height 140 mm Circulation over bed 280 mm Center width 630 mm Table speed 0.05 - 6 m / minute Coolant system Weight 4.5 tons Technical data Errors excepted Gedpfx Asul Agbsd Aoca

Condition: excellent (used), Year of construction: 1977, grinding diameter 350 mm grinding length 1000 mm centre height 100 mm grinding wheel diameter 360 mm total power requirement kW weight of the machine ca. 3,8 t Gcsdpeunt Eysfx Ad Aja dimensions of the machine ca. 3,5 x 1,3 x 1,5 m Machine in very nice condition, external + internal spindle, many accessories.

Condition: used, TECHNICAL DETAILS - Grinding diameter : 3 / 80 [mm] - Grinding depth : 80 [mm] - Max. part length : 250 [mm] - Max. part diameter : 240 [mm] - Centers height : 130 [mm] - Part-holder headstock swiveling : -5 / +60 [°] - Bar clearance : 25 [mm] - Metric shaft nose internal taper : 40 - Part-holder spindle speed with continuous adjustment : 350 / 1.200 [Rpm] - Strokes X/Z : 50 / 300 [mm] - Installed power : 17 [kW] - Dimensions (LxDxH) : 200 x 180 x 160 [cm] - Machine weight : 2.200 [kg] Gcsdpfsuhbmkjx Ad Aja EQUIPMENT - Automatic downfeed - 1 VOUMARD M45DR internal spindle : 45.000 [Rpm] - Automatic parts loader - Hydraulic wheel dresser - 3 jaws chuck - Coolant tank * with coolant through part center

Condition: excellent (used), DANOBAT Model: RT 1200 Tangential Useful support surface: 1200 x 450 mm Useful grinding surface : (Chuck 100 mm) 1200 x 600 mm Useful grinding surface: ( Chuck 50 mm) 1200 x 550 mm Gedpfx Adovi Rtne Aeca Longitudinal X axis travel : 1300 mm Transvers Y axis travel: 500 mm Height of piece to rectify : 450 mm Grinding wheel rotation speed: 1500 rpm Grinding wheel power: 10 Cv Grinding wheel dimensions: Ø 400 x 50 mm Electromagnetic chuck: 1000 x 500 mm Adjustable speed on the table : 1-25 m/min Max. weight piece : 1000 kg Machine weight : 5500 kg

Condition: excellent (used), Grinding length 1000 mm Gcodpfx Adsk Abxxo Aja grinding diameter fi 350 mm In very good condition.
