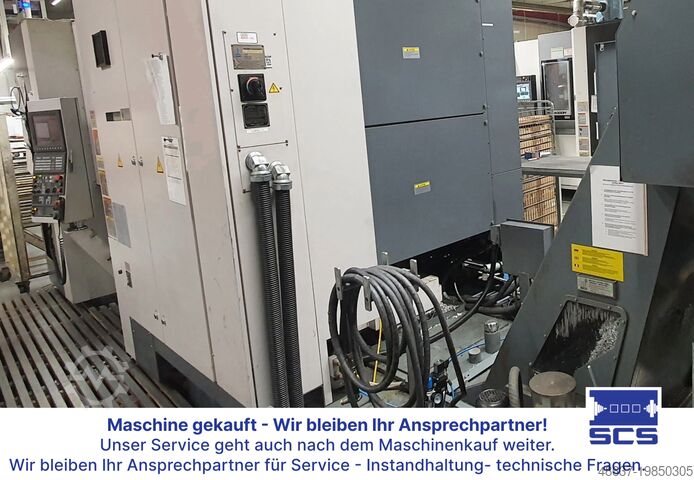

Machining Center - Horizontal

OKUMA MB-5000H

Condition: ready for operation (used), Year of construction: 2010, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 760 mm, total height: 2,864 mm, overall weight: 11,500 kg, spindle speed (max.): 15,000 rpm, tool weight: 10,000 g, number of axes: 4, This 4-axis Okuma MB 5000H was manufactured in 2010. It features a robust 500 × 500 mm pallet, capable of handling a maximum load of 500 kg, and offers a comprehensive range of movements with 760 mm travel in X, Y, and Z axes. Equipped with a high-speed spindle up to 15,000 min⁻¹ and a 64-tool magazine, this horizontal machining centre is ideal for complex machining tasks. Contact us for more information about this machine. • Spindle center to pallet top: 50–810 mm • Spindle nose to pallet center: 135–895 mm • Table/pallet: 500 × 500 mm; max load 500 kg; indexing 1° • Workpiece capacity: max Ø800 × 1,000 mm • cutting feed 1–60,000 mm/min; table indexing motor 3.0 kW • Tooling: tool shank MAS403/BT40; pull stud MAS 2; magazine 64 tools; random selection • floor space 2,700 × 4,710 mm Additional equipment • Chip conveyor • Through-spindle coolant (CTS) • Tool presetting at table edge Nledpfx Amsx D Rrceusc • Provision for Renishaw probe • Shower/washdown system

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 760 mm, table load: 500 kg, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS X-axis travel: 760 mm Y-axis travel: 760 mm Z-axis travel: 760 mm Spindle center to table surface: 50 to 810 mm Spindle end to table center: 135 to 895 mm Table size: 500 x 500 mm Max. load capacity: 500 kg Index positions: 360 Speed range: 50 to 15,000 rpm Number of speed ranges: stepless Taper: NT No. 40 Spindle diameter: 70 mm Feed Rapid traverse (X/Y/Z): 60,000 mm/min Manual feed (X/Y/Z): 1 to 60,000 mm/min Nsdpfxsxvq Hde Amujlc Tool changer Tool holder: Standard MAS BT40 Magazine capacity: 48 stations Max. tool diameter (adjacent positions occupied): 70 mm Max. tool diameter (adjacent positions free): 150 mm Max. tool length: 300 mm Max. tool weight: 10 kg MACHINE DETAILS Total power requirement: 43 kW Dimensions & Weight Space requirement: 2.7 x 4.73 x 2.87 m Machine weight: 11.5 t
