Dividing head

Condition: ready for operation (used), functionality: fully functional, turning length: 230 mm, turning diameter: 190 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 125 mm, travel distance Z-axis: 195 mm, controller model: Fanuc Series O-T, The machine was manufactured in the 1990s. TECHNICAL DETAILS Turning diameter: 190 mm Turning length: 210–230 mm Diameter over bed: 190–200 mm Travel in X-axis: 125 mm Travel in Z-axis: 195 mm Hjdpfx Aszul Uyolnjt Spindle speed range: 6,000 rpm Spindle bore: 43 mm MACHINE DETAILS Control system: Fanuc Series O-T Machine weight: approx. 2,500 kg EQUIPMENT Chip conveyor

Condition: good (used), x-travel 380 mm z-travel 140 mm dist. cutter spindle - workpiece spindle 370 mm distance spindle - column 163 mm table-size 630 x 150 mm quill stroke 40 mm milling head -swivable 360 Grad spindle turning speed range 120-2000 U/min table feed 35/65/170 mm/min voltage 380 V weight of the machine ca. 130 kg total power requirement 0,5 kW dimensions of the machine ca. 0,91 x , 0,68 x 1,80 m Includes 32-piece collet set Includes base cabinet with key Includes small parts Hodpfxeyz Dg De Alnst Includes operating instructions

Condition: repair required (used), Year of construction: 1998, functionality: limited functionality, turning length: 330 mm, turning diameter: 248 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 190 mm, travel distance Z-axis: 370 mm, The machine’s control system is defective. TECHNICAL DETAILS Turning diameter: 248 mm Turning length: 330 mm Travel distance X-axis: 370 mm Travel distance Z-axis: 190 mm Spindle bore: 45 mm Spindle speed: 6,000 rpm Tailstock quill travel: 120 mm MACHINE DETAILS Transformer: 400 V / 200 V EQUIPMENT Integrated CNC control Machine and control as a closed transport unit Linear guides in the X and Z axes Continuously variable AC main spindle drive Programming for constant cutting speed Integrated cold light Power meter for the main spindle drive Controls for automatic, manual operation and CNC programming Central control panel on the right side of the machine High-dynamic three-phase servo motors for the X and Z axes Backlash-free, pre-tensioned precision lead screws for the X and Z axes Automatic central lubrication with electrical monitoring for bed, cross slide and ball screw drives Coolant system with tank, pump, lines and nozzle Electric 12-station turret system MORI SEIKI with automatic direction logic Hjdpezul Utofx Alnst Direct coolant supply through the turret Fixed hydraulic unit for the power chuck Full enclosure of the working area Front sliding door with large viewing window Electrical connection for chip conveyor prepared Data interface V.24 / RS-232-C Control cabinet Freestanding transformer 400 V / 200 V

Condition: used, Year of construction: 1996, functionality: limited functionality, turning length: 330 mm, turning diameter: 248 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 370 mm, travel distance Z-axis: 190 mm, TECHNICAL DETAILS Turning diameter: 248 mm Turning length: 330 mm Travel range, X-axis: 370 mm Hedpfxszul Umj Alnjt Travel range, Z-axis: 190 mm Spindle bore: 45 mm Spindle speed: 6,000 rpm Tailstock quill travel: 120 mm Note: A switch on the X-axis needs to be reset.

Condition: new, diameter 200 mm height 105 mm weight of the machine ca. 25 kg dimensions of the machine ca. 400 x 280x 150 m Hjdpfxohuxbro Alnjt

Condition: ready for operation (used), Year of construction: 2001, operating hours: 27,267 h, functionality: fully functional, turning length: 180 mm, turning diameter: 100 mm, spindle bore: 43 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 125 mm, travel distance Z-axis: 195 mm, TECHNICAL DETAILS Turning diameter: 190 mm Turning length: 180 mm Max. turning diameter: 100 mm Travel X-axis: 125 mm Travel Z-axis: 195 mm Rapid traverse X-axis: 15 m/min Rapid traverse Z-axis: 20 m/min Spindle bore: 43 mm Spindle bearing diameter: 80 mm Spindle speed range: 60–6,000 rpm Tailstock diameter: 40 mm Tailstock taper: MK 3 Tailstock travel: 45 mm Number of tool positions: 10 MACHINE DETAILS Transformer: 400 V / 200 V Data interface: V.24 / RS-232-C Operating hours: 27,267 h EQUIPMENT Bar feeder Integrated CNC control Space-saving, compact design Inductively hardened flat guideways for bed and carriage Continuously variable AC main spindle drive Constant cutting speed programming Integrated cold light Ammeter for main spindle drive Swiveling central control panel Controls for automatic, manual, and CNC programming modes Hedpfxszul T Nj Alnet Three-phase servo motors for X and Z axes Backlash-free, pre-tensioned precision ball screws for X and Z axes Automatic central lubrication with electrical monitoring Coolant system with tank, pump, lines, and spray nozzle Electric 10-position turret system, MORI SEIKI Automatic turret indexing logic Direct coolant supply through the turret disk Fixed hydraulic unit for power chuck Front sliding door with large viewing window Electrical connection for chip conveyor, prepared Electrical equipment according to VDE 0113 Attached control cabinet Freestanding transformer

Condition: ready for operation (used), Year of construction: 2003, operating hours: 4,256 h, functionality: fully functional, turning length: 570 mm, turning diameter: 176 mm, travel distance X-axis: 245 mm, travel distance Z-axis: 570 mm, controller model: MSG-805 V, TECHNICAL DETAILS Turning diameter: 176 mm Turning length: 570 mm Swinging diameter: 510 mm Machining diameter: 420 mm Travel X-axis: 245 mm Travel Z-axis: 570 mm Rapid traverse X/Z-axis: 24 m/min Spindle bore: 43 mm Spindle speed: 60–6,000 rpm Tailstock diameter: 85 mm Tailstock travel: 120 mm MACHINE DETAILS Control system: MSG-805 V Total power requirement: 5.5 kW Dimensions & Weight Footprint: approx. 2,000 × 1,700 × 1,800 mm Machine weight: approx. 3,400 kg Hsdjzul Tvopfx Alnst Operating hours: 4,256 h EQUIPMENT Integrated CNC control system Inductively hardened flat guides for bed and cross slide Continuously variable AC main spindle drive Programming of constant cutting speed Integrated cold light Power meter for main spindle drive Operator controls for automatic and manual operation CNC programming and control panel Tailstock with hydraulically actuated quill, MK 4 Continuously variable quill pressure Programmable actuation of the tailstock quill via toggle switch and M function High-dynamic three-phase servomotors for X and Z axes Backlash-free, pre-tensioned precision ball screws for X and Z axes Automatic central lubrication with electrical monitoring Coolant system with tank, pump, lines, and nozzle Electric 12-station turret system MORI SEIKI Automatic direction logic on the turret Direct coolant supply through the turret disk Fixed hydraulic unit for power chuck Full enclosure of the work area Front sliding door with large viewing window Electrical preparation for chip conveyor Electrical equipment according to VDE 0113 Data interface V.24 / RS-232-C Mounted control cabinet Freestanding transformer: 400 V / 200 V

Condition: new, Year of construction: 2024, load capacity: 3,000 kg, 3000 kg load capacity welding turntable, very robust Speed infinitely variable from 0.05 to 0.7 rpm Turntable diameter 1400mm Inclination up to 135 Height horizontal 14650mm, tilted to center 1265mm Length 2.12 m x width 1.4 m with hand remote control and double foot remote control Hedpfxotuqd Uo Alnjt

Condition: ready for operation (used), Year of construction: 2008, operating hours: 10,294 h, functionality: fully functional, machine/vehicle number: P087WH855, travel distance X-axis: 700 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 300 mm, table load: 300 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 700 mm Travel range, Y-axis: 400 mm Travel range, Z-axis: 330 mm Rapid traverse speed: 54 m/min Spindle speed: 100–10,000 RPM Distance spindle–baseplate: 250–580 mm Main spindle power: 5.5 kW Table area: 650 × 400 mm Table load: 300 kg Tool positions: 21 MACHINE DETAILS Dimensions & Weight Dimensions: 1,565 × 2,027 × 2,336 mm Machine weight: approx. 2,200 kg Control system operating hours: 24,164 h Hjdpfxszul Tcj Alnet Operating hours: 10,295 h EQUIPMENT Central oil interval lubrication 100 mm column extension Interior lighting 16 additional I/O Rapid traverse with bell-shaped acceleration and deceleration Manual handwheel feed Directory display from memory card 1,000 storable programs Multilingual display Thermal compensation of XYZ axes Parameter back-up function Retraction cycle for tapping without a collet MANUAL GUIDE Background editing Extended part program editing Coordinate system selection G92 Workpiece coordinate system G52–G59 48 additional workpiece coordinate systems G54.1 Return to reference point G28 Quick Editor Setup file Production counter Tool correction memory C for D/H code and wear Thread cutting without a collet M29 Subprogram call M98/M198/M99 Customer macro B G65, G66/G67 Drilling cycles G73, G74, G76, G81, G89/G80 Coordinate system rotation G68/G69 Circular interpolation with R programming AI Contour Control I G05.1 Helical interpolation Skip function G31 Multi-step skip G31 P1–P4 Check of travel limit before movement Check of stored travel limit 1 Check of stored travel limit 2 G22/G23 Customer PMC Real-time customer macro

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, turning length: 50 mm, turning diameter: 40 mm, spindle speed (max.): 8,000 rpm, controller model: Fanuc 0i-TD, TECHNICAL DETAILS Turning diameter: 40 mm Turning length: 50 mm Travel range X-axis: 180 mm Travel range Z-axis: 200 mm Hedpfszul Srox Alnot Rapid traverse rate X/Z-axis: 15 m/min Spindle speed: 8,000 rpm MACHINE DETAILS Control system: Fanuc 0i-TD Dimensions & Weight Footprint: approx. 1,500 × 700 × 1,600 mm Machine weight: approx. 1,500 kg

Condition: excellent (used), machine/vehicle number: 721, Jaw width: 135 mm Back height: 39.6 mm Hjdjd Rlinepfx Alnjt Span: 140 mm Clamping force: 35 kN

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, turning length: 50 mm, turning diameter: 45 mm, travel distance X-axis: 180 mm, travel distance Y-axis: 200 mm, controller model: Mitsubishi FCA70LPC-V, TECHNICAL DETAILS Turning diameter: 45 mm Turning length: 50 mm Travel range X-axis: 180 mm Travel range Z-axis: 200 mm Rapid traverse X/Z-axis: 20 / 30 m/min Spindle speed: 8,000 rpm Hsdpfezul R Ujx Alnet MACHINE DETAILS Control system: Mitsubishi FCA70LPC-V Dimensions & Weight Machine weight: approx. 1,600 kg Footprint: approx. 1,700 × 700 × 1,700 mm

Condition: ready for operation (used), Year of construction: 2018, operating hours: 14,317 h, functionality: fully functional, travel distance X-axis: 520 mm, travel distance Y-axis: 360 mm, travel distance Z-axis: 350 mm, controller model: Fanuc i, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 520 mm Travel range, Y-axis: 360 mm Travel range, Z-axis: 350 mm Spindle speed: 12,000 rpm Distance spindle to base plate: min. 150 mm / max. 500 mm Table area: 650 × 375 mm Table load: 2 × 200 kg Tool weight: max. 2.8 kg Tool magazine: 14 positions Hsdpjzul R Ijfx Alnot MACHINE DETAILS Control system: Fanuc i Dimensions & Weight Dimensions (L x W x H): 3,230 × 1,620 × 2,507 mm Machine weight: approx. 5,200 kg Operating hours: 14,317 h EQUIPMENT Rigid tapping – thread drilling without compensation chuck Spindle overspeed and power display Telescopic guards on the X, Y, and Z axes Rapid traverse in the X, Y, and Z axes Door safety switch 3-color indicator light Work area lighting Coolant supply from a 200-liter tank via adjustable coolant nozzles at the spindle nose Internal cooling Machine cover, closed on top / Top cover Oil skimmer Pneumatic clamping system A, 1 pair per pallet Automatic work area door with safety strip Coolant system with delivery pressure: 4.5 bar

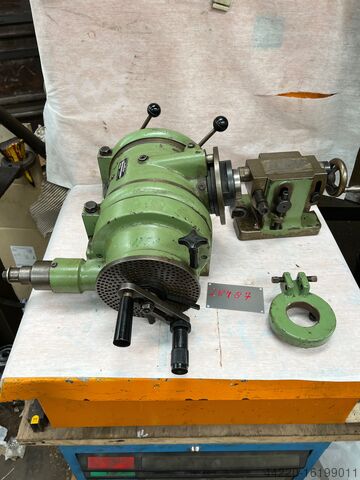

Condition: used, Indexing head with tailstock DECKEL Center height: 100 mm Gear ratio: 40:1 Spindle bore: 26 mm - 3-jaw chuck FORKARDT, Type F 160 with one set of step jaws - Crank handle with index plate and sector arms - Swiveling crank handle with index plate for direct dividing - 1 index plate with hole numbers: 36, 37, 40, 58 - 24-step index position (15° increments), graduated scale on the main spindle - Tailstock center with dovetail guide - Complete indexing head rotatable and tiltable on base plate Dimensions (L x W x H): 600 x 400 x 270 mm Net weight: 67 kg Indexing head in need of repair: - Key strip for dovetail guide is missing - Lever for index positioning is broken Hsdsxcbp Njpfx Alnet - Swivel mechanism is stiff

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, turning length: 145 mm, turning diameter: 168 mm, travel distance X-axis: 130 mm, travel distance Y-axis: 110 mm, controller model: FANUC 31i-TA, TECHNICAL DETAILS Hedszul Rujpfx Alnot Turning diameter: 168 mm Turning length: 145 mm X-axis travel: 130 mm Z-axis travel: 110 mm Spindle speed: 45–6,000 rpm MACHINE DETAILS Control system: FANUC 31i-TA EQUIPMENT 2 × Portal clamping system 2 × Part chute for inspected parts 2 × 3-jaw chuck, SMW Autoblok, Type BHM 165, 152.4 mm (6 inches) SMW Autoblok hydraulic cylinder, Type SIN-S 100, left SMW Autoblok hydraulic cylinder, Type VNK 70/37, right Chip conveyor, discharging to the rear of the machine Air-controlled part clamping monitoring, right Part clamping monitoring, on both sides 4-position spindle orientation, on both sides Coolant injection in the chuck via Deublin rotary distributor, on both sides Automatic coolant pump with 200 l tank capacity 2 × 8-station turret Signal light with traffic light design Preparation for oil mist extraction Automatic machine shutdown Automatic central lubrication RS-232-C interface External transformer 10 × Boring bar holders 3 × Turning tool holders, right 3 × Turning tool holders, left Customer macro B Turning cycles
