Decoiler - expansion mandrel 4 t

HEILBRONN

Condition: used, Year of construction: 1976, turning diameter over bed 455 mm turning diameter over slide rest 285 mm turning length 1.000 mm center height over bed 225 mm centre distance 1.000 mm digital readout 2-Achsen ANILAM bed width 330 mm spindle taper KK 6 DIN 55027 spindle bore 45 mm turning speed range 16 - 1.000 U/min power requirement 3,0 / 4,2 kW taper in tailstock-quill MK 4 dia. of quill 62 mm quill stroke 145 mm voltage 400 V total power requirement 4,5 kW weight of the machine ca. 1,95 t dimensions of the machine ca. 2,45 x 1,10 x 1,80 m - Serial-No.: 29-2561 - ANILAM 2-axis digital readout - 4-jaw tool holder - coolant equipment ATTENTION!!! Machine is sold without a chuck. Upon request and for an additional charge, the following 3-jaw spiral chucks can be included: - CENTER Ø 200 mm = 780.00 EUR - CENTER Ø 250 mm = 1,030.00 EUR Ledpfsy Ezyvex Ah Njhf

Condition: used, Year of construction: 1975, total length: 4,400 mm, total width: 1,450 mm, total height: 1,700 mm, Empty weight: 4.000 kg - Year: 1975 - Documentation available: Yes - CE certificate present: No - Serial number: 1677 - Drive system: Conventional - Centre height [mm]: 230 - Swing over bed [mm]: 460 - Distance between centres [mm]: 2000 - Spindle bore [mm]: 70 - Min. spindle speed [rpm]: 7.1 - Max. spindle speed [rpm]: 1400 - Options: Three-jaw chuck, Quick-change tool post, Travelling steady, Fixed steady Lodpfxexixh Nj Ah Nshf - Transport dimensions: 4400mm x 1450mm x 1700mm (l x w x h) - Transport weight [kg]: 4000kg - Transport packages [pcs.]: 4 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1978, machine/vehicle number: 4788, Capacity: 35 ton Throat depth: 225 mm Ram stroke: 8 - 80 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 325 mm Table surface area : 600 x 450 mm Slide area: 300 x 225 mm Number of strokes: 160 s.p.m. Required power: 2,2 kW Dimensions L x W x H: 1000 x 1600 x 2200 mm Lhjdpfx Ahjw Tukio Nof Weight of machine approx.: 1,9 ton

Condition: used, Year of construction: 1973, machine/vehicle number: 104530, pression: 100 t throat: 350 mm table size: 690 x 840 mm clearance hole in the die: 160 mm Ø tappet area: 450 x 600 mm tappet adjustment: 80 mm stroke adjustment: 8 - 100 mm Lhodpfjddhw Sox Ah Nof number of strokes: 60 /min engine: 380 V, 5,5 kW space needed: 1850 x 1850 x 2650 mm weight: 6800 kg

Condition: excellent (used), Year of construction: 1980, turning diameter 300 mm turning length 1700 mm Lhedpsytg Uyofx Ah Njf swing diameter over bed slide 600 mm total power requirement 12,5 kW

Condition: ready for operation (used), Year of construction: 1983, turning length 1500 mm turning diameter 475 mm Lhjdpsxfwc Refx Ah Nef turning dia. over face-slide 290 mm turning dia. in gap 655 mm turning speed range 14.0 - 2000 U/min feeds - longitudinal 0.05 - 0.736 mm/min spindle passage 61.0 mm tail stock MK 4 quill stroke 200 mm diameter of quill Ø 70.0 mm spindle head DIN 55022 GR 6 bed width 330 mm voltage 380 V total power requirement 7.5 kW weight 2400 kg range L-W-H 3080 x 1160 x 1485 mm From a maintenance workshop (university hospital) in good condition (!!) With original documentation + machine card Features: - Robust electric motor-driven conventional lathe - KLOPFER 4-jaw chuck Ø 200 - MULTIFIX steel holder with 3x inserts - Movable steel holder guard - Adjustable bed stop - Movable tailstock incl. center point - Swiveling machine light - Machine swing feet - Chip guard (movable from behind) - EMERGENCY stop button at the front - Original operating instructions + machine card

Condition: used, Year of manufacture: 1980s Technical data: Centre height: 295 mm Swing over bed: 600 mm Swing over cross slide: 390 mm Distance between centres: 1000 mm Spindle bore: 72 mm Lhodpox Ir Amjfx Ah Nsf Speed range: 72 - 1400 rpm Drive power: 11 kW Weight, approx.: 4000 kg Equipment: - 2-axis digital readout, Heidenhain ND 780 - Collet chuck - 3-jaw lathe chuck - Quick-change tool post, Multifix system with 2 inserts - Spindle guard - Tool post guard

Condition: used, Year of construction: 1988, strip width (20) 44 - 320 mm strip thickness 0,66 – 4 mm strip cross section max. 930 mm² reference material (tensile strength) St42-2 (500 N/mm²) Lhedpfolil Ewjx Ah Nof yield stress max. 280 N/mm² coil weight max. 4 t coil-dia max. 1.500 mm

Year of construction: 1988, condition: used, strip width (20) 44 - 320 mm strip thickness 0,66 – 4 mm strip cross section max. 930 mm² reference material (tensile strength) St42-2 (500 N/mm²) yield stress max. 280 N/mm² Lsdpfxsbicz Hj Ah Nehf coil weight max. 4 t coil-dia max. 1.500 mm

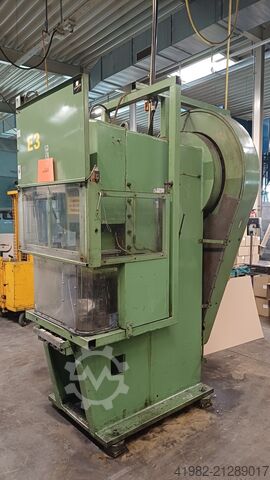

Condition: good (used), Year of construction: 1986, Eccentric press, single column press, punching machine, single column eccentric press, eccentric press, single column press -Manufacturer: Heilbronn, single column eccentric press type NEPD 50 -Pressure capacity: 50 tons -Clutch: pneumatic -Stroke: adjustable 8 - 100 mm -Table size: 500 x 650 mm -Table recess: Ø 240/100 mm -Projection: 255 mm -Punching fixture: Ø 40 mm -Insertion height 355 mm Lsdpfei Agynex Ah Njhf -Dimensions: 1800/1080/H2260 mm -Weight: 3050 kg
