Hydraulic plate shears

HACO HSLX 3006/8

Condition: used, Year of construction: 1980, Technical data: Max. sheet width: 2500 mm Max. Sheet thickness: 8 mm Weight, approx.: 6400 kg Gtsdpfx Agotvfzco Sot

Year of construction: 1993, condition: good (used), machine/vehicle number: 479, Offer 22408 Technical data: Gtedpfxepxmxce Ag Sot - max working width 3050 mm - max cutting capacity St 40 10 mm - throat 270 mm - cutting angle ° - cutting gap adjustment by hand - number of hydraulic hold-downs 16 pcs - motorized backgauge 20 - 650 mm - front angle fence + support arms - number of strokes depending on cutting angle and cutting length 7 - 12 per/min - hydraulic drive 400 V / 22 kW - table height approx. 820 mm - Space requirement incl. backgauge, without front support arms - approx. W 3850 x H 2000 x D 2000 mm - weight approx. 8500 kg - with: - E-foot - switch - cutting line lighting

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, spindle bore: 120 mm, turning diameter: 1,550 mm, turning diameter over bed slide: 1,550 mm, turning diameter over top slide: 1,220 mm, turning length: 6,000 mm, total length: 8,500 mm, total width: 1,600 mm, total height: 1,600 mm, workpiece weight (max.): 15,000 kg, spindle mount: MK 6, The PORĘBA TR-155B2/6M universal lathe has been comprehensively rebuilt and modernized, has technical parameters in accordance with the technical and operational documentation DTR of a new machine, WOT technical acceptance conditions and the Polish Standard and also meets EU requirements. The machine is covered by a full 12-month warranty on spare parts and electrical components. Availability: within 3,5 months, starting from the order Technical specifications: - distance between centers/turning length: 6.000 mm - turning diameter over bed: 1.550 mm - turning diameter over support: 1.220 mm - turning diameter in bridge recess: 1.880 mm - spindle bore diameter: 120 mm - maximum workpiece weight between centers: 9,000 kg - maximum workpiece weight between centers + 1 steady: 12,000 kg - maximum workpiece weight between centers + 2 steadies: 15,000 kg - number of spindle speeds: 21 - range of rotational speeds (rpm): 5 - 630 - number of feeds: 80 - range of feeds (mm/rev): longitudinal: 0.07 - 10 transverse: 0.035 – 5 for upper drawer: 0.017 – 2,5 - engine power [kW]: 27/41 (1st gear / 2nd gear) - overall dimensions: total length: 8.500 mm width: 2.130 mm height: 1.550 mm total weight: 14.100 kg Standard equipment: tailstock, coolant pump, tool post, chuck cover Additional equipment available at extra charge: - 3- or 4-jaw chucks, various diameters and variants - Digital readout on 2 axes with assembly and calibration - Steady rest, 40-400 mm, with rollers - Steady rest, 400-700 mm, with rollers - Steady rest, 450-900 mm, with rollers Gjdov Ab Dqopfx Ag Sett - MULTIFIX quick change tool post - Standalone chip and splash protection back wall over the whole machine length - inverter in the E-cabinet with slow-start-function and 1 x stepless potentiometer controller

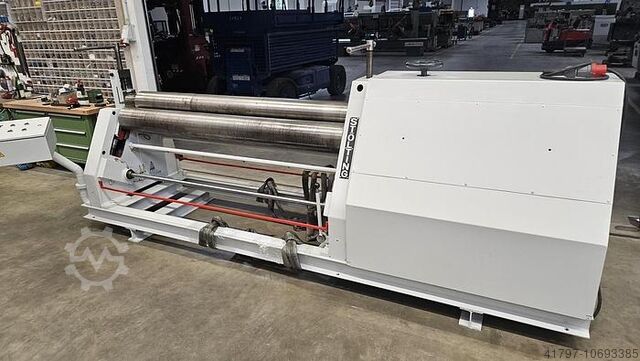

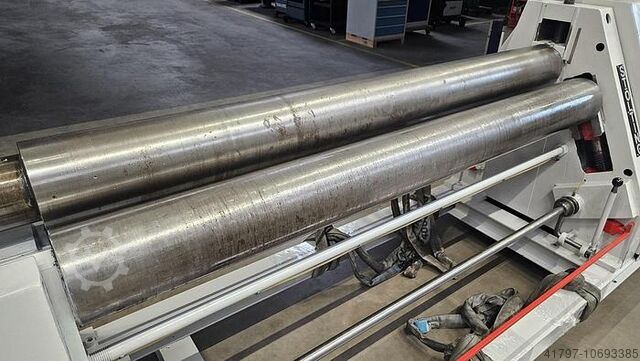

Condition: used, Max. bending length: 2000 mm Max. sheet thickness: 8 mm steel Clockwise and anti-clockwise rotation Motorized rear roller feed Safety emergency stop switch Conical rounding possible Gtedpfx Agjmhm Ele Set

Condition: new, Year of construction: 2026, Fully hydraulic lowering and raising function of the saw frame Hydraulic opening and closing of the vice Shutdown after cutting, return of the saw arm to its starting position Torsion-resistant saw frame made of cast steel (multi-ribbed) Hydraulic short-stroke cylinder for the vice Precision-ground carbide saw blade guides, adjustable Electric coolant pump Manual blade tension with display, including electric saw blade and cutting pressure monitoring Hydraulic vice (opening and closing) Revolving chip removal brush Large, solid round support table, rotating for miter cuts with a predefined cutting channel, manual miter adjustment, readout via scale 500 mm material stop with scale Including combi-toothed saw blade 4/6 Machine color: - Saw frame RAL 7035 - Machine body RAL 7005 Motor: 400 V three-phase, frequency-controlled, 1.5 kW Saw blade dimensions: 2910 x 27 x 0.9 mm Flywheel diameter: 325 mm Cutting speed: 20-120 m/min. Vice clamping width: 320 mm Working height: 760 mm Sawing range: at 0° = round diameter 250 mm, square 240 x 240 mm, rectangle 320 x 190 mm Machine dimensions (W x D x H) 1480 x 1700 x 2000 mm Weight: 420 kg Gtjdpfx Agjcl Tc As Sst Please inquire about additional accessories. DELIVERY: FREE (within Germany) NOT THE RIGHT MACHINE? WE ARE A FLOTT SUPPORT POINT PARTNER AND CAN OFFER YOU ALL PRODUCTS FROM THE FLOTT RANGE! ASK FOR A QUOTE!

Condition: good (used), Year of construction: 1989, machine/vehicle number: 189, Offer 23480 Technical data: - max. working length 3050 mm - stand passage 2550 mm - max. pressing force 150 T. - Column projection 300 mm - Ram stroke 150 mm - Lifting speeds - Downward speed idling approx. 100 mm/sec - Upward speed approx. 92 mm/sec - Downward pressing speed approx. 10 mm/sec - Total drive power 15 kW - Space requirement approx. W 3600 x H 2700 x D 2100 mm - Weight approx. 9000 kg - with: - mot. Back gauge with stop fingers - split upper tool + universal V-die Gtjdoq R T R Djpfx Ag Sst - 2 material supports - two-hand control panel with foot switch

Condition: good (used), Year of construction: 1998, machine/vehicle number: A 2409, Offer 24410 Welding turntable and tilting table - three axes - welding positioner Technical data: - max. load capacity 250 kg - Face plate diameter 400 mm Gtedpjur Icuofx Ag Sjt - min. Table height in horizontal position approx. 500 mm - Max. table height in horizontal position approx. 800 mm - Working height manually adjustable in 3 steps - Faceplate can be rotated motorized - Faceplate manually swiveling or tilting + height adjustment - Rotation electr. infinitely variable approx. 0.01 - 2.0 rpm - Right + left rotation - Welding current transmission approx. 500 A - Drive 400 V - Connected load 1.5 kW - Manual remote control for speed - E- foot switch - Space requirement approx. W 1100 x H 750 x D 700 mm - Weight approx. 500 kg

Condition: used, Year of construction: 2003, Technical details: Godpfxsvrygij Ag Sjtt Pressure: 60 t stroke: 400 mm table surface area: 700 x 700 mm passage opening in table: Ø 100 mm distance between columns: 700 mm distance between columns: 700 x 1300 mm table height over floor: 850 mm dayligth: max. 1150 mm daylight dimension : table/slide up: 400 - 800 mm cylinder diameter: Ø 110 mm total power requirement: 4,8 kW machine weight approx.: 930 kg dimension machine xH: 1,2 x 0,7 x 3,0 m HYDRAULIC DOUBLE COLUMN PRESS Special construction welded from 25 mm sheet steel Operating mode: single stroke Punch holder: pin M 70 x 2.5mm and punch Ø 128 x 440mm Table protection housing Round punch Ø 130 x 120 mm Hydraulic unit *

Condition: used, Year of construction: 1992, functionality: fully functional, drilling capacity: 40 mm, spindle stroke: 300 mm, number of spindles: 3, Drilling machine for steel structures - drilling holes in steel profiles. manufacturer - PEDDINGHAUS Germany; type - TDK 1000/3; year of manufacture - 1992; number of drilling spindles - 3 pcs. (two horizontal and one vertical); drilling diameter in S355 steel - from 8 to 40 mm; type of drills - HSS high-speed steel; drill mounting in the spindle - Morse taper 4; drill cooling - through the spindle and channels inside the drill; spindle feed - hydraulic with pressure force adjustment; spindle extension - max. 300 mm; material feed and length measurement - roller; CNC control - SIEMENS Sinumerik 840; software - CIM Steel; Godpfx Ajpl Dycsg Sstt Production capabilities: •drilling INP I-beams: 80-600 mm, IPE: 80-600 mm, IPB: 100-1,000 mm, IPBL: 100-1,000 mm, IPBV: 100-1,000 mm; •drilling UWP channels: 50 x 25 - 400 mm; •drilling equal-sided angles: 80 x 8 mm - 200 x 24 mm; •drilling unequal-sided angles: 80 x 65 x 8 mm - 250 x 90 x 16 mm; •drilling flat bars: min. 15 mm; power consumption - 35 kW; original paint - the machine has not been painted; weight - 9,000 kg; CE - does not have; The machine is connected to the power supply, ready for testing.

Condition: good (used), Year of construction: 1991, machine/vehicle number: 4073756691005, Offer 25360 Technical Data: - Sheet and flat bar shear, blade length: 175 mm - Cuts flat steel up to 100 x 15 mm or up to 150 x 10 mm - Profile and bar shear: - Cuts angle steel up to 80 x 8 mm - Cuts round steel up to 32 mm - Cuts square steel up to 30 mm - Punching station: - Punching force: 360 kN - Stroke: 10 to 32 mm Gsdpfsxupvbox Ag Sstt - Throat depth: 155 mm - Punches steel up to 20 mm Ø in 14 mm - Or up to 27 mm Ø in 10 mm - Drive: 400 V / 3 kW - Foot pedal - Space requirement approx. W 800 x H 1600 x D 855 mm - Weight approx. 600 kg - Various punch and die sets included
