Used veneer presses for sale (21)

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, machine/vehicle number: 4712, pressing force: 120 t, cylinder diameter: 90 mm, number of cylinders: 6, pressing speed: 200 mm/s, TECHNICAL DETAILS Maximum pressure: 120 t Pressing area dimensions: 2,500 x 1,300 mm Pressing height: 200 mm Number of cylinders: 6 Cylinder diameter: 90 mm Pressing speed: 12 m/min EQUIPMENT Complete line with: Itsdpfjyuxh Iex Abnod Loading system Gluing machine Destacker High-frequency cabinet (offered separately)

Condition: ready for operation (used), Year of construction: 2003, Veneer press manufactured in 2003. This PREISS U HORTSTMANN KP-5-CNC + ZWA-1-CNC + Buffer features workpiece dimensions with a cabinet height ranging from 300 mm to 2500 mm, a width of 300 mm to 1200 mm, and a depth of 160 mm to 700 mm. It requires a minimum room height of 3700 mm and operates at a working height of 930 mm. If you are looking to get high-quality veneer processing capabilities, consider the PREISS U HORTSTMANN KP-5-CNC + ZWA-1-CNC + Buffer machine we have for sale. Contact us for further details. • Workpiece dimensions • Cabinet height: 300–2500 mm • Cabinet width: 300–1200 mm (smaller widths possible manually with fillers) • Cabinet depth: 160–700 mm • Max side thickness: 56 mm (including fittings) • Operational requirements • Power supply: 400 V ±10%, 50 Hz, 3-phase, approx. 10 kW • Compressed air: 6–7 bar, oil-free and dry • Space/ergonomics: Minimum room height 3700 mm; working height 930 mm • Visual configuration (RAL colors) • Machine and control cabinet: RAL 7032 Kieselgrau • Supports and safety guards: RAL 3000 Feuerrot • Motors and extraction hoods: RAL 9005 Mattschwarz Additional equipment • Buffer system Iedeyvhlmspfx Abnotd • Roller conveyors (Roba) • Roba_11: ~2800 mm length, 700 mm usable width; split round-belt drive; two 0.55 kW motors; 60 m/min; 1 fixed end stop + 1 controllable center stop • Roba_12: ~2800 mm length, 700 mm usable width; 0.55 kW motor; 60 m/min; primary operator controls (Start/Stop, Emergency Stop) • Rollers: Ø60 mm, plastic-coated; pitch 128 mm • Working height: 930 mm (±20 mm) • Cross conveyors (QF) • QF_11 and QF_12: 8 toothed belts; 0.55 kW motors with frequency inverters • Speed: 40 m/min at 50 Hz • Operation: Pneumatically tiltable (hoch schwenkbar) • Total transverse width: ~1720 mm • ZWA-1-CNC unit • Workpiece dimensions: cabinet height 300–2500 mm; width 300–1200 mm; depth 160–700 mm • Operational: Electrical and compressed air supplied via downstream carcass press • Working height: 930 mm • Space: Minimum room height 3700 mm • Construction: Solid, torsion-resistant frame with precision guides for lifting table

Condition: excellent (used), Combined veneer press, wide belt sander, veneer saw - Press area 2270 x 970 mm - Pressing height 140 mm - Max. pressing pressure 2 kg per cm² (requires compressor: 4 bar, 220 l) Iodpsytunbefx Abnjtd - Veneer saw: cutting length 2600 mm, cutting height 60 mm, saw blade Ø 250 mm - Belt sander: table 2600 x 800 mm, sanding height 200 mm; L/R run; speed 19 m/sec, with extraction fan 11 m³/min chassis; filter bag missing; foldable belt cover - Lighting for sanding table - Approx. weight 2 t

Condition: used, Year of construction: 1991, Pressing area 1350 x 2550 mmTotal pressing force 900 kN (=90 MP)4 cylinders, 90 mm diameter x 400 mm stroke and press chamber height2 electro-combi heating plates 2550 x 1350 mm, gold anodizedIncl. Joos ABS safety systemElectronic temperature control R 3.1CE version Storage location: Supplier Itjdpfx Abeytrghsnsd

Condition: ready for operation (used), Year of construction: 2025, stroke length: 400 mm, This OMC PL 90s veneer press was manufactured in 2025. It features a plate size of 3000 x 1300 mm, an upward stroke of 400 mm, and a press force of 90 tons on 80% of the surface. Equipped with Elkom electronic heating plates, it ensures a maximum temperature of 120°C. The hydraulic system includes a two-stage unit with noise reduction and a fast closing/opening pump. Safety features include a safety cable, emergency button, and two-hand operation. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Plate size: 3000 x 1300 mm • Stroke type: upward stroke (from bottom to top) • Plate type: elkom electronic plates • Press force: 90 tons on 80% of the surface • Press cylinder: 6 x Ø 70 mm • Specific pressure: 2. 05 kg/cm² on 100% of the surface, 2. 56 kg/cm² on 80% of the surface Itedpfx Ajyalmbjbned • Loading and unloading side: 3000 mm • Heating system: electronic 25. 4 kw, maximum temperature of 120°c • Automatic opening with timer Extra Information Hydraulic System Two-stage unit with submersible pump for noise reduction and lubrication of rotating parts. Fast closing/opening pump (high flow rate - low pressure 35 l/min), press pump (low flow rate - high pressure 1.6 l/min). 2 HP Electric Motor Control/Safety Valves: Maximum pressure valve, pressure retention valve (check valve), valve for low drain pressure (pre-drain valve), and oil drain magnetic valve. Control Panel and Electrical System 2 Temperature regulators for setting the plate temperature Pressure gauge for pressure regulation with automatic pressure equalization system General on/off switch Two manual safety buttons for closing the press Timer for automatic opening Switch to select manual or automatic opening of the platens after the work cycle Off/on switch for upper and lower platen resistance Safety Systems Timed bimanual control for closing the press Safety rope on all four sides of the press Platen lock for maintenance Protective guards for the pinion and rack units Safety stickers and warning notices Operating and maintenance manual Complies with CE standards Press Structure Made of composite and welded steel Equipped with a rack and pinion guide system for perfect parallel movement during closing/opening of the plates. Elkom Heating Plate Electric plates with electric resistors Consist of a chipboard with an aluminum sheet mounting electric resistors Maximum Working Temperature: 120°C Maximum Thrust: 7 kg/cm²

Condition: ready for operation (used), Year of construction: 2019, This FORMAT4 HVP Typ 4 was manufactured in 2019. Designed for integration with existing heating systems, it can press at temperatures up to 90°C. The robust steel platen supports a maximum pressure of 5kg/cm², making it ideal for veneer processing. Consider the opportunity to buy this FORMAT4 HVP Typ 4 veneer press. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits Isdsx U Tv Ijpfx Abnotd • For connection to existing heating system / pressing temperature up to 90°c / the fabricated steel platen can take a maximum pressure of 5kg/cm²Plate: 110 X 240 cm, 120T, 5kg/cm2

Condition: ready for operation (used), Year of construction: 1996, Main Drive Pressing force 135 Kn This OTT 300-K-D0 was manufactured in 1996. A robust veneer press featuring plate dimensions of 2550 x 1350 mm and hot water heating. It includes 6 pressure cylinders with a total pressing force of 135 tons. Consider the opportunity to buy this OTT 300-K-D0 veneer press. Contact us for more information about this machine. Application Types Itjdpfx Abjx D E Avensd Pressing / Laminating

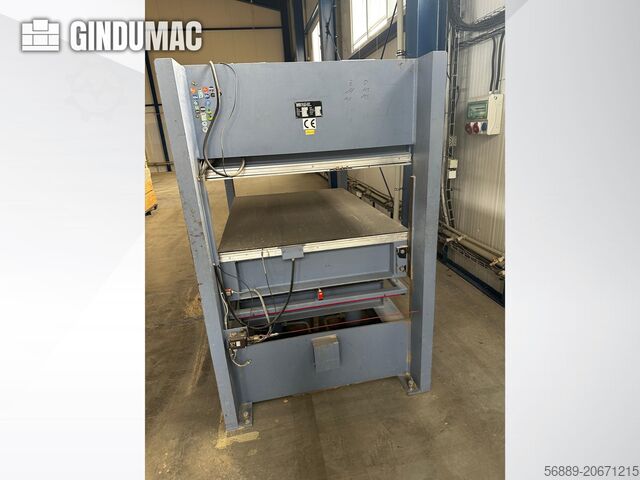

Condition: ready for operation (used), Year of construction: 1996, pressing force: 70 t, Main Drive Pressing force 686 Kn Iodpfx Abjx D D Nnonjtd This OTT ST 1611/60 veneer press was manufactured in 1996. It features a maximum pressing force of 70 tons, pressing plates measuring 1300x1611 mm, and a power output of 10.1 kW. The plates are electrically heated, enhancing its efficiency. Consider the opportunity to buy this OTT ST 1611/60 veneer press. Contact us for more information. Application Types Pressing / Laminating

Condition: used, Year of construction: 1999, functionality: fully functional, machine/vehicle number: H 40, total width: 1,100 mm, total length: 2,200 mm, total height: 1,800 mm, temperature: 120 °C, Veneer press 2200 x 1100 mm with heating, press pressure via hand pump. Itedpfx Abjyuva Usnod

Condition: used, Year of construction: 1985, Used machine Year of manufacture: 1991 Plate size: 2200 x 1100 mm Equipped with Busse aluminum energy-saving plates (The spots visible in the photos are purely optical; the plates are in perfect condition) Total pressing force: 80 t Press cylinders: 4 x 90 mm Opening stroke: 400 mm Weight approx. 3,100 kg Overall length: 2,610 mm Overall width: 1,240 mm Overall height: 1,890 mm Motor power connection: 1.1 kW Iedpfx Asx Enp Robnetd Connection per electric heating plate: approx. 6.6 kW Weight approx. 3.1 t Availability: short notice Location: Röllbach

Condition: ready for operation (used), Veneer press with 30 floors Size of press plates 3000 x 1650 mm Hydraulically operated. Hot water for heating Isdpeyh A E Usfx Abnetd In-feed system and out-feed system included

Condition: used, Veneer Press OTT JU 90 -used- Itodowmmraepfx Abnjd ----- Technical Specifications ----- Pressing area: 2,550 x 1,350 mm, Power per heating plate: 9100 W, Number of cylinders: 4

Condition: like new (used), shelf length: 3500 mm shelf width: 1300 mm shelves made of stainless steel pistons and seals replaced number of pistons: 10 Itjdpeyfr T Eefx Abnsd piston diameter: 85 mm water heating weight: 6100 kg

Condition: used, Year of construction: 2015, total width: 1,800 mm, total length: 3,600 mm, total height: 2,100 mm, Empty weight: 3.750 kg Veneer press Steton P 70 E Itodpfswnh R Tjx Abned Year of construction 2015 Press size 3100x1300mm Opening 450mm Number of cylinders 6pcs. Cylinder diameter 70mm Electric heating 19.6kW, max. 120 degrees Max. pressing pressure 70 tons Pressure 2 KG/cm² Dimensions. 3600 x 1730 x 2060mm, weight 3750kg - Year: 2015 - Documentation available: Yes - CE certificate present: No - Transport dimensions: 3600mm x 1800mm x 2100mm (l x w x h) - Transport weight [kg]: 3750kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Veneer Press BÜRKLE U 80 - used - Emergency stop cable, Control via push button ----- Technical Data ----- Pressing area: 2,550 x 1,300 mm Ijdpfxexfg A Ho Abnstd Power per heating plate: 9,100 W Max. opening height: 4,000 mm Number of cylinders: 6 pcs. Dimensions (LxWxH): 3,150 x 1,450 x 1,785 mm Weight: 3,700 kg

Condition: used, total width: 1,400 mm, total length: 2,900 mm, total height: 2,000 mm, Empty weight: 1.300 kg Cold Veneer Press Italpresse Jolly/F Press surface 2500x1200mm Press opening 510mm 4 cylinders Total dimensions 2900x1400x2000mm (LxWxH), weight 1300kg - Documentation available: No - CE certificate present: No - Serial number: 1426 Isdpfownhg Ijx Abnetd - Max. workpiece length [mm]: 2500 - Max. workpiece width [mm]: 1200 - Number of cylinders [pcs]: 4 - Transport dimensions: 2900mm x 1400mm x 2000mm (l x w x h) - Transport weight [kg]: 1300kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: like new (used), shelf length: 3000 mm shelf width: 1300 mm number of pistons: 6 year of manufacture: 2004 water heating Ijdsx Thniepfx Abnotd weight: 3900 kg 400 V gap clearance: 400 mm CE marking

Condition: used, Used machine Features and technical data: - Press area: 2,200 × 1,100 mm - Number of cylinders: 4 - Max. pressing force: 60 tons Itodpswpm I Hefx Abnjd - Version: single deck - Heating plates: gold anodized ELKOM energy-saving plates - Opening width: 350 mm - Connected load: 14 kW - Piston diameter: 80 mm - Operating pressure: 365 atü Dimensions: 2,600 m × 1,250 m × 1,750 mm Availability: short-term Location: Röllbach

Condition: used, Year of construction: 2024, Version: Joos A.B.S. safety system to protect the heating plates in case of incorrect loading or parts left behind. The press is open on all sides, features a robust all-steel construction, and is protected against overload. The maintenance-free hydraulic system is integrated into the oil tank. Step-less pressure adjustment is performed according to a clear pressure diagram. Once the set pressure is reached, the system switches off automatically. Constant pressure is maintained throughout the entire pressing process. The rack-and-pinion guide ensures stable parallel travel of the pressing plates. The press is optimally suited for laminating flat surfaces using adhesives, provided the corresponding technical requirements are met. Technical Data: - Max. pressing force: 1200 kN - Adjustment range: 10 – 100% - Total pressing area: 3100 x 1350 mm - Specific pressure at full capacity: 3.0 daN/cm² (kg/cm²) - 6 cylinders, 80 mm diameter, 400 mm stroke - Hydraulic working pressure: 398 bar - Press room height: 400 mm - Color: Light grey, RAL 7035 Iodpfx Absxplbconetd Hydraulics: The following components are integrated into the press's hydraulic system: - 1 oil-hydraulic two-stage high-pressure pump - 1 three-phase motor, 2.2 kW - 1 automatic pressure switch - 1 change-over valve - 1 pressure diagram The hydraulic unit is built into the lower section of the press. Controls: Automatic pressure control via electronic controller with setpoint and actual value display. Operation is performed via a clear control panel. The control cabinet is fully integrated lengthwise in the upper section of the press. Operating voltage: 400 V, 50 Hz, 3-phase. ELECTRIC HEATING PLATE 3100 x 1350, GOLD ANODIZED One lower and one upper electric heating plate, 3100 x 1350 mm. The surfaces are anodized, making them extremely hard, scratch- and abrasion-resistant. High-temperature insulation between the heating plate and the press table. Maximum operating temperature: 120°C. (1 section / 2 heating plates.) TEMPERATURE CONTROL Temperature control R 1.1; each heating plate features an electronic temperature controller and a safety temperature limiter around the edge of the heating plate. SWIVEL PANEL OPERATION Operation is via an ergonomic swivel panel control. Location: Rieth

Condition: ready for operation (used), Year of construction: 1992, operating hours: 5,000 h, functionality: fully functional, total width: 1,400 mm, total length: 3,200 mm, total height: 2,900 mm, overall weight: 23,000 kg, temperature: 210 °C, pressing force: 200 t, operating temperature: 200 °C, workpiece height (max.): 150 mm, table width: 1,400 mm, table length: 3,200 mm, You can view the machine under power until mid-July 2025. For sale is an almost as-new veneer press with infeed/outfeed table from the German manufacturer Wemhöner, model KTV1E (serial number 1645, year of construction 1992). The machine is in excellent condition and has only low usage hours. Machine type: Throughfeed press Manufacturer: Wemhöner Type: KTV1E Serial number: 1645 Selecta Year of construction: 1992 Location: 57223 Kreuztal Available: immediately Isdpfxjwnpcds Abnotd Technical data Press length: 3200 mm Press width: 1400 mm Heating plates: yes Heating medium: oil Loading: yes Infeed belt: 3200 x 1900 mm Outfeed belt: 3200 x 1900 mm Press area: 3200 x 1450 mm Passage height: approx. 100 mm Feed temperature: 200° Thermal output: 45 kW Heating medium: oil Press force: 200 tons The press machine is in top condition, has had very low usage, and has been used exclusively for development projects for the past 15 years. I will gladly send you further information and pictures on request. The machine is immediately available and can be viewed by arrangement at any time. Pick-up only! Function video on request. If interested, I am happy to provide further information or arrange a viewing!

Condition: like new (used), Year of construction: 2004, working width 2700 mm working height 100 mm Iedpoxcn Dtofx Abnjtd hydraulic cutting gauge adjustment to size cast body power supply 400V 3000 kg Year of manufacture 2004
