Cylindrical Grinding Machine - Universal

FORTUNA F 25 S 1600 A 45 CNC

Condition: used, grinding diameter 350 mm grinding length 1000 mm Godpfx Ahouwv H To Sebw centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0-9,99 mm/Ø 0-9,99 mm/Ø ±8 ° longitudinal feed of the table 1100 mm table speeds 0,02-6 m/min 130 kg cross travel max. 270 mm 130 inkl. Spannung kg 80 mm tailstock quill taper MT 3 quill travel 30 mm total power requirement 6,5 kW weight of the machine ca. 3,05 t dimensions of the machine ca. 4 x 2 m Overhauled according to Kellenberger guidelines including new, modern and future-proof control system. Photo of already delivered machine in centre distance 1000mm. -Operation via the touch panel is extremely simple. -The symbols on the control panel are practically identical to the original original control system, so there is no need for familiarisation. -Diagnostic function with display of PLC messages and digital I/O -Dressing function can be extended or changed at the customer's request. -Orientated spindle stop of the workpiece spindle possible on request. -New maximum infeed of 40 mm can be extended on request. -Digital display in 2 axes. Resolution x-axis 0.5my Options: Gjdsuxfupspfx Ah Ssbw -Encoder with digital display in the workpiece headstock -Rotary encoder with digital display in the grinding headstock (no height adjustment with spindle possible) with spindle possible) -New stable internal grinding device diameter 80mm or 100mm with height adjustment. -Increase of the centre height to max. 225mm -Speed control for the grinding spindle Included: -Operating tool -Clamping tube for chuck Further accessories on request. The x-axis of the machine has an electronically controlled infeed system with stepper motor drive. Hydraulic longitudinal and rapid traverse table movement. Versatile application in production for external cylindrical and internal internal grinding or for external, face and internal grinding in one clamping clamping of individual parts. Possible options: -Semi-automatic dressing cycles for external and internal grinding -automatic dressing compensation. -Measuring control

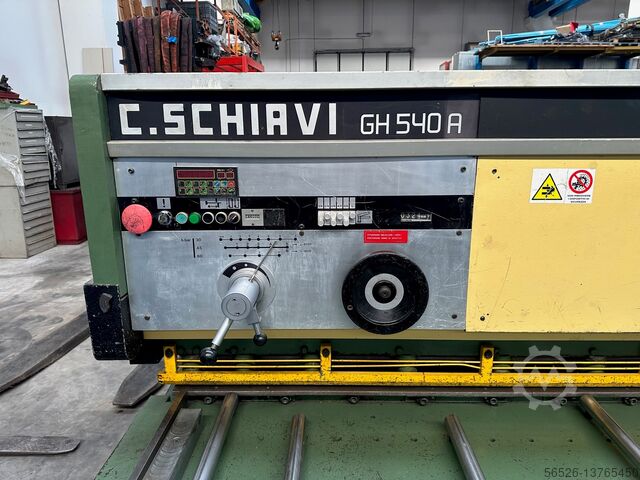

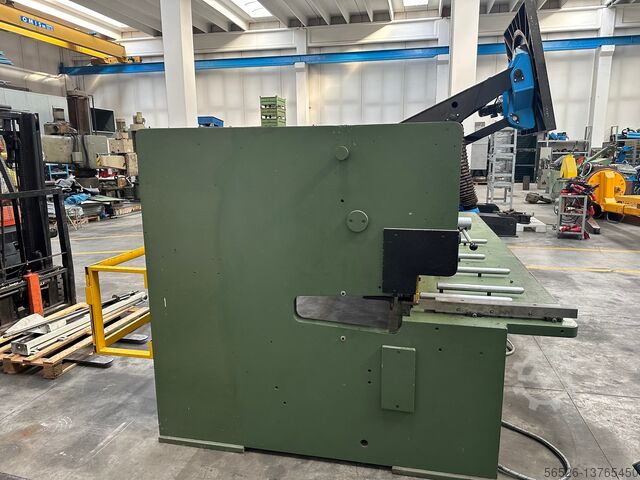

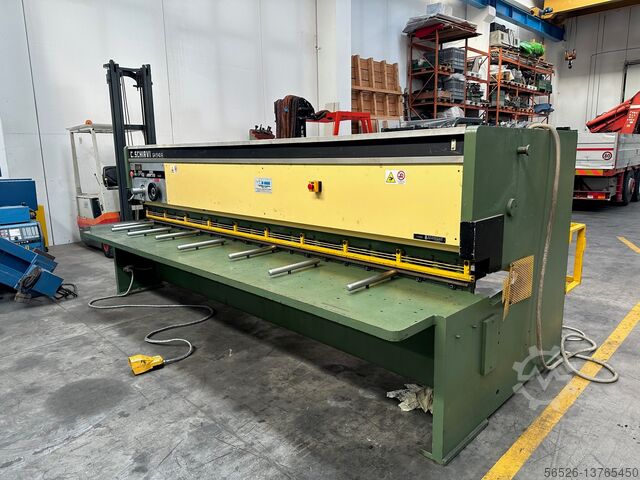

Condition: good (used), Used hydraulic shear brand SCHIAVI, mod. GH540A Useful cutting length mm 4040 Cutting thickness 5 mm Motorized rear register stroke mm 1000 Lateral recess 500 mm Min strokes 20-55 Cutting angle variation 0° 29" - 1° 14" Manual blade gap adjustment Three-phase current 380V Main motor power Kw 9 Overall dimensions mm L 4570 mm x l 2310 mm x h 1705 mm Gsdjqfc Imjpfx Ah Sjbw Approximate weight Kg 11000 Good condition viewable

Condition: used, Year of construction: 2017, grinding length 1500 mm centre height 180 mm weight of the machine ca. 3,9 t dimensions of the machine ca. L: 4900 x 1650x 1800 m Gbedewm Rqgspfx Ah Sow

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 510-1986, CYLINDRICAL GRINDER JOTES SCHAUDT A440X1500 Specifications Maximum longitudinal travel: 1500 mm Grinding diameter: 298 mm External grinding: Yes Internal grinding: Yes Dimensions (L x W x H): 5400 × 2400 × 1600 mm Weight: 4800 kg Operating hours: — Power-on hours: — Condition: Rebuilt Compliant with local standards: — Status: Under power Technical features Gbodpfx Aew T Ti Dsh Sow - Grinding length [mm]: 1500 - Grinding diameter [mm]: 300 - Manual table displacement [mm/rev]: 10 - Table speed range [mm/s]: 0.01–5 - Smallest table stroke [mm]: 3 - Wheelhead swivel [°]: ±90 - Centre sleeve taper [Morse No.]: 4 - Grinding wheel dimensions [mm]: 500 x 63 x 203 - Spindle speed [rpm]: 32–500 - Grinding wheel drive motor power [kW]: 5.5 - Workpiece drive motor power [kW]: 0.75 - Hydraulic pump motor power [kW]: 1.5 - Grinding attachment drive motor power [kW]: 0.75 - Machine dimensions [mm]: L=5400 / W=2400 / H=1580 / Machine weight [kg]: 4800

Condition: new, The RSM 1000 C is a precision cylindrical grinder in the Conventional Cylindrical Grinders category, designed by KNUTH for processing long and heavy workpieces. This exceptional machine features a robust design with a large, heavy machine bed that accommodates workpieces up to 2000 mm in length and 320 mm in diameter, ensuring maximum accuracy and supporting high weights. Equipped with wide, precision-ground guideways, this grinder delivers outstanding surface quality thanks to its hydrostatic bearings, while the powerful grinding spindle motor is optimally designed for continuous operation. The RSM 1000 C includes an internal grinding device and a swiveling headstock which allows for conical grinding of short parts, enhancing its versatility for both individual and small series production. Its extensive standard equipment package, such as a 3-axis position indicator and a coolant system, adds to its appeal. For any needs in the Conventional Cylindrical Grinders category, request a quote today to explore how the RSM 1000 C can enhance your grinding operations. Gbjdpeuy Ia Rsfx Ah Sjw

Year of construction: 1997, condition: ready for operation (used), Main Drive Number of axis 4 Additional Equipment Belt filter system This 4-axis KELLENBERGER Kel-Varia UR 175/1000 was manufactured in 1997. It features an internal grinding device with a tiltable B-axis and a C-axis for out-of-round grinding, complemented by a belt filter system. Consider the opportunity to buy this KELLENBERGER Kel-Varia UR 175/1000 cylindrical grinding machine. Contact us for more information. Gjdpjw Spr Eefx Ah Ssbw Application Types Grinding

Condition: used, Year of construction: 2017, grinding length 1000 mm centre height 180 mm length 3600 mm Gbodpfx Ahjwp Tumo Sjw width 1650 mm height 1800 mm weight of the machine ca. 3,7 t
