Diaform device generally overhauled

DIAFORM f. JUNG HF 50 / JF 520

Condition: new, Optimum OPTImill MZ 2S tool milling machine Dwjdsfnh Sgopfx Adujf With digital 3-axis position display DP 700 from NEWALL. With inverter drive of the feed axes controllable from the control panel. Versatile application range Excellent damping characteristics and stability of the machine frame All guideways hardened and precision ground and adjustable by means of taper bars Automatic feed in X, Y and Z axes, infinitely adjustable via an electronic joystick on the control panel Electric feed limit stop Ball screw in all axes Central and clearly arranged control panel with integrated digital position and speed display Massive cross table, large dimensioned and precisely surface machined with 5 T-slots Coolant device Large dimensioned handwheels with scale Machine lamp Quiet running Manual central lubrication TECHNICAL DATA Dimensions and weights Length (product) approx. 1239mm width/depth (product) approx. 1168mm Height (product) approx. 1900mm weight (net) approx. 1400kg Drilling-milling head milling head swivel range ± 90 Drilling-milling capacity cutter head size max. 100mm drilling capacity steel (S235JR) 30mm Continuous drilling capacity steel (S235JR) 26mm End mill size max. 25mm Electrical data Power drive motor 2,2kW Supply voltage 400V Mains frequency 50Hz Horizontal milling table Horizontal milling table length 750mm Horizontal milling table width 320mm distance vertical spindle - horizontal milling table min. 75mm distance vertical spindle - horizontal milling table max. 410mm Horizontal milling table T-slots size 14mm Horizontal milling table T-slots number 5 Horizontal milling table T-slots distance 63mm Distance horizontal spindle - horizontal milling table min. 70mm Distance horizontal spindle - horizontal milling table max. 400mm Horizontal milling table load max. 285kg Milling table vertical Vertical milling table length 830mm Vertical milling table width 250mm Vertical milling table T-slots size 14mm Vertical milling table T-slots number 2 Vertical milling table T-slots distance 63mm Coolant system Coolant pump(s) Drive power 95W Travel Travel X-axis manual 400mm Travel Y-axis manual 200mm travel Z-axis manual 335mm Travel X-axis automatic approx. 310mm Travel Y-axis automaticapprox. 160mm Travel Z-axis automatic 295mm Vertical spindle Vertical spindle throat 100mm Vertical spindle Spindle mounting ISO 40 DIN 2080 Vertical spindle speed range 50 - 1890min¯¹ Vertical spindle number of speed ranges 12steps Vertical spindle tightening rod M 16 Vertical spindle quill stroke 120mm Vertical spindle load max. 1100Nm Feed speed Feed speed X-axis 10 - 600mm/min feed speed Y-axis 10 - 600mm/min feed speed Z-axis 10 - 600mm/min Electrical connection Total connected load 4kW Motor(s) rapid traverse X-axis power drive motor 0,375kW rapid traverse Y-axis power drive motor 0,375kW Rapid traverse Z-axis power drive motor 0.375kW SCOPE OF SUPPLY: Adapter ISO 40/MK3 adapter MK1 and MK 2 Milling spindle horizontal milling Ø 27 mm Operating tool

Condition: new, The RSM 500 A, a powerful Conventional Cylindrical Grinder from KNUTH, is built to deliver exceptional grinding performance with its robust design and excellent rigidity. Featuring a premium cast-iron machine frame, this grinder ensures optimal conditions for achieving superior grinding results. The machine is equipped with finely adjustable hydraulic feeds that operate smoothly in the longitudinal direction, and a swiveling table allows for precise taper grinding. With a maximum grinding diameter of 200 mm and a grinding length of 500 mm, it caters to a variety of applications. The headstock can rotate 180 degrees for internal grinding, while the hydraulic tailstock, with foot switch operation, enhances efficiency during setup and workpiece exchanges. Standard equipment includes a 2-axis position indicator, internal grinding equipment, and a comprehensive accessory package. Invest in reliability and precision for your grinding needs—request a quote for the RSM 500 A today, a leading choice in the Conventional Cylindrical Grinder category within the Grinding Machines sector. Dwjdpfx Adoncdx Neusf

Year of construction: 1984, condition: used, gr. grinding Ø: 40 mm small grinding Ø: 5 mm weight: 0,9 t 2 grinding wheels with flange Dedpfx Ajcq Rv Ujduswf 8 collets 1 coolant tank mechanical feed with fixed stop The cardan shaft for the workpiece drive is worn out

Condition: new, The Meisterturn 400 V is a state-of-the-art conventional horizontal lathe designed for precision machining in the realm of engine lathes. This machine ensures high accuracy in single parts and small batch production, making it ideal for tool and mold construction, as well as training applications. Equipped with features like an infinitely variable spindle speed reaching up to 2,500 rpm and an integrated constant cutting speed function, the Meisterturn provides optimal performance during face turning, comparable to CNC capabilities. Its robust design includes a heavy cast-iron bed with dual v-guides, a high-capacity spindle for efficient clamping, and safety features such as electromagnetic brakes and an enclosed oil bath for gears. With an ergonomic machine enclosure, user-friendly control panel, and an extensive equipment package including a 3-jaw chuck and cooling system, the Meisterturn is perfectly tailored for demanding production environments. You can request a quote for this exceptional engine lathe today. Dedpfx Adeqzhhlouowf

Condition: new, Year of construction: 2025, Through our many years of experience in service, we have decided to develop and produce our own milling machines. The FPS 500M is a conventional milling machine perfect for training and production. Through the Heidenhain Positip 8016 active digital display positioning and for example the creation and approach of a bolt hole circle is possible. Control Heidenhain Positip 8016 Active - Digital display Speed 0 - 3000 rpm geometrically stepped direct gear with 16 gear steps for maximum torque / milling power Feed rate 0 to 500 mm/min, infinitely variable rapid traverse 1,5 m/min quill extendable quill, vertical 80 mm SK40 optional: horizontal work spindle or horizontal quill (approx. 100mm extendable) Pulling system: hydraulic tightening system - DIN 69872 optional: DIN 2080 Axes X/Y/Z 500/400/400 mm Table Rigid angular table 800x480mm Equipment - Vertical and horizontal spindle - Milling head manually tiltable +/- 90 °. Djdsh Su Ipspfx Adujwf - Travelling chip tray - Machine light - Central lubrication - Z-axis bellows Options - universal table - rotary table - Shaper head - dividing head - counterholder - etc. Further technical data can be found in the attached data sheet.

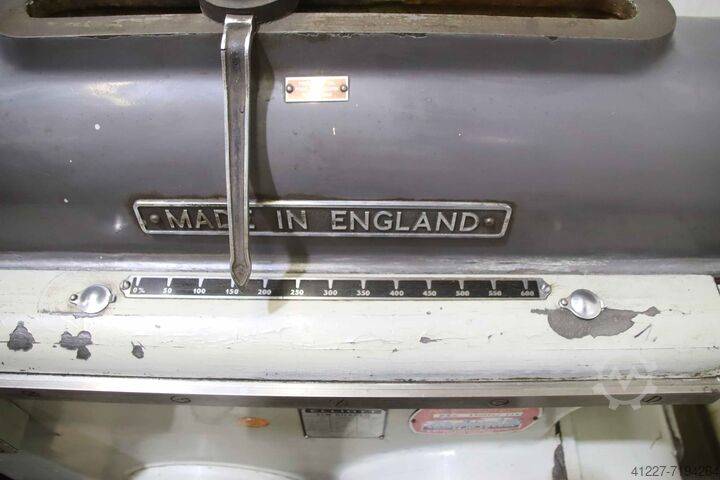

Condition: good (used), Year of construction: 1956, Slotting machine, slotting machine, quick planer, keyseating machine, slotting machine, slotting machine, slotting tool, broaching machine, slotting machine, horizontal slotting machine, planing machine, schepping -Manufacturer: Elliott, horizontal shaping machine type 24M SHAPER Dwedpfxeh Nvy Eo Aduef -Stroke: 610mm -Stroke rate: 8 - 74 1/min -Clamping table: 580 x 330 mm -Travel: X/Y/Z 375/755/292 mm -T-Slot: 20mm -Drive: 3.7 kW -Dimensions: 2080/1120/H1550 mm -Weight: 1520 kg

Condition: used, Year of construction: 1985, grinding length 600 mm grinding width 200 mm Dwodpewd Tx Usfx Aduof total power requirement 7,5 kW weight of the machine ca. 2,3 t

Condition: new, Year of construction: 2025, machine/vehicle number: 2103 XXXXXX, The FPS 300M, heiress of the DECKEL FP1. Through our many years of experience in service, we decided to develop and produce our own milling machines. The FPS 300M is a conventional milling machine perfect for training and production. Control 3-axis - FPS Active - digital display Speed 40 - 2000 rpm geometrically stepped direct gearbox with 16 gear steps for maximum torque / milling power Feed rate 5 to 500 mm/min, infinitely variable rapid traverse 1,5 m/min quill Extendable quill, vertical 60 mm SK40 with M16 tightening thread optional: with DECKEL - saw thread S20 x 2 Axes X/Y/Z 300/160/340 mm Table Rigid angular table 600x210mm Dwedpeh I Nqwsfx Aduef Equipment - Vertical and horizontal spindle - Milling head manually tiltable +/- 90 °. Options - Z-axis bellows - chip tray - machine light - central lubrication - universal table - rotary table - Shaper head - dividing head - counterholder - etc.

Condition: as good as new (ex-display), Year of construction: 2025, Offered is a conventional universal cylindrical grinding machine EMAG Weiss Eco 200. The super compact machine is targeted to users who do not require a CNC control unit, but still set the highest requirements for machining quality. Djdpfxetmqcwe Aduowf The machine is easy to operate and access, which allows for fast machine tooling. TECHNICAL DATA Workpiece diameter: max. 200 mm Workpiece lenght: max. 400 mm Center height: 100 mm Workpiece weight: 30 kg Workpiece headstock - socket: MK4 Tailstock - socket: MK3 Grinding wheel diameter: max. max. 350 mm Price, delivery time and equipment of the machine according to agreement.

Year of construction: 2021, condition: new, Retrofit kit 2-axis digital display consisting of: FAGOR digital display with scales in Y- and Z-axis. Suitable scale holders f. HF50 Bracket for mounting the display behind the machine (see picture) Dodpfx Adjhcn Efouewf
