Workshop press 160 tons

AYEL-TECH WP-HD 160

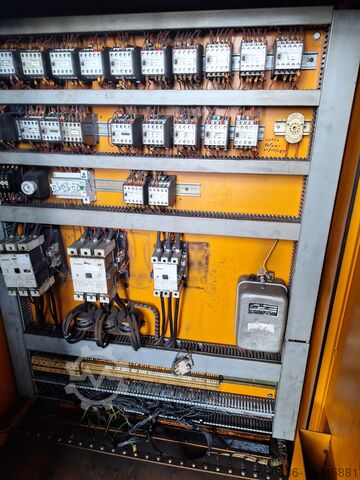

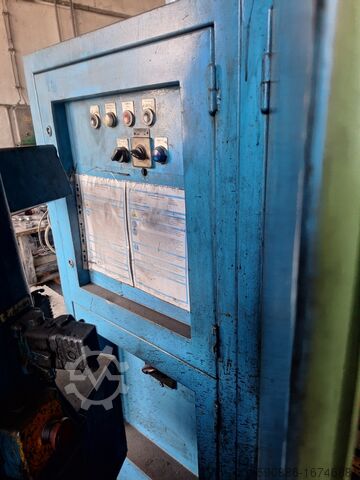

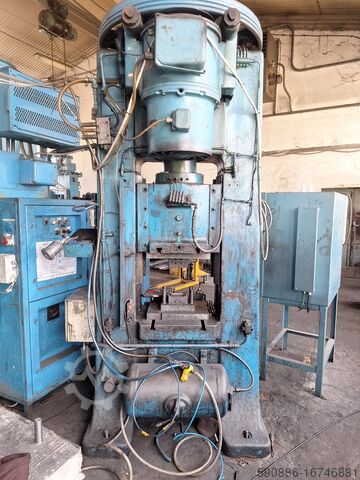

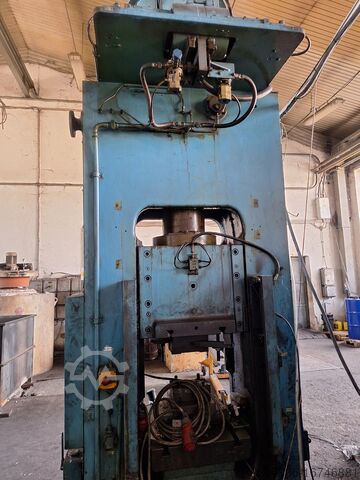

Condition: used, Year of construction: 1978, functionality: fully functional, machine/vehicle number: 150 359 - 11683, For sale are the PS160 (2 units) and the PS140 (1 unit). One is 250 metric tons, the other is 140 metric tons. The PS160 is one of the complete machines and is in operation; the PS160 does not have the control cabinet. The machines are for sale as a single unit and individually. Inquire by phone or email! Fgedpet Ucpbefx Ac Hoi

Condition: new, Hydraulic workshop press LFSS Typ. DPM 1070/100 Technical specifications Pressure 100 t stroke 300 mm table area 1070 x 260 mm column passage between the guides 1070 mm infeed speed 8,0 mm/sec working speed 5,0 mm/sec retraction speed 10,0 mm/sec Motor power 5,5 kW Machine weight approx. 1400 kg. Space requirement approx. 2110 x 1000 x 2290 mm equipment: Fgjdpfxogipilj Ac Hoi hydraulic workshop press table height adjustment V-block tool insert Pressure gauge

Condition: used, thickness of jaw 160 mm 53 mm clamping width 305 mm clamping capacity 5,7 t weight 60 kg Fgedpfxsp S Dcde Ac Hoi dimensions of the machine ca. 700 x 160 x 145 mm

Condition: used, Year of construction: 1978, pressure 160 t no. of strokes 40 - 120 Hub/min sheet width mm total power requirement 40 kW Pressing capacity 160 ton Table clamping area 1,100 x 1,280 mm Ram clamping area 850 x 890 mm Distance between guides 1,120 mm Distance between columns (below guide ways) 1,350 mm Fsdpfxst Hwz No Ac Hsgi Distance between Table and ram in upper position approx. 400 mm No. of strokes 40 - 120 /min Adjustment of stoke 67 / 115 / 160 mm Ram adjustment, motor driven 125 mm Ejector travel 50 mm Total electrical load, approx. 40 kW - 500 V - 50 Hz Weight, approx. 24,000 kg Accessories / Special Features * WEINGARTEN Sheet Metal Uncoiler with overhead loop control (space saving because it does not need a loop-pit). Strip width 375 mm. The loop control guides the strip-material from the uncoiler to the machine thru a straightening device with automatic supervision. * 8-track slide bearing guide. * Automatic oil-circulation lubrication. * Hydraulic overload protection in conjunction with the ORTLINGHAUS Clutch Brake * Safety doors. * Motor-driven ram adjustment 125 mm. * Required space: 4 x 2.2 m. Height max. 4.6 m (only press)
