Corner crimping machine

Atla Coop Itaca

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 9914346, 3-axis CNC + 1-axis pneumatically controlled floor type vertical machining center 3 axes (X, Y, Z) controlled by CNC + 1 axis controlled pneumatically. Suitable for processing aluminum and PVC profiles. Hnjdowgm Sgopfx Ah Uew The workpieces are clamped by 4 pneumatic clamps, moved on a tilting beam; this beam has a rotation range of ± 90 ° with pneumatic control. Working cross-section: 200 x 170 mm (YxZ). View specifications X-axis stroke mm 3160 X-axis positioning speed m/min 60 Y-axis stroke mm 360 Y-axis positioning speed m/min 30 Z-axis stroke mm 345 Z-axis positioning speed m/min 30 A-axis stroke ° 45 - 90 - 45 Electric spindle power kW 3.8 Tool holder taper ISO30 Maximum rotation speed rpm 18000 Cooling system Air Weight kg 1800

Year of construction: 2008, condition: ready for operation (used), Main Drive Spindle speed range 2410 Number of axis 2 Additional Equipment Integral protective hood around cutting area Mobile head roller table (3 m) Hnedpewkxcxjfx Ah Uew This SCHÜCO PDG e-Cut 600 was manufactured in 2008. It features tungsten carbide sawblades Ø600 mm, three-phase motors 4 kW at 2800 rpm, and blade rotation speed of 2410 rpm. The machine includes electronic control for head tilting, mobile head with automatic positioning, and is set up for chips and fumes extraction. Consider the opportunity to buy this SCHÜCO PDG e-Cut 600 Optimizing Cross-Cut Saw. Contact us for further details regarding this machine. Application Types Sawing (Wood)

Year of construction: 2007, condition: used, functionality: fully functional, Equipment: CE marking, For Sale: Elumatec SBZ 122/10-30 CNC Profile Machining Centre (2007) The Elumatec SBZ 122/10-30 is a reliable and versatile CNC machining centre designed for processing aluminium, PVC, and thin-walled steel profiles. This 2007 model offers precise 3-axis CNC control combined with a rotating angle head, allowing machining on five sides of the profile without repositioning. With its robust construction, proven Elumatec technology, and automatic tool changer, the SBZ 122/10-30 remains a valuable machine for window, door, façade, and general profile machining applications. 🔧 Technical Specifications Year of manufacture: 2007 Axes: 3 CNC-controlled (X, Y, Z) Working range: X-axis: approx. 3,850 mm Y-axis: approx. 350 mm Z-axis: approx. 280 mm Max profile length: Hnjdpfx Aew Syy Toh Uew Without end machining: approx. 3,750 mm With end machining: approx. 3,650 mm Spindle power: ~6 kW (S6) Spindle speed: up to 21,000 rpm Tool system: HSK-F63 Tool changer: 4 positions + angle head (5 tools total) Accuracy: ±0.1 mm 📐 Dimensions & Weight Machine dimensions (L × W × H): approx. 4,600 × 3,230 × 2,420 mm Weight: approx. 1,690 kg 💻 Control PC-based CNC control (Windows environment) Programming via Elusoft Automatic clamping system for secure and flexible profile positioning ✅ Highlights: Five-sided machining without manual repositioning Automatic tool change for increased efficiency Suitable for aluminium, PVC, and light steel applications Trusted Elumatec design with long-lasting performance

Year of construction: 1990, condition: good (used), machine/vehicle number: 8988, Offer 22523 Technical data: - Pressure capacity at 10 bar 35 KN - ram stroke 12 mm Hnjdpfxsk Rugve Ah Uew - throat 95 mm - Installation height approx. 134 mm - table size approx. 230 x 190 mm - Air consumption per stroke 8,0 l - Air inlet 6 - 10 bar - Space requirement approx. W 520 x H 1450 x D 600 mm - weight approx. 100 kg - with: - foot switch - pressure gauge + pressure regulator - 4 x punching tool

Year of construction: 2004, condition: good (used), functionality: fully functional, We have no more use from the machine and therefore its for sale. It is fully operational. The machine is in our ownership from 2007, regularly maintained and can be seen in our production hall in Croatia. Dismantile and load on truck are in price. Some other information: 4-axis profile machining centre Designed for flexible and efficient machining of aluminium Hodpfx Aewwtxnjh Usnw Autonomous clamp positioning Max. working lenght: 7.200 mm 8 pneumatic clamps Tool magazine with 8 tools capacity Additional tehnical specifications available on request

Year of construction: 2008, condition: excellent (used), ELUMATEC SLK 118 3-Axis CNC Profile Machining Center.Template-free Profile Copy Router with (3) Controlled axii; designed for machining aluminum and thin-walled steel profiles and extrusions, aluminum, PVC, light alloyed steel.It is particularly suitable for companies who are automating their door production processes; designed for the door and window sector; machining from above, rotate workpiece for machining other side.Specifications:Traverse X-axis 2450 mm/ V max. 36 m/min. (with double linear guides)Traverse Y-axis 350 mm/ V max. 15 m/min.Traverse Z-axis 280 mm/ V max. 15 m/min.Spindle speed 18,000 rpm6.5 HP (4.5 kw) Motor-driven spindle,Routing spindle cooling device(4) Tool holders for tools.Dimensions: 3100 x 1850 x 2250 mm (122" x 73" x 89")Weight: 1400 Kg (3087 Lbs.)Features: PC Touch Screen Control w/Windows Software3-axis Control Light Barrier for operator protection;(4) Horizontal Material ClampsPulsed Coolant SystemCollet holderQuick-action chuckNOTE: The machine is in excellent condition an Hnjdpexc Udgofx Ah Ujw

Year of construction: 2009, condition: ready for operation (used), Main Drive Number of axis 2 This SCHÜCO ISOMAT 5 was manufactured in 2009. It features a robust machine construction, 10 lateral guide rollers, and a quick release mechanism on all guide rollers. Capable of processing profiles with depths up to 250 mm and heights up to 400 mm, it includes an ergonomically designed control panel and a safety cage for optimal operator safety. Reach out for more information. Application Types Hjdpewvb A Sefx Ah Uonw Other Automation Equipment

Condition: good (used), Year of construction: 1995, machine/vehicle number: 6194, Offer 22553 Technical Data: - Pressing force at 10 bar 35 KN - Ram stroke 12 mm - Throat depth 95 mm - Installation height approx. 134 mm - Table size approx. 230 x 190 mm - Air consumption per stroke 8.0 l - Air input 6 - 10 bar - Required space approx. W 520 x H 1250 x D 600 mm - Weight approx. 100 kg - with: - Foot pedal Hnedpfx Aowp Hapeh Uow - Pressure gauge + regulator - 2 x punching tools

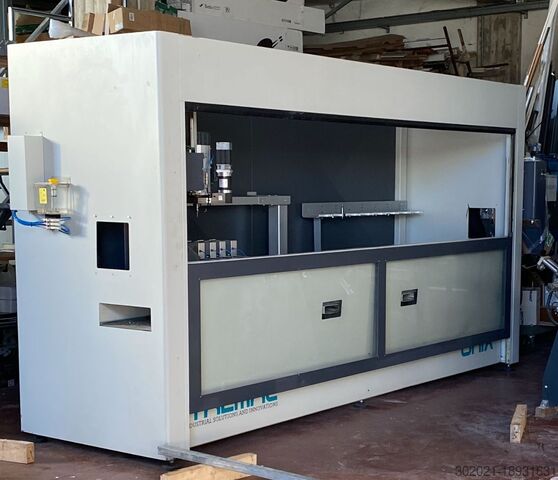

Condition: like new (used), Year of construction: 2016, The ONIX 3300 is a CNC machining centre with 3 controlled axes + 1 additional axis, specifically designed for drilling and milling operations on aluminium, PVC, light alloy, and steel profiles with a maximum thickness of up to 3 mm. The machine offers a working capacity of 3300 mm and is equipped with an 8-position automatic tool magazine, with the possibility of housing an angular head for machining on three sides of the profile, as well as a saw blade for end milling operations. The fully enclosed structure contains the electrospindle, which provides a power of 4 kW and a rotation speed of up to 18,000 rpm, ensuring high performance and excellent machining quality. The swivelling control console, positioned on the right-hand side of the machine, allows for easy and intuitive management of programs and controls during every phase of the production cycle. The ONIX 3300 is equipped with CNC control for the axes and an industrial PC for program management, complete with a 17” LCD monitor, 80 GB hard disk, and 2 USB ports. The programming language is ISO standard, with an operator interface based on the Windows XP platform, and dedicated programming software ITALSOFT – FLY CAM CAD-CAM 3D, designed to optimize machining operations and production cycles. Technical Features • Dimensions (LxPxH): 4600x1675x2260 mm - 182x66x89 in • Dimensions for transport (LxPxH): 4500x1250x2300 mm - 177.5x50x91 in • Weight: 1500 kg - 3306 lb • Nominal power: 6 kW • Absorbed power: 16 A • Voltage: 400 V three phase • Frequency: 50/60 Hz • Air pressure: 7 bar • Accuracy: 0.1 mm - 0.004 in • Electrospindle power: S1 4 kW - 0/18000 rpm • Maximum torque: 3.7 Nm at 12000 rpm • Tool holder adapter: ISO 30 • Spindle cooling system: Electric fan • Operation area: 1 • Machinable sides no.: 1 (3 sides with Angle head) • Standard clamps no.: 4 (manual) • Tool magazine: 8 tool places (on board the basement) • Clamping force: 130 kg per clamp • Zero reference point no.: 1 (manual) • Spray nozzles for lubrication: 1 on the electrospindle • Tank capacity: 2.2 litres • Slides greasing: Manual • Operating temperature range: From 10 to 35 °C • Humidity: 75 % • Standard colors: RAL 7032 / RAL 5018 • Chip conveyor system: Chip conveyor plate • Machine safety: Safety light screen • Operator interface Monitor: 17” LCD • USB port: On the control panel • Software: ITALSOFT CAD-CAM Hnedswb D Stepfx Ah Uow
