Arburg 520C-220-675

ARBURG

Condition: excellent (used), Year of construction: 2009, Clamping force: 320 t Clamping force: 3200 kN Opening force: 130 kN Opening force (boosted): 100 / 800 kN Opening stroke: 700 mm Mould height: 300–700 mm Distance between platens: 1000–1400 mm Platen size: 1040 × 1040 mm Max mould weight (per half): 3600 kg Ejector force: 100 kN Ejector stroke: 250 mm Screw diameter: 50 mm Shot weight: 359 g Distance between tie bars V: 720 mm Redpfxeyya Inj Abwjr Distance between tie bars H: 720 mm Shot volume: 392 cm3 Pump drive power: 45 / 55 / 55 kW Dry cycle time: 3.5–504 s Total installed power: 70.5 / 89 / 96 kW Working hours: 53.212 h Type: Horizontal Drive: Hydraulic

Condition: excellent (used), Year of construction: 1997, Arburg 270 M-350-90 U Closing 35 TO year 1997 Scrow 25 mm tie bar spacing 27x27 Rjdpfjg S I S Ajx Abwor

Condition: used, Year of construction: 2002, Machine is in good condition and can be inspected in operation upon appointment. Availability: 06/2026 Full technical specifications in the attached document Clamping force: 1300 kN Opening force: 35/350 kN Opening stroke: 500 mm Mould installation height (min): 250 mm Distance between platens (max): 750 mm Tie bar spacing: 420 x 420 mm Rodpfxoyx D Nge Abwor Ejector force: 40 kN Ejector stroke: 175 mm Screw stroke: 145 mm Screw diameter: 35 / 40 / 45 mm Injection pressure: 2500 / 2120 / 1670 bar

Condition: used, Year of construction: 2002, Machine is in good condition and can be inspected in operation upon appointment. Availability: 06/2026 Full technical specifications in the attached document. Please note: 5 extra machines are available (ARBURG Allrounder 420C 1000-250) Contact us for more information. Clamping force: 1000 kN Opening force: 35/250 kN Opening stroke: 500 mm Rjdpfeyx D Ayox Abwsr Mould installation height (min): 250 mm Distance between platens (max): 750 mm Ejector force: 40 kN Ejector stroke: 175 mm Injection pressure: 2470 / 1820 / 1390 bar Screw diameter: 30 / 35 / 40 mm

Condition: excellent (used), Year of construction: 1992, Boy 30 T2 Redpfouh U Izsx Abwer Closing 30 tons Year 1992 Scrow 32 Spray weighted 123g

Condition: good (used), Year of construction: 2000, operating hours: 118,400 h, functionality: fully functional, machine/vehicle number: 182854, clamping force: 2,500 kN, overall weight: 14,000 kg, heating capacity: 23.1 kW (31.41 HP), type of input current: three-phase, For sale: Arburg 630 S 2500-130 injection moulding machine. The machine is in good condition and immediately ready for operation. Technical specifications: Year of manufacture: 11/2000 Place of production: Made in Germany Clamping force: 2500 kN Rodpjyx Daxefx Abwor Operating hours: 118,400 h Injection unit: 1300 cm³ shot volume/capacity Total machine weight: 14,000 kg Operating voltage: 400 V (3~ AC) Frequency: 50 Hz Heating capacity: 23.1 kW Pump motor: 45.0 kW Total connected load: 68.1 kW

Condition: good (used), Year of construction: 2007, functionality: fully functional, clamping force: 800 kN, For sale is an Arburg injection moulding machine, model 370 C 800-100. Technical Data: Redpfxsyxqiyo Abwor Year of manufacture: 2007 Injection unit unfortunately not included Clamping force: 800 kN Clearance between tie bars: 370 x 370 mm Max. platen distance: 750 mm Mould installation height: 250 mm Injection unit: 100 Transport and loading can be organised throughout Europe at an additional cost upon request. Prices are subject to VAT. Inspection by appointment possible. Please contact us, our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Do you need a high-quality yet affordable metalworking machine for your production? Or are you looking to sell yours? For further information or contact options, please visit our website.

Condition: excellent (used), Year of construction: 1993, Boy 50 T2 Traction force 50 tons Rodsuiaa Sopfx Abwsr Year 1993 Cutting blade 38 mm Injection weight 138 cm3

Condition: good (used), Year of construction: 1998, clamping force: 500 kN, For sale is an Arburg 320 S 500-150 injection moulding machine. The item is in good condition. Manufacturer: ARBURG Model: ALLROUNDER 320 S Type / Version: 320 S 500 - 150 Machine number (Serial number): 174967 Year of manufacture: 1998 Clamping force: 500 Voltage: 400 V 3∼ Frequency: 50 Hz Operating hours: 2,250 Current (unknown): 0.3 A Rjdpfx Aeyxp Eaebwor Connected load / Power (unknown): 1×15.00 kW Total weight (unknown): 21.3 Transport and loading can be organised throughout Europe upon request and for an additional charge. Prices are exclusive of VAT. Inspection possible by appointment. Please contact us – our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality but affordable metalworking machine for your production? Or would you like to sell yours? For further information or contact options, please visit our website.

Condition: good (used), Year of construction: 2008, operating hours: 60,902 h, functionality: fully functional, machine/vehicle number: 206087, clamping force: 400 kN, screw diameter: 22 mm, displacement volume: 34 cm³, For sale is an Arburg injection moulding machine, type 270 U 400-70. The machine is fully functional and ready for immediate operation. Technical data: Year of manufacture: 08 / 2007 Rodpfsyk Tlasx Abwsr Auto operating hours: 60,902 h Serial number: 206087 Operating voltage: 400 V Control voltage: 230 V (~ 50 Hz) / 24 V Rated current: 82 A / 39 A Clamping force: 400 kN Tie-bar distance: 270 mm x 270 mm Injection unit: size 70 Screw diameter: 22 mm Control system: Selogica Included accessories: Core pull, pneumatic needle shut-off, Selector chute

Year of construction: 1997, condition: ready for operation (used), Clamping force: 400kN, heating output: 5.5kW, connected load: 20.5kW, weight: 4.7t, operational hours counter: 18,287h, an inspection is possible. Rodsrc Hibopfx Abwer

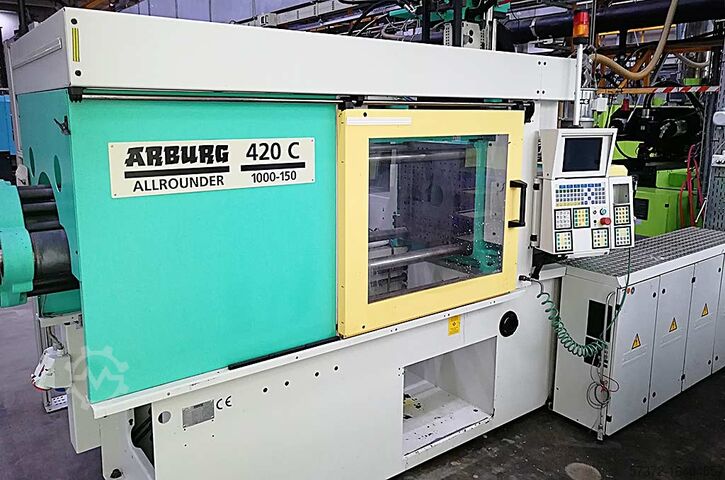

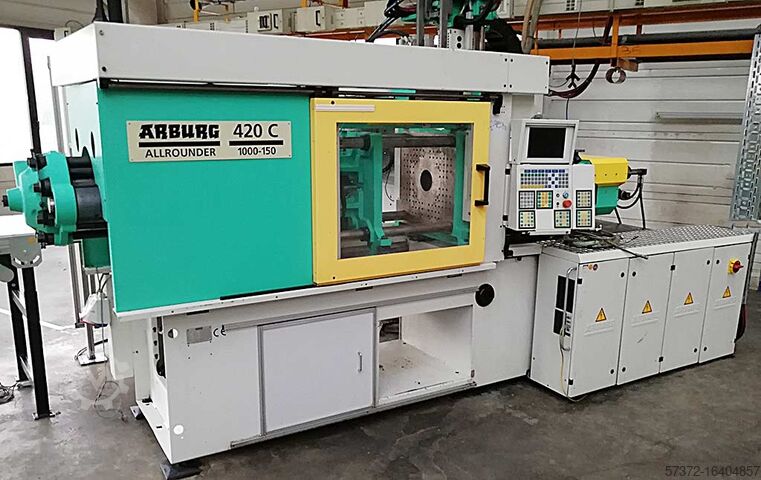

Year of construction: 2003, condition: ready for operation (used), Six Arburg injection molding machines are available. 1) Arburg 320C 600-250, year of manufacture: 2001, operating hours: 83365h, clamping force: 600kN, screw diameter: 30mm, shot weight: 97g, max. injection pressure: 2470bar, shot volume: 106cm³, centering: 125mm/125mm, max. opening stroke: 550mm, platen spacing: 550mm, platen dimensions X/Y: 446mm/446mm, tie bar spacing: 320mm/320mm, core pulls: 2, temperature control units: 6, machine dimensions X/Y: approx. 4000mm/2300mm. Including Multilift handling unit. 2) Arburg 420C 1000-250, year of manufacture: 2001, operating hours: 90769h, clamping force: 1000kN, screw diameter: 30mm, shot weight: 97g, max. injection pressure: 2470bar, shot volume: 106cm³, centering: 125mm/125mm, max. opening stroke: 750mm, platen spacing: 750mm, platen dimensions X/Y: 570mm/570mm, tie bar spacing: 420mm/420mm, core pulls: 2, machine dimensions X/Y: approx. 4700mm/2350mm. Including Multilift handling unit. 4) Arburg 320C 300-100, year of manufacture: 2000, operating hours: 78784h, clamping force: 300kN, screw diameter: 20mm, shot weight: 28g, max. injection pressure: 2500bar, shot volume: 31cm³, centering: 125mm/110mm, max. opening stroke: 350mm, platen spacing: 350mm, platen dimensions X/Y: 446mm/446mm, tie bar spacing: 320mm/320mm, core pulls: 1, temperature control units: 6. 5) Arburg 220C 250-60, year of manufacture: 2001, operating hours: 86595h, clamping force: 250kN, screw diameter: 22mm, shot weight: 27g, max. injection pressure: 2340bar, shot volume: 30cm³, centering: 110mm/110mm, max. opening stroke: 425mm, platen spacing: 425mm, platen dimensions X/Y: 400mm/400mm, tie bar spacing: 221mm/221mm, core pulls: 1, temperature control units: 6. 6) Arburg 270C 300-100, year of manufacture: 2007, operating hours: 59885h, clamping force: 300kN, screw diameter: 20mm, shot weight: 28g, max. injection pressure: 2500bar, shot volume: 31cm³, centering: 110mm/110mm, max. opening stroke: 550mm, platen spacing: 550mm, platen dimensions X/Y: 446mm/446mm, tie bar spacing: 270mm/270mm, core pulls: 2, temperature control units: 6, machine dimensions X/Y: approx. 3750mm/2400mm. Including Multilift handling unit. 7) Arburg 220S 250-60, year of manufacture: 2001, operating hours: 57504h, clamping force: 250kN, screw diameter: 18mm/22mm, shot weight: 18g/27g, max. injection pressure: 2500bar/2340bar, shot volume: 20cm³/30cm³, centering: 110mm/110mm, max. opening stroke: 425mm, platen spacing: 425mm, platen dimensions X/Y: 400mm/400mm, tie bar spacing: 221mm/221mm, core pulls: 1, temperature control units: 6, machine dimensions X/Y: approx. 3300mm/1100mm. Documentation available. An on-site inspection is possible. Rsdpfxotyyn He Abwjr

Condition: good (used), Year of construction: 2000, functionality: fully functional, clamping force: 150 kN, screw diameter: 18 mm, For sale is an Arburg 220 S 150-60 183385. The machine is in good condition and fully operational. Technical specifications: Clamping force: 150 kN Opening stroke: 275 mm Mold installation height: 150 mm Clear tie bar distance: 221 x 221 mm Injection unit: 60 Screw diameter: 18 mm Calculated shot volume: 20 cm³ Shot weight: 18 g/PS Injection pressure: 2,500 bar Injection rate: 32 cm³ Net weight: 1,900 kg Pump hours: 94,830 h Rodpfx Abjyxnmpewsr Automatic operation hours: 85,152 h The offer refers exclusively to the machine without mold/tools; these can be negotiated separately. Transport and loading can be organized across Europe at additional cost upon request. Prices are plus VAT. Inspection is possible by appointment. Contact us; our team will be happy to assist you. Trade-in or exchange is possible! Machinery Purchase / Sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website.

Condition: good (used), Year of construction: 2006, operating hours: 81,912 h, functionality: fully functional, machine/vehicle number: 202150, clamping force: 180 kN, For sale is an Arburg injection molding machine, model 170U 180-70. The machine is fully functional and ready for immediate use. Rsdpfx Abeyxm Thswor Technical data: Year of manufacture: 2006 Operating hours: 81,912 h Cylinder diameter: 18 mm Clamping force: 180 kN Needle shut-off: Pneumatic Internal pressure sensor Transport and loading can be arranged Europe-wide at additional cost upon request. All prices are subject to VAT. Inspection is possible by appointment. Please contact us – our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production needs? Or do you wish to sell your own? For further information or contact options, please visit our website.
