Used Transfer machines for sale (38)

Condition: excellent (used), Year of construction: 2019, total height: 4,532 mm, controller manufacturer: SIEMENS, controller model: 840 D SL, power: 210 kW (285.52 HP), overall weight: 23,000 kg, space requirement length: 13,480 mm, space requirement width: 10,502 mm, CONTROLS .. CNC controls SIEMENS 840 D SL DIMENSIONS / WEIGHTS .. space requirements -left/right-: 13480 mm .. space requirements -front/back-: 10502 mm .. total height: 4532 mm .. total weight approx.: 23000 kg ELECTRICAL SPECIFICATIONS Bwobvsv Hglbea Up Rjl .. total power consumption: 210 kW .. mains voltage: 400 V .. mains frequency: 50 Hz asic machine system with 10 stations Station 1: Component loading (multi-axis handling) Station 2: Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling (max. 15,000 rpm) Station 3: Sauter 112 crown turret (3 spindle units) HSK 40 with external cooling 1 SEMA AE2-35/50/NC 2-axis unit Station 4: 1 SE – HSK 50C spindle unit including internal cooling (max. 15,000 rpm) Station 5: 1 Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling Station 6: 1 Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling 1 SEMA 2-axis unit AE1-35/50/NC Station 7: 1 hydraulic docking unit including C-axis positioning unit (1 2-axis unit SEMA AE1-35/50/NC) Station 8: 1 hydraulic docking unit including C-axis for positioning 1 permanently integrated angle head Benz or equivalent Station 9: 1 2-axis unit SEMA AE3-35/50/NC Station 10: Permanently integrated angle,S-35/50/NC Station 11: Blow-off inside/outside

Condition: ready for operation (used), Functionality: fully functional, machine/vehicle number: 2109, workpiece length (max.): 300 mm, workpiece diameter (max.): 15 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Year of manufacture: probably 1999 Machining range Max. diameter to be machined: 15 mm Min. diameter to be machined: depends on the part Max. part length: approx. 300 mm Min. part length: depends on the part Rotary indexing table Number of positions: 10 – 12 MACHINE DETAILS Overall length: 4,000 mm Overall width: 2,300 mm Overall height: 2,200 mm Control voltage: 24 V Operating voltage: 380 V, 50 Hz EQUIPMENT - Knoll coolant cleaning/chip disposal system 240 SF (built in 1990) - Roller straightener - Mechanical feed - Overturning/pre-turning unit - Gear saw - Multiple drilling units with rotary indexing table Bjbva Upjwd Nq He Rswl - Technical documentation - Manual

Condition: excellent (used), Year of construction: 1996, NEW ARRIVAL +++++ 1 used, very well-maintained MIKRON MULTISTAR CX 24 transfer machine / rotary transfer machine Machine can be inspected under power. Part setup is no problem. With MITSUBISHI AACPU-S1 control system - Machine Year of manufacture 1996 - Detailed technical data as per appendix - Machine can be inspected under power. Bwebot I T N Ejva Up Rsl Conversion - INSTALLATION - Setup - Application can be offered. Pricing: ex-site, unpacked, uninsured. Delivery time: immediately - subject to prior sale. Technical data is non-binding - errors excepted. Payment: As is customary for used machines, net before removal.

Condition: used, Technical details: spindle taper: SK40 spindle stroke: 175 mm number of spindles: 8 Stück number of stations: 5 Stück cycle time: 15-20 sec revolutions per minute: bohren/drill/taladrar 225...1037 U/min. revolutions per minute: gewinde/threading/roscar 50...316 U/min. feed: 0,2 m/min total power requirement: 30 (40PS) kW weight of the machine ca.: 9,0 t space requirements of the machine approx.: 3,9x2,4x2,5 m dimensions of machine: L:3,9xB:2,2xH:2,7 m dimensions L x W x H: +Anlage/plant/planta 2,7x2,52x2,25 m The machine will be on a General overhaul (pictures from original condition at the former Company) The machine has been constructed for the metal cutting process of workpieces in one clamping session. Especially blanks made of brass with a diameter 90mm x approx 100mm length would be machined with this machine. description: - workpiece support with switch plate with clamping station type round table with horizontal axis with 5 workpiece stations processing units: - drill spindle and thread cutting units - drill capacity up to 2 3/4" and 81,53mm in brass - thread cutting up to 2 1/2" und metric thread Machine is equipped with a feeding-and unloading unit for workpieces. ( feed capacity 3 -4 pieces/min and cycle time 15 - 20 sec.) furthermore incl. coolant device i.D. * Bwebeu Idycsva Up Rjl

Condition: used, Year of construction: 2001, X - 1.720 mm Y - 460 mm Z - 390 mm 8 tools on turret Chip conveyor and coolant system 2 swivel tables and 2 revolver heads SIEMENS 840 control More specifications in pictures. Bwjbvasfxqybe Up Rsl 2 UNITS AVAILABLE FOR SALE!

Condition: like new (used), Year of construction: 2002, Functionality: fully functional, The machine in operation, can be viewed during operation. Dismantling, moving and transporting the machine is entirely the customer's responsibility. Parity: EXW Székesfehérvár Bjbveidqygja Up Rswl Riello Model VFX 300 – 6/4 – 0/ - V Vertiflex Transfer Machine Riello Model VFX 300 – 6/4 – 0/ - V Vertiflex Transfer Machine with Rotary Table, 6-Stations, 5- Multi Heads with 6 Tools per Head, 1 Work Station, 2 Setting Stations, Chiller, Chip Conveyor, Coolant Management System and Tooling.

Condition: used, Year of construction: 2010, x-travel 450 mm y-travel 400 mm z-travel 320 mm tool taper HSK 63 spindle turning speed range 0 - 10000 U/min rapid traverse 30 m/min control GE FANUC Series 16 i System for processing fittings, valve housings, etc. consisting of 1 used flexible manufacturing cell (transfer machine) make RIELLO, model VERTIFLEX VFX 450-2 / 1-0 / 1-V, YOM 2010, with 2 pcs. 3-axis machining modules, each with 8-pos. tool turret, travel paths module 1: X1 / Y1 / Z1 = 450/400/320 mm, travel paths module 2: X2 / Y2 / Z2 = 450/400/320 mm, tool fixture HSK 63, rotary table with 2 integrated workpiece carriers á 400 mmø Bjbva Uotqqqmop Rowl (B axis per workpiece carrier 360 x 1 °), coolant through spindle Acc.: chip conveyor, coolant device connected by ABB handling robot with 1 used flexible manufacturing cell (transfer machine) make RIELLO, model VERTIFLEX VFX 450-2 / 2-0 / 1-V, YOM 2003, with 3 pcs. 3-axis machining modules, each with 8-pos. tool turret, travel paths module 1: X1 / Y1 / Z1 = 450/400/320 mm, travel paths module 2: X2 / Y2 / Z2 = 450/400/320 mm, travel paths module 3: X3 / Y3 / Z3 = 450/400/320 mm, tool fixture HSK 63, rotary table with 2 integrated workpiece carriers á 400 mmø, (B-axis per workpiece carrier 360 x 1 °), coolant through spindle Acc.: chip conveyor, coolant device

Condition: ready for operation (used), Year of construction: 1999, Functionality: fully functional, machine/vehicle number: 2685, workpiece length (max.): 300 mm, workpiece diameter (max.): 15 mm, No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. diameter to be processed: 15 mm Min. diameter: depends on the part Max. part length: approx. 300 mm Min. part length: depends on the part Bwebvaswd Nlwo Up Rol MACHINE DETAILS Control voltage: 24 V Connection voltage: 400 V, 50 Hz Dimensions and weight Total weight: 2,500 kg Total length: 5,000 mm Total width: 3,000 mm Total height: 2,100 mm EQUIPMENT - Hydraulic feed - Gear saw unit - Rotary indexing table with 20 positions - Bar feeder - Technical documentation - Manual

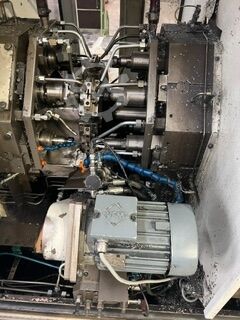

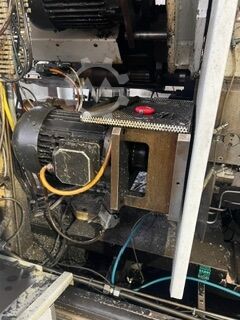

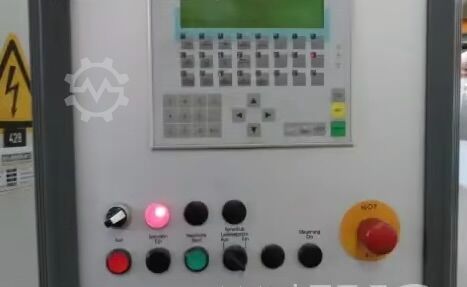

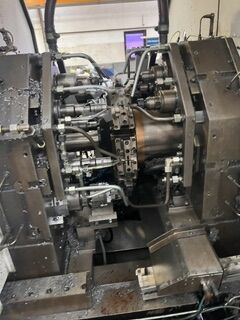

Condition: excellent (used), Year of construction: 2010, EUBAMA S6 is a 2010 model machine. Number of clamping (jaw) stations: 8 2-jaw chuck system Maximum clamping diameter: 40 mm Maximum workpiece length: 450 mm Maximum output (cycle/minute): 40 Hydraulic clamping system Machine control: CNC Siemens 840 D Number of processing units: 15 PRA 52 P IEMCA drive Magazine loading capacity: 4 meters KNOLL chip conveyor Bobvajv Ef N Ae Up Rjwl KNOLL coolant tank Machine is in working condition

Condition: used, Technical details: Bwebveu Idwboa Up Rsl spindle taper: 40 number of spindles: 9 Stück weight of the machine ca.: 10,0 t total power requirement: 13 (17,5 PS) kW dimensions of machine: LxBxH: 4100x3400x3200 mm dimensions electric cabinet: LxBxH: 2100x350x1900 mm TRANSFER MACHINE DRILL AND THREADCUTTING MACHINE - ROTARY TRANSFER MACHINE with 9x Drill-& Mill Spindles - right 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible - left 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible, such as radial 2x Drill-&Mill spindle and 1x thread cutting unit 9 stages, flexible - workpiece carrier with 8 clamping stations: workpiece holding barrel Ø 1000 mm (oil-pneumatic cycle), clamping station self-centering clamping jaws - Drilling: SK 40 intake; spindle stroke 125 mm; standard feed rate 0 - 2 m/min; RPM at 12 stages with 164-1005 rpm - Drill- and facing unit; SK 40 intake; spindle stroke 90 mm; standard feed rate 0 - 2 m/min; rapid traverse feed rate 7.5 m/min; RPM at 12 stages with 166 - 1020 rpm - 3 piece thread-cutting units: SK 40 Intake; Working stroke 125 mm; RPM at 12 stages with 31.5 - 194 rpm; clockwise and counterclockwise - 6 piece opposing drill units: SK 40 intake Equipment: - coolant system with feed - operation through control panel - chip box - counting mechanism - elevated platform with stairs i.D. *

Condition: used, Year of construction: 2005, FANUC 160 I-MB control KNOLL chip conveyor, type 1200 S-2, made in 2012 4 workstations Bwsbvofxgiyoa Up Rel

Condition: used, Year of construction: 1992, Drum division or workpiece holders: 8 Station 1 (feed station) a) Feeding from the magazine or the vibrator b) Feeding of ring material mechanically controlled c) Feeding of ring material hydraulically controlled d} Feeding of bar material Max. number of processing units 2 Max. tools that can be used 3 Stations 2 - 5: (processing stations): 4 Max. number of processing units in 2 directions each: 8 Max. tools that can be used in 2 directions each: 8 Bwebvsvt A Tzea Up Rsl Station 6: (unloading station) Ejector stroke: 50 mm Station 7: (empty station) Station 8: (rinsing station) Max. workpiece length when feeding ring or bar material: 60 / 100 mm Max. workpiece length when feeding with magazine: 150 mm Max. workpiece diameter (clamping diameter): 25 mm Adjustable piece output: 5-65 pieces / min Switching time: 0.35 s Weight of the machine: 1,700 kg Coolant system: - Content of the coolant chamber: 120 l - Delivery capacity of the pump: 30 l / min Drive motor: - Power: 0.55 kW - Speed: 1,000 rpm Pump motor: - Power: 0.6 kW - Speed: 2,800 rpm Total installed power (without processing units): 1.15 kW

Condition: used, Year of construction: 2001, stations 10 / 22 tool taper SK 40 control SIEMENS SIMATIC OP 3 total power requirement ca. 112 kW = transfer machine Bebvaetqqlqe Up Rjwl Shift drum with 10 workpiece stations, 22 machining units (drilling 7 units, drilling and thread cutting 8 units; drilling and sinking 5 units; drilling, sinking and thread- cutting 2 unit), spindle taper SK 40 each, engine power of the individual units between 4.0 and 4.5 kW, SIEMENS control SIMATIC OP 3, assembly robot ABB Accessories.: chucks (without jaws), chip conveyor, coolant device

Condition: used, _____ Description: Year of manuf. : 2013 Control : Siemens 840 D Rotary-Indexing-table/Spindle: Clamping stations:12 motorised spindles Drive:Torque drive, water-cooled Position measuring system:Direct Switching time:1.5 seconds Spindles:Water-cooled motor spindles C-axes:0.001°, hydraulic clamping Speed:5,500 rpm Power:11 kW Clamping device:Chuck Basic modules: Technology:Positioning module, 3-axis X-axis:50 mm Y-axis:100 mm Z-axis:100 mm Position measuring systems:Direct in all axes Coolant supply:Integrated : : Workpiece size (max.):100 x 100 x 100 mm Station 1: Horizontal:feeding of raw parts (indexing conveyor + Stäubli robot) Vertical:Measuring raw part Station 2: Horizontal:4-fold turret without drive Vertical:Measuring reclamping error (C-axis zeroing) Station 3: Horizontal:4-fold turret without drive Vertical:Not used Station 4: Horizontal:4-fold turret without drive Vertical:Not used Station 5: Horizontal:6-position turret with WAN, 10,000 rpm Vertical:6-position turret with WAN 10,000 rpm Station 6: Horizontal:4-fold turret without drive Vertical:Not used Station 7: Horizontal:6-position turret with WAN, 10,000 rpm Vertical:Not used Station 8: Horizontal:6-position turret with WAN, 10,000 rpm Vertical:Not used Station 9: Horizontal:4-fold turret without drive Vertical:Not used Station 10: Horizontal:6-position turret with WAN, 10,000 rpm Vertical:Not used Station 11: Horizontal:6-position turret with WAN, 10,000 rpm Vertical:6-position turret with WAN 10,000 rpm Station 12: Horizontal:Charging/discharging unit with double swivelling gripper + discharging belt Equipment: Chipmanagement:Chip conveyor High preassure unit:Cooling unit 50 bar Toolmonitoring:Toolbreaktagecontrol ARTIS Rawmaterialfeed:Conveyorbelt with robot Finishpartremoval:Conveyor with 3-way switch Oilmistseparation:Electrostatic filter Fire extraction system:Kraft + Bauer Part labelling:Laser Parts cleaning:HESO cleaning system Bwsbva Uevr A A Hep Rel

Year of construction: 1988, Condition: used, Eubama S5 Rotary Transfer Machine Serial Number 5531 Year 1988 Pristine Condition Not been used for 15 years Bwjbva Uodg Da Ijp Rjl

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 72 kW weight of the machine ca.: 18,0 t dimensions of machine: LxBxH: 2100x3400x2600 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2300 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x850x2500 mm dimensions electric cabinet: Nr.3: LxBxH: 1000x850x2100 mm dimensions electric cabinet: Nr.4: LxBxH: 1000x500x2350 mm space requirements approx. LxWxH: 5,0 x 6,2 x 3,8 m TRANSFER MACHINE with 3 work station and 15 drill & mill spindles for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - left 3x drill & mill spindle and 2x thread cutting spindle - right 2x drill & mill spindle and 2x thread cutting spindle and 1x U-Axis such as 2x thread cutting spindle slidable, 2x drill and milling spindle from that one slideable and 1x U-axis slideable - 1. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left - 2. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel Bwjbvaeu Idvwo Up Rjl - manual switch i.D. *

Condition: used, Year of construction: 2006, Functionality: fully functional, machine/vehicle number: 8450-06-003, The machine model is Rotaflex DV 25/15. It is our top-model machine. It was made in 2006. It is fully functional and running. It is very good maintained and therefore it will be functional for a long time. Additionally, we offer our technical supply for running the machine. The machine has 15 stations, 14 modules, 26 spindles. There are; 2 pcs. Recessing Modules (Mapal Recessing Head for U-Axis machining) 4 pcs. 0°-90° Angle Adjustable, Double Spindle, 3-Axis (X,Y,Z) Modules 8 pcs. Horizontal, Double Spindle, 3-Axis (X,Y,Z) Modules 6 pcs. B-Axis clamping with simultaneous CNC machining 3 pcs. B-Axis clamping with 5° angular positioning 5 pcs. fixed clamping Flexbility: Our Rotaflex machines stand out due to their exceptional flexibility, surpassing that of competitors. These machines are versatile, capable of performing a variety of operations including turning, milling, threading, and recessing. Each station operates independently with up to 5-Axes, ensuring efficient and precise machining. Advanced Turning Capabilities: (The current machine does not have a turning unit, but it can be added!) Rotaflex machines are designed for real turning operations, featuring chucks that can simultaneously position on the B axis and perform turning at speeds up to 6,500 RPM. Please find the demonstration videos below: Bebvasv E E Ryj Up Rswl Innovative Plug-and-Run Chucks: Our Plug-and-Run Chucks enable swift chuck changes within seconds, allowing for seamless transitions between jobs. This technology sets Technica apart in the rotary transfer machine industry. Why Choose Technica Rotaflex Machines: Technica machines offer unparalleled versatility and precision, making them ideal for mass production environments that demand high-quality and adaptable machinery. Combining Swiss engineering precision with the multifunctionality, our machines provide reliable and efficient performance.

Condition: used, Year of construction: 1997, stations 10 / 22 tool taper SK 40 control SIEMENS SIMATIC OP 3 total power requirement ca. 130 kW Bsbvstqqlrsa Up Rjwl = transfer machine Shift drum with 10 workpiece stations, 22 machining units (drilling 10 units, drilling and thread cutting 5 units; drilling and sinking 3 units; drilling, sinking and thread- cutting 1 unit, thread cutting 3 units), spindle taper SK 40 each, engine power of the individual units between 4.5 and 5.5 kW, SIEMENS control SIMATIC OP 3, assembly robot ABB Accessories.: chucks (without jaws), chip conveyor, coolant device

Condition: used, _____ Description: Bwjbvevr Az Nja Up Rjl Year of manuf. : 2018 Control : Fanuc 30i-B In General: Year of construction:2018 Control system:Fanuc Processing stations:5 pieces Loading station:1 piece Travelling range: X-axis:450 mm Y-axis:500 mm Z-axis:450 mm Rapid traverse X/Y/Z:50 m/min Turret: Number of stations:8 Speed:13,300 rpm Torque:58 Nm Tool holder:HSK 63 C Workpiece/device: Dimensions max.:350 x 350 x 350 mm Max. permissible mass:250 kg Media supply line:6 pieces NC swivelling rotary table: A-axis:+/- 150° B-axis:360° Max. load:250 kg Table diameter:320 mm Equipment: Loading/unloading:Fanuc Robot M20i-A Chip removal:2x chip conveyors Coolant supply:IKZ system, 20 bar Position measuring systems:Direct in all axes

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 weight of the machine ca.: 17,0 t total power requirement: 83,0 kW dimensions of machine: LxBxH: 2400x2800x2800 mm dimensions electric cabinet: Nr.1:LxBxH: 1000x850x2350 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x650x2230 mm Bobvju Idxfea Up Rjwl dimensions electric cabinet: Nr.3: LxBxH: 650x600x1700 mm dimensions electric cabinet: Nr.4: LxB.H: 1000x500x1350 mm space requirements approx. LxWxH: 5,0 x 6,2 x 3,8 m TRANSFER MACHINE with 3 work station and 15 drill & mill spindles for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - right 3x drill-& mill spindle, 1x thread cutting spindle, 1x U-axis such as radial 2x drill-& mill spindle slideable, 1x thread cutting spindle slideable and 2x U-axis slideable - left 3x drill-& mill spindle, 1x thread cutting spindle, 1x U-axis such as radial 2x drill-& mill spindle slideable, 1x thread cutting spindle slideable and 2x U-axis slideable - 1.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left - 2.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. *

Condition: used, Technical details: number of spindles: 11 Stück number of stations: 11 Stück taper: SK 40 air pressure - required: 6 - 7 bar total power requirement: 13 kW weight of the machine ca.: 10,2 t space requirements of the machine approx.: 4,0 x 4,0 x 3,4 m dimensions of machine: 3,4 x 3,45 x 2,9 m dimensions electric cabinet: 2,1 x 0,4 x 1,9 mm Transfermachine (drilling & cutting) Accesssories optional please enquire to this additional position! - workpiece holding turret Ø 1000mm with tool holder for 8 tool clamping stations, self centering clamping chuck jaws between the jaws, max. 20mm chuck jaw stroke ( oil pneumatic circulation) - 11 working stations with Sk40 intake (right 4x Drill-& Mill spindle and 1x mitU-axis , left 4x Drill-& Mill spindle ) - drill unit 8x spindle stroke 125mm, feed 0 - 2 m/min, 164 - 1005 rpm with 12 gears stages - thread cutting unit working stroke 125mm, rotation direction clockwise and counter clockwise, 31,5 - 194 rpm with 12 gears stages - opposite located drill units 8 pieces with SK 40 holder - coolant device with supply - control via switch panel - with swarf basin L: 1200 x W: 740 x H: 220mm i.D. * Bwjbvaou Idw Ie Up Rjl

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 72 kW weight of the machine ca.: 18,0 t dimensions of machine: LxBxH: 2100x3400x2600 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2300 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x850x2500 mm dimensions electric cabinet: Nr.3: LxBxH: 1000x850x2100 mm dimensions electric cabinet: Nr.4: LxBxH: 1000x500x2350 mm space requirements approx. LxWxH: 5,0 x 6,2 x 3,8 m TRANSFER MACHINE with 3 work station and 15 drill & mill spindles for example the production of a high quantity of armatures Bwsbva Upsu Idv Dj Rsl Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, cycle time of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - left 3x drill & mill spindle and 2x thread cutting spindle - right 2x drill & mill spindle and 2x thread cutting spindle and 1x U-Axis such as 2x thread cutting spindle slidable, 2x drill and milling spindle from that one slideable and 1x U-axis slideable - 1. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left - 2. thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. *

Condition: used, Technical details: number of spindles: 9 Stück total power requirement: 83,0 kW weight of the machine ca.: 17,0 t TRANSFERAUTOMAT with 9x drill-and mill spindles - right 3x drill-& mill spindle, 9 stages, driven, fixed and left 3x drill-& mill spindle 9 stages, driven, fixed such as radial 3x drill-& mill spindle with 9 stages, driven, fixed i.D. * Bwebsu Idvkova Up Rel

Condition: used, Technical details: Bobva Usu Idwnep Rjwl number of spindles: 9 Stück weight of the machine ca.: 10,2 t Transfer machine with 9 Drill-& Mill spindles - right 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages - left 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages such as radial 2x drill-& mill spinlde flexible and 1x thread cutting spindle 9 stages, flexible i.D. *

Condition: used, Technical details: number of spindles: 15 Stück number of stations: 8 Stück control: PS 2000 total power requirement: 83,0 kW weight of the machine ca.: 17,0 t space requirement of the machine approx.: LxBxH: 5,0 x 6,2 x 3,8 m dimensions of machine: LxBxH: 2400x2800x2800 mm dimensions electric cabinet: Nr.1: LxBxH: 1000x850x2350 mm dimensions electric cabinet: Nr.2: LxBxH: 1250x650x2230 mm dimensions electric cabinet: Nr.3: LxB.H: 650x600x2300 mm dimensions electric cabinet: Nr.4: LxBxH: 1300x650x2350 mm TRANSFER MACHINE with 3 work station and 15 drill & mill spindles - for example the production of a high quantity of armatures Other technical information about the machine: - workpiece carrier: workpiece holding barrel Ø 800mm for 8 work piece - clamping station, clock cycle of 10 sec. - drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm - right 4x drill-& mill spindle with 18 stages and 1x thread cutting spindle hydr. 14 up to 224 U/min, left 4x drill and mill spindle with 18 stages and 1x thread cutting spindle hydr. from 14 up to 224 U/min such as radial 3x drill -and mill spindle from that 1x U-Axis and 1x thread cutting spindle 1.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left 2.Thread-cutting unit: SK 40 Intake; Quill Ø 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left Equipment: - 2 hydraulic aggregate - chip conveyor - belt filter produced by Filtertechnik Gera (fleece band 430mm) - control panel - manual switch i.D. * Bwjbou Idxrova Up Rel
