Used Gnutti Transfer Machine for sale (5)

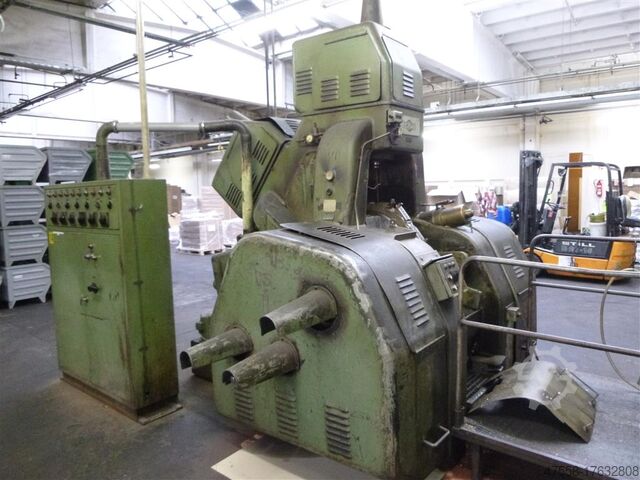

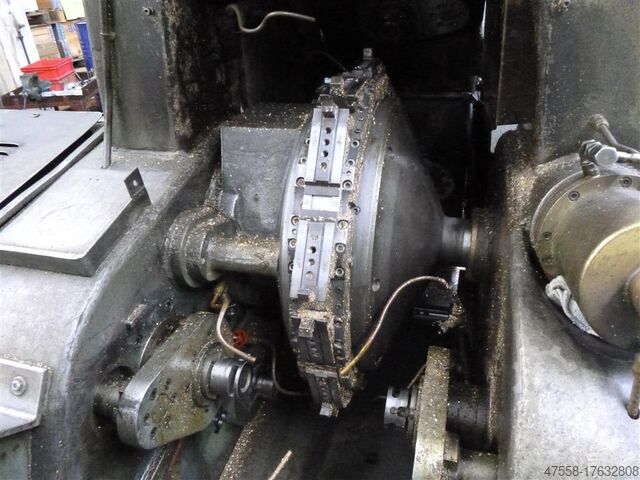

Condition: used, Technical details: spindle taper: 40 number of spindles: 9 Stück weight of the machine ca.: 10,0 t total power requirement: 13 (17,5 PS) kW dimensions of machine: LxBxH: 4100x3400x3200 mm dimensions electric cabinet: LxBxH: 2100x350x1900 mm TRANSFER MACHINE DRILL AND THREADCUTTING MACHINE - ROTARY TRANSFER MACHINE with 9x Drill-& Mill Spindles - right 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible - left 2x Drill-&Mill Spindle from that 1x with U-axis flexible and 1x thread cutting unit with 9 stages flexible, such as radial 2x Drill-&Mill spindle and 1x thread cutting unit 9 stages, flexible - workpiece carrier with 8 clamping stations: workpiece holding barrel Ø 1000 mm (oil-pneumatic cycle), clamping station self-centering clamping jaws - Drilling: SK 40 intake; spindle stroke 125 mm; standard feed rate 0 - 2 m/min; RPM at 12 stages with 164-1005 rpm - Drill- and facing unit; SK 40 intake; spindle stroke 90 mm; standard feed rate 0 - 2 m/min; rapid traverse feed rate 7.5 m/min; RPM at 12 stages with 166 - 1020 rpm - 3 piece thread-cutting units: SK 40 Intake; Working stroke 125 mm; RPM at 12 stages with 31.5 - 194 rpm; clockwise and counterclockwise - 6 piece opposing drill units: SK 40 intake Equipment: - coolant system with feed - operation through control panel - chip box - counting mechanism - elevated platform with stairs i.D. Lrodpfxou Idwbe Ad Dou *

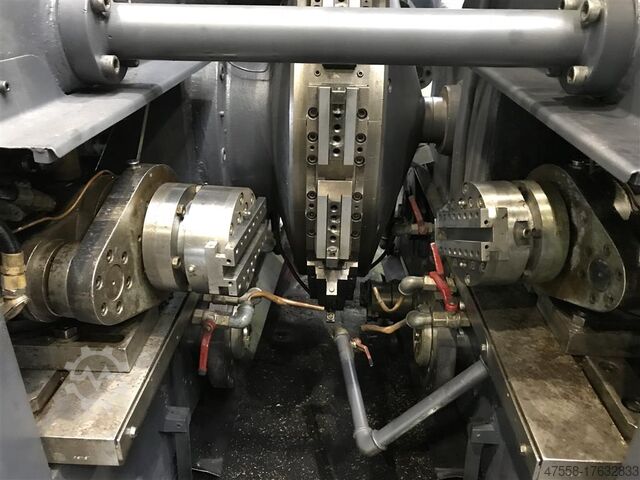

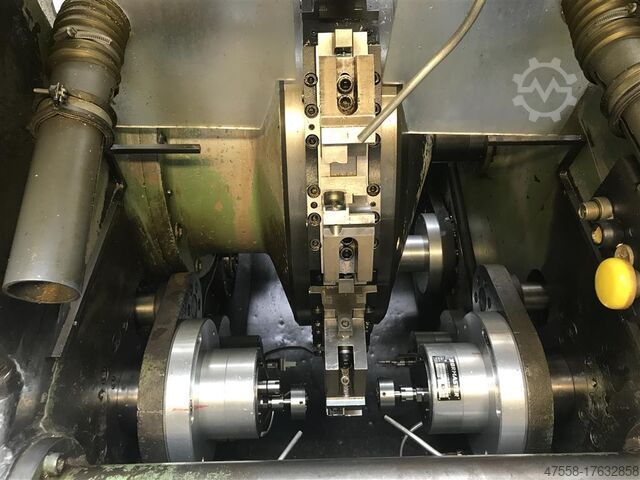

Condition: used, Technical details: number of spindles: 11 Stück number of stations: 11 Stück Lredpju Idw Iefx Ad Dsu taper: SK 40 air pressure - required: 6 - 7 bar total power requirement: 13 kW weight of the machine ca.: 10,2 t space requirements of the machine approx.: 4,0 x 4,0 x 3,4 m dimensions of machine: 3,4 x 3,45 x 2,9 m dimensions electric cabinet: 2,1 x 0,4 x 1,9 mm Transfermachine (drilling & cutting) Accesssories optional please enquire to this additional position! - workpiece holding turret Ø 1000mm with tool holder for 8 tool clamping stations, self centering clamping chuck jaws between the jaws, max. 20mm chuck jaw stroke ( oil pneumatic circulation) - 11 working stations with Sk40 intake (right 4x Drill-& Mill spindle and 1x mitU-axis , left 4x Drill-& Mill spindle ) - drill unit 8x spindle stroke 125mm, feed 0 - 2 m/min, 164 - 1005 rpm with 12 gears stages - thread cutting unit working stroke 125mm, rotation direction clockwise and counter clockwise, 31,5 - 194 rpm with 12 gears stages - opposite located drill units 8 pieces with SK 40 holder - coolant device with supply - control via switch panel - with swarf basin L: 1200 x W: 740 x H: 220mm i.D. *

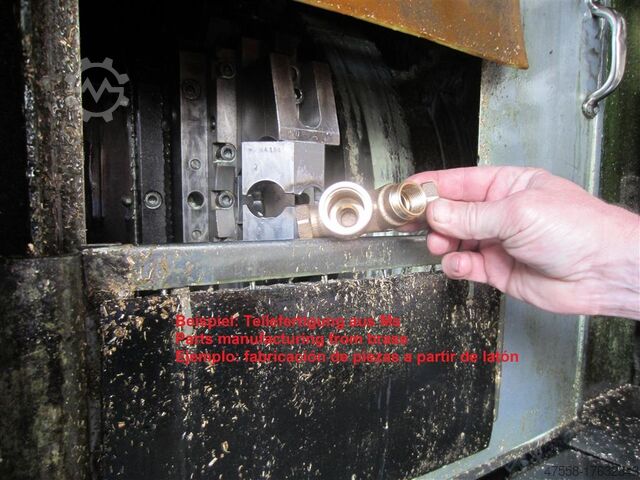

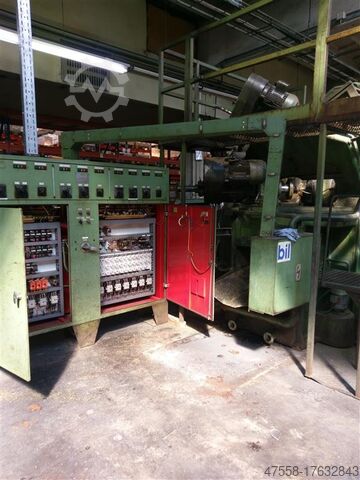

Condition: used, Technical details: spindle taper: SK40 spindle stroke: 175 mm number of spindles: 8 Stück number of stations: 5 Stück cycle time: 15-20 sec revolutions per minute: bohren/drill/taladrar 225...1037 U/min. revolutions per minute: gewinde/threading/roscar 50...316 U/min. feed: 0,2 m/min total power requirement: 30 (40PS) kW weight of the machine ca.: 9,0 t space requirements of the machine approx.: 3,9x2,4x2,5 m dimensions of machine: L:3,9xB:2,2xH:2,7 m dimensions L x W x H: +Anlage/plant/planta 2,7x2,52x2,25 m The machine will be on a General overhaul (pictures from original condition at the former Company) The machine has been constructed for the metal cutting process of workpieces in one clamping session. Especially blanks made of brass with a diameter 90mm x approx 100mm length would be machined with this machine. description: - workpiece support with switch plate with clamping station type round table with horizontal axis with 5 workpiece stations processing units: - drill spindle and thread cutting units - drill capacity up to 2 3/4" and 81,53mm in brass - thread cutting up to 2 1/2" und metric thread Machine is equipped with a feeding-and unloading unit for workpieces. ( feed capacity 3 -4 pieces/min and cycle time 15 - 20 sec.) furthermore incl. coolant device i.D. Lredpfxou Idycs Ad Deu *

Condition: used, Technical details: number of spindles: 9 Stück total power requirement: 83,0 kW weight of the machine ca.: 17,0 t TRANSFERAUTOMAT with 9x drill-and mill spindles - right 3x drill-& mill spindle, 9 stages, driven, fixed and left 3x drill-& mill spindle 9 stages, driven, fixed such as radial 3x drill-& mill spindle with 9 stages, driven, fixed Lrodpfx Adou Idvko Dou i.D. *

Condition: used, Technical details: number of spindles: 9 Stück weight of the machine ca.: 10,2 t Transfer machine with 9 Drill-& Mill spindles - right 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages - left 2x drill -& mill spindle and 1x thread cutting spindle with 9 stages such as radial 2x drill-& mill spinlde flexible and 1x thread cutting spindle 9 stages, flexible i.D. Lredpfxeu Idwne Ad Dju *
