Transfer machine
Steinel

Year of construction
1967
Condition
Used
Location
Hövelhof Germany
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
Transfer machine Steinel
more Images
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel
Steinel

Machine data

Machine type:
Transfer machine
Manufacturer:
Steinel
Year of construction:
1967
Condition:
not inspected (used)

Price & Location

Location:
Mergelweg 206, 33161 Hövelhof, Deutschland Germany
Call

Details about the offer

Listing ID:
A197-22461
Reference number:
WKG 1061
Update:
06.08.2025

Description

Manufacturer: Steinel

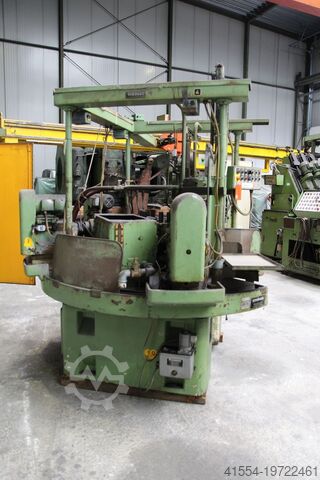

Model: 5 Station Rotary Transfer Drilling Machine BE 10 VK
Year of Manufacture: 1967
Weight: approx. 3,000 kg

General / Technical Data:
5-station rotary transfer special drilling machine for horizontal drilling with multi-spindle heads
Drilling units: 4 units
Station 1 – loading and unloading
Station 2 – horizontal drilling unit type: BE 10 VK
Station 3 – horizontal drilling unit type: BE 10 VK
Station 4 – horizontal drilling unit type: BE 10 VK
Station 5 – horizontal drilling unit type: BE 10 VK

Feed of drilling units: mechanical feed via quill
Drill heads: multi-spindle drilling units
Rotary table: mechanical indexing in 5 positions, Ø 400 mm
Workpiece clamping: hydraulic, via centric mandrel, workpiece Ø approx. 80 mm
Machine dimensions (W x D x H): approx. Ø 1,800 mm x H = 2,200 mm
Power supply / connected load: 380 Volt, 50 Hz
Accessories / Special features:
• Machine is designed for large-scale production
• Features a robust cast iron machine table with lateral chip removal and separate coolant tank
• Automatic safety guard door
Gedpfx Abew H Rh Ssfjbp
• Equipped with a 5-station rotary indexing table
• Heavy cast iron machine table, ideal for the retrofit or rebuilding of a special purpose machine
• Suitable for refurbishment or conversion

The listing was translated automatically. Translation errors are possible.
