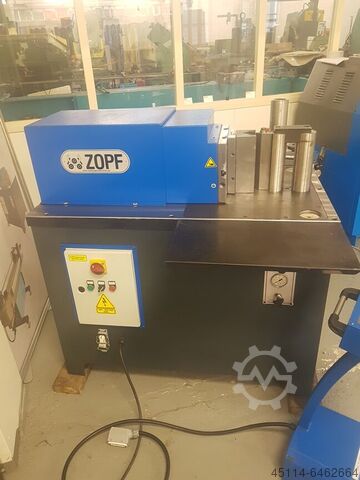

Horizontal bending machine

Zopf T400

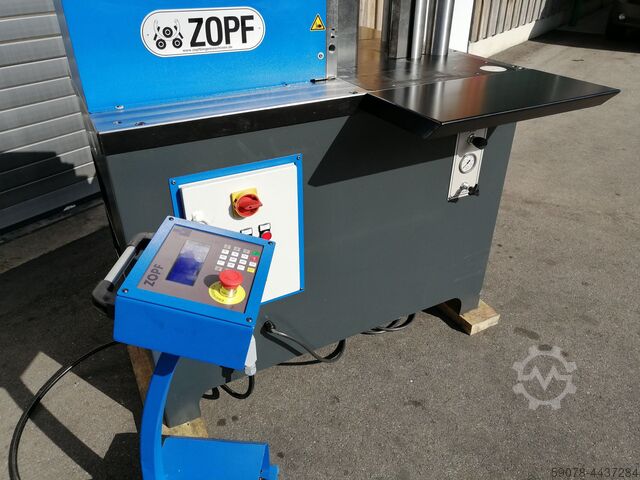

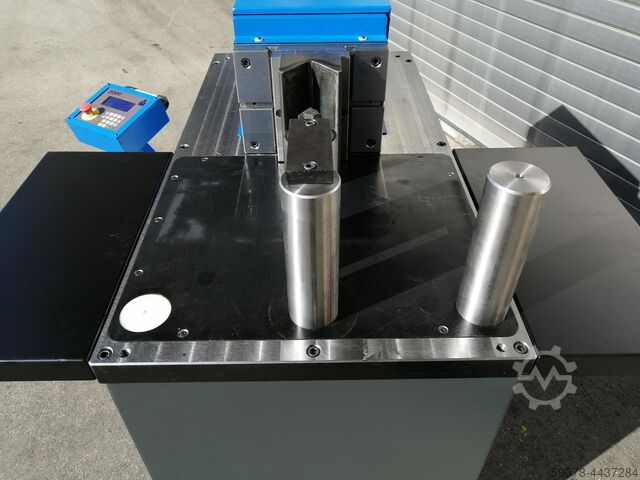

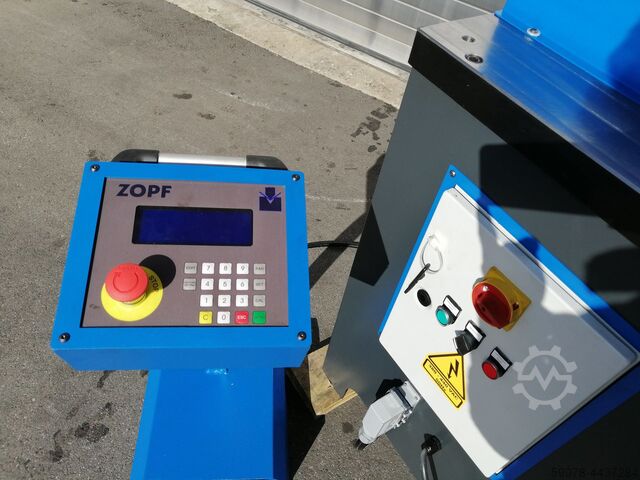

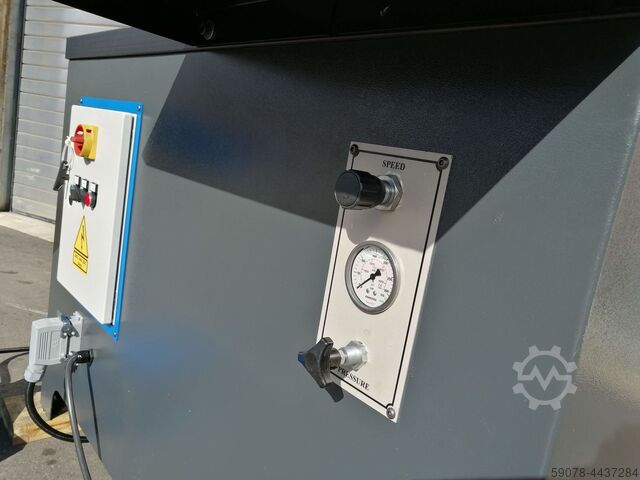

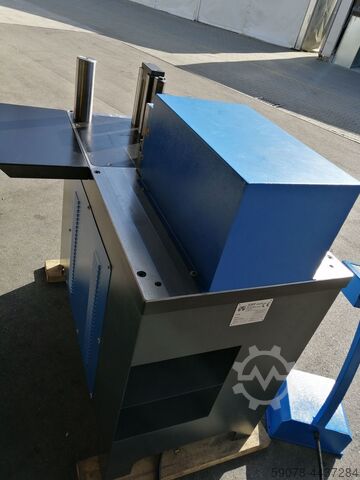

Condition: as good as new (ex-display), Year of construction: 2026, Horizontal bending machine T 400 Multi - ZOPF - with semi-automatic control - (99 bending programs each 16 steps) - hydraulic pressure 40 to. - length of stroke 250 mm - bending speed adjustable - max. working speed 10 mm/sec. Hjdpfofiqlfox Abaow - return speed 20 mm/sec. - hydraulic pressure adjustable - maximum bending high 250 mm - motorcapacity 3,0 KW - 400 V 50 hz 3 ph. - working height 900 mm - closed table - replaceable wear plate - weight 950 kg - colour RAL5012 / RAL7015 - bending capacity: flat material max. 200x22 mm round tube up to 65 mm

Condition: good (used), functionality: fully functional, machine/vehicle number: 24732, Ficep 1105 punching machine, 110tns, multifunction machine, punching 30 x 25, shear 510 x 16mm, 400 x 19mm, 300 x 22mm, 200 x 25mm, 90º angle cutting 150 x 150x16mm, 45º angle cutting 100 x 10 mm, round and square cut 50mm, punching max diameter 32 thickness 26mm, with several working elements, with electric stop, with different accessories, in good condition Hedpfstvfcmsx Abaow

Condition: new, 400 kN stroke length max. 285 mm Hedpfxey H N Nhj Abaew working feed 9 mm/sec return speed 20 mm/sec 660x1250 mm work height max. 930 mm toolpiece height max. 250 mm total power requirement 4 kW 200x26 mm bending capacity max. - round 60x5,0 mm Domestic equipments: - semi-automatic NC control (99 programs with 16 steps each) - incl. bending bolt (without punch) - Incl. tool holder for dies - incl. foot pedal

Condition: new, Year of construction: 2024, Hydraulic press brake PBO-3212-CNC OT-41 Specifications - Nominal pressure: 1250 kN - Max working length 3200 mm - Throat depth: 320 mm - Max stroke: 120 mm - Daylight: 390 mm - Distance between side frames: 2600 mm - Max backgauge distance: 600 mm - Nominal motor power: 7.5 kW - Length: 3870 mm - Width: 1550 mm - Height: 2400 mm - Weight: 6700.0 kg Tools - Front supports: 2 pcs - Backgauge distance regulation (X-axis): servo motor - Ram control (Y-axis): servo motor - Finger height adjustment (R axis): manual - Type of punch holder: AMADA quick-action clamping Otinus CNC controller OT-41 The Otinus CNC controller features a convenient and intuitive menu. The software calculates the bending angle itself. The large colour touch screen is easy to read from any angle. Optional extra - Manual crowning So that you are always sure that the workpiece will have the same angle along its entire length. Optional extra - Automatic crowning Enables the controller to take control over crowning, thus, ensuring that the setting value is always perfectly matched to the needs. OCS - Oil Cooling System Hedpfx Abegi Dk Dsajw Oil Cooling System guarantees the stability of the machine's operating parameters even after long, continuous operation. Assistance by a specialist We make sure to stay in constant touch with our Clients. This is why we add a time package of tech support hours for Otinus Professional Assistance to each machine purchased. See and test the machine Join us for a one-of-a-kind demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs as you can provide technical drawings and sample material. Included in the machine price 2-day training including installation of the machine - 1st day (up to 8 hours) - installation of the machine and learning to use the controller. - 2nd day (up to 8 hours) - independent work on the machine under the supervision of our technician with the possibility of programming specific parts manufactured by the Client. Telephone consultation with a specialist - 7.30 a.m. to 9 p.m. (Mon-Sat) - package of 8 hours to be used within 12 months - Free lending of transport rolls and two lifting jacks for easier positioning of the machine at Clients' facilities. The rollers and jack will be delivered after prior notification (no less than 7 days before delivery of the machine). Terms of cooperation - 24 month warranty - The machine is brand new - Warranty and post-warranty service provided by the seller - The Client is responsible for the machine during unloading and transporting on-site

Condition: new, Year of construction: 2025, pressing force: 20 t, – Capacity 20 tons Hjdpfx Ajvt Eunebasw – Bending capacity 200 x 12 mm – Stroke 200 mm – NC touchscreen control – Foot control – Emergency stop – 400V

Condition: new, Tubend Horizontal Bending Machine HP 40 Pressure: 40t Stroke: 300mm Max. tool height: 250mm Flat bar, over the high edge: 200 x 24mm Flat bar, over the high edge: 250 x 16mm Working speed: 10.0mm/sec Return speed: 10.0mm/sec Table: 600 x 1200mm Total power consumption: 4 kW Motor: 400 Volt 50Hz Weight: 1190 kg Dimensions L-W-H: 1250 x 650 x 1300mm Approximate oil capacity: 40.0l Features: Hydraulic horizontal bending machine Solid work surface made of stabilized steel Hodpfx Abei Elunoaow Machine made of hardened and ground forged steel NC touch screen control 1 x tool set Dual foot switch

Condition: ready for operation (used), Year of construction: 2006, Prinzing beading machine Type SME 200/11 year of construction 2006 throat 1100 mm connected load 5,5KW max. sheet thickness 1.5 mm VA Siemens Siematic OP7 control Special equipment: -parallel top roller feed with bearing-mounted work rollers -stepless drive motor -motorised top roller feed, infinitely adjustable sensor-controlled feed for automatic operation Table-top version of sheet guide device Hedpfjh Hgdrox Abajw Total weight 6700 kg The offer is only addressed to dealers in accordance with § 14 of the BGB (German Civil Code). No Sales to private persons

Condition: new, sheet width 1600 mm plate thickness 6 mm pre-bending 4 mm upper roll diameter 140 mm lower roll diameter 140 mm side roll diameter 120 mm min. bending diameter Oberwalzen-Ø x 3 total power requirement 3 kW weight of the machine ca. 2.000 kg Overall size 3700x1300x1280 mm Accessories / equipment: - Conical bending device Hjdpfx Abeyv N E Usajw - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration

Condition: new, neu ca. 8 Wochen ab Auftragse Türkei 12900 € 247.68 € 40 to 285 mm 200x24 mm 660x1250 mm 250 mm 80 mm 10 mm/s 10 mm/s 4 kW 930 mm 1250 mm 650 mm 1250 mm 1100 kg Stroke adjustment with digital display Manual and automatic operation mode Tool holder pins and tools hardened and ground Bending tool Hjdewiq N Iepfx Abaow Foot pedal OPTIONS: Cutting-, punching- or pipe bending tools on request

Condition: new, Year of construction: 2024, Hydraulic press brake PBO-3212-CNC Delem DA-58T Specifications - Nominal pressure: 1250 kN - Max working length 3200 mm - Throat depth: 320 mm - Max stroke: 120 mm - Daylight: 390 mm - Distance between side frames: 2600 mm - Max backgauge distance: 600 mm - Nominal motor power: 7.5 kW - Length: 3870 mm - Width: 1550 mm - Height: 2400 mm - Weight: 6600.0 kg Hjdpegi Dkysfx Abasw Tools - Front supports: 2 pcs - Backgauge distance regulation (X-axis): servo motor - Ram control (Y-axis): servo motor - Finger height adjustment (R axis): manual - Type of punch holder: AMADA quick-action clamping Delem DA-58T controller - Advanced operator support based on algorithms - Advanced, graphic simulation of bending sequences - Operator prompts included - Algorithms to shorten the production process - Automatic calculation of crowning Optional extra - Manual crowning So that you are always sure that the workpiece will have the same angle along its entire length. Optional extra - Automatic crowning Enables the controller to take control over crowning, thus, ensuring that the setting value is always perfectly matched to the needs. OCS - Oil Cooling System Oil Cooling System guarantees the stability of the machine's operating parameters even after long, continuous operation. Assistance by a specialist We make sure to stay in constant touch with our Clients. This is why we add a time package of tech support hours for Otinus Professional Assistance to each machine purchased. See and test the machine Join us for a one-of-a-kind demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs as you can provide technical drawings and sample material. Included in the machine price 2-day training including installation of the machine - 1st day (up to 8 hours) - installation of the machine and learning to use the controller. - 2nd day (up to 8 hours) - independent work on the machine under the supervision of our technician with the possibility of programming specific parts manufactured by the Client. Telephone consultation with a specialist - 7.30 a.m. to 9 p.m. (Mon-Sat) - package of 8 hours to be used within 12 months - Free lending of transport rolls and two lifting jacks for easier positioning of the machine at Clients' facilities. The rollers and jack will be delivered after prior notification (no less than 7 days before delivery of the machine). Terms of cooperation - 24 month warranty - The machine is brand new - Warranty and post-warranty service provided by the seller - The Client is responsible for the machine during unloading and transporting on-site
