Top Sanders

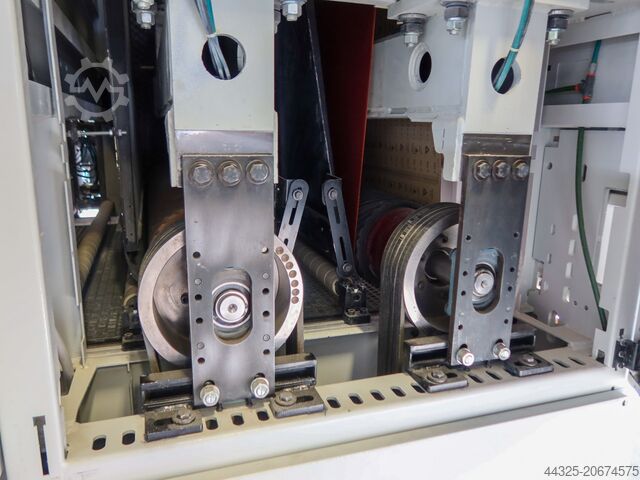

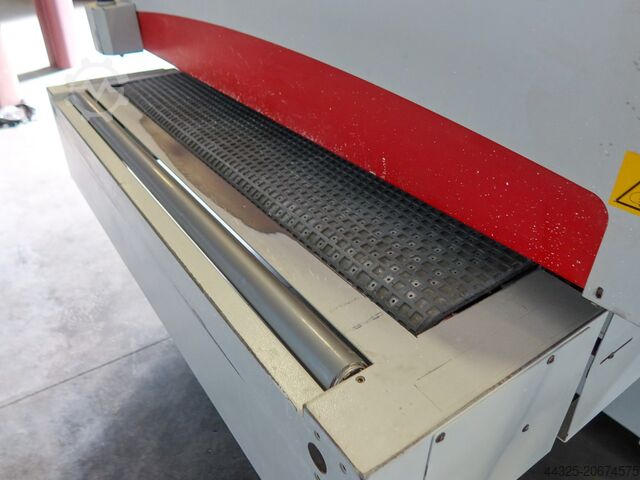

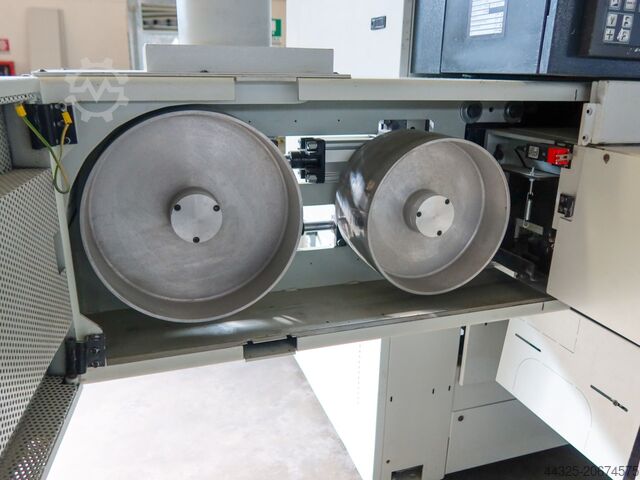

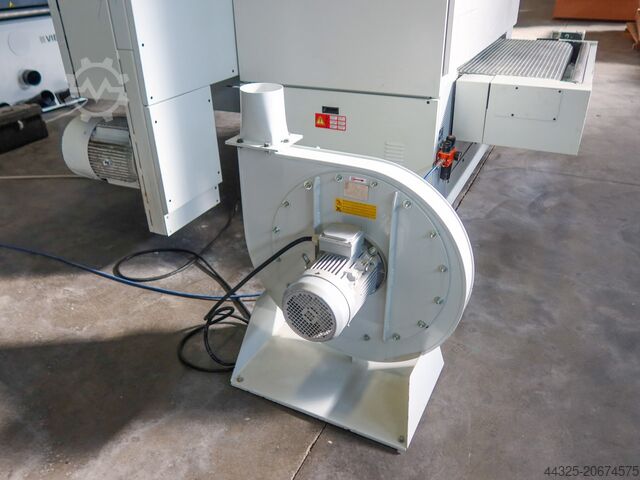

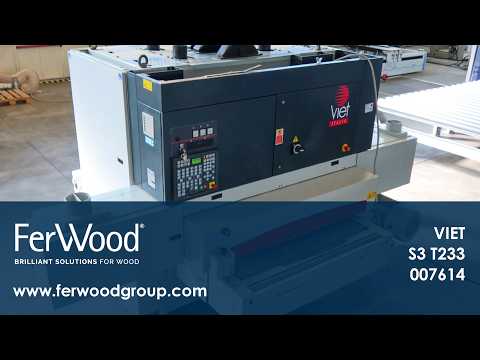

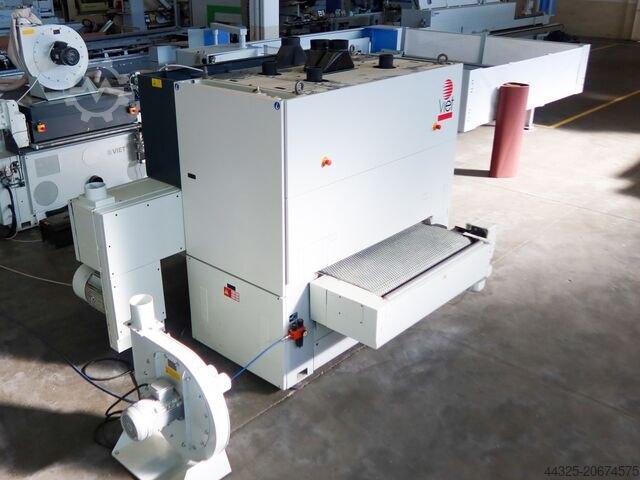

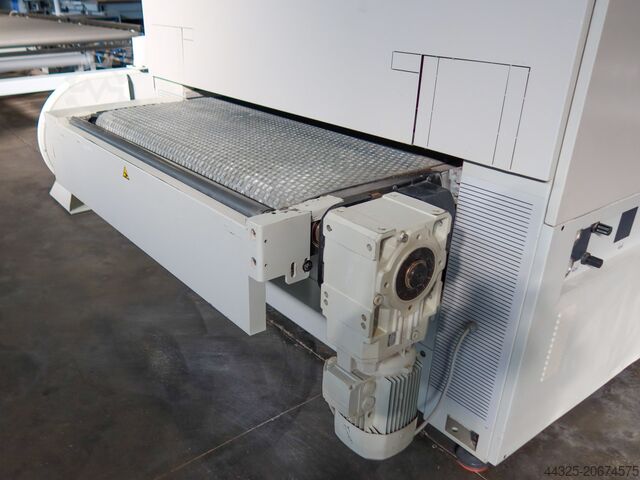

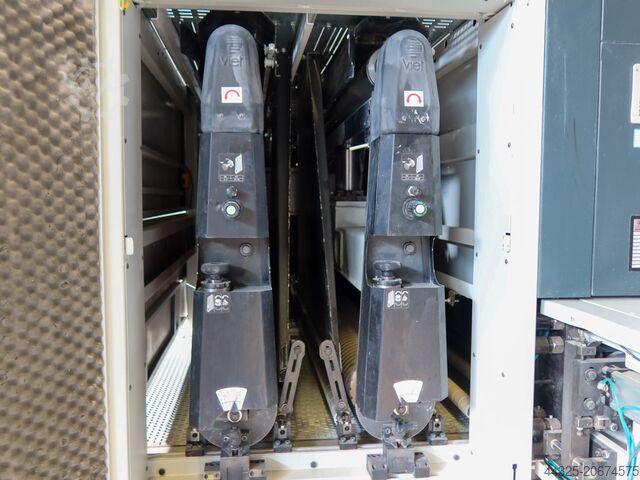

VIET S3 T233

Condition: not inspected (used), Year of construction: 2020, max. workpiece length 6360 mm profile spindle 1 Stück main drive 13 kW Control Maestro SCM CNC Machining Center ACCORD 40 FX for windows and doors ----- Available as an OPTION at an additonal cost: extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden "style" windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows Nwjdpfx Amsy Hl Iyoujh Machine still in operation, available for viewing! Technical Summary (detailed description available upon request!): ----- - ??Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for "Prisma T-S" angle gearbox - BRC - Working unit: Saw blade for face machining, 1 vertical milling cutter connection 3 vertical, independent drill heads, center distance 32 mm 3 vertical drill heads (not independent), center distance 21.5 mm, for mortise drilling 4 horizontal drill heads (2 per side, not independent), center distance 21.5 mm 2 horizontal milling heads (1 per (Page) - TRC 48 - Rear Tool Magazine 48 tool positions (excluding tool holders) Center-to-center distance between positions: 104 mm Max. tool diameter: 350 mm Max. tool length: 320 mm Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle) Max. total weight on the magazine: 250 kg - MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds. - Pendulum operation - Automatic lubrication of the axes - eye-M operating console with integrated PC - Additional fixed control panel - TECPAD - Remote control of machine functions - Clamping jaw preparation H145 for worktable with 8 support rails - Front stop row H110 for worktable with 8 support rails - Rear stop row H110 for worktable with 8 support rails - Suction cup H110 145x145 mm - Swivel suction cup H110 145x55 mm - Swivel suction cup H110 180x65 mm - First side stop row H145 for worktable with 8 support rails Second side stop row H145 for worktable with 8 support rails Clamp H145 with round base Clamp H145 with square base N.6 Lifting devices with double stroke H145 Laser and reference stop H145 for sheet (left) - PRO-SPEED safety system - Maestro CNC - Machine operator interface and programming - Maestro ProView - Simulation software Tools are sold in the condition, scope, and with accessories as they are currently in stock. Note regarding window cutouts, tool drawings, and tool system listings: Engelfried GmbH does not guarantee that the tools actually available correspond to the systems listed and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: ready for operation (used), Number of sanding units 4 St. sanding width 190 mm Sanding height max. 180 mm Control ja weight 3300 kg Dimensions (L/W/H) 2600x920x1890 mm Dust suction hood 2x180, 2x120 mm Löwer DSM 2004 Double-Sided Sanding Machine ----- 4-Belt Sander + Disc Unit (Top/Bottom) Manufacturer's Description: ----- Double-sided, four-belt, single-wood sander for sanding solid wood such as window frames, etc. Highly stable, top-quality design with innovative details. Suitable for high continuous loads, even with high material removal rates. - Sequentially arranged grinding units for roughing, fine grinding, and finishing, each from above and below 1. Belt grinding unit with heavy steel roller 2. Belt grinding unit with rubberized roller and shoe 3. Finishing unit with fiber brush (see optional equipment below) - Direct-drive grinding rollers for slip-free power transmission - Maintenance-free and wear-free CERMET-coated grinding shoes with very good thermal conductivity and absolute dimensional accuracy - External cooling of the grinding zones for cooler grinding and longer belt life - Forced pneumatically controlled grinding belt oscillation - Effective grinding dust extraction directly at the grinding rollers - Airborne dust extraction at the tension rollers - Integrated brushing and finishing unit with large grinding dust extraction - Motorized grinding thickness adjustment via precision threaded spindles and large linear ball bearing sets on hardened and ground precision shafts with dust and Dirt protection - Chip removal adjustment at the bottom via precision threaded spindle with dimension display via scale ring (0.1 mm resolution) - Sanding belt tension via pneumatic cylinder with constant tension pressure Nwedpfx Ajvu Hgbemush - Sanding belt change with pneumatic belt release in seconds - Sanding belt tracking adjustment during belt change - Electropneumatic compressed air monitoring - Infeed protection via contact roller for workpieces that are too thick - Workpiece transport via calibrated, non-slip and adhesive conveyor belts over heavy-duty cast iron tables with a finely planed surface and spring-loaded pressure rollers with fine adjustment - Cardan shaft drive for smooth and consistent workpiece transport - Geared feed motor with infinitely variable speed 4-20 m/min - All motors electrically protected - Ergonomically arranged operating elements - Digital thickness display (0.1 mm resolution) with modern magnetic tape system Technical data: ----- - Sanding belt speed 22 m/s - Sanding belt length 1800 mm - Sanding belt width 200 mm - Working width 190 mm - Sanding thickness 2-180 mm - Four brake motors for drive 5.5 kW - Feed motor 1.5 kW - Feed speed 4-20 m/min - Automatic height adjustment 0.37 kW - Two brush units with fiber brushes D 120 x 200 mm at 0.37 kW each - Extraction ports 2 x 180 mm, 2 x 120 mm - Extraction air velocity 20 m/s - Pneumatic connection 6 bar - Working height 870 mm - Length (with soft disc 2740 mm) 2600 mm - Length with control unit (with soft disc 3035 mm) 2985 mm - Width 880 mm - Height 1910 mm - Weight approx. 3300 kg - Operating voltage 400 volts, 50 Hz, 3P - CE compliant Equipped with the following special options: -----...

Condition: used, machine/vehicle number: 008027, Max. machining width: 1350 mm Min. machining thickness: 200 mm Working Table: Fixed pass height Vacuum feed belt: yes Nodpfxswvq E Ao Amuowh No. Operating units: 4 Nr

Condition: not inspected (used), Year of construction: 2020, max. workpiece length 3740 mm profile spindle 1 Stück main drive 15 kW Control CNC Felder Format4 Type Profit H500S 16.38 CNC Machining Center to be sold on behalf of our customer ----- - From a wood window manufacturing company. - Machine still connected and ready for demonstration - Without machining tools Technical description (summary, full text see PDF): ----- Working dimensions: X = 3,740 mm Y = 1,570 mm Z = 350 mm clearance height (from console level), depending on clamping system, see layout. Travel: X = 4,930 mm Y = 1,925 mm Z = 500 mm Axis positioning speed: X = 80 m/min Y = 80 m/min Z1 = 30 m/min Z2 = 20 m/min - 5-axis milling spindle: 15 kW HSK F63 with liquid cooling, 1,000 - 24,000 rpm - Additional C-axis locking - Drilling head DH 18 6H1S: Vertical drilling unit with 12 spindles (7 spindles in the X direction, 5 spindles in the Y direction, grooving saw in the X direction) Horizontal drilling unit with 6 spindles, 4 spindles in the X direction and 2 spindles in the Y direction. 1 groove saw in the X direction, max. diameter 120 mm - Tool changer with 24 tool positions on the right side of the machine stand max. workpiece diameter 240 mm max. tool height 370 mm Nedpfxeyq Szto Amujwh - Tool changer for circular saw blade mounted on the boom/tool changer max. saw blade diameter 350 mm - Tool changer on the left side of the machine stand with 10 tool positions. Max. workpiece diameter 180 mm Max. tool length 230/300 mm Collet spacing 110 mm - 24-position tool changer mounted on the boom, moving in the X-direction Max. workpiece diameter 240 mm Max. tool height 370 mm - Moving pick-up area for chip deflector plate - 6 workpiece supports with s-motion position control - 2 machining areas for pendulum machining - Vacuum pump 90 m³/h - Chip conveyor belt - Line laser for curved machining - Includes all existing solid wood clamps and vacuum suction cups - Automatic central lubrication - CE safety device - "WoodFLash" software Lamello Clamex P Macro Notching Macro software - "Greenline package" for reduced energy consumption ----- Price of the above machine on Inquiry! ----- NOTE VIDEO: Not an original video. The video is from the machine manufacturer and shows a machine of this type. (Technical specifications according to the manufacturer - without guarantee!) All prices quoted are net, plus VAT.

Condition: ready for operation (used), Number of sanding units 2 st. sanding width 190 mm Sanding height max. 4-180 mm HESS - GLORIA 2 BELT SINGLE WOOD SANDING MACHINE ----- Manufacturer's description: ----- Compact design designed according to modern principles. Quiet and vibration-free operation thanks to rigid, stable machine housing and special insulation. Work safety device in accordance with the EC Machinery Directive with the "dust-tested" certificate. Offset grinding units with large-dimensioned tension rollers for good heat dissipation and stable sanding belt guidance. Sanding units with forced sanding belt oscillation. 2-point sanding dust extraction directly on the sanding roller. Airborne dust extraction on the large tension rollers. Integrated sanding belt blower for longer service life of the sanding belts. Integrated brushing and finishing device, adjustable via threaded spindle, with large dust extraction. Motorized grinding thickness adjustment of the entire upper unit via precision threaded spindles and linear ball sets on hardened and ground precision shafts with dust and dirt protection. Electronic digital display for workpiece thickness (resolution 0.1 mm). Contact roller and grinding shoe in a balanced ratio to the grinding belt grain load. Hardened and ground grinding rollers. Maintenance-free and wear-free oxide ceramic grinding shoes (DBGM) with excellent sliding properties, good heat dissipation and high dimensional accuracy. Grinding belt tension via pneumatic cylinder. Grinding belt change via pneumatically controlled belt relaxation. Ability to adjust the grinding belt run when changing the belt. Electro-pneumatic pressure monitoring of the compressed air supply with visual fault display. Automatic machine stop triggered when sanding belt breaks and by run-in protection with Njdpfev D Rg Dex Amujwh integrated wood thickness control. Optical display on the control panel. Feed device and proven, calibrated non-slip and non-adhesive transport belts on precisely ground tables and spring-loaded pressure rollers. Cardan shaft drive for even wood transport. Feed speed continuously adjustable. Chip removal adjustment bottom via precision threaded spindle with dimension display via scale ring (resolution 0.1 mm) Ergonomic arrangement of the operating and setting elements on the machine front: sanding unit and brush device at the top, sanding unit and brush device at the bottom, workpiece transport device, sanding thickness setting, operating display, fault display. Control and operating unit with lockable main switch built into the machine housing. All motors electrically protected against overload. Technical data: ----- Grinding belt speed: 24 m/sec. Grinding width: 190 mm Grinding thickness: 4 - 180 mm Shortest workpiece length: 300 mm Feed speed: Continuously adjustable 5 - 25 m/min. Sanding belt dimensions: 200 mm wide 1600 mm long Electrical connection: 400 V, 3/N PE, 50 HZ Grinding units: 2 x 4 kW Feed: 0.75 kW Height adjustment: 0.18 kW Pneumatic connection: R 3/8", 80 NL, 8 bar Extraction air volume: 2 x 2000 - 2500 m3/h 20 - 25 m/sec. Extraction connection nozzle: 2 x 160 mm diameter at the top of the machine housing External dimensions: Length: 1600 mm Width: 1030 mm Height: 1820 mm Height with extraction nozzle: 1930 mm Working...

Condition: excellent (used), Year of construction: 1997, total length: 4,400 mm, working width: 1,400 mm, height adjustment type: electric, input frequency: 50 Hz, input voltage: 400 V, Good day, We present for sale Heesemann LSM 8 wide-belt grinding machine in a system of four grinding units: transverse unit / longitudinal unit with calibration roller / longitudinal unit with reverser / longitudinal unit + dust collection brush. Machine after mechanical overhaul and inspection, checked and set up, ready to work. Year of construction: 1997 Feed speed: 5-25 m/min - infinitely adjustable from the control panel Working height: 880 mm Workpieces machined: 3-80 mm Energy demand: 107 kW - at full load Total weight: 10250 kg Control: control panel with physical buttons and display Controls: and side of abrasive belt change: right Single conveyor belts, perforated, perforated table with channel and vakuum fan - for safe transport of short workpieces. Part pressure: rubberized rollers fi 70 mm. Abrasive belt Q aggregate: 5400 mm x 150 mm Motor power: 13/17 kW - two-speed motor - belt speed: 12 m/s / 24 m/s Belt "sergeant": 4850 mm x 141 mm Longitudinal belts L aggregate: 2620 mm x 1450 mm Motor power: 16.5 kW / 21 kW - two-speed motors - 10 m/s / 20 m/s Nwodpju Hlzfjfx Amueh Pressing: Pressure beams with computer-controlled selective pressure control - CSD® system with infinitely variable pressure adjustment of individual pressure elements for trouble-free multi-row loading. Reading control roller distance: 16 mm. The abrasive belts have a cleaning system - blow-off and dust extraction. Workpiece tolerance compensation to a maximum of 2 mm by maintenance-free pressure electromagnets. Working width, as well as the beginning and end of the grinding of the pressure bar electronically controlled. Cleaning of the abrasive belts by means of blow-off tubes, dust extraction by means of integrated exhaust channels, activation of the blow-offs automatic, upon detection of workpieces in the machine. At the end, a cleaning/deblasting brush fi 150 mm with an exhaust duct for dust removal. Additional blow-off rotors at the exit of the machine with an exhaust channel. Commissioning at the new site and initial training in operation - to be agreed. Price negotiable on request, machine available immediately.

Condition: used, machine/vehicle number: 008431, X axis working area: 6360 mm Nsdpeym Rphsfx Amujwh Y axis working area: 1905 mm Working Table: Pod and Rail Number of controlled axes: 5 axes Total number of drilling spindles: 10 Total number of tool changer positions: 60

Condition: excellent (used), Machine with dual electronic crossbar. Njdpfx Amsggyr Ejujwh

Condition: good (used), Year of construction: 1996, double-sided top and bottom sanding with sanding shoe and dust brush max. sanding width 300 mm max. sanding height 200 mm Nedpfexfl Eajx Amujwh year of manufacture 1994 with CE mark

Year of construction: 2014, condition: not inspected (used), Number of sanding units 6 St. sanding width 180 mm Sanding height max. 150 mm STAEHLE Grinding Machine Type Gloria/Saturn E 180 RF ----- Stähle Hess Finish Grinding Machine Type Saturn E 180 RF (formerly Gloria) with 2 grinding units, plus top and bottom Roto Finish grinding attachments. 1 upper grinding belt 1 lower grinding belt 2 upper Roto Finish grinding attachments 2 lower Roto Finish grinding attachments For a detailed description, please see the accompanying PDF from the manufacturer. Nwedpfx Asx Dng Domujh Sold on behalf of a customer. The images are from our archive and were taken before the machine was delivered to the customer. (Technical specifications according to the manufacturer - without guarantee!)
