VIET sander

Viet

Condition: good (used), Year of construction: 1998, functionality: fully functional, working width: 1,300 mm, 1 bottom calibrating sander equipped with 3 bottom belts 30, 22, 18.5 kW Bodpjw A A Enjfx Adqslk 1 top calibrating sander equipped with 3 top belts

Condition: used, Year of construction: 2020, max. workpiece length 3740 mm profile spindle 1 Stück main drive 15 kW Control CNC Felder Format4 Type Profit H500S 16.38 CNC Machining Center to be sold on behalf of our customer ----- - From a wood window manufacturing company. - Machine still connected and ready for demonstration - Without machining tools Technical description (summary, full text see PDF): ----- Working dimensions: X = 3,740 mm Y = 1,570 mm Z = 350 mm clearance height (from console level), depending on clamping system, see layout. Travel: X = 4,930 mm Y = 1,925 mm Z = 500 mm Axis positioning speed: X = 80 m/min Y = 80 m/min Z1 = 30 m/min Z2 = 20 m/min - 5-axis milling spindle: 15 kW HSK F63 with liquid cooling, 1,000 - 24,000 rpm - Additional C-axis locking - Drilling head DH 18 6H1S: Vertical drilling unit with 12 spindles (7 spindles in the X direction, 5 spindles in the Y direction, grooving saw in the X direction) Horizontal drilling unit with 6 spindles, 4 spindles in the X direction and 2 spindles in the Y direction. 1 groove saw in the X direction, max. diameter 120 mm - Tool changer with 24 tool positions on the right side of the machine stand max. workpiece diameter 240 mm max. tool height 370 mm - Tool changer for circular saw blade mounted on the boom/tool changer max. saw blade diameter 350 mm - Tool changer on the left side of the machine stand with 10 tool positions. Max. workpiece diameter 180 mm Max. tool length 230/300 mm Collet spacing 110 mm - 24-position tool changer mounted on the boom, moving in the X-direction Max. workpiece diameter 240 mm Max. tool height 370 mm - Moving pick-up area for chip deflector plate - 6 workpiece supports with s-motion position control - 2 machining areas for pendulum machining - Vacuum pump 90 m³/h - Chip conveyor belt - Line laser for curved machining - Includes all existing solid wood clamps and vacuum suction cups - Automatic central lubrication - CE safety device - "WoodFLash" software Lamello Clamex P Macro Notching Macro software - "Greenline package" for reduced energy consumption Bjdpfx Adoyq Sztsqolk ----- Price of the above machine on Inquiry! ----- NOTE VIDEO: Not an original video. The video is from the machine manufacturer and shows a machine of this type. (Technical specifications according to the manufacturer - without guarantee!) All prices quoted are net, plus VAT.

Condition: ready for operation (used), Year of construction: 1993, Automatic sander VIET Mod. Rita 4C EL Fixed plane moving heads Working width 1350 mm Working height 4 – 160mm Nr 03 suction hood depressors diameter 150 mm Bjdeltlx Tjpfx Adqslk Belt feed speed 6 – 20 with 3 kw inverter Hood carpet cleaning brush diameter 120 mm Composition: 1st transversal polishing unit mod. TET 60 electronic pad 60 sectors Lamellar tape 6150 x 140 mm Our abrasive 8350 x 170 mm Velocity 5.6 – 26.2m/s Inverter kw 15 Three 140 mm diameter extraction hoods 2nd roller sanding unit mod. R320 – 40 rubber coating 40° SH Sanding belt 3250 x 1400 mm Speed 1.5 – 12.5m/s Inverter kw 15 Belt cleaning blower Two extraction hoods with a diameter of 140 mm and one with a diameter of 200 mm 3rd buffer polishing group mod. TE 60 electronic pad 60 sectors Sanding belt 3250 x 1400 mm Velocity 2.9 – 14.1m/s Inverter kw 15 Belt cleaning blower Two extraction hoods with a diameter of 140 mm and one with a diameter of 200 mm 4th cross sanding unit mod. TET 60 electronic pad 60 sectors Lamellar tape 6150 x 140 mm Our abrasive 8350 x 170 mm Velocity 5.6 – 26.2m/s Inverter kw 15 Three 140 mm diameter extraction hoods 5th scotch-brite group Engine kW 0.55 Suction hood diameter 140 mm 6th brush unit Engine kW 0.55 Suction hood diameter 140 mm 7th panel cleaning rotary blower group

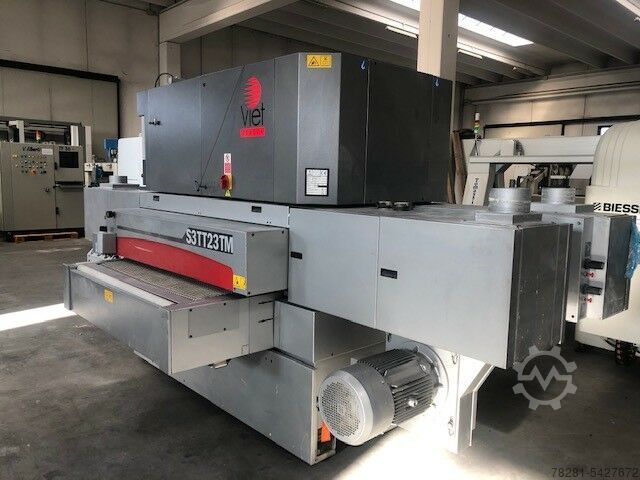

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, working width: 1,300 mm, overall weight: 4,700 kg, height adjustment type: electric, Wide-belt sanding machine Bjdpfx Aozd Ayledqjlk Manufacturer: Viet Type: S3 223 TM Year of manufacture: 2006 (CE) Well-maintained calibrating and fine-sanding machine from a small carpentry/manufacturing workshop, suitable for sanding solid wood, veneer, and lacquered surfaces. Working width: 1300 mm Constant table height, motorized height adjustment of the machine’s upper part (the machine is also suitable for inline operation). Automatic workpiece detection, thickness measurement, and infeed protection. 1x cross-sanding unit, sanding belt dimensions: 150 x 5520 mm 1x combination unit with calibrating roller and electronic segmented sanding shoe, segment pitch: 25 mm 1x cleaning brush for removing dust from workpieces 1x ionizer to prevent static charging Feed rate infinitely adjustable Vacuum transport for small, short, or slippery workpieces (e.g., lacquered parts) Operating voltage: 400 V, 50 Hz, 3 phases Dimensions: approx. 2500 x 2850 x 2280 mm (L x W x H) Weight: approx. 4700 kg

Condition: used, machine/vehicle number: 008027, Max. machining width: 1350 mm Min. machining thickness: 200 mm Working Table: Fixed pass height Vacuum feed belt: yes Bledpfswvq E Aox Adqok No. Operating units: 4 Nr

Condition: excellent (used), Year of construction: 1995, 2 grinding aggregates with 22kW motors each Cleaning brush Smooth feed regulation Vacuum suction of the workpiece Blsdpfx Ashxvi Eodqsk Powered receiving roller table

Condition: used, machine/vehicle number: 007614, Max. machining width: 1300 mm Working Table: adjustable Vacuum feed belt: yes No. Operating units: 3 Nr Bjdpfox A Tatox Adqjlk

Condition: ready for operation (used), Number of sanding units 2 st. sanding width 190 mm Sanding height max. 4-180 mm HESS - GLORIA 2 BELT SINGLE WOOD SANDING MACHINE ----- Manufacturer's description: ----- Compact design designed according to modern principles. Quiet and vibration-free operation thanks to rigid, stable machine housing and special insulation. Work safety device in accordance with the EC Machinery Directive with the "dust-tested" certificate. Offset grinding units with large-dimensioned tension rollers for good heat dissipation and stable sanding belt guidance. Sanding units with forced sanding belt oscillation. 2-point sanding dust extraction directly on the sanding roller. Airborne dust extraction on the large tension rollers. Integrated sanding belt blower for longer service life of the sanding belts. Integrated brushing and finishing device, adjustable via threaded spindle, with large dust extraction. Motorized grinding thickness adjustment of the entire upper unit via precision threaded spindles and linear ball sets on hardened and ground precision shafts with dust and dirt protection. Electronic digital display for workpiece thickness (resolution 0.1 mm). Contact roller and grinding shoe in a balanced ratio to the grinding belt grain load. Hardened and ground grinding Blsdpfxov D Rg De Adqok rollers. Maintenance-free and wear-free oxide ceramic grinding shoes (DBGM) with excellent sliding properties, good heat dissipation and high dimensional accuracy. Grinding belt tension via pneumatic cylinder. Grinding belt change via pneumatically controlled belt relaxation. Ability to adjust the grinding belt run when changing the belt. Electro-pneumatic pressure monitoring of the compressed air supply with visual fault display. Automatic machine stop triggered when sanding belt breaks and by run-in protection with integrated wood thickness control. Optical display on the control panel. Feed device and proven, calibrated non-slip and non-adhesive transport belts on precisely ground tables and spring-loaded pressure rollers. Cardan shaft drive for even wood transport. Feed speed continuously adjustable. Chip removal adjustment bottom via precision threaded spindle with dimension display via scale ring (resolution 0.1 mm) Ergonomic arrangement of the operating and setting elements on the machine front: sanding unit and brush device at the top, sanding unit and brush device at the bottom, workpiece transport device, sanding thickness setting, operating display, fault display. Control and operating unit with lockable main switch built into the machine housing. All motors electrically protected against overload. Technical data: ----- Grinding belt speed: 24 m/sec. Grinding width: 190 mm Grinding thickness: 4 - 180 mm Shortest workpiece length: 300 mm Feed speed: Continuously adjustable 5 - 25 m/min. Sanding belt dimensions: 200 mm wide 1600 mm long Electrical connection: 400 V, 3/N PE, 50 HZ Grinding units: 2 x 4 kW Feed: 0.75 kW Height adjustment: 0.18 kW Pneumatic connection: R 3/8", 80 NL, 8 bar Extraction air volume: 2 x 2000 - 2500 m3/h 20 - 25 m/sec. Extraction connection nozzle: 2 x 160 mm diameter at the top of the machine housing External dimensions: Length: 1600 mm Width: 1030 mm Height: 1820 mm Height with extraction nozzle: 1930 mm Working...

Condition: used, machine/vehicle number: 008291, Position 1: Bottom Sanders VIET-S3 - VALERIA Position 2: Top Sanders VIET-S3 - VALERIA Bledpox A Tayofx Adqok

Condition: used, machine/vehicle number: 007613, Max. machining width: 1300 mm Blodpfx Adox A Tagsqek Min. machining thickness: 3 mm Working Table: adjustable Vacuum feed belt: yes No. Operating units: 3 Nr

Condition: used, machine/vehicle number: 008431, X axis working area: 6360 mm Y axis working area: 1905 mm Working Table: Pod and Rail Number of controlled axes: 5 axes Total number of drilling spindles: 10 Bsdpjym Rphjfx Adqjlk Total number of tool changer positions: 60

Condition: ready for operation (used), Year of construction: 2010, working width: 1,350 mm, Belt sander manufactured in 2010. This VIET S3 333 features a working width of 1350 mm and accommodates workpiece thickness from 3 to 160 mm. It includes three sanding units with powerful 4 kW motors and a conveyor group speed of 3-16 m/min. If you are looking to get high-quality sanding capabilities, consider the VIET S3 333 belt sander we have for sale. Contact us for further details. • 1st Sanding Unit (Composition): Spinbrush • 1st Sanding Unit (Motorization): INV 4 kW • 2nd Sanding Unit (Composition): Brush • 2nd Sanding Unit (Motorization): INV 4 kW • 3rd Sanding Unit (Composition): Brush • 3rd Sanding Unit (Motorization): INV 4 kW • Conveyor Group: 3–16 m/min • Conveyor Group (Motorization): INV 3 kW • Adjustment/Rise (Motorization): MTR 0.37 kW • Vacuum Pump (Motorization): MT 4 kW Blsdpfeyu Tfzjx Adqok • Mass: 4170 kg • Workpiece Thickness: 3–160 mm • Operating Voltage: 3 AC - 400 V • Frequency: 50 Hz • Current Draw: 48.9 A • Motor with Max Current Draw: 8 A • Minimum Compressed Air Pressure: 6 - 86 bar-Psi • Maximum Compressed Air Pressure: 8 - 116 bar-Psi • Compressed Air Consumption: 1441 Nl/min • Minimum Suction Flow Speed: 25 m/s • Minimum Suction Capacity: 6190 m³/h • Noise Level (Idle): 75 dB(A) • Noise Level (Operating): 76 dB(A)

Condition: used, HESS HYDRO frame press – used Manually hydraulically operated, Hydraulic cylinders arranged horizontally, Hydraulic cylinders arranged vertically ----- Technical data ----- Press width: 4,000 mm, Blsdpezkkdlsfx Adqsk Press height: 2,550 mm, Cylinder stroke: 150 mm, Motor: 1.1 kW

Condition: excellent (used), Year of construction: 1997, total length: 4,400 mm, working width: 1,400 mm, height adjustment type: electric, input frequency: 50 Hz, input voltage: 400 V, Good day, We present for sale Heesemann LSM 8 wide-belt grinding machine in a system of four grinding units: transverse unit / longitudinal unit with calibration roller / longitudinal unit with reverser / longitudinal unit + dust collection brush. Blsdpfxeu Hlzfs Adqok Machine after mechanical overhaul and inspection, checked and set up, ready to work. Year of construction: 1997 Feed speed: 5-25 m/min - infinitely adjustable from the control panel Working height: 880 mm Workpieces machined: 3-80 mm Energy demand: 107 kW - at full load Total weight: 10250 kg Control: control panel with physical buttons and display Controls: and side of abrasive belt change: right Single conveyor belts, perforated, perforated table with channel and vakuum fan - for safe transport of short workpieces. Part pressure: rubberized rollers fi 70 mm. Abrasive belt Q aggregate: 5400 mm x 150 mm Motor power: 13/17 kW - two-speed motor - belt speed: 12 m/s / 24 m/s Belt "sergeant": 4850 mm x 141 mm Longitudinal belts L aggregate: 2620 mm x 1450 mm Motor power: 16.5 kW / 21 kW - two-speed motors - 10 m/s / 20 m/s Pressing: Pressure beams with computer-controlled selective pressure control - CSD® system with infinitely variable pressure adjustment of individual pressure elements for trouble-free multi-row loading. Reading control roller distance: 16 mm. The abrasive belts have a cleaning system - blow-off and dust extraction. Workpiece tolerance compensation to a maximum of 2 mm by maintenance-free pressure electromagnets. Working width, as well as the beginning and end of the grinding of the pressure bar electronically controlled. Cleaning of the abrasive belts by means of blow-off tubes, dust extraction by means of integrated exhaust channels, activation of the blow-offs automatic, upon detection of workpieces in the machine. At the end, a cleaning/deblasting brush fi 150 mm with an exhaust duct for dust removal. Additional blow-off rotors at the exit of the machine with an exhaust channel. Commissioning at the new site and initial training in operation - to be agreed. Price negotiable on request, machine available immediately.

Condition: used, Year of construction: 2012, Condition: Used, ready for operation • The first unit is equipped with a Ø190 mm calibration roller with a grooved rubber coating, hardness 90 Shore. • The second, combined unit contains a Ø190 mm sanding roller with a grooved rubber coating, hardness 40 Shore. In addition, it includes a hard felt sanding pad mounted on an aluminium rail, with a graphite-grain surface for fine sanding. The pad is equipped with timer-controlled automatic operation. Options: Electronically controlled sanding pad divided into 42 sections. The unit is driven by an independent motor with inverter-controlled speed adjustment and the possibility of changing the direction of rotation. • The third unit is a finishing brush roller. Technical specifications: Working width: 1350 mm Sanding belt size: 1380 x 2200 mm Workpiece thickness: 3–160 mm Motor power of first unit: 11 kW Motor power of second (combined) unit: 11 kW Feed speed: 3–16 m/min Feed motor power: 1.5 kW Pneumatic connection: 6 bar Air consumption: 17 Nl/min Extraction port diameter: 158 mm Extraction air speed: 25 m/min Required extraction capacity: 3095 m³/h Net machine weight: 2450 kg Width: 2320 mm Length: 2030 mm Height: 2050 mm The table movement is carried out by four large-diameter trapezoidal threaded lead screws, which are mounted externally on the machine frame. Table rollers: one roller is positioned before and one after the feed belt. • The feed belt has a 60 Shore hardness rubber surface with a concave pattern. • Precise tracking of the feed belt is ensured by an automatic centering unit. PRESSURE HOLD-DOWN UNITS • Rubber-coated pressure rollers are positioned before and after the processing units to ensure accurate holding-down of the parts being sanded. Blodezlxp Sspfx Adqjk SAFETY EQUIPMENT • with CE standards. Options: • Electronically controlled sensing unit for the 42-section sanding pad • Front table extension with two roller cylinders • Rear table extension with two roller cylinders • Complete vacuum table with vacuum pump: 2.2 kW – 3 HP • Electro-pneumatic engagement/disengagement of the contact roller • Nozzle system for cleaning and cooling the sanding belt. A.S.S. (Air Saving System) • Kombi R (drum) Ø190 – electronically controlled sanding pad divided into 42 sections (32 mm pitch) • Electro-pneumatic engagement/disengagement of the contact roller • Electro-pneumatic engagement/disengagement of the sanding pad • Nozzle system for cleaning and cooling the sanding belt. A.S.S. (Air Saving System) • Possibility of reversing the sanding belt rotation direction • Electronic inverter 11 kW (15 HP) • IPC COMPACT 8.5" control panel • Scotch Brite roller Ø200 mm – 1.1 kW – 1.5 HP Specifications are provided for information only. This machine is offered for sale on behalf of a customer. Viewing is available by prior arrangement. Please contact us through the platform's messaging system for further information and the relevant technical contact details.
