Band saws SCM 2017

SCM

Year of construction: 2023, condition: ready for operation (used), functionality: fully functional, overall weight: 850 kg, rotational speed (max.): 5,000 rpm, table length: 3,100 mm, table width: 360 mm, machine/vehicle number: KK00034979, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates you to collect the item on time, either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Table dimensions: 3,100 x 360 mm Fsdpfx Aeynhkxofzoga Speed range: 3,500 and 5,000 rpm MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Dimensions & Weight Dimensions (L x W x H): 4,000 x 4,000 x 1,700 mm Weight: 850 kg EQUIPMENT Digital measuring device up to 2,000 mm Extraction unit Note: The saw can be transported on a standard truck External reference: Groven - Lot 23

Condition: excellent (used), Catalogue number: 7713 TECHNICAL DATA - Maximum workpiece width: 240 mm - Maximum workpiece height: 130 mm - 6 spindles: 1) Bottom horizontal: 240 mm, 7.5 kW 2) Right vertical: 130 mm, 5.5 kW 3) Left vertical: 130 mm, 5.5 kW 4) Top horizontal: 240 mm, 7.5 kW 5) Top horizontal: 240 mm, 5.5 kW (Spindles 4 and 5 adjustable electrically up/down) 6) Bottom horizontal: 240 mm, 5.5 kW - All spindles adjustable up/down, left/right - Spindle diameter: 40 mm *From above: - 8 infeed metal feed rollers, toothed, including 3 double rollers - 4 outfeed smooth rubber feed rollers, including 2 double rollers *From below: - 3 smooth feed rollers - 3 lateral pressure rollers - Infinitely variable feed speed adjustment via inverter - Pneumatically adjustable pressure rollers - Feed motor: 7.5 kW - Feed via cardan shaft rollers - Electric thickness adjustment - Lifting motor: 0.75 kW - Infeed table length: 2480 mm - Pneumatic cabin opening/closing - Pneumatic table blow-off - Central table lubrication - Extraction port diameters: 3x120 mm, 3x150 mm - Dimensions (L/W/H): 5300x1700x1800 mm - Weight: 5000 kg ADVANTAGES – Italian production – 6-head design – For wet and dry wood – Pneumatic cabin opening – Pneumatic table blow-off – Spindles 4 and 5 electrically adjustable – Used planer, in very good condition Net price: 126,900 PLN Net price: 30,200 EUR (depending on exchange rate 4.2 EUR) (Prices may vary in case of significant changes in exchange rate) Fedpfey Aaiwjx Afzjga

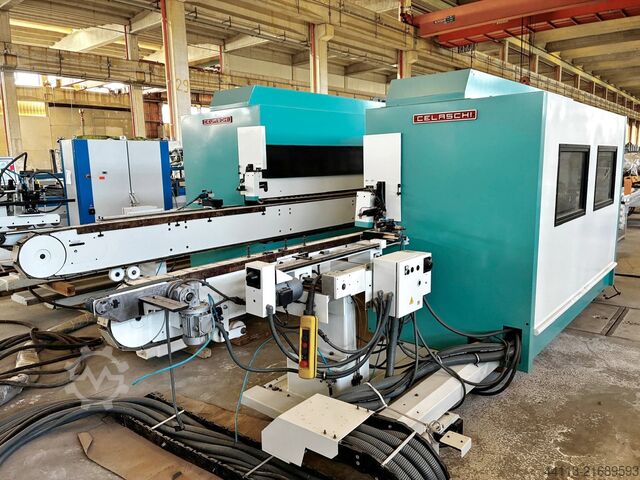

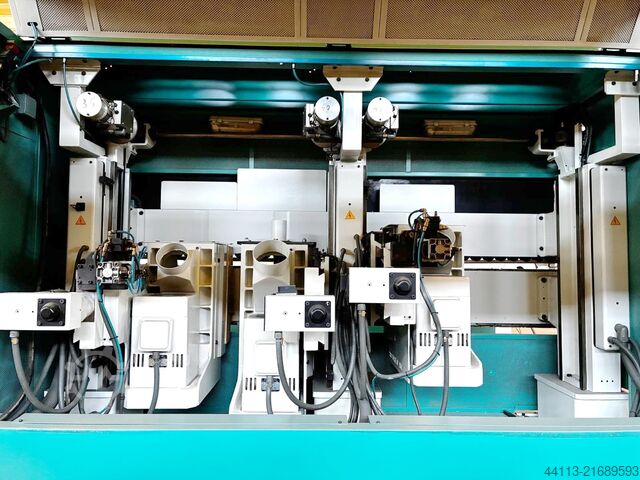

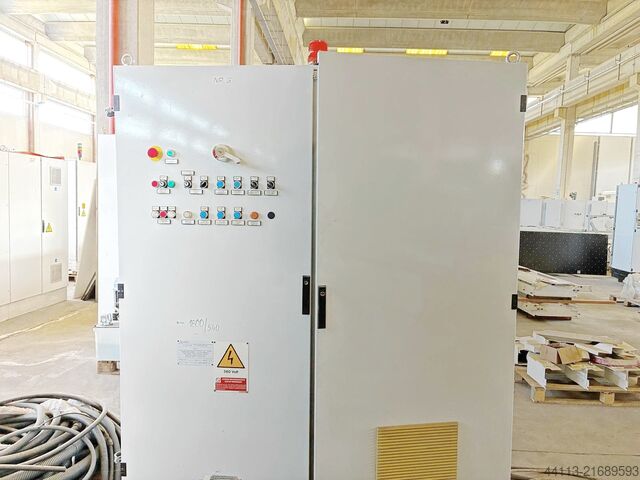

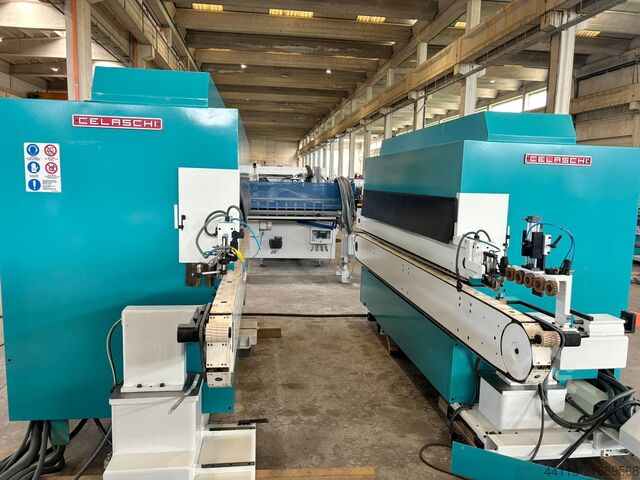

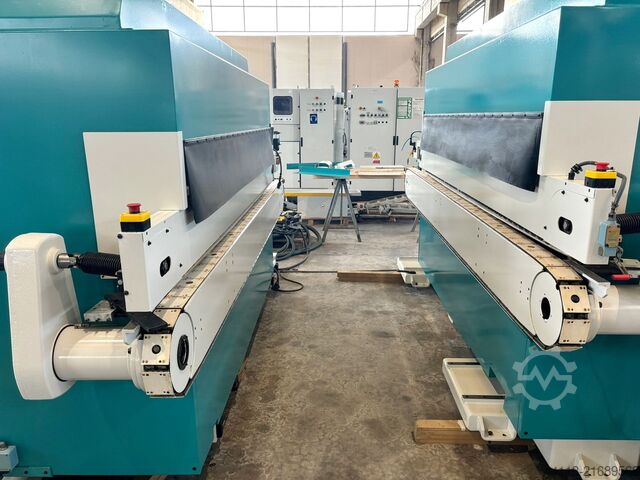

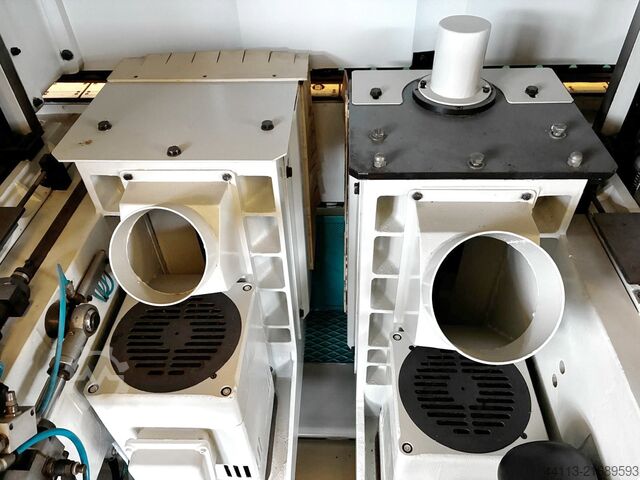

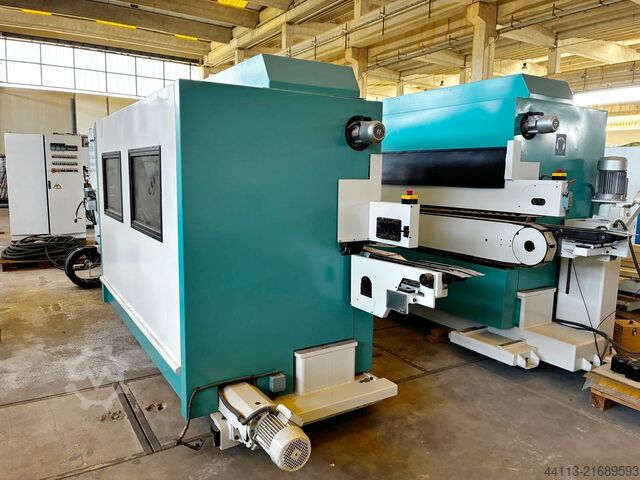

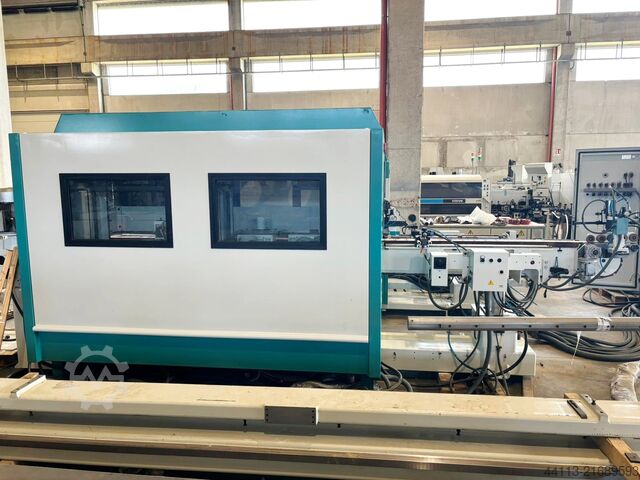

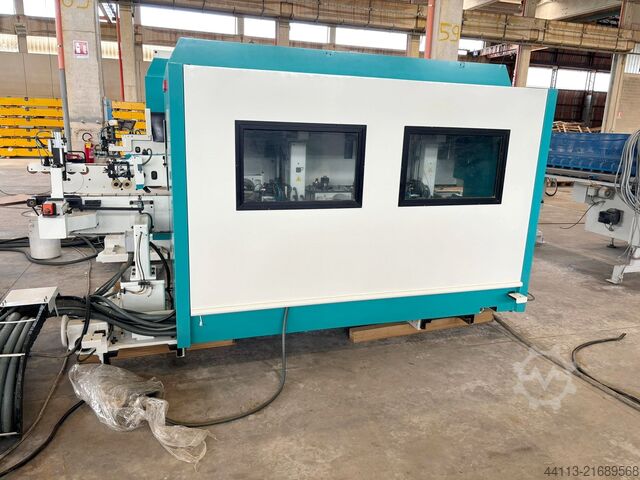

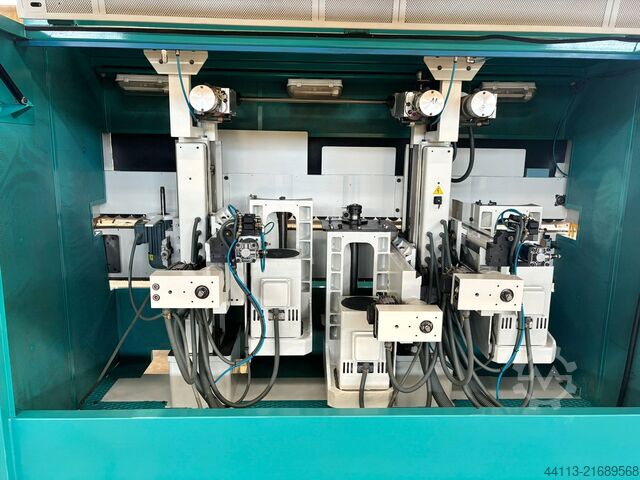

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is 2nd DET in the X10023 LINE Electronic Programmer OMRON Safety and sound-proof enclosure Electric and command cabinet No. 3+3 Vertical columns to support the working units As a second machine, it accepts panels 1900 mm deep Fgsdpfxoyz Si Hj Afzja Min. useful working width (mm) 300 Max. useful working width (mm) 2500 Min. useful working thickness (mm) 6 (ca.) Max. useful working thickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 65 No. 3 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 500 mm ca.), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Free space

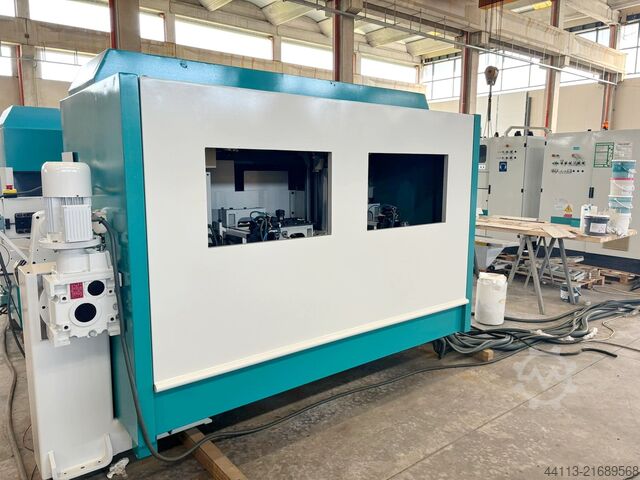

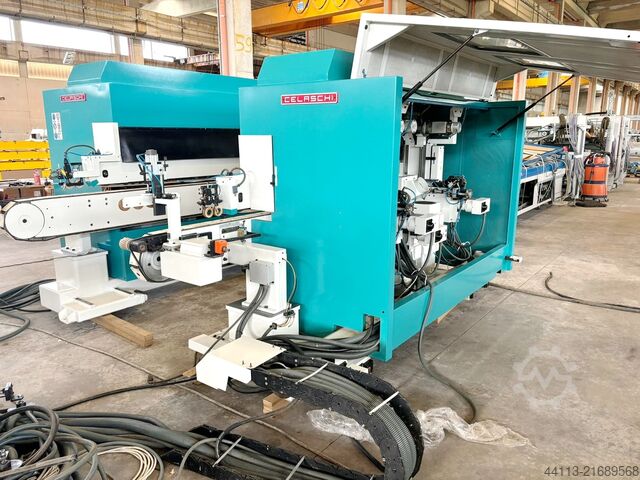

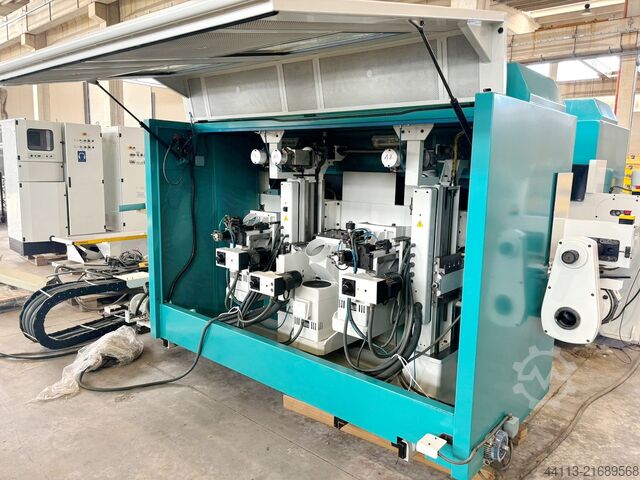

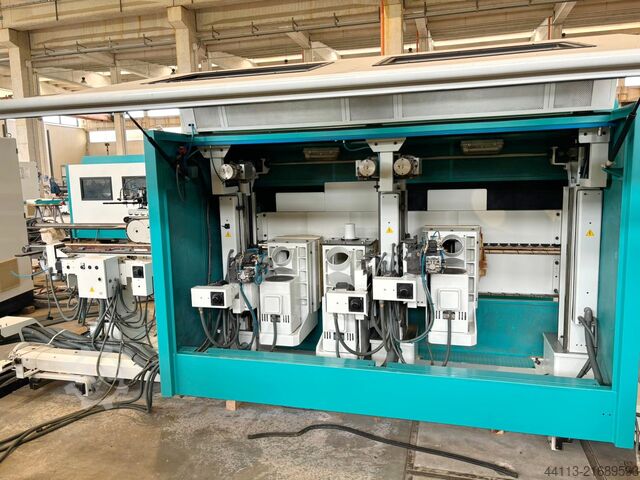

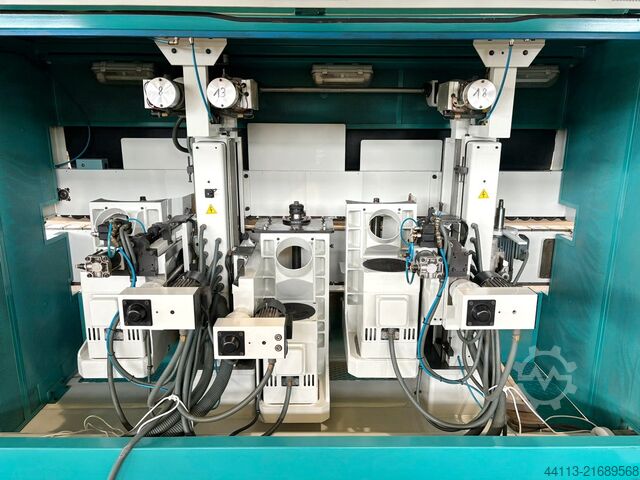

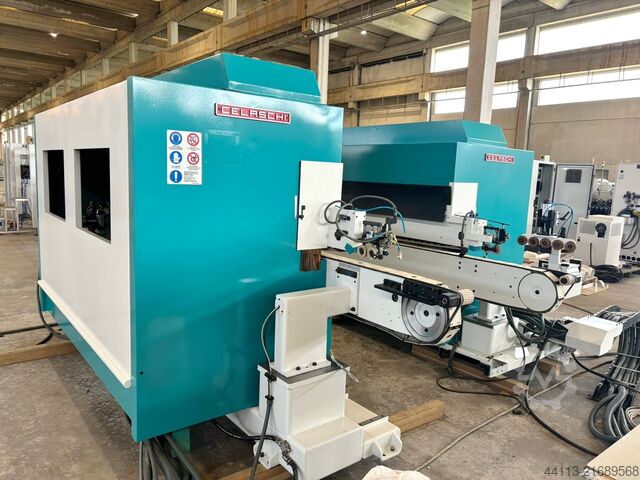

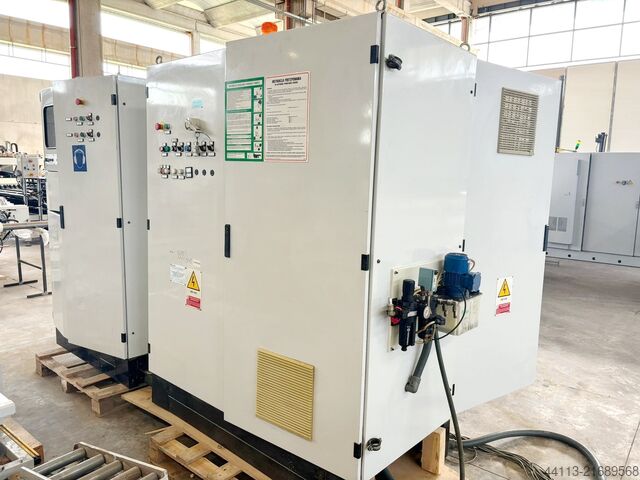

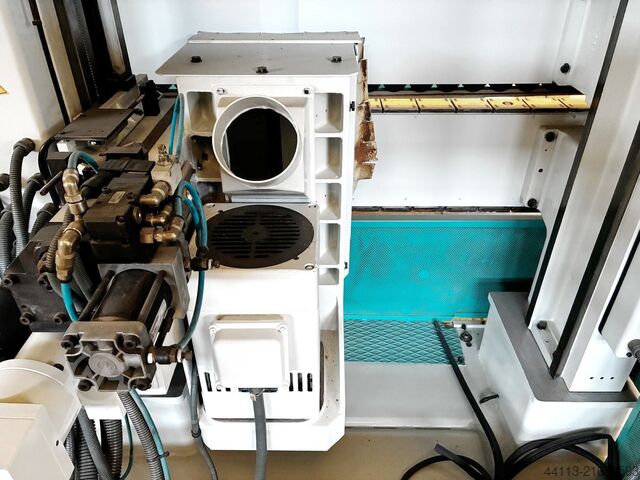

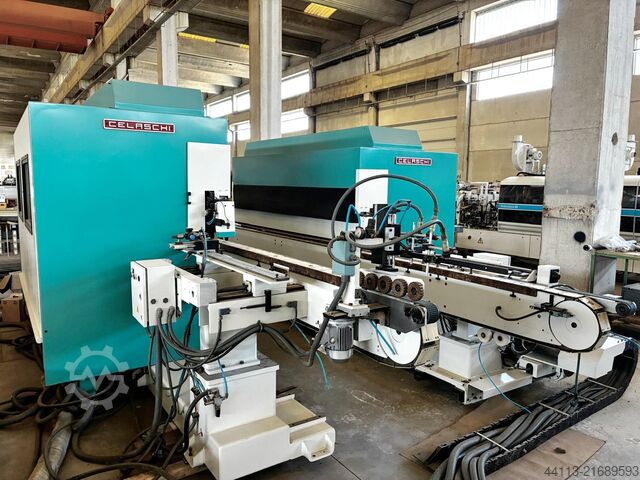

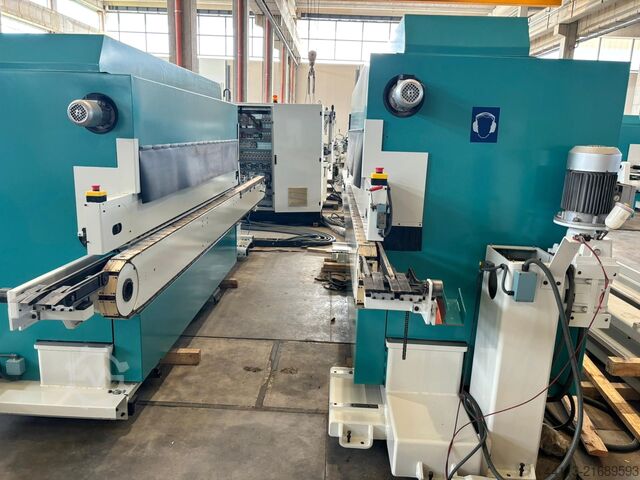

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is the 1st Double End Tenenor in the X10023 LINE Electronic Programmer OMRON Safety and sound-proof enclosure Electric and command cabinet No. 2+2 Vertical columns to support the working units Fedpfx Aeyz Siaefzsga Min. useful working width (mm) 300 Max. useful working width (mm) 2000 Min. useful working thickness (mm) 6 Max. useful working thickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 60 No. 4 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Vertical Milling Unit (1.5 kW at 1470 rpm)

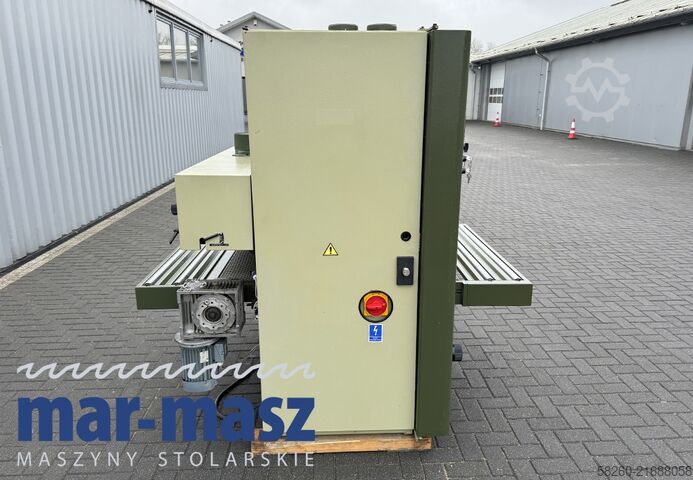

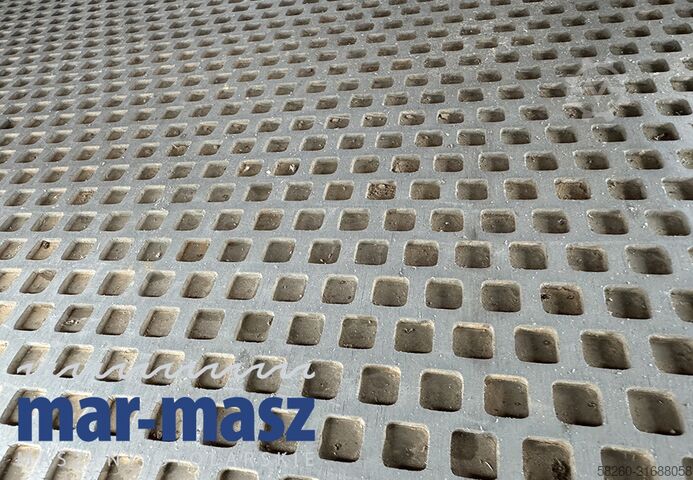

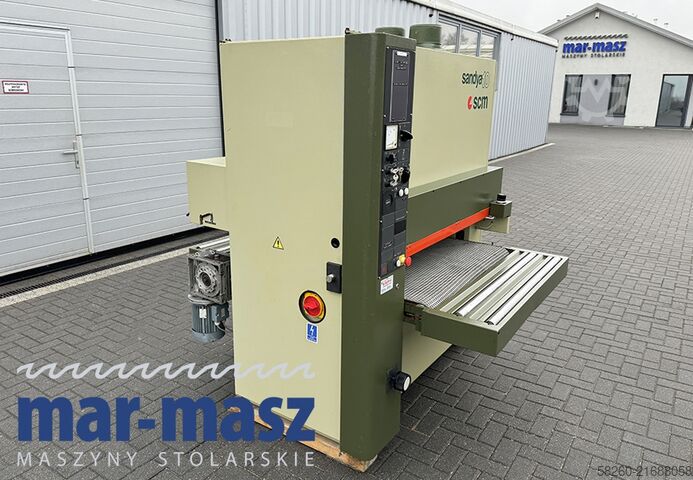

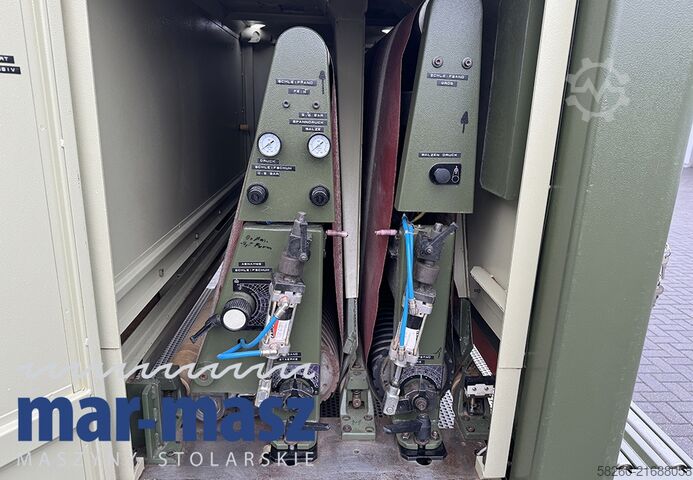

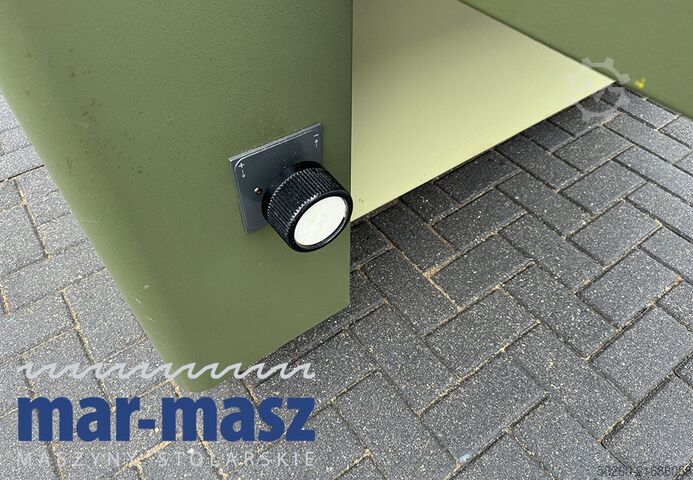

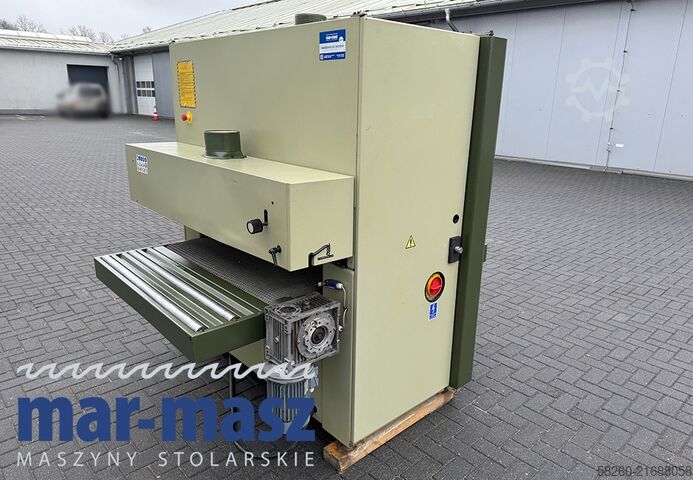

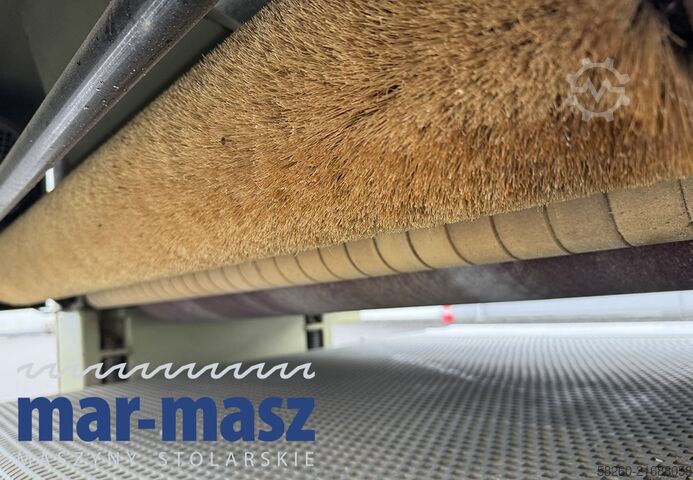

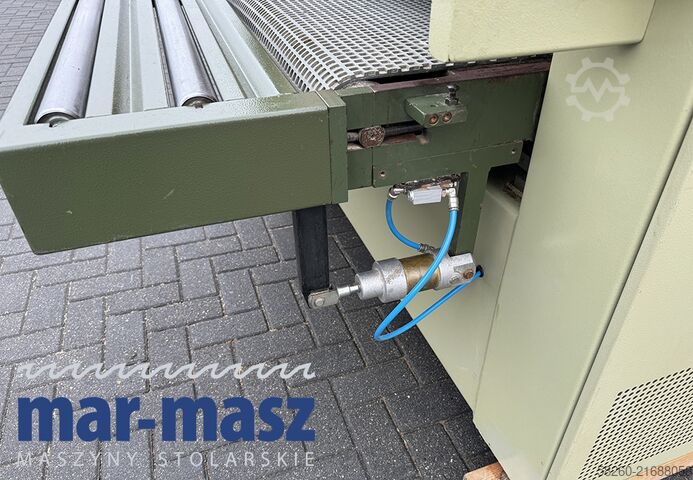

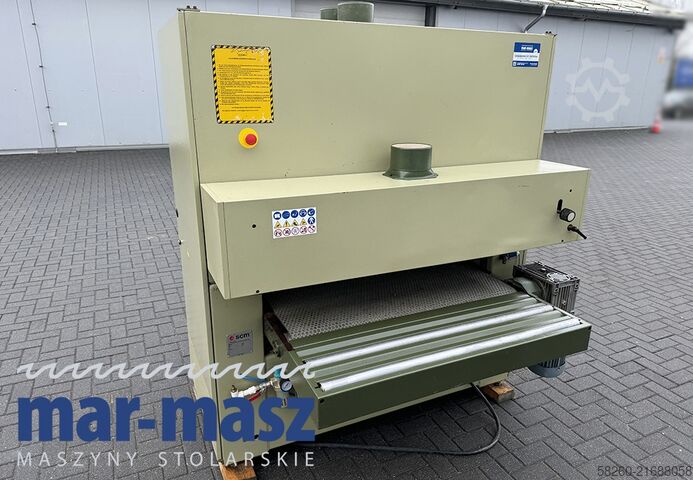

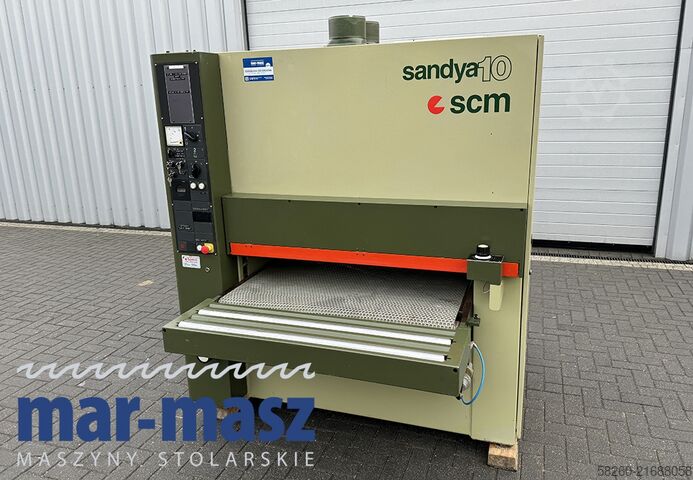

Condition: excellent (used), CATALOG NUMBER 7850 Technical data: - Maximum workpiece width: 1100 mm - Maximum workpiece height: 160 mm 2 working units: 1) Grooved rubber calibration roller 2) Grooved rubber roller + pneumatic segmented pad + steel roller - Motor power: 15 kW - Brake - From above: - Split, non-slip rubber feed roller - Working unit - Split, non-slip rubber feed roller - Working unit with segmented pad Fodpfx Aoyz N D Isfzoga - Split, non-slip, outfeed rubber roller - Cleaning brush - From below: - 2 non-slip steel rollers - Feed belt - 2 non-slip, outfeed steel rollers - Pneumatic belt oscillation controlled by photocell - Electric table height adjustment - 2 feed speeds - Feed motor power: 0.75 kW - Sanding thickness potentiometer - Working pressure: 8–10 bar - Dust extraction port diameter: 3 x 165 mm - Overall dimensions (L/W/H): 1900 x 1700 x 1930 mm - Weight: approx. 1,502 kg ADVANTAGES – Italian production, SCM brand – 2 working units – Sanding thickness potentiometer – Pneumatic segmented pad – Original paint (not repainted) – Technical documentation (DTR) – Used sander, very good condition Net price: 32,900 PLN Net price: 7,830 EUR Net price calculated at the rate of 4.2 PLN/EUR (price may change in the event of significant exchange rate fluctuations)

Condition: excellent (used), Catalogue number 7739 TECHNICAL DATA SURFACE PLANER: - shaft width: 410 mm - 3-knife cutterblock - sound-dampening comb Fgodexbp Anspfx Afzea - shaft guard - adjustable angle guide fence - table length: 2060 mm - both tables adjustable THICKNESSER: - max material thickness on thicknesser: 240 mm - thicknesser shaft guard *from above: - anti-kickback fingers - serrated, sprung feed roller - pressure bars - planing cutterhead - pressure bar - smooth outfeed roller - 2 adjustable rollers in lower table - main motor: 5.5 kW - electric brake - electric table height adjustment (up/down) - dust extraction port diameter: 120 mm - dimensions (L/W/H): 2060x970x1150 mm - weight: 660 kg ADVANTAGES – Italian-made – sound-dampening comb – not repainted – in perfect condition – used planer-thicknesser Net price: 22,900 PLN Net price: 5,450 EUR (calculated at 4.2 PLN/EUR) (Prices may fluctuate with larger exchange rate changes)

Condition: excellent (used), Catalogue number: 7776 TECHNICAL DATA Fsdsyi Twmspfx Afzjga - Shaft width: 520 mm - 4-knife cutter block - Noise-reducing comb - Shaft guard - Table length: 3010 mm - Longer, electrically adjustable infeed table: 1770 mm - Cast-iron tables - Both tables adjustable - Original cast-iron fence, angle adjustable - Electric brake - Extractor connection diameter: 120 mm - Motor: 4 kW - Dimensions (L/W/H): 3010x1000x1400 mm - Weight: 870 kg ADVANTAGES - Italian production - 4-knife cutter block - Overhead control panel - Electric brake - Noise-reducing comb - Longer infeed table - Not repainted - Used surface planer, very good condition, original DTR documentation, CE Net price: 28,900 PLN Net price: 6,880 EUR (based on 4.2 EUR rate) (Prices may vary with significant fluctuations)

Condition: excellent (used), CATALOG NUMBER 7479 Technical data: - shaft width: 410 mm - 4-knife shaft (TERSA) - noise reduction comb - shaft guard - table length: 2610 mm - longer infeed table: 1435 mm - cast iron tables - both tables adjustable - original cast iron tiltable fence - brake - extraction port diameter: 115 mm - motor: 4 kW - dimensions (LxWxH): 2610x960x1110 mm - weight: 578 kg ADVANTAGES – Made in Italy – 4-knife shaft – brake – noise reduction comb – longer infeed table – unpainted – used surface planer, in very good condition, original DTR documentation Fedjyit Apopfx Afzega Net price: 21,900 PLN Net price: 5,200 EUR (exchange rate 4.2 EUR) (Prices may change depending on significant exchange rate fluctuations)

Condition: like new (used), Year of construction: 2023, SCM Accord 40 fx CNC machining center with the following equipment: Working area X-Y = 6360 x 1905 mm, Z = 350 mm OF0158 Usable Z clearance height = 350 mm with H50 suction cups OF0165 Axis travel speed of Accord 40 fx Version PRO-SPEED OF0168 Pendulum (dual-zone) operation OF0169 Automatic axis lubrication OF0299 TELESOLVE remote maintenance via Internet 450328 eye-M PRO control console with integrated PC 450291 Additional fixed control panel 870068 TECPAD – remote control of machine functions 560058 No. 10 carrier rails MATIC – L1825 230429 MAXI working unit – Prisma KT 1 870046 Prepared for angle gearbox "Prisma KT-KS" 470014 Air nozzle for tool 870119 Device for tool length measurement 870120 Device for panel thickness measurement 870009 Drilling unit F16 OF0176 Front stop row H50 for worktable with 10 carrier rails 510205 Preparation for clamps for worktable with 10 carrier rails 480178 Front stop row H110 for worktable with 10 carrier rails 480105 Rear stop row H110 for worktable with 10 carrier rails 480137 First lateral stop row H110 for worktable with 10 carrier rails 480005 Suction cups H110, 145x145 mm, 36 pcs 480006 Suction cups H110, 145x55 mm, rotatable, 10 pcs 480007 Suction cups H110, 180x65 mm, rotatable, 10 pcs 480018 Suction cups H110, 145x30 mm, rotatable, 5 pcs 480410 Lifting devices H110, 8 pcs 350016 Vacuum pump 250 (300) m³/h 560538 Additional automatically adjustable base for MATIC 10 carrier rail 190046 PRO-SPEED safety system 524800 "SAV€NERGY" 2.0 energy saving system Fodpfx Ajyfgzdefzega 210837 TR12 – lateral tool magazine 210056 Rapid 24 – rear tool magazine OF0182 Air conditioning for control cabinet OF0438 Human-machine interface software (HMI) MAESTRO ACTIVE OF0543 Operating system Windows 10 embedded 64 bit OF0422 Machine operating interface software Maestro cnc OF0435 Hardware dongle for Maestro cnc 524309 Maestro 3D-Advanced module 109993 MACHINE LANGUAGE: German SPECIAL FEATURES INCLUDED IN MACHINE CONFIGURATION: - Extension of maximum panel width to 2,120 mm for full processing; traverse length remains unchanged at 1900 mm. - 10 support suction cups for remnants MACHINE ALREADY DISMANTLED AND STORED. LIST PRICE 2023 EUR 399,890.--

Condition: new, Year of construction: 2025, heavy-duty construction with cast iron table smooth movements using hand lever and handwheel eccentric clamping device dowel drilling unit with 16-22-25-32 mm grid 2 spindle speeds: 1500/3000 rpm WESCOTT drill chuck 1 - 16 mm Fgedpfx Aeycg U Ejfzja CE compliant Work table dimensions: 287 x 550 mm Longitudinal travel: 200 mm Vertical travel: 160 mm Cross travel: 125 mm Three-phase motor power: 1.8 kW, 400 V, 50 Hz
