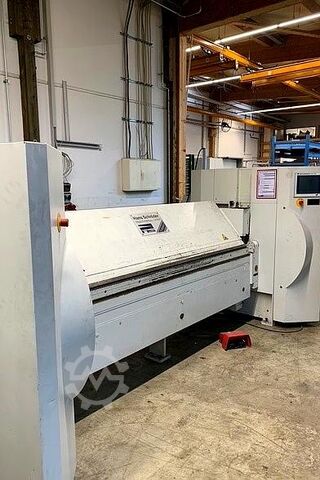

Sheet metal folder

SCHRÖDER MAK 3 2500/4,0

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2001, control type: NC control, working width: 2,520 mm, sheet thickness (max.): 4 mm, overall weight: 3,720 kg, TECHNICAL DETAILS Sheet width: 2,520 mm Sheet thickness: 4 mm Upper beam stroke: 250 mm Folding beam adjustment: 80 mm MACHINE DETAILS Control type: NC Dimensions & Weight Dimensions (L x W x H): 3,150 x 805 x 1,425 mm Iedpfjx I Eqqex Af Setr Machine weight: approx. 3,720 kg Upper beam drive power: 2.2 kW Folding beam drive power: 3.0 kW EQUIPMENT Foot switch Electric backgauge Sharp-edge rail

Condition: good (used), Year of construction: 2000, sheet width 2520 mm plate thickness 4.0 mm ST thickness at "Niro-steel" 2.0 mm upper clamping bar adjustment 250 mm adjustment speed 100 mm/sec Adjustment folding beam 80.0 mm Bending speed 120 Grad/sec compressed air 6.0 bar work height max. 869 mm control POS 2000 voltage 400 V total power requirement 6.0 kW weight 4100 kg Itjdsx H Alcepfx Af Ser range L-W-H 4120 x 2400 x 2090 mm current list price ~ 90.000 euro from a maintenance workshop with excellent equipment (!!) new touchscreen installed in 2023 Features: - CNC electro-motorized universal bending machine * ??High-precision mechanics with modern control technology * For individual and series production * Robust high-speed machine with high axis speeds * Torsion-resistant welded construction - SCHRÖDER CNC control model POS 2000 * Control panel front right (operable with PC mouse) * Touchscreen replaced in 2023 * Color display * USB interface * Automatic cutting calculation * Material and tool library * Dimensionally accurate bending simulation * Windows XP operating system * Swiveling control, front right - Servo inverter-controlled drives * For bending/upper beam & electric backgauge - CNC motorized lower beam adjustment - CNC electro-motorized Backgauge * Travel speed 300 mm/sec. * with rear sheet metal support surface - 1x freely movable double foot switch - Operating instructions (PDF) * Optional accessories included: - SCHRÖDER split gouge tools - top
