Bending center

Salvagnini P4

Year of construction: 2000, condition: ready for operation (used), Main Drive Bending length 2500 mm Number of axis 3 Additional Equipment O+UC1000/2(SO) P40FFICE Tool set consisting of 13 CLA tool pairs for a total length of 1100 mm Includes pairs of CLA tools ranging from 25 mm to 90 mm Quick-clamping segments for large-area recesses This 3-axis Salvagnini P4-2512 was manufactured in 2000, featuring a max bending length of 2500mm and handling sheet thicknesses up to 3.00mm. It includes quick-clamping segments for enhanced flexibility and precision in sheet metal operations. If you are looking to get high-quality bending capabilities, consider the Salvagnini P4-2512 machine we have for sale. Contact us for more information about this machine. Ltsdpfox Nr Tzsx Af Soa Application Types Other Sheet Metal Machinery

Condition: ready for operation (used), functionality: fully functional, workpiece length (max.): 3,048 mm, workpiece width (max.): 1,524 mm, sheet thickness (max.): 3 mm, table load: 5,000 kg, TECHNICAL DETAILS Sheet thickness for blanks with tensile strength of 400 N/mm² max.: 3.5 mm Minimum sheet thickness: 0.5 mm Punch head force max.: 40 presses with max. force of 7 t & 4 presses with max. force of 26 t Lower cylinder force max.: 6 t Double-punch force: 12 t (2 hydraulic punches) Minimum entry sheet length: 370 mm Maximum entry sheet length: 3,048 mm Minimum entry sheet width: 300 mm Maximum entry sheet width: 1,524 mm Maximum entry sheet diagonal: 3,408 mm Minimum exit sheet length: 250 mm Maximum exit sheet length: 3,048 mm Minimum exit sheet width: 60 mm Maximum exit sheet width: 1,524 mm Vertical stroke of scissor lift table: 550 mm Ltedsx Hvymjpfx Af Sja Usable load capacity of scissor lift table: 5,000 kg Minimum dimension of stackable sheets: 300 x 100 mm MACHINE DETAILS Electrical Data Voltage: 380 V Frequency: 50 Hz Current: 119 A Rated power: 61 kW Cooling capacity of unit: 32.2 kW EQUIPMENT Scissor lift table TC27155C Motorized roller conveyor PRL3814F Universal destacking device DUF15 Punch head H2 Oil-hydraulic power unit C1515 (3-stage pump assembly) Lower cylinder EI09 Double rotary punch P2R36 Water-air chiller unit R121 Refrigerant R407C Software RIO Control and management system MMACHNT-MICROMach Processor PENTIUM INTEL II 400 MHz WINDOWS NT Documentation

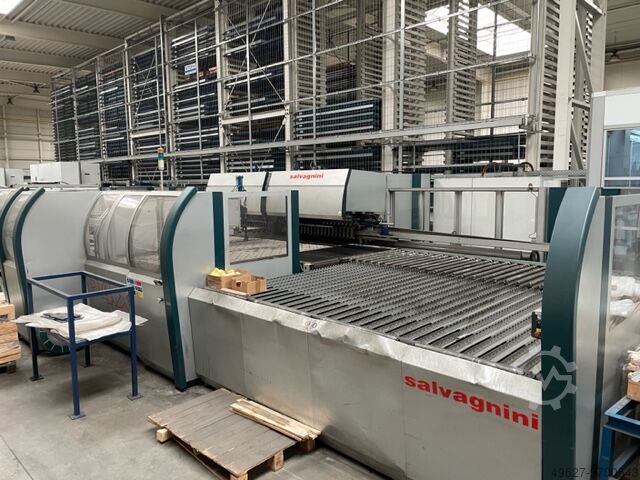

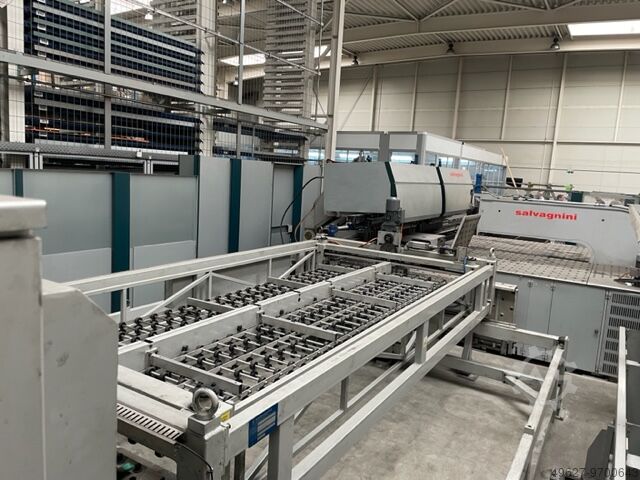

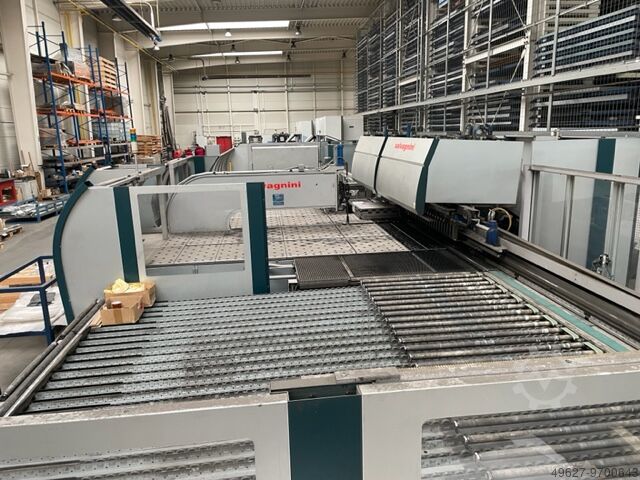

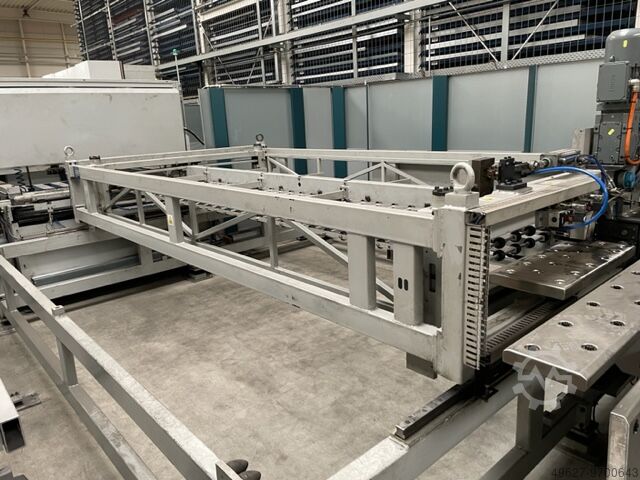

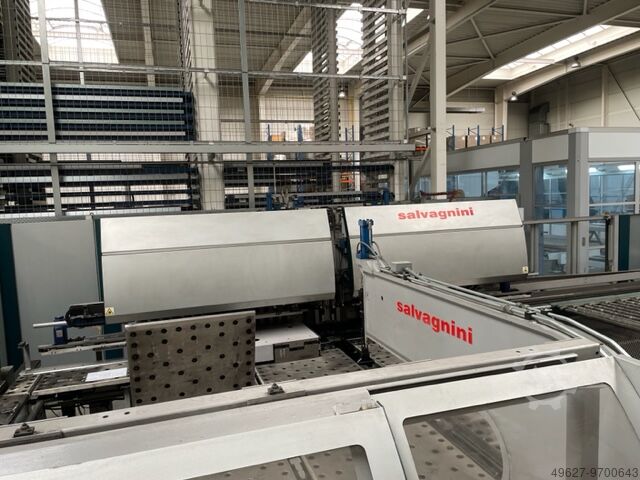

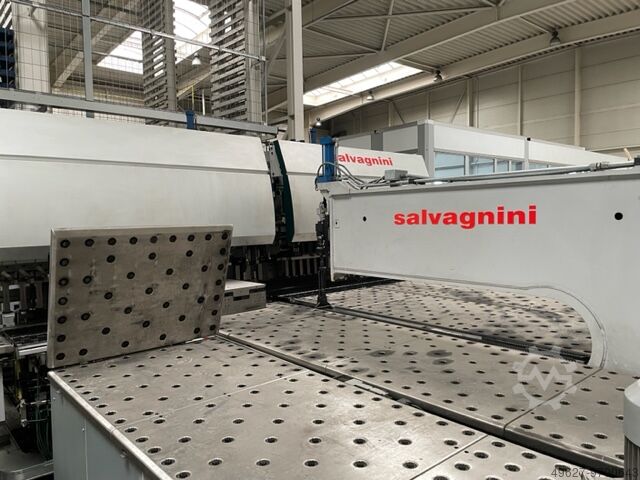

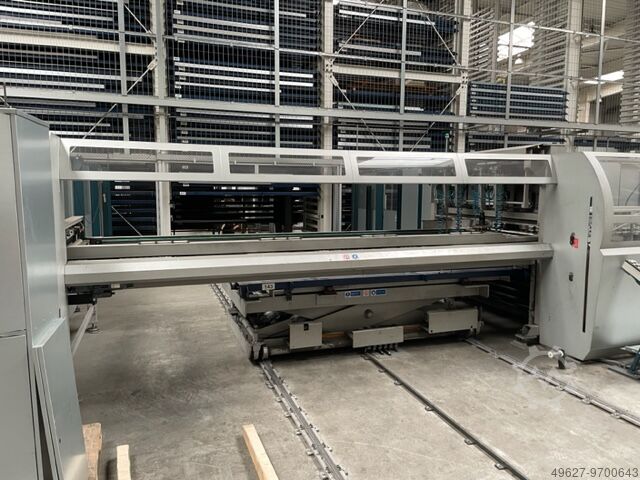

Year of construction: 2011, operating hours: 7,000 h, condition: excellent (used), TCV3015.CT.RPC+PCD4015.RVA.VE1.MOTAX+RIP3515+P4X-3216.LS1.LIA.AB A30/400/130.ZLC.ZTL.LK.SPA.NS.CLA/A1500.CLA/N/A1500 . CUT.P.ULC001.PSE.UC570.UC570/N.UP131.UPCUT01+SAP341618.POS Automatic and manual sheet metal loading: PCD 4015 + TCV 3015 loading table Sheet turning option: RIP 3515 Automatic bending length adjustment: ABA 30/400/130 Ljdpfx Ajlkbldef Ssta CLA 1500mm length, positive and negative Automatic unloading of bent parts: SAP Cut option: for cutting sheet metal

Condition: used, Year of construction: 2022, operating hours: 18,400 h, functionality: fully functional, sheet thickness (max.): 3 mm, total length: 32,000 mm, total height: 5,000 mm, total width: 11,500 mm, Salvagnini production line – sheet thickness up to 3 mm. Combined line comprising storage tower, punching machine, turning and rotating unit, panel bending machine, unloading station (manual or automated), and press brake: MD1-3015.RCP.M9; S4_1931; ACN_0389; P4M_822; MB_1080_RBF; B3.170-3000. INCOTERMS: Ex-Works. Dismantling, packaging, removal, and collection to be carried out by the buyer. Location: Siemens AG, Carl-Benz-Straße 22, 60386 Frankfurt am Main. If interested or for further documentation, please feel free to contact us. Lodpex Da Nkofx Af Seta

Condition: ready for operation (used), Year of construction: 2004, operating hours: 40,000 h, functionality: fully functional, sheet thickness steel (max.): 2 mm, sheet thickness aluminum (max.): 3 mm, working width: 2,780 mm, working height: 1,090 mm, TECHNICAL DETAILS Max. sheet length: 2,780 mm Max. sheet width: 1,500 mm Max. bending length: 2,550 mm Sheet thickness (stainless steel): 2.5 mm Max. flange height: 185 mm Ltjdsxxp Ekopfx Af Soa Sheet thickness (aluminium): 3.0 mm Max. bending angle: ± 135° Working height: 1,090 mm MACHINE DETAILS Dimensions & Weight Dimensions: 12,500 x 7,400 x 2,600 mm Approximate machine weight: 19,000 kg Total power requirement: 43 kW Operating hours: 40,000 h EQUIPMENT Automatic/manual loading via PCD Automatic loading system with lift table Automatic bending center P4-2516 Automatic tool setup ALA, symmetrical CLA Semi-automatic unloading of finished parts via SAP

Condition: used, Year of construction: 2009, operating hours: 60,000 h, functionality: fully functional, type of input current: three-phase, sheet thickness (max.): 3 mm, sheet thickness steel (max.): 2 mm, total width: 3,990 mm, The machine is well maintained Ltedoxiv Tpspfx Af Soa

Year of construction: 1998, condition: ready for operation (used), This Salvagnini P4-2220 was manufactured in 1998. A robust sheet metal machine, it handles max sheet lengths up to 2490mm, widths up to 1500mm, and bend lengths up to 2250mm. Ideal for precise large-scale metalworking. Contact us for more information. Ltodpfx Aex D H R Ief Sea Application Types Bending

Condition: excellent (used), Year of construction: 2001, sheet thickness (max.): 2 mm, sheet thickness steel (max.): 2 mm, working width: 1,850 mm, working range: 1,850 mm, 1 Used Salvagnini cnc automatic panel bender for sale cnc folder P4.1812 Servo-controlled panel bender LS Upper bending blade LI Lower Bending blade Ledpfx Aowb E Uvof Sjta MLA.ZR Manual length Adjustment of Blankholder CLA Long Tab Bending Unit HP12015 R81 Chiller Max. length at entrance: 1850mm. Max. width at entrance: 1500mm. Minimum length at entrance: 285mm. Minimum width at entrance: 190mm. Maximum diagonal: 2150mm. Maximum width at exit: 1500mm. Maximum reference dimension: 2000mm. Minimum sheet thickness: S min: 0,50mm. Maximum sheet thickness, Mild Steel (max. 410 N/mm2): Max: 2,00mm Maximum sheet thickness, Stainless steel (max. 600 N/mm2): Max. = 1.25mm Processing of pre-painted material Smax= 3,00mm. Maximum tool length for CLA option: 1000mm.

Condition: used, Year of construction: 2014, operating hours: 8,900 h, functionality: fully functional, machine/vehicle number: P4 3125, Salvagnini panel bender P4 3125 Ltedpexup Tmjfx Af Sea

Year of construction: 2002, condition: refurbished (used), Used refurbished Salvagnini P4 panel bender / cnc folder for sale complete with sheet metal loading system Salvagnini P4 PERFORMER refurbished in 2012 for sale – Made in Austria: Specification – new / year 2002 – machine revised in 2012 Ledpfx Aogu Dynsf Sjta Max Bending Length 1850mm Max width of finished Panel 1500mm Max Diagonal of incoming sheet 2150mm Max length of incoming blank 2000mm Max width of the blank 1500mm Max bend height 127mm Max thickness of material at 400 N/mm2 (m/s) 2mm Bending angles obtainable -125 Degree to +125 Degree Total machine hours on 23,000 Sheet metal load and unload system: Configuration ADP 2715 SAP 211618 POS P4.1812 Servo-controlled panel bender Upper Bending blade Lower Bending blade Chiller Used Salvagnini machines wanted and for sale, models such as: S4 –30 Auto load/unload Punching,Salvagnini P4 2512 ALA Panel Bender, Salvagnini P2 Performer Panel Bender, Salvagnini S4.30,Salvagnini P4.2512 Panel Bender,Salvagnini P4.2512,P4 2516ABA, Salvagnini P4 1712, Salvagnini P4 2112 HPT Panel bender,Salvagnini P2 Performer Panel Bender, Salvagnini P4.1712, Salvagnini P4.2516ABA Automated Panel Bending System
