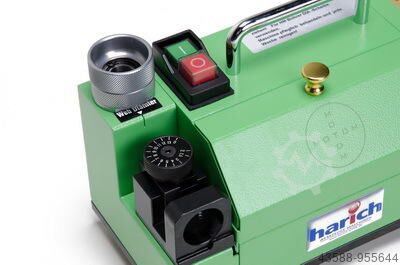

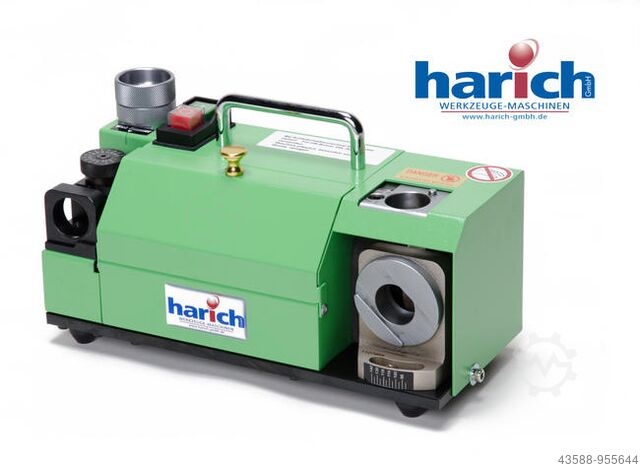

Drill grinding machine

MOTOM BSM 13

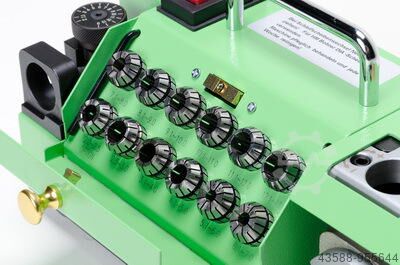

Condition: new, Drill bit grinding machine Manufacturer: MOTOM Model: BSM 13 DUO Grinding range: 2-13 mm Paint finish: gray Cjdpoguadnefx Aa Tjhc Application areas: Grinding conical shanks Pointing Back grinding Scope of delivery: CBN grinding wheel for HSS tools Collet set from 2-13 mm, increasing in steps of 1.0 Plexiglas protective shield

Condition: good (used), Year of construction: 2006, machine/vehicle number: 860027, Offer 24331 Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drill spindle holder MK 2 - Drill spindle stroke with fine drilling depth adjustment 76 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm - mot. Stroke of the drilling unit - mot. Table clamping x + y - Minimum quantities Lubrication Cedpfju Aq Amex Aa Tehc - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg

Condition: like new (used), Year of construction: 2023, operating hours: 800 h, functionality: fully functional, machine/vehicle number: SN3128158, turning diameter over cross slide: 533 mm, turning length: 572 mm, spindle bore: 63 mm, spindle speed (max.): 4,000 rpm, New condition + tooling + bar fender Csdpfx Aasvwz T Uo Tehc

Condition: used, Technical details: material thickness: 1,0 mm material width: 17,0 mm internal diameter: 30,0 mm external diameter: 78,0 mm Spare part for bench drill BT 2 Patt spring - Return spring - Spiral spring Declaration of conformity according to ISO/IEC 17050-1 Acceptance test certificate 3.1 according to DIN EN 10204 available Chodpeu N E Evefx Aa Tjc *

Condition: used, Year of construction: 1984, Technical details: grinding diameter min/max: 8 / 40 mm number of spindle speeds: 3000 U/min total power requirement: ca. 1,2 kW weight of the machine ca.: 0,24 t dimension machine xH: 0,7 x 0,9 x 1,3 m The grinding spindle is equipped with two hand levers: Working range left = manual grinding device for small shank drills. working range right = swiveling device of conical shank drills cutting angle max 180 Drill swivel arm small: clearance angle 5° - 9°; drill Ø 8 - 15mm manually adjustable; grinding wheel cup wheel Ø 200 x 40mm with holder Ø 32mm Drill swivel arm large: clearance angle 5° - 9°; drill Ø max 400mm; pitch 6x with index grid manual; grinding wheel currently clamped Ø 180 x 31mm with receptacle Ø 32mm Grinding modes: Normal grinding, DK grinding, center grinding, spiral countersink, multiple step drill. Cedpfxeu Ng Ire Aa Tshc *

Condition: new, functionality: fully functional, Year of construction: 2026, CORMAK DG32MD is a professional spiral drill sharpener designed for intensive operation in industrial and workshop environments. The machine enables precise sharpening of HSS and cobalt drills in the diameter range of ø5–ø32 mm, making it a highly versatile tool for production plants, tool rooms, and service facilities. Thanks to the use of a powerful motor, CBN grinding wheels, and an additional drill web thinning socket, the DG32MD model ensures not only high accuracy but also complete regeneration capability for cutting tools. Main advantages of the machine Wide drill diameter range: from ø5 to ø32 mm – ideal for sharpening both small and large cutting tools. Adjustable point angle: 90°–135°, allowing sharpening of most types of twist drills. Two clamping systems (ER20 and ER40): provide secure and rigid drill mounting across the entire diameter range. CBN (borazon) grinding wheels included: designed for sharpening high-speed steel drills, offering high durability and precision. Stable and compact construction: with a weight of 32 kg, it ensures accuracy and vibration-free operation. Chodpfx Aasvu Ac Es Tsc Complete equipment set: includes collets, holders, and tools – ready for operation without the need for additional purchases. Design and technology The CORMAK DG32MD has been designed for intensive use and long service life. The machine features a robust housing resistant to vibrations and a 250 W motor with a speed of 4400 rpm, ensuring smooth operation even when sharpening larger diameter drills. The quick-change ER20 and ER40 holder system allows easy switching between different diameter ranges, while the precise tool guidance eliminates the risk of operator errors. Precision and work efficiency High-quality components ensure that the CORMAK DG32MD drill sharpener provides repeatable and precise sharpening results, even during continuous production work. Applications The CORMAK DG32MD model is suitable for: tool rooms and production plants where fast drill regeneration is required, repair workshops and maintenance departments, service centres, technical and training facilities requiring high sharpening accuracy and repeatability. Standard equipment 2 × CBN grinding wheels – for high-speed steel drills 12 × ER20 collets: ø5–ø14 mm 18 × ER40 collets: ø15–ø32 mm 1 × ER20 clamping holder 1 × ER40 clamping holder Technical specifications Parameter Value Drill diameter range ø5–32 mm Point angle 90°–135° Power 250 W / 230 V Motor speed 4400 rpm Weight approx. 32 kg Dimensions 400 × 260 × 300 mm
