3-axis CNC machine (VMC) MAZAK VTC 300II

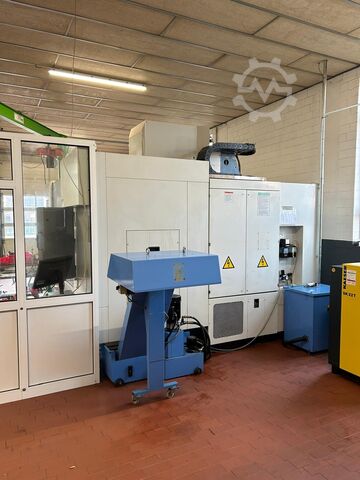

Mazak VTC 300C-II

Condition: ready for operation (used), Year of construction: 2002, General Data Measurements width 3300 Measurements depth 4150 Measurements height 3100 Control Unit Model Fusion 640 M SK-40 Main Drive Spindle speed range 12000 rpm Lhedpexpkn Isfx Abken Movement X-Axis Movement 1740 mm Y-Axis Movement 760 mm Z-Axis Movement 840 mm Tools Slots in storage 30 Media Chip conveyor Yes Additional Equipment Renishaw probe This 3-axis Mazak VTC 300C II was manufactured in 2002. It features a Fusion 640 M control, a spindle speed of 12000 rpm, and a tool magazine with 30 places. The machine dimensions are 4150mm in length, 3300mm in width, and 3100mm in height. If you are looking to get high-quality milling capabilities, consider the Mazak VTC 300C II machine we have for sale. Contact us for further details regarding this machine. Application Types Milling

Condition: excellent (used), Working travels 1740 x 760 x 660 mm Table size 2000 x 760 mm Spindle taper SK40 Spindle speeds -12'000 rpm Tool changer 48 Pos. MAZATROL PC Fusion 640M control Lhedpjwhlr Uofx Abken Coolant through spindle Tool breakage control device Tool length measuring device Misc.accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2003, X 1740mm, Y 766mm, Z 660mm 10000 rpm Lhodpfxswyblzo Abksn Parts shown by hand not come.

Condition: good (used), Year of construction: 2011, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Technical data: Control: Mazatrol 640M Travel X – Y – Z axis mm: 1740 / 760 / 660 Rapid traverse X – Y – Z axis m/min: 36 / 36 / 36 Table Table size mm: 2000 x 760 Table load capacity kg: 1,400 Distance between table surface / spindle nose mm: 160 – 840 Main spindle Speed min-1: 12,000 Main drive power (5 min. / 30 min.) kW: 18.5 / 11 Automatic tool changer (ATC) Number of positions / spindle taper: 30 / SK 40 Max. tool diameter mm: 80 - with free adjacent positions mm: 110 Max. tool length mm: 350 Max. tool weight kg: 8 Machine height mm: 3442 Installation area mm: 4435 x 3300 Machine weight kg: 11,500 Accessories: Relocation detector Automatic tool length measuring system Preparation for partition for pendulum machining Electronic handwheel EIA / ISO programming Lodpswpu Hdjfx Abkohn Synchronous tapping Through-spindle coolant 5 bar Chip conveyor

Year of construction: 2014, condition: excellent (used), CNC FUSION 640 M,Table 2000 x 760 mm,Strokes 1740 x 760x 660 mm,spindle speed 12.000 rpm,center coolant 15 bars,magazine 30 tools,4 th Axis KITAGAWA MR 250,Package performance,electronic crank,conveyor belt Ljdpfok Sfwfsx Abkjhn

Condition: used, Year of construction: 2003, operating hours: 38,499 h, functionality: fully functional, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 36 m/min, type of input current: AC, With chip conveyor, left-side ejection, hinged belt design Operating hours: 38,499 Mazatrol 640M control system Tool magazine for 48 tools Work table Table size (clamping surface): 760 x 2,000 mm Table load: max. 1,400 kg Table configuration: 5 x 18 mm T-slots, 125 mm spacing Reference T-slot: 18 mm H in the table center Table height from floor: 875 mm Travel ranges Travel path: X-axis 1,740 mm Y-axis 760 mm Lhsdpfx Abswf Duvjkon Z-axis 660 mm Rapid traverse speed: X-axis 36 m/min Y-axis 36 m/min Z-axis 36 m/min Feed rate 1 - 8,000 mm/min Distance from spindle nose to table 180 - 840 mm Distance from the front of the column to the spindle center: 830 mm Work spindle speed range (infinitely variable) 40 - 12,000 rpm Steep taper chuck: CAT 40 Main drive power, AC motor: 18.5 / 11 / 7.5 kW Torque: max. 98 Nm Cutting performance (test results) Milling performance C 45 approx. 416 cc/min Drilling performance C 45 Ø 25 mm Tapping performance C 45 M 24 x 3 * Machining performance depends on the condition of the workpiece, the tooling, and the clamping device. Coolant system Tank capacity: 365 l Flood cooling: Pump flow rate approx. 24 l/min Pump pressure: approx. 5 bar - Air blower on the spindle - High-pressure cooling through the spindle, pressure approx. 15 bar - Preparation for Mazak Monitoring System B, optical type touch probe MP-12 - 2 additional M-function sets (2 M-functions per set) Partition for reciprocating machining - Renihaw measuring system NC-1 Mazak Monitoring System B, optical type touch probe MP-12 CNC "Performance" option package 15 wipers (scrapers) No.: J09KXSW10S0

Condition: ready for operation (used), Year of construction: 2003, operating hours: 40,593 h, functionality: fully functional, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, controller model: Mazatrol Fusion 640T, rotational speed (max.): 12,000 rpm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS X-axis: 1,740 mm Y-axis: 760 mm Z-axis: 660 mm X-axis feed: 36,000 mm/min Control: Mazatrol Fusion 640T Table Table length: 2,000 mm Table width: 760 mm Table load: 1,400 kg Spindle Tool holder: 40 ISO/BT/MK Speed: 12,000 rpm MACHINE DETAILS Length: 4,450 mm Width: 3,460 mm Height: 3,100 mm Weight: 11,500 kg Operating hours: 40,593 h Lhedpjv I Samefx Abken EQUIPMENT - 2 large front doors - Chip conveyor with internal cooling
