Laser cutting machine

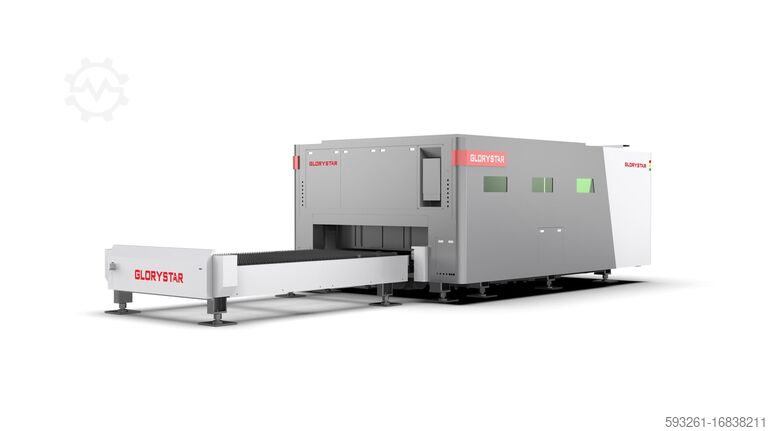

Laser Cutting Machine GS-3015CE 12KW

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, actuation type: electric, controller manufacturer: BOCHU, controller model: FSCUT4000E, laser type: fiber laser, laser source manufacturer: RAYCUS, laser power: 6,000 W, sheet thickness (max.): 25 mm, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 18 mm, sheet thickness aluminum (max.): 12 mm, sheet thickness brass (max.): 10 mm, sheet thickness copper (max.): 5 mm, pipe length (max.): 12 mm, table length: 5,028 mm, working length: 3,000 mm, working width: 1,500 mm, feed rate X-axis: 60 m/min, feed rate Y-axis: 60 m/min, repeat accuracy: 0.02 mm, workpiece weight (max.): 2,500 kg, power: 6 kW (8.16 HP), input voltage: 380 V, input current: 16 A, type of input current: three-phase, type of cooling: water, overall weight: 3,000 kg, total length: 4,675 mm, total width: 2,385 mm, total height: 1,475 mm, Equipment: centralized greasing system, cooling unit, documentation/manual, emergency stop, nozzle changer, safety light barrier, NEW LASER HEAD BOCI BLT-421 E Laser Head with Automatic Focus Automatic Nozzle Control - Touch Pad Safety (NEW) Full Cover with exchange table Danmar Machines BV Work table: 3,000 x 1,500 mm BOCHU 2D Laser Head BLT421 BOCHU FSCut4000 E Controller Raycus laser source 6000 CypCut E laser software with nesting function EQUIPMENT: * Application: Metal * Fiber Laser * FSCUT4000E CNC control * Working area: 3,000 x 1,500 mm * Processes: Sheet material * Laser source: RAYCUS with 100,000-hour lifespan * User-friendly operation with BOCHU SMART function * CYPCUT software + CYPNest - Nesting, simulation, calculation of processing time and costs, standard macro - Import: PLT, BMP, DST, DWG, DXF, DXP, STEP, etc. * 120 m/min cutting speed * Servo motors on all axes * HiWin linear rails * Laser Head BOCHU BLT4 series * S&A Water Chiller * Real-time air and gas pressure monitoring * Touchscreen interface * Windows Teamviewer online helpdesk * Model EXP3015GA * Laser Power: 6000W * Working area: 3,000 x 1,500 mm * Repeatability accuracy: 0.02 mm * Maximum speed: 120 m/min * Maximum acceleration: 1.5G * Remote control * Automatic lubrication * Warranty: 2 years, maximum 3,000 operating hours* METAL CUTTING MACHINES High-quality, advanced CNC laser cutting machines Sheet material up to 25 mm thick, depending on the laser source Danmar Machines BV, Almelo - Technicians with over 20 years of experience - Service locations in the Netherlands & Belgium - 24/7 online cloud service - Machine network connectivity 24/7 for continuous monitoring (optional) Support & Service Danmar Machines BV, Almelo and BOCHU INDUSTRIAL aim for bespoke service Fast response > short lines of communication > clear communication SOFTWARE: Drawing Modification and Import Intelligent part recognition, identification and optimization of drawing errors. Supports file formats such as DWG and DXF. Batch creation and component import via Excel table supported. CADCAM: CypNest is a nesting software designed for the CypCut/HypCut laser cutting system. It integrates advanced features like drawing adaptation, fast nesting, toolpath generation, analysis reports, and more to suit your production needs. Fgedpfx Acjwr Dmfo Hji Contact us without obligation for more information. Please mention your company name and telephone number.

Condition: new, functionality: fully functional, Year of construction: 2025, Equipment: CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, 3015H high-speed laser sheet metal machine High speed enables efficient processing 1.5G acceleration 50%–100% increase in thin sheet processing efficiency 7Hz low-pass filtering Enables high-speed, high-precision cutting of complex shapes Over 50% improvement in fine processing efficiency High speed and high efficiency drive high productivity Our high-speed cutting machine features a dual-station high-speed shuttle table Achieves 15-second fast parallel exchange Loading/unloading and cutting processes run simultaneously without interference significantly boosts processing efficiency Doubles output per unit of time Crafted with care for eco-friendly design Equipped with zoned dust extraction Features 8–30 fully automatic high-power negative pressure extraction systems Smooth smoke discharge and excellent dust removal efficiency Fgodpfx Aswvpcmsc Hsi In terms of safety, our high-speed machines are more considerate Standardized with an industry-unique intelligent anti-collision human detection system Includes door interlock protection and motor torque detection Ensures safe production Designed to reduce the workload in sheet metal processing Equipped with a fully automatic lubrication system A total of 16 automatic lubrication points across the XYZ axes Extends component lifespan by 300% Delivers higher running precision with lower maintenance costs
