Complete clamping for KM 350

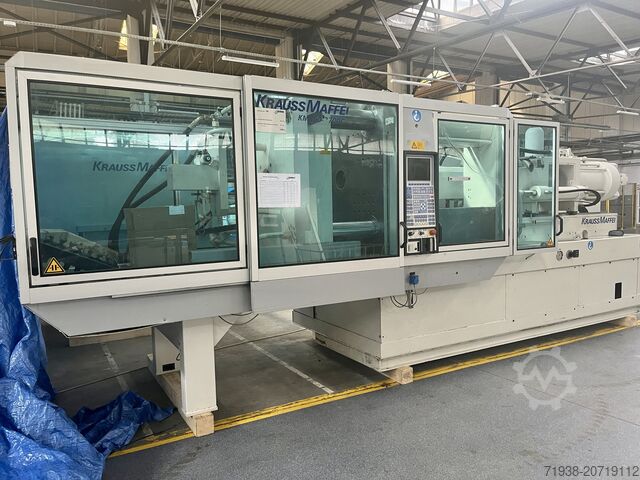

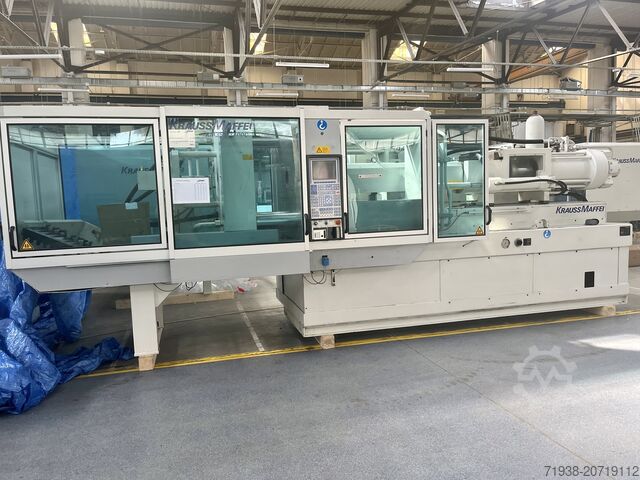

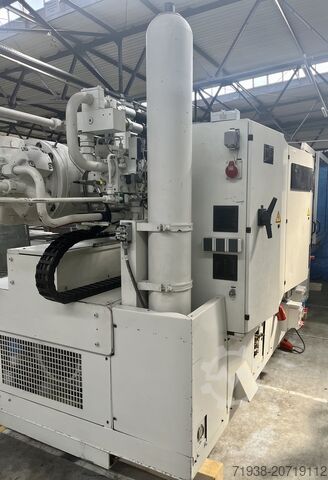

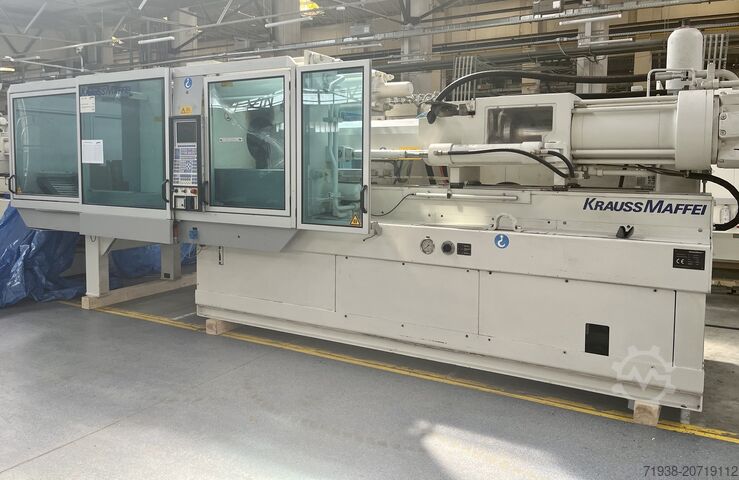

KraussMaffei KM 350

Condition: used, Year of construction: 2005, Injection molding machine Manufacturer: Krauss Maffei Type: KM350/1900 C2 Year of manufacture: 2005 Clamping force: 3,500 kN Mold opening force: 220 kN Moving platen drive force: - Opening: 105 kN - Closing: 95 kN Mounting platen (H x V): 1,060 x 1,095 mm Clearance between tie bars (H x V): 710 x 710 mm Mold opening stroke: 920 mm Minimum mold installation height: 380 mm Daylight: 1,300 mm Ejector stroke: 250 mm Ejector force forward/backward: 95 / 48 kN Pump motor: 75 kW Installed heating capacity: 30 kW Cylinder heating zones: 6 Dry cycle time: 1,550 1/h Oil tank capacity: 720 liters Dimensions and weights: Net weight with control cabinet: approx. 16.0 t Hsdpfx Afjxu Uvaszoh L/W/H: 6,510 x 2,040 x 2,380 mm Max. mold weight: 4,780 kg Injection unit: - Work capacity: 1900 - Screw diameter: 70 mm - Injection pressure: 1,778 bar - Shot volume: 1,047 cm³ - Shot weight for PS: 953 g - Injection flow rate: 527 cm³/s Screw speed standard / option: 285/349 rpm Screw torque standard or Stage 1: 95 PS Screw torque option or Stage 2: 117 PS Nozzle contact force: 82 kN Fully hydraulic 2-platen clamping system PV control for injection unit MC4 32-bit microprocessor control Integrated operator panel with TFT color display and 3.5-inch floppy disk drive for data backup Plasticizing: 1 complete thermoplastic plasticizing system in wear-resistant design, screw diameter 70 mm with backflow valve and open nozzle Nozzle radius: 15.00 mm Nozzle bore: 6.00 mm

Condition: used, mileage: 59,000 km, power: 110 kW (149.56 HP), first registration: 03/2015, fuel type: diesel, overall weight: 7,490 kg, color: white, gearing type: automatic, emission class: euro5, number of seats: 3, loading space length: 5,100 mm, loading space width: 2,480 mm, loading space height: 2,400 mm, Equipment: ABS, air conditioning, central locking, had accident, tail-lift, * Driver airbag * LBW BEAR 1000kg * Steering wheel adjustment * 80% tires Hodjhwbbhjpfx Afzeh * Engine brake * Roof spoiler * Payload 3400kg * Automatic transmission has problems!!! * WhatsApp/Tel.

Condition: ready for operation (used), Year of construction: 2004, operating hours: 65,000 h, functionality: fully functional, clamping force: 3,500 kN, screw diameter: 70 mm, displacement volume: 1,047 cm³, Clamping force 3500 kN Mould opening force, max. 220 kN Travel force movable platen opening 105 kN Travel force movable platen closing 95 kN Size of mould platens (h x v) 1100 x 1095 mm Distance between tie bars (h x v) 710 x 710 mm Mould opening stroke 920 mm Mould height min 380 mm Max. daylight 1300 mm Hydraulic ejector - stroke 250 mm Ejector force 95 kN Injection unit: Screw diameter 70 mm Ls/D ratio 20 Injection pressure 1778 bar Stroke volume 1047 ccm Shot weight (PS) 953 gr. Injection rate 527 ccm/s Screw speed 285 1/min Plasticising rate max. 95 g/s Nozzle pressure 110 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 75 kW Installed heating capacity 30 kW Adjustable barrel heating zones 6 Reservoir capacity 720 ltr. Dimensions and weights: Dimensions of the machine ca. 6,50 x 2,20 x 2,40 m Total machine weight 15370 kg Max. mould weight 4780 kg Accessories: Hjdpsydmkcofx Afzjh - Anti vibration pads Additional Options: - 1 x core pull - 1 x air valve - Robot interface according to Euromap 12

Condition: excellent (used), Year of construction: 2004, Krauss Maffei Injection Moulding Machine KM 350-2700 C2+ Year of manufacture: 2004 System: Fully hydraulic Control: MC4, color monitor, integrated control panel, built-in disk drive 2. Plasticizing Unit Complete plasticizing unit for thermoplastics Version with abrasion protection Screw diameter: 80 mm Non-return valve Open nozzle TECHNICAL DATA Clamping Unit Clamping force: 3500 kN Mold opening force: 220 kN Moving platen force: Opening: 105 kN Closing: 95 kN Platen dimensions (h × v): 1060 × 1095 mm Tie bar clearance (h × v): 710 × 710 mm Mold opening stroke: 920 mm Mold height: 380 mm Daylight: 1300 mm Ejector stroke: 250 mm Ejector force: 95 / 48 kN Injection Unit Screw diameter: 80 mm Injection pressure: 1829 bar Injection volume: 1433 cm³ Shot weight for PS: 1304 g Screw speed (standard/option): 218 / 284 rpm Injection rate: 1508 cm³/s Standard throughput: 108 g/s Increased throughput: 141 g/s Hodpfxsx Elukj Afzoh Electro-hydraulic Equipment Pump motor power: 75 kW Installed heater power: 36 kW Number of barrel heating zones: 7 Dry cycle time according to Euromap: 1550 1/h Oil tank capacity: 720 l Dimensions and Weight Net weight (with control cabinet): 16.7 t Machine dimensions (L × W × H): 6.91 × 2.04 × 2.41 m

Condition: good (used), Hydraulic pump, oil pump, gear pump, vane pump, hydraulic power unit, double hydraulic pump -Double hydraulic pump: from KHS Krauss Maffei KM 1000-5000A injection molding machine -Pump 1: Voith type IPH 6/5-125/50 300 bar -Pump 2: Voith type IPR/H 6/5-125/40 210/300 bar -Drive: Loher 75 kW 1500 rpm -Individual components: filters/valves, see photos -Dimensions: 2285/800/H900 mm -Weight: 1132 kg Hodpfjg Avqcox Afzoh

Year of construction: 1999, condition: ready for operation (used), A two-component injection molding machine Krauss Maffei Multinject is available. Clamping force: 3500kN, platen dimensions X/Y: 1280mm/1190mm, second unit: 390CZ. Machine dimensions X/Y/Z: approx. 6300mm/2000mm/3100mm, weight: approx. 17000kg, control: Krauss Maffei MC4, operating hours: 78424h. The control is defective. Documentation vorhanden. An on-site inspection is possible. Hjdpsxx Uf Asfx Afzsh

Condition: good (used), Year of construction: 2006, Krauss Maffei injection molding machine KM 350 - 2700 C2 Year of construction : 2006 Control : MC 4 Technical details Clamping unit : Closing force : 3500 kN Mold opening force, max: 220 kN Moving force of moving plate Opening: 105 kN Moving force of moving plate Closing: 95 kN Size of mold plates (h x v): 1060 mm x 1095 mm Hodpfsmki Iusx Afzsh Distance between columns (h x v): 710 mm x 710 mm Mold opening stroke: 920 mm Mold height min: 380 mm Max daylight: 1300 mm Hydraulic ejector - stroke: 250 mm Forward/reverse ejector force: 95 / 48 kN Injection unit Auger diameter: 80 mm Ls/D ratio: 20 Injection pressure: 1829 bar Displacement volume: 1433 ccm Injection weight, PS: 1304 g Injection speed: 513 ccm/s Screw speed: 218 1/min Maximum plasticization rate: 108 g/s Nozzle pressure: 173 kN Electrical and hydraulic equipment Nominal pump motor capacity: 75 kW Installed heating power: 36 kW Adjustable barrel heating zones: 7 Tank capacity: 720 ltr. Dimensions and weight Machine dimensions: 6.91 m x 2.20 m x 2.41 m Total weight of the machine: 15300 kg Maximum mold weight: 4780 kg

Condition: used, Year of construction: 2019, pressure:100 t stroke:1000 mm table surface area:1045 x 1045 mm table extendable:800 mm table speed:50 mm/sec dimensions:ca. 2550 x 2850 x 3620 mm height over floor:600 mm diameter of piston:76 mm ram diameter:110 mm ram hole:40 H7 Cylinder:300 mm total power requirement:5,5 kW pump capacity:24,9 Lt./min Pressure power:250 bar :200 l daylight opening:1600 mm daylight:1200 mm weight of the machine ca.:6,6 t hollow:180 mm hollow:400 mm :1000 kg :1 - 10 mm/sec work stroke:3 mm/sec Hsdpfx Asffamxjfzjh :1 - 25 mm/sec :33 mm/sec

Year of construction: 2023, condition: new, With bolted,welded and horizontal types, silos are used in storing cement,fly ash,bentonite and other bulk materials. Welded Silos Welded silos are preferred in low capacities of storage, it can be assembled and operated in 2 hours with one crane. It is preferred in local solutions where transportation costs can be neglected. Semix is able to manufacture welded silos in a range between 50 to 150 tons. Hodpfx Aogau Uqofzoh Bolted Silos Bolted silos are preferred due to its' compactness for transportation. It can be transported with containers for avoiding freight costs. Because of its modularity, Semix is able to manufacture welded silos in a range between 100 to 2000 tons. Semix provides a mechanical supervisor for assembling the bolted silo correctly. Semix have succeed to install bolted silos in Peru, Israel, Germany and United Kingdom.

Condition: used, Year of construction: 1985, with großer cut length 3500 mmused, good conditionmanufactured by Mayertype FSKbuilt in 1985 or 2,2 kWcut length 3500 mmsaw blade diameter ca. 180 mmpneumatic clampingrip fence with hand wheel adjustablefront extented tablerear extented tableveneer strip fence with stop fingerexhaust ductpneumatic service unitexhaust connection D 100 mmrequired space ca. l x w x h mm4400 x 1200 x 1300weight ca. 600 kgtotal connected power ca. 2,2 kWlocated in  97447 Gerolzhofensale in current condition as seen- free on truck - Hodpfx Aovwf Uvefzsh
