Bolster plate

FARO 5135x2510x345mm

Condition: refurbished (used), LEIFELD - PNC/CNC 350 - Blank Centering Unit Ijdoupaa Hspfx Ah Uebd - Blank counter holder - Shaping Unit BAE I (on headstock) optional 2. BAE - Shaping Unit KA (in front of machine) - Double-Roller Unit (optional) Technical specifications: Blank diameter (max.): 700 mm Distance between centers: 1200 mm Tool holder DIN 55027: Gr. 6 Force axis (transverse) (max.): 22 kN Force axis (longitudinal) (max.): 20 kN Stroke (transverse): 250 mm Stroke (longitudinal): 400 mm Feed axis speed (transverse) (max.): 6.0 m/min Feed axis speed (longitudinal) (max.): 6.0 m/min Spindle speeds (stepless): 100-2.800 rpm Main drive: 11 kW Hydraulic drive: 5.5 kW Operating Voltage: 400V Frequency: 50Hz Weight: approx. 3.500 kg Further services, machine accessories and spare parts that you can obtain from us: - installation of the machines + commissioning and training - control upgrades (PLC + PNC/CNC) on existing machines - machine components - electrical, hydraulic and mechanical spare parts (PNC, PLB and APED machines) Should you have any further questions, please do not hesitate to contact us at any time!

Condition: good (used), for sale: several used clamping brackets / boring mill brackets 1500 to 1800mm wide 2500mm high Iedeg Sbbxopfx Ah Ujbd 1250mm deep Mass: 5,8t Load capacity 60t 6 pieces available partly with stairs

Condition: used, plate width 3000 mm plate depth 5000 mm plate height 400 mm weight 20 t dimensions of the machine ca. 5 x 3 x 0,5 m Table length 5000 mm Iodpfxjgrnfgj Ah Usbd Table width 3000 mm Table height 380 - 400 mm Machine weight approx. Approx. 20000 kg Space requirement approx. 5 x 3x 0.5 m

Condition: used, plate width 2500 mm plate depth 5100 mm Ibjdpfx Ahjhpva Ds Ued plate height 400 mm weight ca. 9 t required space 2,5 x 5,1 x 0,40 m

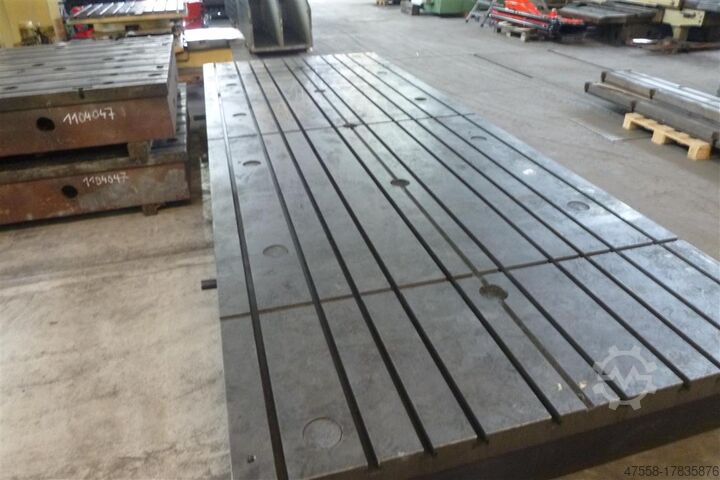

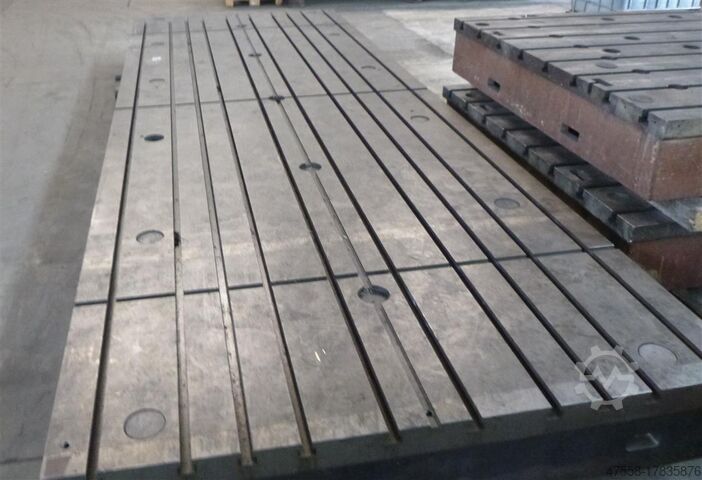

Condition: used, Technical details: floor-plate length: 5500 mm plate width: 2150 mm plate height: 340 mm Iodpfx Ahjval Nfj Ujbd Plate thickness: 340 mm weight of the machine ca.: 9,0 t transport dimensions LxWxH: ca. 5,5 x 2,2 x 0,35 m Material cast steel Milled, finished surface T-slots according to DIN 650: a=28; h=46; b=48; c=21mm Center distance 150 / 230 mm *
