Injection molding machine

Demag Ergotech

Condition: excellent (used), Year of construction: 2006, Demag Ergotech System 80/420-430 Year of manufacture: 2006 Injection unit: Screw diameter: 40 mm Injection weight: 205 g Injection pressure: 2020 bar Metering volume: 231 ccm Clamping unit: clamping force: 80 t tie bar distance: 420x420 mm Lodpjylimisfx Ahwehc size of clamping platens: 580x590 mm ejector: hydraulic clamping unit: hydraulic Control system: NC4 Additional equipment: Euromap 67 Robot interface Air valve x 2 Hydraulic core pull x 3 Control with hot runners Injection unit hardened - bimetal Built-in printer It is possible to change the screw diameter Dimensions: Weight: 4100 kg Length/width/height: 4.10x1.40x1.90 m All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

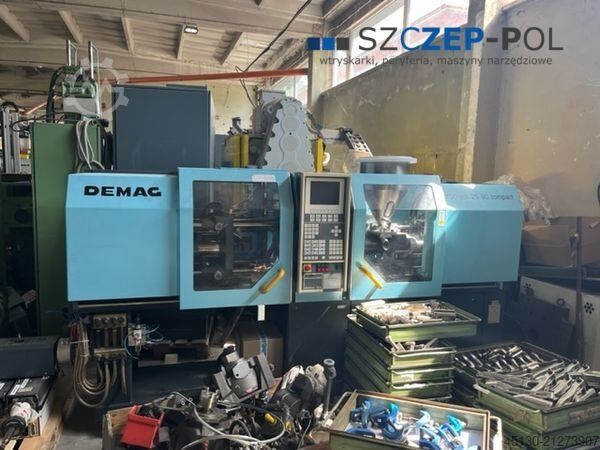

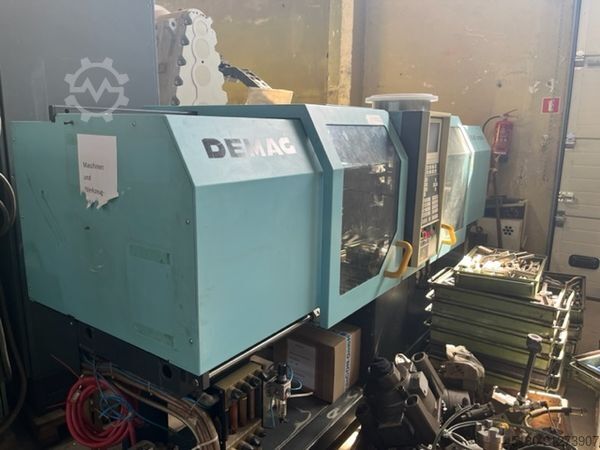

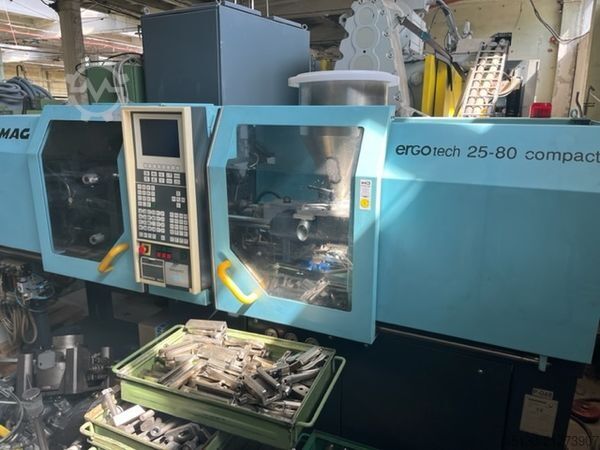

Condition: excellent (used), Year of construction: 1995, Demag Ergotech Compact 250-80 Year of manufacture: 1995 Injection unit: Screw diameter: 18 mm Injection weight: 20 g injection pressure: 2400 bar Dosing volume: 22.8 ccm Clamping unit: clamping force: 25 t tie bar distance: 280x280 mm size of clamping platens: 410x410 mm ejector: hydraulic clamping unit: hydraulic Control system: NC4 Additional equipment: Air valve x 2 Hydraulic core pull x 1 Injection unit hardened - bimetal Original Demag mold crane: chain, electrically controlled, 2 lifting speeds Dimensions: Weight: 2600 kg Ledsylilxepfx Ahwehc Length/width/height: 3.20x1.30x1.80 m Drive: Pumps/motor: 7,5 kW Heating power: 3,7 kW Total power: 11,2 kW All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

Condition: excellent (used), Year of construction: 2006, screw diameter: 22 mm, displacement volume: 41 cm³, Clamping force: 50 t Year of manufacture: 2006 Injection unit .../200 Screw diameter: 22 mm Specific injection pressure: 2800 bar Injection volume: 41.8 ccm Lodpfx Ahex A E N Towohc Mould clamping system 50/... Clamping force: 50 t Mould plate dimensions: 520 x 520 mm Clearance between tie bars: 355 x 355 mm Mould height: 210 mm Opening stroke: 400 mm Maximum platen distance: 610 mm Weight: 2700 kg Dimensions (m) L x W x H: 3.8 x 1.1 x 2.1 m Control: NC4

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 8754-0010, Plastic Injection Moulding Machine | DEMAG Ergotech - Multi 125/475-120h/80v (1250-120-80) Clamping force [kN]: 1,250 Number of components: 3 Clamping platen width [mm]: 690 Clamping platen height [mm]: 660 Clear tie bar spacing horizontal [mm]: 475 Clear tie bar spacing vertical [mm]: 450 Locating ring diameter [mm]: 125 Lhjdsyguk Ajpfx Ahwoc Minimum mold height [mm]: 230 Maximum mold height [mm]: 560 Maximum mold opening stroke [mm]: 450 Maximum ejector stroke [mm]: 140 Thread (mounting holes) [M]: 16 Multi turntable type: Rotary table Turntable diameter [mm]: 700 Turntable threads [M]: 16 Maximum mould weight [kg]: 1,160 Maximum mould weight moving side [kg]: 760 Screw diameter [mm]: EE1: 25, EE2: 22, EE3: 14 Maximum shot weight [g] PS: EE1: 63, EE2: 48, EE3: 20 Aggregate configuration: EE1: horizontal, EE2: vertical, EE3: L-position Equipment: 2-core pull, with robot An inspection is possible at any time by appointment. Free loaded onto truck (Butzbach). #Tags: DEMAGergo | Ergotec | Multi125-475

Condition: good (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 7174-0115, Plastic Injection Moulding Machine | DEMAG Ergotech - Multi 110/470-200h/120v (1100-200h/120v) Clamping Force [kN]: 1,100 Number of components: 2 Clamping plate width [mm]: 670 Clamping plate height [mm]: 670 Clear tie bar spacing, horizontal [mm]: 470 Clear tie bar spacing, vertical [mm]: 470 Centering ring diameter [mm]: 125 Minimum mould height [mm]: 240 Ljdpfx Ahsyguhhewjhc Maximum mould height [mm]: 600 Maximum opening stroke [mm]: 600 Maximum ejector stroke [mm]: 180 Thread [M]: 16 Multi turntable type: Rotary table Turntable diameter [mm]: 600 Turntable thread [M]: 16 Maximum tool weight [kg]: 1,000 Maximum tool weight, movable side [kg]: 500 Screw diameter [mm]: EE1: 30, EE2: 22 Maximum shot weight [g] PS: EE1: 94, EE2: 42 Aggregate configuration: EE1: horizontal, EE2: vertical Equipment: 2-core pull, with robot Inspection possible at any time by appointment. Free on truck, loaded (Butzbach). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DEMAGergo | Ergotec | Multi110/470

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 8040-0008, Plastic Injection Moulding Machine | Demag Ergotech - Systec 280/630-840 (2800-840) Clamping Force [kN]: 2,800 Lhodpfxoygidwe Ahwjc Number of components: 1 Clamping platen width [mm]: 950 Clamping platen height [mm]: 950 Clear tie bar distance horizontal [mm]: 630 Clear tie bar distance vertical [mm]: 630 Centering ring diameter [mm]: 160 Minimum mould height [mm]: 330 Maximum mould height [mm]: 710 Maximum daylight opening [mm]: 675 Maximum ejector stroke [mm]: 200 Thread [M]: 20 Maximum mould weight [kg]: 3,700 Maximum mould weight, moving platen [kg]: 2,500 Screw diameter [mm]: EE1: 45 Max. shot weight [g] PS: EE1: 320 Injection unit arrangement: EE1: horizontal Equipment: 2-core pull, 6-fold cascade, with robot Inspection possible at any time by prior arrangement. Free loaded on truck (Butzbach). - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DEMAGErgotech | Ergotec | Ergotech280

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 7826-1082, Plastic Injection Moulding Machine | DEMAG Ergotech Extra 35-80 (350 - 80) Clamping force [kN]: 350 Number of components: 1 Clamping plate width [mm]: 390 Clamping plate height [mm]: 390 Clear tie bar spacing horizontal [mm]: 280 Clear tie bar spacing vertical [mm]: 280 Centric ring diameter [mm]: 110 Min. mould installation height [mm]: 180 Max. mould installation height [mm]: 350 Max. opening stroke [mm]: 350 Max. ejector stroke [mm]: 100 Thread [M]: 16 Max. mould weight [kg]: 310 Ljdpfjygh Rvjx Ahwohc Max. mould weight moving platen [kg]: 150 Screw diameter [mm]: EE1:18 Max. shot weight [g] PS: EE1:20 Injection unit orientation: EE1: horizontal Equipment: 2-core pull, without robot Inspection possible any time by appointment. Free loaded on truck (Butzbach). #Tags: DEMAG | Extra35 | Extra3580

Condition: excellent (used), Year of construction: 2007, clamping force: 1,500 kN, screw diameter: 45 mm, displacement volume: 305 cm³, injection pressure: 2,050 bar, injection weight: 270 g, mold height (min.): 275 mm, Demag IntElect 150/520-610 General Information Year of manufacture: 2007 Weight: 6,900 kg Dimensions (L × W × H): 5.5 × 1.5 × 2.1 (2.3) m Control system: NC4 Operating hours: 26,500 h Clamping Unit Clamping system: 150/... Clamping force: 150 t Platen dimensions (H × V): 770 × 770 mm Tie bar clearance (H × V): 520 × 520 mm Mould height (min.–max.): 275 mm (max. increased) Max. distance between platens: 1180 mm Ejector stroke: 125 mm Ejector force: 35 kN Injection Unit Injection unit type: …/610 Ljdpfx Ajxxrr Tshwshc Screw diameter: 45 mm L/D ratio: 20 Injection volume: 305 cm³ Shot weight: 270 g Specific injection pressure: 2050 bar Wear-resistant screw; bimetallic barrel, standard L:D Three-piece ring-type non-return valve (RSP) Increased injection speed: 300 mm/s Additional Equipment Hour counter reading: 26,500 h - Increased mould mounting height (min. unchanged, max. extended) - Wear-resistant screw; bimetallic barrel; standard L:D; screw diameter 45 mm - Three-piece ring-type non-return valve (RSP) - Electro-hydraulic interface for connecting 2 hydraulic cores on the moving mould plate, via a separate hydraulic unit - Increased injection speed (300 mm/s) - Increased mould mounting height (min. unchanged, max. extended) Offer for the injection moulding machine only

Condition: excellent (used), Year of construction: 1997, Demag Ergotech 150-440/610 Closing 150 TO NC 4 Scrow 40 mm Ljdpfx Ahed N Ux Dowjhc BJ 1997 Tie bars distance 50x50 Lifting volumes 255 cm Spray-softened 230 g

Condition: used, Year of construction: 2004, functionality: fully functional, machine/vehicle number: 7143-1001, clamping force: 500 kN, screw diameter: 30 mm, displacement volume: 106 cm³, injection pressure: 1,995 bar, injection weight: 94 g, opening stroke: 400 mm, installation height: 210 mm, total length: 4,000 mm, total width: 1,400 mm, total height: 2,100 mm, overall weight: 3,400 kg, pump power: 15 W, Please refer to the photos and video for the condition and contents of the offer. The equipment is currently dismantled. Lodpfx Asx Spw Aohwshc The device/system offered here has been tested and is fully functional and ready for operation. The purchase price includes VAT. You will receive a proper invoice. A net invoice can be issued for foreign customers, provided a valid VAT ID number is supplied. Subject to prior sale. Visit our website to view our additional offers. The mentioned company names and trademarks are the property of their respective owners and are used for identification and description purposes only. Deviations from the technical data and errors in the article description may occur and are reserved.
