Vertical machining center

Deckel Maho DMU 60 T

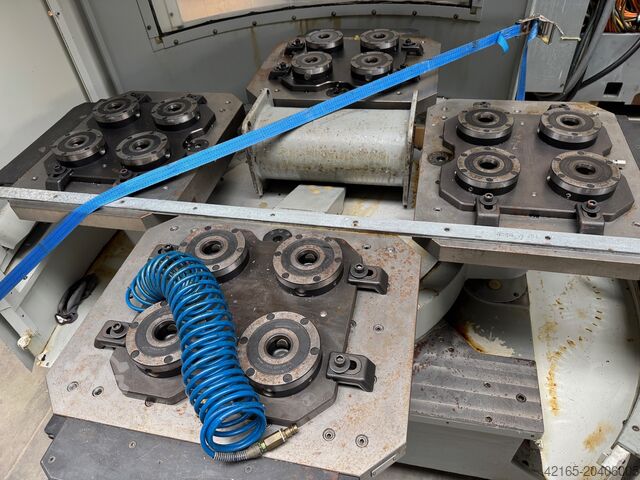

Condition: good (used), Year of construction: 2003, functionality: fully functional, CNC Machining Center DECKEL MAHO DMU 60T RS3 Year of manufacture: 2003 CNC Control: HEIDENHAIN MILL PLUS IT Travel distances: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm Spindle speed: 12,000 rpm Tool holder: SK40 Tool changer: 120 positions Table: Swivelling rotary table Pallets: 5 pallets, each with dimensions 630mm x 500mm Additional equipment: Rotary pallet changer, chip conveyor, 40 bar internal coolant supply, 1500 l coolant tank, Pedpsxr D Dzefx Ag Hegu Rapid traverse: 26 m/min in X and Y, 20 m/min in Z Feed rate: 20 - 10,000 mm/min Spindle: 20 - 18,000 rpm, drive power 28/19 kW, max. torque 121/82 Nm (Total weight incl. accessories approx. 11 tons)

Condition: excellent (used), Year of construction: 2002, Machining Centre - Universal Deckel Maho DMU 60 T Year of manufacture: 2002 Number of axes: 5 (3+2) Technical specifications: Travel paths: X-axis: 630 mm Y-axis: 560 mm Z-axis: 560 mm Magazine positions: 24 SK 40 NC rotary table integrated into fixed table. Clamping surface: 600 x 1000 mm Diameter: 600 mm Table weight: 800 kg Number of T-slots: 8 / 1 T-slot width: 14 H12 / 14 H7 T-slot distance: 63 mm Max. table load: 350 kg Rotatable C: 360° Pgedpfx Agsxqfw Tj Hou 5 axes - Controlled NC swivel milling head (B axis) - Rotary table integrated into fixed table (C axis)

Condition: used, Year of construction: 2001, Technical details: x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm c-axis: Tisch 360° ° b-axis: Spindel=rechts:90/links=10° manuell ° control: Heidenhain TNC 430 MillPlusM table-size: 1000x600 mm table load capacity: 400 kg tool taper: SK 40 Revolution per minute: 20 - 12 000 U/min. feed speeds infinitely variable: x/y/z= 20 - 10.000 mm/min tool changer: 2 Magazine tool changer with: 12 place pro Magazin spindle hours: 21 212 h operating hours - idle run: 49 845 h total power requirement: 20,6 kW Weight approx.: 6,7 t Psdsu Idgcjpfx Ag Hogu dimension machine xH: 3,0 x 2,0 x 2,15 m Equipment: - AC motors for x/y and z-axis - Tool clamping hydraulic/mechanical - Chip conveyor with separator (screw conveyor) - seperately working indexing head Ø 300mm with manual control unit for B-axis table tilting -10° / +95° and C-axis table turning 360° (not interpolable, electric selectable via manual control unit) - Coolant unit 8 m³/h (dimensions: L:1,1 x W: 0,54 x H:1,2m) - control unit *

Condition: excellent (used), Year of construction: 2000, Hello I have for sale a Deckel Maho DMU 60T machining center Control: Heidenhain 430 Technical condition of the machine - perfect Year of production: 2000 Country of Manufacture: Germany Machine parameters: Axis travel "X" : 630mm "Y" axis travel: 560mm Z" axis travel 560mm Torsion head Maximum spindle speed 18,000 rpm. Tool storage: 24pcs(2x12 tools) Heidenhain measuring scales on all axes Walking through spindle Chip conveyor High-pressure cooling system central lubrication Pgedpfxstyk Hme Ag Hou hydraulic tool clamping spindle taper SK40 Full programming instructions Documentation Included in the price loading and transport by forwarding within the country The price also includes training in programming and operation of the machine We take care of all procedures related to obtaining leasing Stal-Com company for 17 years we are engaged in sales, service and training on CNC machines from DMG group. We specialize in all models of Gildemeister lathes and Deckel Maho Machining Centers. All machines undergo a meticulous technical inspection. In addition to customers from Poland, our machines are also bought by customers from all over Europe and parts of Asia. Each machine can be checked during production as we also do machining. After purchasing a machine from our company, we provide training for the crew as well as we can set up the production of details at the customer's site. We cooperate with many companies on a permanent basis to which we provide further machine tools.

Condition: used, Year of construction: 2002, Technical details: x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm weight of the machine ca.: 6,5 t Number of axles: 5 St. spindle turning speed range: 18.000 U/min numbers of tools in magazin: 24 Pgsdjxn Swnspfx Ag Hou tool taper: SK 40 Round Table B-Axis *

Condition: used, Year of construction: 2003, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 15 / 10 kW max. Torque 125 Nm tool taper MAS BT 40 swivellable B: 103 ° feed: feed speeds 20 - 10.000 mm/min Pgedovn Utcopfx Ag Hju rapid traverse X-axis 26 m/min rapid traverse Y-axis 26 m/min rapid traverse Z-axis 20 m/min Resolution 0,001 mm input unit 0,001 mm work table: surface area 1.000 x 600 mm rotary table dia. 600 mm number of T-slots 8 / 1 T-slot - width 14 H12 / 14 H7 T-slot - distance 63 mm max. table loading capacity 350 kg rotatable C: 360 ° Tool-Presetter: number of toolpositions 24 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 315 mm max. tool weight 8 kg total wight max. 100 kg total power requirement 26 kVA weight of the machine ca. 6,7 t dimensions of the machine ca. 4,0 x 4,0 x 3,0 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 T - 5-Axis - controled NC-Swivel-Milling-Head ( B-Axis ) - Rotary Table integrated in Working-Table ( C-Axis )

Year of construction: 2001, condition: used, Price: On request Milling machine, VMC Model: CNC Manufacturer: DMG / Deckel MAHO Type: DMU60T Year of manufacturing: 2001 Control: Heidenhain Working-hours: 26266 Travel: 630x560x560mm Spindle-speed: 10.000 rpm Table-dimensions: 1000x600mm Spindle-take: ISO40 Pjdpowng H Hjfx Ag Hjgu Max. Workpiece-weight: 400kg Incl. Filter Interlit SK200-760 Incl. Automatic toolholder Incl. Documents Incl. Video available Machine-weight: 6700kg Machine-dimensions: 3500x2400x2200mm - Drive system: CNC - Year: 2001 - Documentation available: No Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 2004, operating hours: 78,592 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, operating hours of spindle: 26,290 h, Motor spindle 12,000 rpm 24 magazine positions SK40 3D path control iTNC 530 Pgsdpfjw U Tbisx Ag Hju Further technical data can be found in the attachment. Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport and proper installation – all from a single source. Billing according to individual conditions and terms. Contact us for your personal offer.

Condition: ready for operation (used), Year of construction: 2001, Control Unit Brand HEIDENHAIN Model TNC 426/430M Pedpjw Uak Rsfx Ag Hjgu This 4-axis DECKEL MAHO DMU 60 T was manufactured in 2001. It features a Heidenhain TNC 426/430M control, a working area of 630x530x630 mm, and a spindle speed of 12,000 rpm. The swivel B axis can rotate 180 degrees, and it includes two tool magazines with 12 positions each. Consider the opportunity to buy this DECKEL MAHO DMU 60 T vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2002, operating hours: 37,369 h, functionality: fully functional, machine/vehicle number: 1112.000594 3, travel distance X-axis: 630 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, table width: 1,000 mm, table length: 600 mm, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Working Spindle Tool holder: SK 40 Worktable Clamping surface: 1,000 × 600 mm T-slot spacing: 63 mm Number of T-slots / size: 9 / 14 H7 Tool Magazine Magazine positions (2 × 12 positions): 24 pcs Tool diameter magazine 1: 130 mm Tool diameter magazine 2: 80 mm Tool length from spindle nose: 315 mm Tool weight for automatic tool change: 8 kg Total tool weight in magazine: 100 kg Main Drive Spindle speed: 12,000 rpm Tool holder: SK 40 MACHINE DETAILS Control: Heidenhain TNC 426/430 Electrical Equipment Pjdpfswx Ekxex Ag Hsgu Machine connection: 3N/PE–50/60 Hz, 400/230 V Standard current consumption: 38 A Standard power consumption: 26 kVA Standard fuse protection: 50 A Rated output: 35 UVA Transport Transport weight (machine with tool changer): approx. 6,700 kg Transport dimensions (L x W x H): approx. 3.50 x 2.70 x 2.21 m EQUIPMENT Tool changer included
