Band saw machine 125mm

CORMAK BS-128HDRC 230V

Condition: excellent (used), Year of construction: 2009, Bernardo FM 45 V drilling and milling machine. The FM 45 V drilling and milling machine offers an optimal price-performance ratio thanks to the standard spindle feed. The dovetail guide of the gear head ensures maximum precision and stability. Drilling capacity in steel 32 mm Drilling capacity in cast iron 40 mm Throat 260 mm Spindle speed (12) 50 - 2520 rpm Spindle mount MK 4 Quill stroke 120 mm Quill feed (3) 0.12 / 0.19 / 0.26 mm/rev Table size 820 x 240 mm Distance spindle / table 40 - 485 mm Travel path (x / y) 550 / 190 mm Height adjustment of milling head 400 mm T-slot size Ndjdpfx Ahsvutw Hovod 14 mm T-slot distance 55 mm Motor output power S1 100% 0.85 / 1.1 kW (400 V) Motor input power S6 40% 1.1 / 1.5 kW (400 V) Machine dimensions (W x D x H) 1150 x 850 x 1450 mm Weight approx. 285 kg Standard with automatic spindle feed and thread cutting device Large speed range 50 - 2520 rpm (12 levels) Dovetail guide for x, y and z axes, adjustable via wedge strips Versatile application options, slot milling, face milling, boring,.... Solid large cross table, precisely surface-machined Milling: spindle feed via handwheel Drilling: spindle feed via handwheel High-quality aluminum motor, designed for continuous operation Stable and vibration-free cast design Simple and quick speed change using a gear lever Pivoting milling head for angle drilling, milling bevels, etc. Location: from stock 54634 Bitburg - available at short notice -

Condition: new, Year of construction: 2025, functionality: fully functional, Band saw for metal with optimal cutting range, commonly used in carpentry, production and craft facilities. Machine description CORMAK BS 128HDRC band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its big weight (103 kg) makes it very stable and vibration-free during cutting larger materials. Element cut can be fed manually or via feeding machines. Feed during cutting is gravitational, with oil flow in a two-chamber hydraulic cylinder. Arm lowering control is ensured by a valve controlling oil flow between chambers of cylinder. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45o - + 60o. Technical data Cutting band size 1640×13×0.65 mm Cutting speed 23/34/54 m/min Power 0,55 kW/230V Arm lowering control stepless, through hydraulic cylinder Cutting range -45° - + 60° Dimensions 942×442×548 mm Weight 103 kg Maximum cutting range [mm] Angle 0°.....ø125 mm.....100×150 mm....100×100 mm -45°.....ø90 mm.....90×75 mm.....90×90 mm +45°.....ø90 mm.....90×75 mm.....90×90 mm +60°.....ø55 mm.....55×55 mm.....55×55 mm Default equipment 3rd generation hydraulic cylinder Table for vertical cuts Quick-clamping vice Njdewq A Dyopfx Ahvodd Coolant system Workpiece limiter - bumper Automatic limiting switches Modern thermal engine protection Mobile base with four wheels User manual The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.

Condition: new, NEBES TM 275 Band Saw Machine - 400 v Three-phase NEW "CE" INDUCTION motor Cast iron structure Adjustable cutting angle from 0° to 60° All cast iron structure Electric pump for blade lubrication and cooling Oil-bath blade tensioning gauge Front controls and two cutting speeds Deviator for exclusion of coolant pump Ndsdpfx Aheh Nm Ncsvod Blade guide with carbide skids (H.M.) Round cut 0° 220 mm Square cut 0° 200 x 200 mm Flat Cut 0° 230 x 185 mm Round cut 45° 150 mm Square cut 45° 150x150 mm Flat Cut 45° 150x200 mm Round Cut 60° 90 mm Square Cut 60° 90x90 mm Flat Cut 60° 90x120 mm HP 1.3 Voltage 400 V Blade size 2450 x 27 x 0.90 mm Weight 265 kg

Condition: new, Cutting area round 0°: 127 mm Cutting area flat 0°: 125 x 130 mm Cutting area round 45° right: 90 mm Cutting area square 45° right: 90 x 90 mm Cutting area round 60° right: 45 mm Cutting area square 60° right: 45 x 45 mm Vice opening: 130 mm Saw blade dimensions: 1440 x 13 x 0.65 mm Cutting speed: 60 m / min Motor power: 0.55 kW Voltage: 230 V Weight approx.: 25 kg Ndodpfxoilk Eko Ahvsd Features: - Saw arm can be tilted up to 60 - Ideal for cutting pipes, profile material and solid material made of VA, iron, etc. - Stable saw arm for low-vibration work - Low-noise due to stable design - Micro limit switch switches off at the end of the cut - Quick-clamping vice for quick and easy workpiece clamping - Precise, adjustable saw blade guide for optimum cutting results - Environmentally friendly, as there is no need to use lubricants and coolants - Ideal for use on construction sites due to its low weight - Underframe optionally available (not included in the scope of delivery) Equipment: - Saw blade 1440 x 13 x 0.65 mm - Material stop - Ergonomic handle Underframe available at an extra charge: 149 Euro net

Condition: new, x-travel 300 mm y-travel 200 mm z-travel 350 mm table-size 700 x 200 mm spindle taper ISO 40 turning speed range - horizontal 150 - 1660 U/min turning speed range - vertical 110 - 1230 U/min quill stroke 120 mm spindle drive 3,0 kW weight of the machine ca. 1,15 t dimensions of the machine ca. 1,31 x 1,38 x 1,65 m Ndsdpfxsfrzune Ahvsd

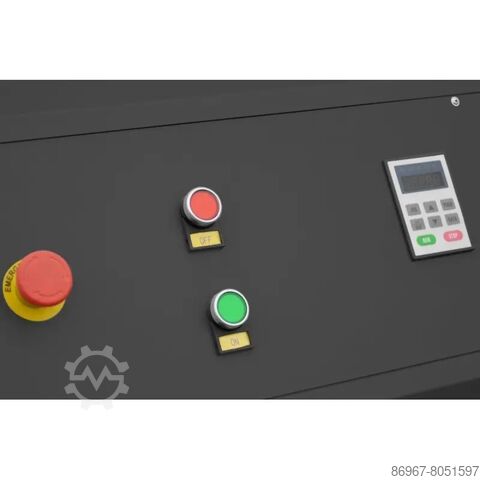

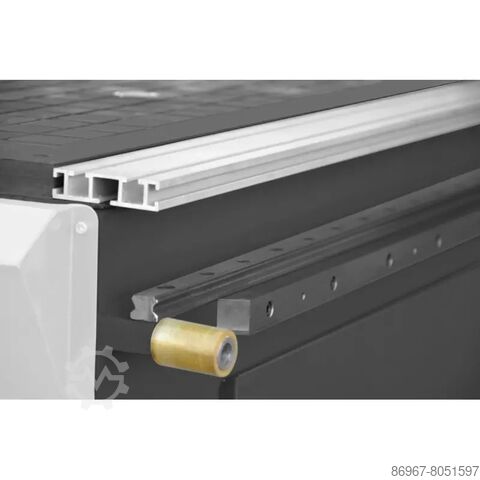

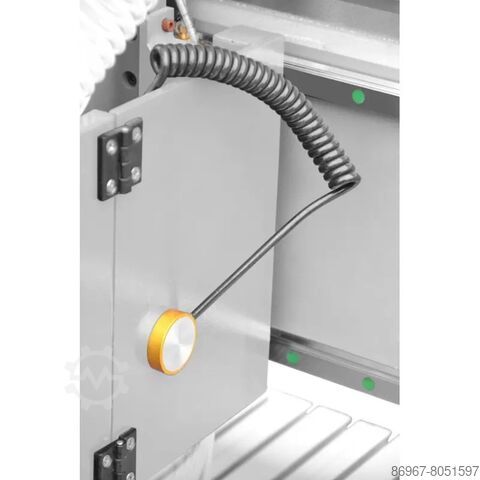

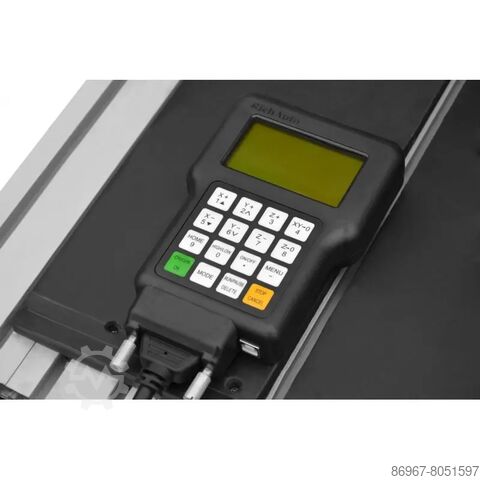

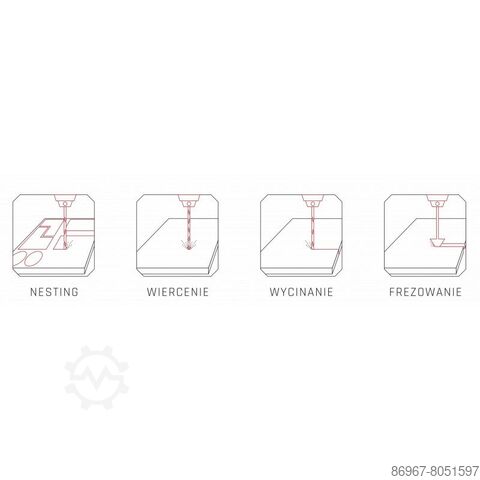

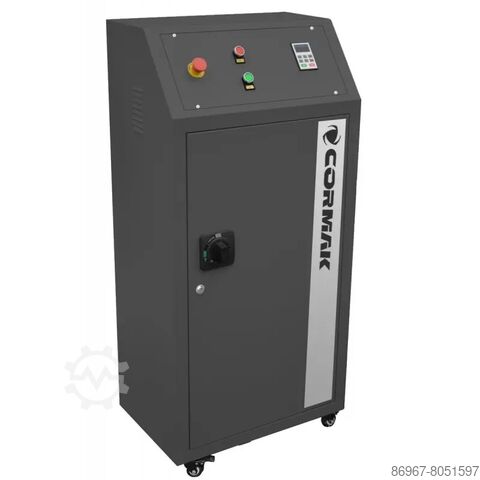

Condition: new, Year of construction: 2025, CORMAK C2030 CNC milling machine is intended for machining and cutting wooden materials, particleboards, MDF, OSB, plywood, plastics, PVC, acrylic glass. Device mainly designed for usage in furniture and modelling industries. 2100×3100 mm working table. Ndsdpsiz A Rqsfx Ahvsd The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. Check our offer on our website.

Condition: new, Year of construction: 2025, machine/vehicle number: SÇ 542 Alüminyum Kopya Freze Makinası Yüksek Frekanslı, - Conforms to CE standards - Used for handle, lock, etc. processing of all profiles - It works comfortably with advanced technology motor support. - It has burr-free and comfortable processing speed - Water cooling system available - Pneumatic profile clamping system Nodpfx Ahjra Nr Rjvodd - High frequency motor (18000 rpm) OPTION - Right conveyor system (1 meter)

Condition: used, Year of construction: 2025, Band saw for metal, with optimal cutting range, commonly used in carpentry, production and craft facilities. Machine description Universal CORMAK BS 712 A band saw with CE marking is a trusted solution for metal cutting, unparalleled for years. Features high efficiency and easy handling. Makes it possible to cut in vertical plane and perpendicular to the cut material axis, or at any angle in 45°–90° range. Element cut can be fed manually or by any feeding device. The feed during cutting is gravitational on the principle of oil flow in a two-chamber hydraulic cylinder. Suitable speed of arm lowering is obtained thanks to the valve controlling oil flow between the hydraulic cylinder chambers. Required band linear velocity is obtained by changing the ratio on the belt pulley between the worm gear and the driving motor. Rugged, stable and refined construction as well as the arm made of uniform cast iron provide high rigidity and stability while cutting, ensuring accuracy and long-term reliability. The design of the 20 mm saw blade used in the machine makes it possible to cut large quantities of elements. Technical data Cutting band size 2360×27×0.9 mm Band tension mechanical (manual) Band speeds 22, 33, 45, 65 m/min Feed speed 0–50 m/min (stepless feed) Arm lowering control stepless – hydraulic cylinder Power supply 3-phase 400V Main motor power 1.1 kW Weight 190 kg Angle 0°.....180 mm....300×180 mm.....180×180 mm 45°.....130 mm....120×125 mm.....125×125 mm Machine construction Cutting band transmission system is composed of two cast iron wheels. The first wheel is a tensioning wheel (adjusted with a lever) and the second one is a drive wheel. Torque from the worm gear is directly transmitted to the tensioning wheel, while the worm gear is driven by an electric motor. Appropriate band angle is ensured through a set of roller bearings. The base of the machine is a rigid cuboid made of steel sheets inside which is a cooling fluid container with a flood coolant pump. Due to swivel vice it is possible to cut material at 0°–45° angles. Tank for flood coolant draining and a container for chips are fixed to the upper part of the machine. Cast iron workbench is attached to the tank, which in turn is equipped with a vice for material clamping and to which the arm of the band saw is fixed. Nodpswl Ea Tjfx Ahvodd In the lower part of the machine base are holes for wheel axles. Safety during cutting process is ensured by an electric installation meeting all CE requirements. The machine is equipped with a limiting switch that stops the machine after cutting process is finished, an emergency button, a number of microswitches that switch the machine off when, e.g., the belt transmission guard or cutting band guard are opened. Additionally, our machine, as opposed to competitors, is equipped with a wire brush for band cleaning – it prevents the blade from blocking and ensures a more effective cutting. WARNING ! 3 ITEMS AVAILABLE: 1. MACHINE IS RETURNED, SERVICED, ASSEMBLED (poz.519) 2. MACHINE IS RETURNED, NO PACKAGING, DENTED MOTOR COVER ,COMPLETE, ASSEMBLED (poz. 518) 3. MACHINE IS RETURNED, NO PACKAGING, DENTED MOTOR COVER AND BELT COVER, ASSEMBLED (poz. 517)

Condition: new, cutting diameter 250 mm saw band length 3150 x 27 x 0,9 mm table height 750 mm cutting width 170 x 310 mm cutting speed 25 - 90 m/min 130 mm Nodpepam E Rsfx Ahvedd 130 mm 205 mm Impact energy 205 mm connected load frequency 400 Volt total power requirement 1,5 kW weight of the machine ca. 0,5 t dimensions 0,95 x 1,16 x 1,98 m Solid band saw - Double miter cuts on the right up to 60°, on the left up to 45° - AutoCut - Vice with quick clamping device - Belt tension control - Electric automatic cooling system - Material stop max 600mm

Condition: new, bore capacity in steel (diameter) 30 mm throat 254 mm bore stroke 120 mm 4 Motor output 9 speeds 120 - 1810 U/min column diameter 92 mm table surface area 475 x 425 mm total power requirement 1,1 kW dimensions 915 x 450 x 1705 mm weight ca. 135 kg Column drilling machine OPTIdrill DP 33V promotion set / 3020680SET With an electronically controllable drive in a modern design * Industrial engine * Quiet running spindle thanks to new spindle design * Machine operation with safety electronics in 24 V direct current * Guaranteed concentricity = 0.02 mm in the measured drilling spindle * Clockwise/counterclockwise rotation * Precision spindle bore * Control panel with user-friendly, dirt and water resistant * Membrane keyboard * RPM display * Separate emergency stop button * Tapping function * Precisely crafted, stable drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated by 360° * Drilling depth stop * LED machine light integrated in the drill head * V-belt cover with safety switch * Thick-walled steel column for high power absorption and stability * Solid, large base plate with T-slots * Execution of the entire machine Scope of delivery: - Keyless drill chuck 0 - 16 mm - T-Nuts -expectors - Operating tool Nsdpoq Nrmrofx Ahvsdd - BMP 160 machine vice
