Vertical machining center

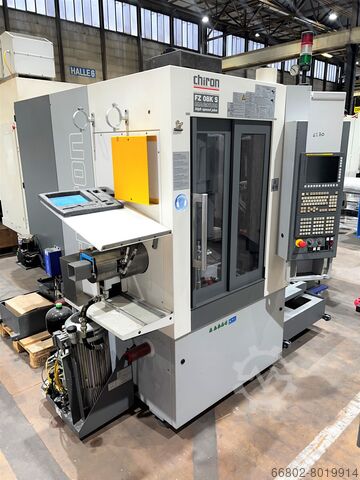

CHIRON FZ 08 KS MAGNUM

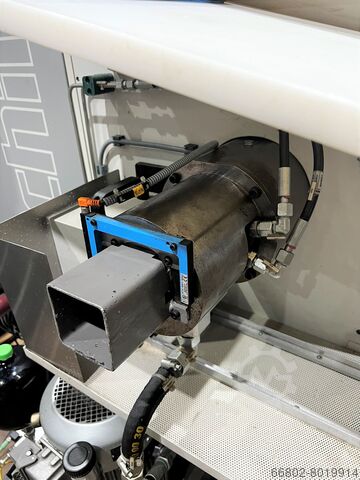

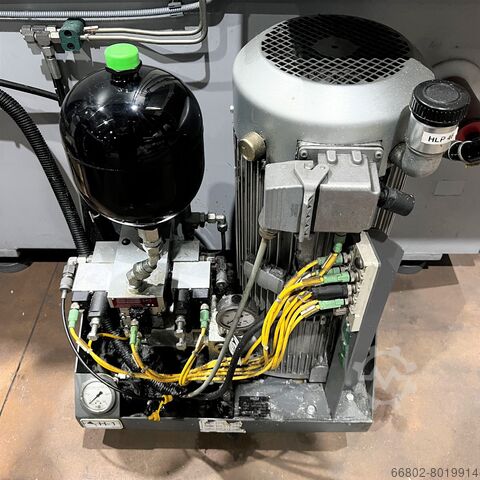

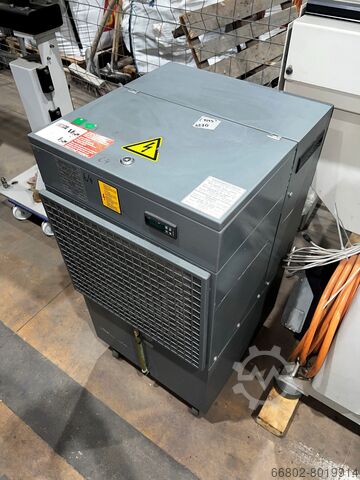

Year of construction: 2010, condition: excellent (used), Chiron FZ 08 KS MAG High Speed Plus Machining Center 1. TECHNICAL DATA Drilling capacity in steel: ⌀ 12 mm thread: M8 Milling capacity in steel: 30 cm3/min tool stations: 24 Spindle nose: HSK-A 40 Max. tool diameter: 47 mm / 100 mm Max. Tool length: 160 mm Max. Tool weight: 1.2 kg Chip to chip change time: 2.1 s Speed, main spindle: 30`000 rpm Max. Torque: 11 Nm Spindle power: 9 kW Off-bar package Speed: 8000 rpm Max. torque: 14,3 Nm Bar passage: 32 mm Bar feed, stroke: 460 mm X-axis: 450 mm Y-axis: 270 mm Njdpfsiy D Tmjx Ad Delh Z-axis: 310 mm Max. feed force / X and Y axis: 2000 N Max. feed force / Z-axis: 3000 N Rapid traverse (X,Y and Z axis): 75 m/min NC swivel head, swivel range: -20° / +115° rapid traverse, B-axis: 60 rpm Floor space requirement: 2.3 m2 Weight: approx. 4000 kg For the correctness, completeness and topicality of the data we do not take over guarantee.

Condition: as good as new (ex-display), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, number of slots in tool magazine: 49, input voltage: 400 V, type of input current: three-phase, Vertical machining center CHIRON FZ08 KS Magnum TECHNICAL CHARACTERISTICS: CNC control FANUC 18i-MB5 Number of axes: 7 Stroke X axis: 450 [mm] Stroke Y axis: 270 [mm] Stroke Z axis: 310 [mm] Traversing feeds X, Y and Z axes: 30000 [mm/min] Max. bar diameter in turning spindle: 32 [mm] Angular A axis stroke: 360 [°] A axis indexing precision: 0.001 [°] B axis swivelling stroke: -20° / +115° [°] B axis indexing precision: 0.001 [°] Spindle type: HSK40 Max. spindle speed: 30000 [rpm] Tool changer magazin number of stations: 49 Part turnaround by robot (6th side machining): Yes RS232 Interface: Yes Total power required: 17 [kVA] Supply voltage: 400 [V] Number of hours under power: 20292 [h] Number of running hours: 9911 [h] Dimensions: 1500 x 2600 x 2300 [mm] Nedpfxsww H D Ds Ad Dslh Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 spindle cooling unit x1 parts catcher with conveying strip x1 coolant tank x1 unit for 6th face machining x1 collet chuck x30 tool holders type HSK40 BIG KAISER x15 collets type F37 SCHAUBLIN x1 maintenance manual x1 electrical diagrams manual x1 operator's manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

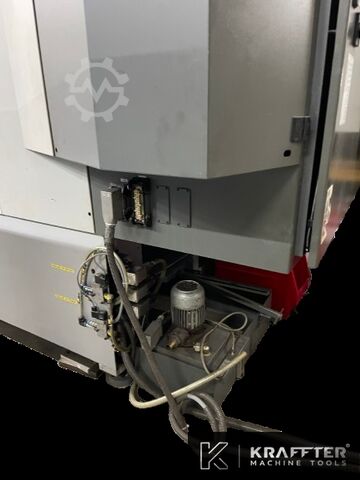

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450/270/310 [mm] - Rapid traverses rates (X/Y/Z) : 75 [m/min] B ROTARY AXIS Nljdpfx Ajuhbr Tsd Dsh - Travel : -20/+90 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 40 TURNING SPINDLE - Spindle speeds : 8000 [rpm] - Max. bar diameter : 32 [mm] - C axis indexing precision : 0.001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X2600 [mm] - Machine height : 2300 [mm] - Machine weight : 2850 [kg] MACHINE HOURS EQUIPMENT - CNC : Siemens 840 D - 3 colors status lamp
