Hydr. Press brake

AMADA 4100 x 400 to

Year of construction: 2007, condition: ready for operation (used), An Amada CNC turret punching machine for medium format sheets including an MP300 M loading unit, Wilson X-Sharp grinding machine and numerous standard and special punching tools are available. 1) CNC turret punching machine Amada, year of manufacture: 2007, punching force: 300kN, max. sheet dimensions X/Y: 3000mm/1500mm, max. sheet thickness: 6.35mm, stroke rate: 600 strokes/min, simultaneous positioning speed: 128m/min, repeat accuracy: +/-0.1mm, machine dimensions X/Y/Z: approx. 5100mm/3200mm/2300mm, weight: approx. 18000kg. 2) Automatic sheet loading and unloading system Amada MP 300 M, max. sheet dimensions X/Y: 3000mm/1500mm, min. sheet dimensions X/Y: 1000mm/300mm, sheet thickness range: 0.8mm-6mm, max. load capacity per pallet: 3000kg, max. stacking height: 400mm, max. sheet weight: 170kg, max. pallets: 9, pallet change time: 25s, sheet loading time: 18s, weight: approx. 4900kg. 3) Wilson X-Sharp tool grinding machine. Documentation available. On-site inspection is possible. Fsdpfx Acowhp N Do Hegi

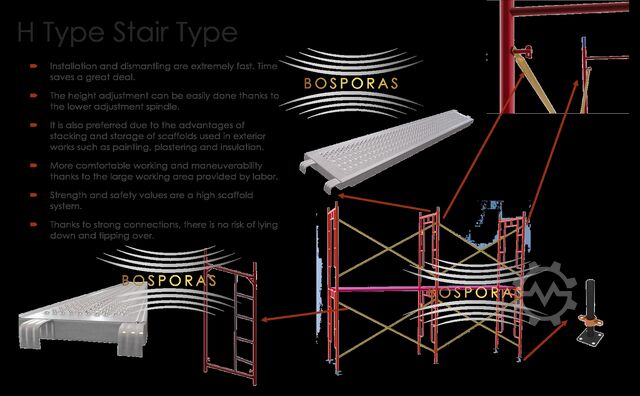

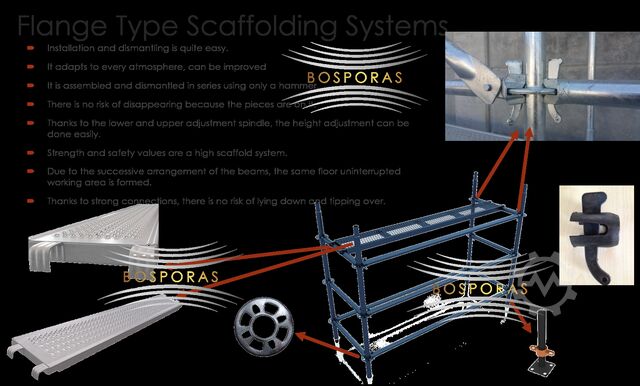

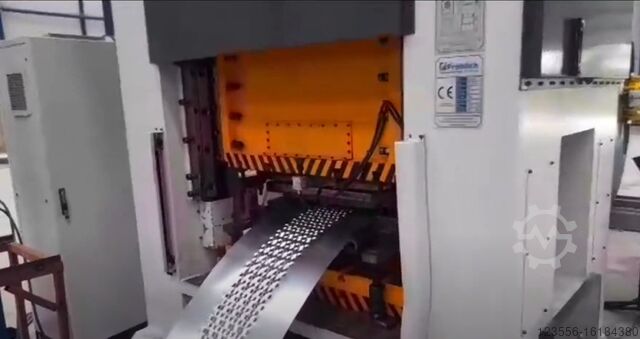

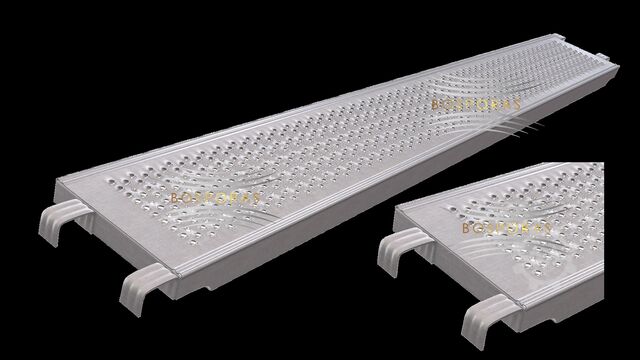

Condition: new, Year of construction: 2024, type of input current: three-phase, sheet thickness steel (max.): 2 mm, total width: 3,000 mm, total length: 32,000 mm, total height: 2,400 mm, coil weight: 6,000 kg, The roll forming line for the production of Scaffolding Systems. The line produces a perforated scaffolding profile in 24 stations. Fgjdpfx Astq Sb Rsc Hsi The line consists for Decoiler, Staightener, Servo Feeder, Mechanical Press, Perforating and Embossing Tool / Die and Roll Form Machine. For more, please contact us.

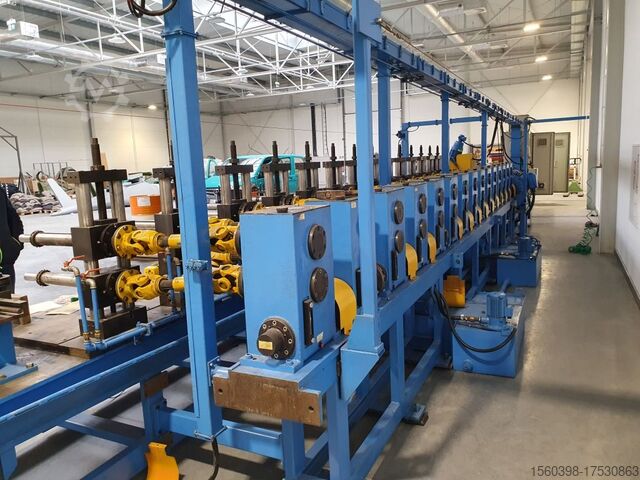

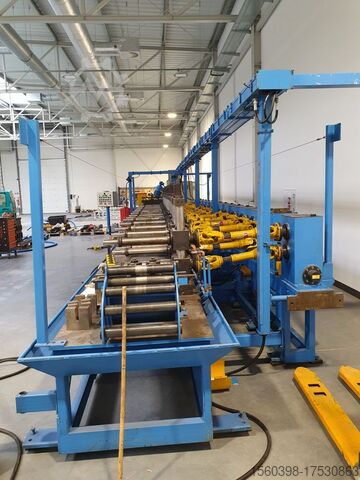

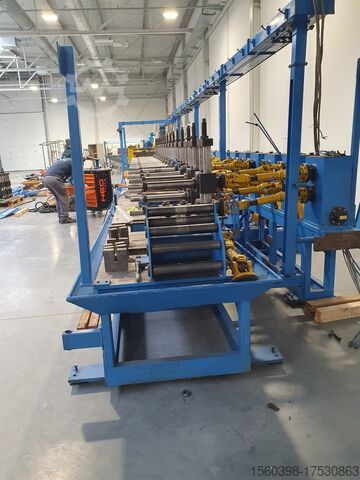

Condition: good (used), functionality: fully functional, year of last overhaul: 2023, EN: For sale a complete and efficient line for profiling steel sheet from tape, e.g. Magnelis, into any profiles, e.g. type C, used in photovoltaic installations and farms, construction of steel halls, shelters as well as for furniture production, etc. Fsdsu A U Utspfx Ac Hsgi The line with the unwinder is located in a heated hall in almost laboratory conditions, for the buyer the possibility of starting it up before purchase, I have contacts to companies that supply sets of profiling rollers for specific profiles as well as to companies dealing with the modernization of such machines in terms of its expansion, etc.

Condition: as good as new (ex-display), Year of construction: 2022, pressing force: 320 t, working range: 4,100 mm, Like Baykal 320ton x 4metre Cnc Pressbrake For sale Make: Baykal Capacity: 4metre x 320ton Axis: R and X axis on the back gauge - 2 axis back gauge Year: 2022 Control: Esa S660W Fodpfx Acsvgc R He Hsgi Complete with tooling: Multi V lower as well as segmented tooling Technical information: Up to 12mm thickness at 4 meters / Up to 15mm thickness at 3 meters Bending power: 320 tonne 5 axis Bending length (over tooling) 4100mm Bending length (between frames) 3550mm automatic under crowning and laser angle measurement system with live feedback to CNC control for the most accurate folding process

Condition: new, Year of construction: 2025, functionality: fully functional, type of input current: AC, sheet thickness steel (max.): 4 mm, working width: 1,600 mm, coil weight: 15,000 kg, Roll forming machines are designed to make sheet metal into straight formed shapes. The roll forming process takes a continuous flat sheet of metal and power feeds it through a successive series of Hardened Steel Rollers, which station by station shape the metal into a finished shape as it passes through them. We supply the Roll Forming Line to produce all steel profiles of solar panels including the brackets. The dimensions of the profiles are varies depending on the solar panel sizes. Our roll forming line is quite flexible and it is capable to produce all sizes without making any mechanical adjustment. Fgodpfou D Hv Sex Ac Hoi All parts of the Roll Forming Line are manufactured in our facility from A to Z. Starting from the Decoiler (Uncoiler), Straightener and Coil Loading Car, up to the Servo Feeder, Press, Roll Forming Machine, Fly Shear and Stacking Unit can be controlled from one point. The system is controlled by PLC system, set in the customer language.

Condition: used, CNC Press Brake AMADA Type HFBO 50 x 2000 Serial No. HFBO 50 20 S60906 Year of manufacture: 1996 Press brake with 8 axes - CNC control Operator II Pressing force: 50 tons Working length: 2090 mm Stroke: 200 mm Frame depth: 420 mm Distance between side frames: 1660 mm Max. tool installation height: 460 mm Fgedpfxew Iq Uge Ac Hei Table width: 60 mm Table height above floor: 910 mm Motor power: 4.5 kW Mains connection: 400 Volt, 50 Hz, 20 Amp. - 8-axis CNC control Operator II (Y1-Y2 / X1-X2 / Z1-Z2 / R1-R2) - 2 freely programmable backgauge fingers, movable laterally and in height (Z1+Z2+R1+R2) - Press beam with servo valves and measuring system Y1 and Y2 - Operation via electric foot switch and/or two-hand control panel - Mechanical lever-style tool clamping for the upper tool (5 AMADA Expert, 5 UKB 50.667 H=120 mm) - Tool holder for lower tool, 60 mm wide - 11-piece upper tool set, 30°, total length 1675 mm - consisting of: 1x 835 / 1x 300 / 1x 165 / 1x 50 / 1x 45 / 1x 35 / 1x 20 / 1x 15 / 1x 10 / 2x 100 mm (end pieces) in length - 2-piece lower tool, 88° - V8, total length 1250 mm - consisting of: 1x 835 / 1x 415 mm in length - Indicated operating hours: 30,537 h - Operating manual, electrical diagram, spare parts book included Weight: 4,700 kg Good condition

Condition: used, Year of construction: 2003, pressing force: 260 t, Hydraulic press brake Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Fgedpfx Acowkttro Hsi Technical specifications Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Pressure capacity: 260 t Bending length: 6000 mm Dimensions (L x W x H): approx. L 7.0 x W 2.0 x H 3.70 m Weight: approx. 31 t Equipment • ATS 560 digital control system • Fiessler light barrier at the front • Centrally adjustable crowning • Amada tool system • Controlled axes: Y1, Y2, X • Manual R-axis • 1 set of upper tools • 1 set of lower tools All information is subject to change. A demonstration is available at any time in the exhibition hall.

Year of construction: 2016, condition: ready for operation (used), General Data Measurements width 6212 mm Measurements depth 5436 mm Measurements height 2342 mm Machine weight 21500 kg Main Drive Number of axis 4 Movement X-Axis Movement 3050 mm Y-Axis Movement 1525 mm Z-Axis Movement 37 mm Fgsdpfjxaqmrox Ac Hji Turret Number of turrets 1 Additional Equipment Air-blow oil-mist lubrication Slug-vacuum system Digital tool ID / barcode system Integrated tapping: inch/metric taps (M2.5–M8) Marking & deburring tools: on-board marking and deburring options This 4-axis AMADA EMZ3612M2 was manufactured in 2016, featuring a high-speed servo-electric turret punch press with twin AC servo direct drive. It boasts a 33-ton press capacity and an AMNC-F / AMNC-4ie CNC system for enhanced control. The machine handles sheet formats up to 3050x1525 mm and includes a "King" turret with up to 58 stations. Energy efficiency is optimized with AC servo drives. If you are looking to get high-quality punching capabilities consider the AMADA EMZ3612M2 machine we have for sale. Contact us for more information. Application Types Punching

Condition: good (used), Year of construction: 2006, Gebruikte 4 meter CNC-kantbank van Bystronic Type: PR 200 4100 Bouwjaar: 2006 Capaciteit: 4100 x 200 ton Cybelec CNC-besturing Y1, Y2, X, R, Z1 en Z2 Fjdewz Iwaspfx Ac Hjgi Hydraulische boven- en onderklemming Hydraulische CNC-bombering

Condition: excellent (used), Year of construction: 2001, Technical Specifications: Working length: 4230 mm Frame gap: 3760 mm Press force: 170 t CNC control: AMADA Operator Number of controlled axes: 5 Motorized adjustable backgauge Throat depth: 600 mm Stroke: 350 mm Working height: 960 mm Motor power: 16.5 kW CE marking Dimensions (L x W x H): approx. 4700 x 2200 x 2900 mm Weight: approx. 14.8 tonnes Accessories: Side-mounted movable safety guards Fgedpfjxhf D Uox Ac Hoi The seller assumes no liability for typographical or data transmission errors. The machine's appearance, technical condition, and wear are consistent with its age; used machines are sold without any warranty.
