Press brake

AMADA PROMECAM HFP 50-20

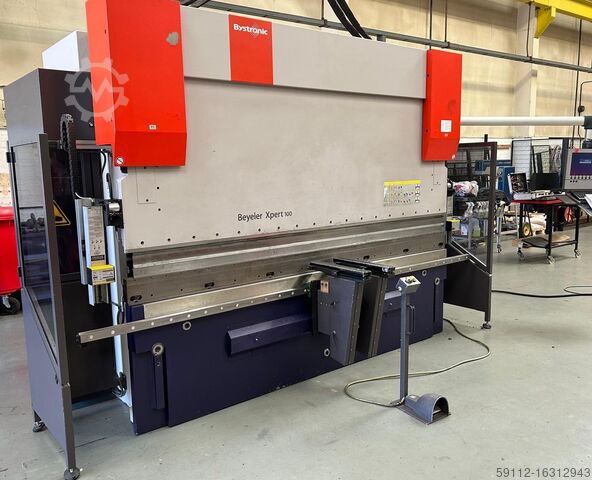

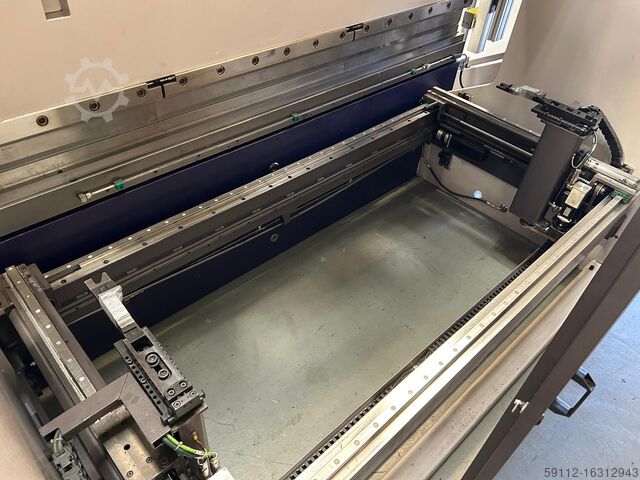

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, working width: 3,100 mm, pressing force: 100 t, working length: 3,100 mm, High quality, very clean used Bystronic 8axis cnc pressbrake for sale with hemming table BYSTRONIC XPERT100x3100 100 ton x 3100mm 8 Axis CNC Hydraulic Down stroke Press Brake Manufactured 2009 – fully serviced and well maintained High Specification: Year of Manufacture /new 2009 Model Xpert 100x3100 Hydraulic tool clamping Back gauge Programmable Guards Capacity 100 Ton Maximum length of bend 3100mm / 3metre Max stroke 215mm Itsdpfx Agstv Ixteqep Rapid approach 180mm/s Tooling top and bottom Wander type footswitch Total 8 axis Y1,Y2,X1,X2,R1,R2,Z1,Z2 – 6axis back gauge With hemming table to Dutch fold / produce safety edges and flashings Crowning

Condition: like new (used), Year of construction: 2017, Technical data: Working length: 1270 mm Distance between the columns: 1000 mm Pressing force: 60 to CNC control: CYBELEC ModEva Ijdpfx Aevxincjgqotp Controlled axes: Y1 / Y2; X; R Number of stop fingers 2 pcs. Stroke: 275 mm Motor power: 7.5 kW Working height: 920 mm Light barrier: FIESSLER CE mark Dimensions (length x width x height): approx. 3250 x 2500 x 2600 mm Weight: approx. 4.5 tons Accessories: 1 set of tools Condition: as good as new, very little used Machine comes from a vocational school

Condition: used, Type: Vemag LPG 202 The LPG 202 length portioning machine links sausages with identical lengths and weights It can process cooked and raw sausage in natural, collagen and cellulose casings Ijdpeh Dxicsfx Agqstp The LPG 202 length portioning machine is compatible with the following filling machines: AVG 201 ROBBY / ROBBY 2 ROBOT HP-series ROBOT DP-series Sausages are produced in the calibration range from 14 to 40+ mm Link all types of casing Extremely accurate lengths and weights Gentle treatment of casings Linking speed can be adapted to the type of casing Hygienic operation Casing magazine for artificial casings (optional) Device to detect ends of natural casings (optional) Delivery time: Machine is ready for delivery

Condition: good (used), functionality: fully functional, Year of construction: 2010, operating hours: 15,996 h, overall weight: 6,750 kg, input voltage: 400 V, 1000 KN Max. stroke: 200 Weight: 6750 Noise level: 74 dB Year of manufacture: 07/2010 Voltage: 400 V / 50Hz Rated current: Current operating hours: 15,996 hours with manual angle measurement and correction system with safety laser UVV inspection on a regular basis / maintenance always carried out by Amada on a regular basis Accessories: Tool die: 2 pieces UKB 20.478 V8/12 30° 835mm 3 pieces UKB 20.344 V4/V7 88° 835mm Tool holder: 4 pieces UKB substructure for double V die 20.287 + 60.919 835mm Iodpotwliwefx Agqstp Bending swords: 5 pieces UKB 10.261 H100 R0.6/90° 2 pieces UKB 11.158 H80 R0.6/30° 2 pieces UKB 11.200 H66 R0.8/90° Other: Light barrier in need of repair (new price approx. €4500) – separately as a replacement as an attachment (has been renewed) The machine can be inspected under power in DE84051 Mettenbach by appointment. Sale only to commercial customers and with exclusion of any warranty!

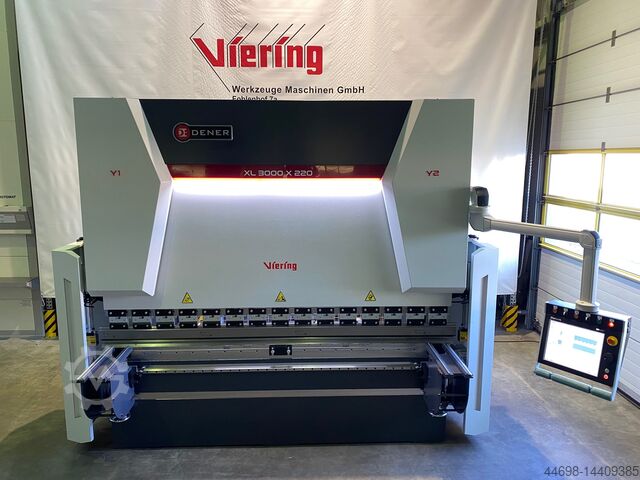

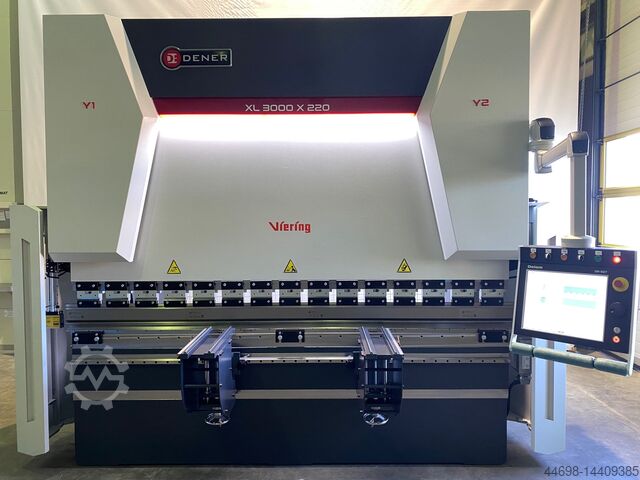

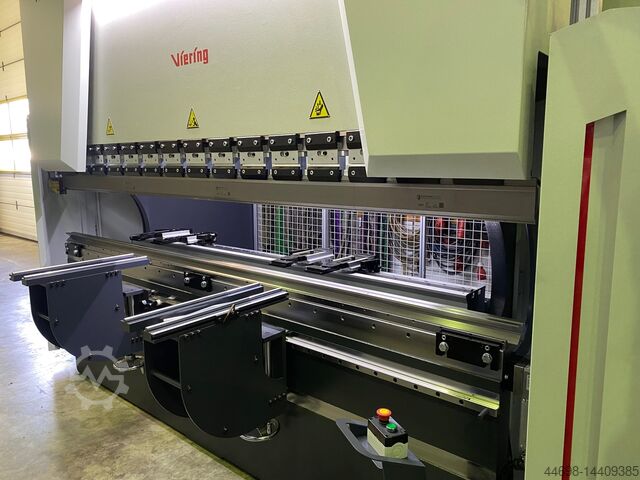

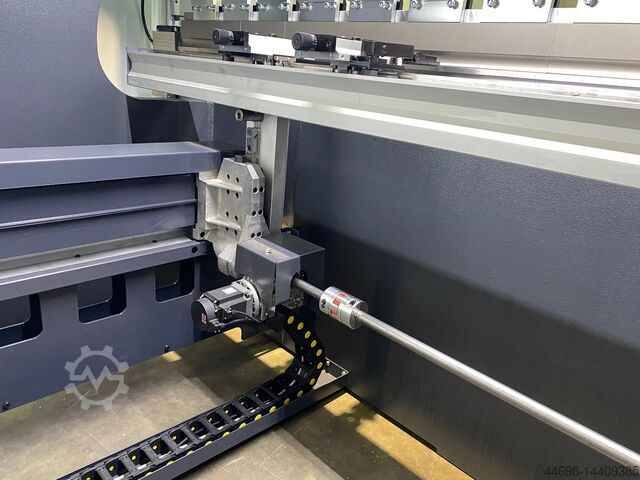

Condition: new, functionality: fully functional, Year of construction: 2024, Folding length 3020 mm Press force 220 t Infeed speed 140 mm/s Bending speed max. 10 mm/s Retraction speed 130 mm/s Stroke 350 mm Installation height 600 mm Projection 450 mm X-travel 750mm X- speed 300mm/sec. R- travel 250 R- speed 100mm/sec. free column passage 2555 mm Machine length 3730 mm Machine width 2290 mm total height 3055 mm Height of machine table 820 mm Motor power 22 kW Oil tank 300 l Machine weight 11500 kg (technical data may vary depending on equipment) Standard equipment: 3 CNC axes (Y1, Y2, X) Double-guided press beam, stable and precise Stable back gauge, double-guided Manual stop fingers double-guided on linear guide Sliding front arms with height adjustment Side and rear protective covers Lower die adapter rail 60 mm Man. Top tool clamping system (Promecam system) Manual crowning Foot switch with emergency stop switch 380 V, 50-60 Hz, 3 phases LED lighting Isdjq D Dzlepfx Agqjtp incl. the options: Delem control unit DA 66T Fiessler AKAS 2M laser finger guard + FPSC Safety PLC (manual) X-R axis with servo motors CNC crowning for high bending accuracy 2 additional stop fingers - Further machining lengths and thicknesses are available with corresponding accessories! -

Year of construction: 2009, condition: ready for operation (used), General Data Machine weight 6030 Itjdpfx Asw N Tm Uogqop Main Drive Number of axis 8 Media Power consumption 15.2 A This 8-axis AMADA HFE 80-25 L press brake was manufactured in 2009. It features a nominal press force of 800 kN, a stroke of 320 mm, and a working speed range of 1-10 mm/s. The machine has a robust frame with a total weight of 6030 kg and dimensions that ensure stability and precision in operation. If you are looking to get high-quality bending capabilities, consider the AMADA HFE 80-25 L machine we have for sale. Contact us for more information. Application Types Bending

Condition: used, Year of construction: 1997, The bending press was manufactured in 1997 in England by EDWARDS PEARSON. The folding press is in good condition, sold with tools. Always serviced and maintained on time. The machine tools are connected and can be tested and inspected. Itedpfxsrfx Uto Agqsp Specification: Model: EDWARDS PEARSON 100/3100 PR6 Year: 1997 Working length: 3 100 mm Bending capacity: 100 T Travel: 172 mm Distance between table and frame: 450 mm Working speed: 100 mm/s Return speed: 110 mm/s Axes: auto X1, X2, Y1, Y2, Z1 , Z2 , R Tools: Available Weight: 7 T Other: New screen recently replaced, keyboard attached for ease of use. If you have more questions, we will be happy to answer.

Condition: good (used), Cutting length: 3100 mm Itjdpfxetwl Awo Agqop Cutting capacity : 6 mm steel Digital back gauge Cutting gap and cutting angle adjustment from the front 1 set of spare blades

Condition: used, Year of construction: 1985, machine/vehicle number: 101018, Lg.no. 24242 Technical data: - max. cutting width 3050 mm - max. cutting capacity at 45 Kp/mm² 6 mm - Cutting angle adjustment 1 - 2.20 ° - Cutting gap - adjustment via lateral adjustment lever - Number of hold-down devices 16 pcs - Stroke rate up to 22 /min - Front angle stop 1100 mm - 2 front support arms 600 mm - mot. Back gauge with ELGO positioning control - 5 - 1000 mm - cutting line lighting - E - foot switch - Drive 400 V / 12 kW Itsdpfxstqmzcs Agqep - Space requirement approx. W 4100 x H 1500 x D 2200 mm - Weight approx. 5.0 t

Condition: ready for operation (used), Year of construction: 1996, pressure 80.0 t chamfer lenght 2550 mm distance between columns 2130 mm column arm 420 mm ajustment speed 100 mm/sec working feed 10.0 mm/sec return speed 80.0 mm/sec stroke 200 mm dayligth 470 mm table width 60.0 mm table height 910 mm Number of working hours ca. 37.102 h total power requirement 9.0 KW weight of the machine ca. 5750 kg range L-W-H 3100 x 2180 x 2540 mm good / well-maintained condition (!!) - Inspected condition - Machine video - ?v=fwdjSiQYq_A Equipment: - CNC electro-hydraulic press brake - OPERATEUR CNC control for 8 axes X1 + X2, Y1 + Y2, R1 + R2, Z1 + Z2 - CNC-controlled backgauge adjustment (X-axes) - CNC-controlled vertical adjustment of the stop fingers (R-axes) - CNC-controlled left-right adjustment of the stop fingers (Z-axes) - Freely movable two-hand control & foot switch - Tool crowning - AMADA type - Various tools - CE marking - Side guards (hinged doors) Iodpfxjxabnys Agqstp - Rear guards (hinged door) - 2x emergency stop buttons at the front - Operating instructions
