Press brake

AMADA PROMECAM HFE 220-3000L LONG STROKE

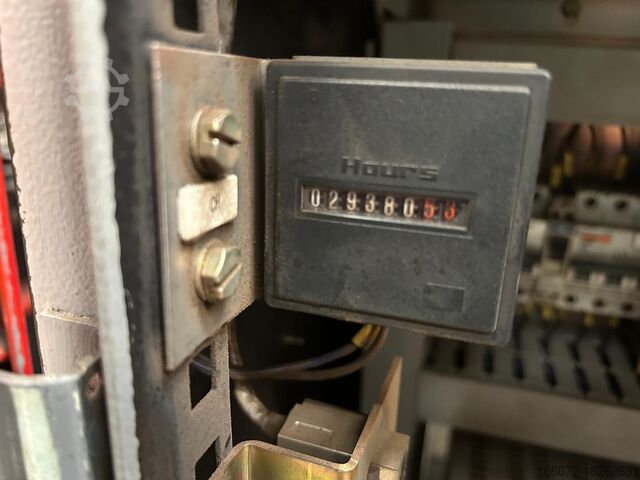

Condition: good (used), functionality: fully functional, Year of construction: 2010, operating hours: 15,996 h, overall weight: 6,750 kg, input voltage: 400 V, 1000 KN Max. stroke: 200 Weight: 6750 Noise level: 74 dB Year of manufacture: 07/2010 Voltage: 400 V / 50Hz Rated current: Current operating hours: 15,996 hours with manual angle measurement and correction system with safety laser UVV inspection on a regular basis / maintenance always carried out by Amada on a regular basis Accessories: Tool die: 2 pieces UKB 20.478 V8/12 30° 835mm 3 pieces UKB 20.344 V4/V7 88° 835mm Tool holder: 4 pieces UKB substructure for double V die 20.287 + 60.919 835mm Bending swords: 5 pieces UKB 10.261 H100 R0.6/90° 2 pieces UKB 11.158 H80 R0.6/30° Iiodpfx Aotwliwef Sjk 2 pieces UKB 11.200 H66 R0.8/90° Other: Light barrier in need of repair (new price approx. €4500) – separately as a replacement as an attachment (has been renewed) The machine can be inspected under power in DE84051 Mettenbach by appointment. Sale only to commercial customers and with exclusion of any warranty!

Condition: excellent (used), Year of construction: 2012, Model Amada HFE M2 220t 4m, 8 axis Press Brake Year 2012 Tonnage 220 tonnes Max. Bend Length 4280 mm Stroke Length 200 mm Approach Speed 1 - 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1 - 100 mm/sec Iiedpfsv S U Izsx Af Sok Oil Capacity 195L Motor Power Weight 17450 Kg Dimensions Machine Length 5070 mm Machine Depth 2075 mm Machine Height 3085 mm Distance Between Side Frames 3760mm Beam width 180 mm Table height 960 mm Open Height 470 mm Throat Depth 420 mm

Condition: refurbished (used), Year of construction: 2005, AMADA MODEL HFE 130-3 130 tons capacity x 3000 bending length hydraulic downstroking press brake complete with OP 2000 7 AXIS cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Iedpfxothgide Af Sjik Model Amada HFE 130-3 downstroke CNC Press brake Year 2005 hours 9000 Tonnage 1300 KN Type OP 2000 CNC Controlled Axis Y1, Y2, X, R1 R2 Z1 Z2 Max. Bend Length 3000 mm Open height 470 mm Stroke Length 200 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity 110 LITRES Motor Power 11 kw Weight 7800 KG kg CNC Control Backgauge Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: excellent (used), Year of construction: 2001, AMADA MODEL HFE 103L LONG STROKE 100 tons capacity x 3000 bending length hydraulic downstroking press brake complete with OP 2000 7 AXIS cnc control, machine mounted electronic guards , side and rear interlocked fencing Model Amada HFE 1O3 L downstroke CNC Press brake Year 2001 Ijdpfx Aou Iukfof Soik Tonnage 1000 KN Type OP 2000 CNC Controlled Axis Y1, Y2, X, R Max. Bend Length 3000 mm Open height 620 mm Stroke Length 350 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity Motor Power 7.5kw Weight 7600 kg Bed Length 3000 mm Bed Width 60 mm Open Height 470 mm Throat Depth 420 mm CNC Control Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: good (used), functionality: fully functional, Amada mod. Togu-EU sharpening machine with PLC for sharpening punches and dies of punching machines complete with accessories. Ijdot Daiwepfx Af Seik
